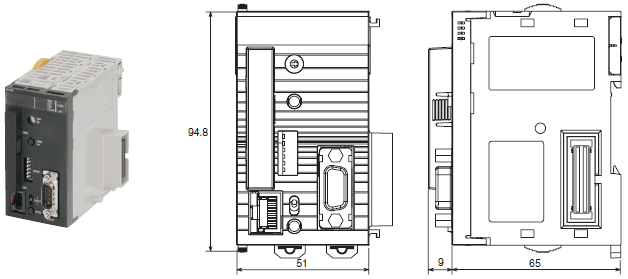

OMRON CJ1W-SPU01-V2 Dimensions

/Images/l_1732-25-118588-198x198.jpg

last update: September 17, 2013

The SPU Unit reads PLC I/O memory according to specified collection methods and stores the data in CSV (Comma Separated Value) files with time stamps. The SPU Unit can record a variety of data from equipment using a PLC.

Data Collection Using a PLC Unit

PLC data is collected in a PLC Unit with superior environmental resistance without using a computer.
Until now, data has been collected in PLC memory.
Using an SPU Unit, however, eliminates the need for a PLC with a large-capacity memory and also eliminates the need for programming data collection in the ladder program.

Fast Collection of Large Amounts of Data with Data Concurrency

Using a computer for data collection presents the problems of a slow collection speed and low collection point capacity. An SPU Unit enables high-speed collection of large amounts of data*.
Direct use of the PLC bus instead of communications via a serial connection or LAN enables large amounts of data to be collected at a high speed.
Some data collection devices from other companies may not provide data concurrency. The SPU Unit, however, provides concurrency of simultaneous data.

* The maximum total size of all variables is 7,776 words. For details, refer to "CS1W-SPU01/SPU02-V2, CJ1W-SPU01-V2 SPU Units Operation Manual"(Cat. No. V236).

Use the SPU Unit to record data such as production history data, inspection data, and process data. Electronically managing data on the operation of equipment and devices enables root cause analysis when errors occur, as well as a proper understanding of operational tendencies.

No Ladder Programing

No ladder programming is required for data collection. Data can be collected simply by performing the settings from the setting software (i.e., SPU-Console).
No need to leave extra space in the PLC memory for saving data.
Note: The PLC cycle time increases in proportion to the number of points collected.

Restriction-free Data Configuration Files without Depending on PLC Memory Space

Files can be created with the desired data configuration for only the necessary data from PLC memory.
The data to be collected can be stored in files in the required data type, such as BOOL, REAL, INT, BCD, or STRING.
Data configuration files required for the host computer can be created, so necessary data can be retrieved even if the SPU is mounted in a device after the PLC is already set up.
CHANNEL_BLOCK has been added to the variable data types from SPU Unit version 2.0. When the data type is set to CHANNEL_BLOCK, the data in a consecutive memory area starting from the specified address for the specified number of elements is handled as a single data item with no commas.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Microsoft product screen shots reprinted with permission from Microsoft Corporation.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Data Management Middleware for the SYSMC SPU

The Data Management Middleware for the SPU Unit is Windows-based software for transferring data files collected by the SPU Unit to the computer and managing the files.
The CSV files can be transferred to a computer by setting only the CSV files the user wants to transfer. It is not necessary to install or set up FTP server software on the computer.
The data collected by the SPU Unit is automatically stored in an untitled table as a database. It isn't necessary to create a program to store data to the database, reducing the cost of system development. (This is a new version-2 function.)
The user can select a name and folder when copying the data files to the computer. Files can be copied with easily distinguished names, for example, by adding the collection date and time to a chosen character string such as “Device1.”
The SPU Unit will continue recording data even if the computer is turned OFF because of a network interruption or other cause.
Copying can be resumed from a data file if it is not already transferred. Data collection systems can therefore be established with strong resistance against system disturbances.
The SPU Unit time and CPU Unit time can be periodically set to the computer time automatically.

last update: September 17, 2013

Purchase the OMRON CJ1 Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CJ1W-SPU01-V2 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CJ1W-SPU01-V2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CJ1W-SPU01-V2Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

R88M-K, R88D-KT G5-series AC Servomotors/Servo Drives with General-purpose Pulse Train or Analog ...
CJ1W-CIF11 SYSMAC Option RS-422A Converter/Features
D4E-[]N Small Sealed Switch/Features
E5C2 Temperature Controller/Features
KM-N2-FLK Power Monitor/Features

OMRON CJ1W-SPU01-V2 specification
CJ1W-SPU01-V2 CJ-series High-speed Data Storage Unit (SPU Unit)/Specifications
last update: April 2, 2018
Functional and Performance Specifications

Item Specifications
Unit model number CJ1W-SPU01-V2
Applicable CPU Units CJ Series
Unit classification CPU Bus Unit
Unit number 0 to F
Mounting location CPU Backplane or CJ-series Expansion Backplane
No. of Units per PLC 16 Unit max.
Interfaces PC card slot Memory Card slot
Used by mounting a Memory Card. *
COMM port Connects to an uninterruptive power supply (UPS) for detection of power failure.
Ethernet (LAN) ports One port (10/100Base-TX, RJ45 Modular Connector)
UPS power failure input None (UPS connected to COMM port.)
Settings
and
operation Unit number switch (UNIT) Rotary switch: Sets the unit number of the Unit as a CPU Bus Unit.
Select switch (SELECT) Toggle switch: Sets the number of the command to execute.
Enter button (ENTER) Pushbutton switch: Confirms and starts execution of the command number set using the select
switch.
DIP switch (DIPSW) DIP switch: System settings
Card button Pressed to release the Memory Card inserted in the Memory Card slot. The Memory Card can
then be removed.
Indications LED indicators RUN, ERC, ERH, COMM, LAN1, LAN2, and CARD
7-segment display Displays error information and operating status of the SPU Unit.
Displays the command number set on the select switch.
Displays the IP address.
Display other information.
Functions Sampling
Saving files
Network communications
Recipe function
Operating modes Data Storage Mode and Sampling Mode (Either mode can be selected with the Change Operating
Mode command.)
Current consumption 5 VDC, 560 mA max. (SPU Unit only)
Other: Memory Card (HMC-EF[][][]): 120 mA max.
(Supplied from Power Supply Unit.)
Dimensions 51 × 90 × 65 mm (W × H × D)
Weight 180 g max.

* Use the HMC-EF[][][] Memory Card from OMRON. Normal operation may not be possible with any other compact flash cards.

General Specifications: Specifications conform to the general specifications of the CJ-series CPU Units.

Detailed Specifications

Item Specifications
Sampling Sampling
Mode Sampling patterns Realtime sampling: 1 pattern
Normal sampling: Up to 3 patterns
Starting methods Any one of the following methods can be used:
Start automatically when SPU Unit is started.
Start with an SPU-Console operation.
Start with the SPU Unit’s front-panel command buttons.
(Specify the command number.)
Start from the CPU Unit’s ladder program.
Interval User-specified intervals: *1
Realtime sampling: 5 ms min.
Normal sampling: 100 ms min.
Data Storage
Mode
(Unit Ver. 1.2
or later) Data Collection
Patterns Basic Collection Pattern: 1 pattern (required)
Data Collection Patterns: Up to 64 patterns
Starting methods Basic
Collection
Pattern
(required) Any one of the following methods can be used:
Start when a specified event occurs. (Use a memory event
or scheduled event. For details, see the description of
Data Collection Patterns 1 to 64 below.)
Start automatically when SPU Unit is started.
Start with an SPU-Console operation.
Start with the SPU Unit’s front-panel command buttons.
(Specify the command number.)
Start from the CPU Unit’s ladder program.
Data
Collection
Patterns
1 to 64 Either of the following methods can be used to start when
an event occurs:
Memory events:
Start when a CPU Unit bit or word value matches a specified
condition. Up to 500 memory events can be specified.
Scheduled events:
Start at a specified time or time interval. Up to 16 scheduled
events can be specified.
Interval User-specified intervals: *2 *3
Basic Collection Pattern: 5 ms min.
Data Collection Patterns: 100 ms min.
Data Storage
Mode (Unit
Ver.2.0 or
later) Copy option Basic Collection Pattern: Cannot be set.
Data Collection Patterns: Up to 10 patterns.
Shared
Sampling
Mode and Data
Storage Mode
settings Applicable CPU
Unit I/O memory
areas CIO Area, WR Area, HR Area, AR Area, DM Area, and EM Area banks 0 to C
(CJ2: 0 to 18)
Specifying I/O
memory areas Specify the desired CPU Unit I/O memory area (data area) with a variable.
The data type can be specified with the variable.
The variables can be managed in groups.
Variable
data types BOOL, INT, UINT, DINT, UDINT, REAL, LREAL, STRING,
CHANNEL, UINT BCD, UDINT BCD, WORD, DWORD,
CHANNEL BLOCK
Maximum number
of variables 7,776 words total for all variables
Record Condition
setting Set whether or not to use a record condition.
If a record condition is used, sampling data is stored within the SPU Unit only when
the record condition is met. For example, sampling data can be recorded only while
a specified bit is ON or a specified word contains a particular value (comparison).
Data exchange
with the CPU Unit CPU Bus Unit Area
CPU Unit to SPU Unit: Command execution (such as starting/stopping sampling,
clearing a sampling file, or saving a sampling file).
SPU Unit to CPU Unit: SPU Unit status information
Saving files Collected data file
format CSV files Indices (record number), time stamps (hh:mm:ss:ms), ns, sampling
indices (serial numbers starting at 0 when sampling is started), data for
each symbol delimited with comma, records delimited with carriage returns
Record
contents
Number of
sampling result
records stored
in one file Any one of the following methods can be used.
The number of records can be specified.
A time period can be specified. (The number of records is calculated automatically
from the time period and interval between samples.)
With a version 1.2 or later SPU Unit, the number of records can be left unspecified.
(In this case, data is added to the file until data collection is stopped.
Records are added to one file from the start of data collection until the end.)
Scaling Instead of directly storing the values collected from the CPU Unit's I/O memory, the
collected values can be scaled with a linear equation or upper/lower limit range before
storage (unit version 1.2 or later).
File size 2 GB per file
Record size Specified by user.
Number of records Specified by user or calculated automatically.
Saving method Data can be saved to a single file or multiple files (up to 1,200 files).
Network communications Windows network
shared folders Files in the Memory Card inserted in the PC card slot in the SPU Unit can be
shared with a Windows personal computer.
FTP FTP client provided.
FINS
communications FINS server to execute FINS command
Routing to transfer FINS messages
Recipe
function Data Storage
Mode
(Unit Ver. 2.0
or later) Number of fields 10,000
Recipe files File format: CSV
The file size is restricted by the size of file that can be stored in the recipe folder.
Records: Specified by the user.
Number of records No limit, but restricted by the file size that can be stored in the recipe folder.
Writing method Conversion method: Each field is written to the specified address in the specified data
type.
Continuous region method: Data written to continuos memory addresses.
Searching for
recipe keys Searching within files: The text string that was passed as the key is searched for in the
target search columns in the recipe files and the rows for any matches that are found
are extracted as recipe data.
Searching for file names: The text string that was passed as the key is searched for in
the recipe file names (i.e., a search is made for key.csv), and the files with matching files
names are used as recipe files just like previous versions.
Key list search: A search is made for recipe keys with the method used for unit version
2.0.

*1. In both cases, the sampling cannot be performed faster than the CPU Unit's cycle time. The actual sampling interval
will always be longer than the CPU Unit's cycle time even if the sampling interval is set shorter than the cycle time.
*2. The Data Collection Patterns use the data collected by the Basic Collection Pattern, so the data will be collected at the
Basic Collection Pattern’s interval even if the Data Collection Pattern’s interval is set shorter than the Basic Collection
Pattern’s interval.
*3. The actual Basic Collection Pattern interval will always be longer than the CPU Unit's cycle time even if the sampling
interval is set shorter than the cycle time.
Note: For details, refer to "CS1W-SPU01/SPU02-V2, CJ1W-SPU01-V2 SPU Units Operation Manual"(Cat. No. V236).

SPU-Console (Setting/Monitoring Software) Specifications

The SPU-Console is a software product used for OMRON's Storage and Processing Unit (called the SPU Unit) to set and operate the SPU Unit, monitor operating status/errors, display trend graphs, and perform other operations from a personal computer.

SPU-Console Specifications

Item Specifications
Model number WS02-SPTC1-V2 (SPU-Console Ver. 2.2)
System requirements Computer hardware Computer that meets the system requirements for Microsoft Windows
CD-ROM drive Required for installation.
Display Super VGA (800 × 600) or better high-resolution video adapter and monitor
Mouse Must conform to the models supported by the applicable OS.
Network card A separate Ethernet network card is required for computers that do not have a LAN port.
OS Microsoft Windows 7 (32bit/64bit)
Microsoft Windows 8 (32bit/64bit)
Microsoft Windows 8.1 (32bit/64bit) *
Microsoft Windows 10 (32bit/64bit) *
Application platform Microsoft.NET Framework Version 4.6
Communications platform FinsGateway Version 2003
Functions Unit information, Unit setup, variable settings, collection pattern settings, event settings,
recipe settings, trend graphs, and reports
Unit information Monitor SPU Unit operating status and error information are displayed.
Operation Operations, such as starting sampling
Unit setup IP network settings
FINS network settings
Variable settings Setting items to sample (by specifying I/O memory addresses using variables)
Collection pattern settings Collection pattern settings (period, file designations for saving, etc.)
Recipe settings (Data Storage Mode) Recipe settings (recipe file, write destination, key, etc.)
Event settings
(in Data Storage Mode) Memory event settings Settings for conditions according to changes in memory (e.g., bits turning ON)
Scheduler settings Settings for schedules (e.g., specific times, time intervals)
Trend graphs Historical trends CSV files are read and displayed.
Realtime trends
(Sampling Mode) Current sampling data is read and displayed in trend graphics in real time.

* Use SPU-Console Ver. 2.21 or later for Windows 8.1 and Windows 10.

Software Package Contents

The WS02-SPTC1-V2 contains the following software and data.

SPU-Console Execution Program

The program that performs SPU Unit settings and operations.

SPU Unit System Data

This system data is transferred to the SPU Unit.

FinsGateway Version 2003

This communications middleware is required to run the SPU-Console.

Manual Data

The manual data includes the SPU Unit Operation Manual (Cat. No. V236), the SPU-Console Operation Manual (Cat. No. V230), the SPU-Console Version 1.3 Operation Manual (Cat. No. V231), and the SPU-Console Version 2.2 Operation Manual (Cat. No. V237) in PDF (portable document format).

last update: April 2, 2018

OMRON CJ1W-SPU01-V2 catalog
CJ1W-SPU01-V2 CJ-series High-speed Data Storage Unit (SPU Unit)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CJ1W-SPU01-V2 Data Sheet -
[821KB] Apr 02, 201820180402 CJ1W-SPU01-V2 Data Sheet

SPU Unit Catalog V301-E1-07
[3504KB] Apr 02, 201820180402 SPU Unit Catalog

HMC-EF183 Data Sheet -
[232KB] Jun 06, 201220120606 HMC-EF183 Data Sheet

OMRON CJ1W-SPU01-V2 dimension
CJ1W-SPU01-V2 CJ-series High-speed Data Storage Unit (SPU Unit)/Dimensions
last update: September 24, 2012
CJ1W-SPU01-V2

last update: September 24, 2012

OMRON CJ1W-SPU01-V2 lineup
CJ1W-SPU01-V2 CJ-series High-speed Data Storage Unit (SPU Unit)/Lineup
last update: April 2, 2018
International Standards

The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
Contact your OMRON representative for further details and applicable conditions for these standards.

SPU Unit (High-speed Data Storage Unit)

Unit
type Product
name Specifications No. of
unit
numbers
allocated Current
consump-
tion (A) Model Stand-
ards
PC Card slot Ethernet
(LAN) port 5 V 24 V
CJ1
CPU
Bus
Units SPU Unit
(High-speed
Data Stor-
age Unit) CF Card Type I/II ×
1 slot
Use an OMRON
HMCEF[][][]
Memory Card. 1 port
(10/100Base-
TX) 1 0.56 - CJ1W-SPU01-V2 UC1,
CE

Note: 1. There is no accessory for the CJ-series SPU Unit.
2. This unit cannot be used with the Machine Automation Controller NJ-series.

Support Software

Product name Specifications Model Standards
SPU-Console
Support
Software Functions: Unit settings, sampling settings, etc., for High-speed
Data Collection Units (required for making settings for this Unit)
OS: Windows 7/Windows 8/Windows 8.1/Windows 10 WS02-SPTC1-V2 -

Option

Product name Specifications Model Stand-
ards
SPU Unit Data
Management
Middleware Function: Data files collected by SPU Unit Data
Management
Middleware are automatically acquired at the
personal computer, and can be registered in a
database.
OS: Windows XP/Windows Vista/Windows 7/
Windows 8 1 license WS02-EDMC1-V2 -
5 licenses WS02-EDMC1-V2L05
Memory Cards Flash memory, 128 MB Note:
Memory Card is
required for data
collection. HMC-EF183 N, L,
CE
Flash memory, 256 MB HMC-EF283
Flash memory, 512 MB HMC-EF583

Industrial Switching Hubs

Product
name Appear-
ance Specifications Current
con-
sumption
(A) Model Stand-
ards
Functions No.
of
pors Failure
detection
Industrial
Switching
Hubs Quality of Service (QoS):
EtherNet/IP control data priority
Failure detection:
Broadcast storm and LSI error detection
10/100BASE-TX, Auto-Negotiation 3 No 0.22 W4S1-03B UC, CE
5 No 0.22 W4S1-05B
5 Yes 0.22 W4S1-05C CE

last update: April 2, 2018

NO. CJ1W-SPU01-V2

TYPE:Programmable Controllers CJ1 CPU Bus Units

DATE:2021-06-11

Associated products:
CJ1W-SRM21 CJ-series CompoBus/S Master Unit/Features CJ1W-ETN21 CJ-series Ethernet Unit/Features

Item	Specifications
Unit model number	CJ1W-SPU01-V2
Applicable CPU Units	CJ Series
Unit classification	CPU Bus Unit
Unit number	0 to F
Mounting location	CPU Backplane or CJ-series Expansion Backplane
No. of Units per PLC	16 Unit max.
Interfaces	PC card slot	Memory Card slot Used by mounting a Memory Card. *
COMM port	Connects to an uninterruptive power supply (UPS) for detection of power failure.
Ethernet (LAN) ports	One port (10/100Base-TX, RJ45 Modular Connector)
UPS power failure input	None (UPS connected to COMM port.)
Settings and operation	Unit number switch (UNIT)	Rotary switch: Sets the unit number of the Unit as a CPU Bus Unit.
Select switch (SELECT)	Toggle switch: Sets the number of the command to execute.
Enter button (ENTER)	Pushbutton switch: Confirms and starts execution of the command number set using the select switch.
DIP switch (DIPSW)	DIP switch: System settings
Card button	Pressed to release the Memory Card inserted in the Memory Card slot. The Memory Card can then be removed.
Indications	LED indicators	RUN, ERC, ERH, COMM, LAN1, LAN2, and CARD
7-segment display	Displays error information and operating status of the SPU Unit. Displays the command number set on the select switch. Displays the IP address. Display other information.
Functions	Sampling Saving files Network communications Recipe function
Operating modes	Data Storage Mode and Sampling Mode (Either mode can be selected with the Change Operating Mode command.)
Current consumption	5 VDC, 560 mA max. (SPU Unit only) Other: Memory Card (HMC-EF[][][]): 120 mA max. (Supplied from Power Supply Unit.)
Dimensions	51 × 90 × 65 mm (W × H × D)
Weight	180 g max.

Item	Specifications
Sampling	Sampling Mode	Sampling patterns	Realtime sampling: 1 pattern Normal sampling: Up to 3 patterns
Starting methods	Any one of the following methods can be used: Start automatically when SPU Unit is started. Start with an SPU-Console operation. Start with the SPU Unit’s front-panel command buttons. (Specify the command number.) Start from the CPU Unit’s ladder program.
Interval	User-specified intervals: *1 Realtime sampling: 5 ms min. Normal sampling: 100 ms min.
Data Storage Mode (Unit Ver. 1.2 or later)	Data Collection Patterns	Basic Collection Pattern: 1 pattern (required) Data Collection Patterns: Up to 64 patterns
Starting methods	Basic Collection Pattern (required)	Any one of the following methods can be used: Start when a specified event occurs. (Use a memory event or scheduled event. For details, see the description of Data Collection Patterns 1 to 64 below.) Start automatically when SPU Unit is started. Start with an SPU-Console operation. Start with the SPU Unit’s front-panel command buttons. (Specify the command number.) Start from the CPU Unit’s ladder program.
Data Collection Patterns 1 to 64	Either of the following methods can be used to start when an event occurs: Memory events: Start when a CPU Unit bit or word value matches a specified condition. Up to 500 memory events can be specified. Scheduled events: Start at a specified time or time interval. Up to 16 scheduled events can be specified.
Interval	User-specified intervals: 2 3 Basic Collection Pattern: 5 ms min. Data Collection Patterns: 100 ms min.
Data Storage Mode (Unit Ver.2.0 or later)	Copy option	Basic Collection Pattern: Cannot be set. Data Collection Patterns: Up to 10 patterns.
Shared Sampling Mode and Data Storage Mode settings	Applicable CPU Unit I/O memory areas	CIO Area, WR Area, HR Area, AR Area, DM Area, and EM Area banks 0 to C (CJ2: 0 to 18)
Specifying I/O memory areas	Specify the desired CPU Unit I/O memory area (data area) with a variable. The data type can be specified with the variable. The variables can be managed in groups.
Variable data types	BOOL, INT, UINT, DINT, UDINT, REAL, LREAL, STRING, CHANNEL, UINT BCD, UDINT BCD, WORD, DWORD, CHANNEL BLOCK
Maximum number of variables	7,776 words total for all variables
Record Condition setting	Set whether or not to use a record condition. If a record condition is used, sampling data is stored within the SPU Unit only when the record condition is met. For example, sampling data can be recorded only while a specified bit is ON or a specified word contains a particular value (comparison).
Data exchange with the CPU Unit	CPU Bus Unit Area CPU Unit to SPU Unit: Command execution (such as starting/stopping sampling, clearing a sampling file, or saving a sampling file). SPU Unit to CPU Unit: SPU Unit status information
Saving files	Collected data file format	CSV files	Indices (record number), time stamps (hh:mm:ss:ms), ns, sampling indices (serial numbers starting at 0 when sampling is started), data for each symbol delimited with comma, records delimited with carriage returns
Record contents
Number of sampling result records stored in one file	Any one of the following methods can be used. The number of records can be specified. A time period can be specified. (The number of records is calculated automatically from the time period and interval between samples.) With a version 1.2 or later SPU Unit, the number of records can be left unspecified. (In this case, data is added to the file until data collection is stopped. Records are added to one file from the start of data collection until the end.)
Scaling	Instead of directly storing the values collected from the CPU Unit's I/O memory, the collected values can be scaled with a linear equation or upper/lower limit range before storage (unit version 1.2 or later).
File size	2 GB per file
Record size	Specified by user.
Number of records	Specified by user or calculated automatically.
Saving method	Data can be saved to a single file or multiple files (up to 1,200 files).
Network communications	Windows network shared folders	Files in the Memory Card inserted in the PC card slot in the SPU Unit can be shared with a Windows personal computer.
FTP	FTP client provided.
FINS communications	FINS server to execute FINS command Routing to transfer FINS messages
Recipe function	Data Storage Mode (Unit Ver. 2.0 or later)	Number of fields	10,000
Recipe files	File format: CSV The file size is restricted by the size of file that can be stored in the recipe folder. Records: Specified by the user.
Number of records	No limit, but restricted by the file size that can be stored in the recipe folder.
Writing method	Conversion method: Each field is written to the specified address in the specified data type. Continuous region method: Data written to continuos memory addresses.
Searching for recipe keys	Searching within files: The text string that was passed as the key is searched for in the target search columns in the recipe files and the rows for any matches that are found are extracted as recipe data. Searching for file names: The text string that was passed as the key is searched for in the recipe file names (i.e., a search is made for key.csv), and the files with matching files names are used as recipe files just like previous versions. Key list search: A search is made for recipe keys with the method used for unit version 2.0.

Item	Specifications
Model number	WS02-SPTC1-V2 (SPU-Console Ver. 2.2)
System requirements	Computer hardware	Computer that meets the system requirements for Microsoft Windows
CD-ROM drive	Required for installation.
Display	Super VGA (800 × 600) or better high-resolution video adapter and monitor
Mouse	Must conform to the models supported by the applicable OS.
Network card	A separate Ethernet network card is required for computers that do not have a LAN port.
OS	Microsoft Windows 7 (32bit/64bit) Microsoft Windows 8 (32bit/64bit) Microsoft Windows 8.1 (32bit/64bit) * Microsoft Windows 10 (32bit/64bit) *
Application platform	Microsoft.NET Framework Version 4.6
Communications platform	FinsGateway Version 2003
Functions	Unit information, Unit setup, variable settings, collection pattern settings, event settings, recipe settings, trend graphs, and reports
Unit information	Monitor	SPU Unit operating status and error information are displayed.
Operation	Operations, such as starting sampling
Unit setup	IP network settings
FINS network settings
Variable settings	Setting items to sample (by specifying I/O memory addresses using variables)
Collection pattern settings	Collection pattern settings (period, file designations for saving, etc.)
Recipe settings (Data Storage Mode)	Recipe settings (recipe file, write destination, key, etc.)
Event settings (in Data Storage Mode)	Memory event settings	Settings for conditions according to changes in memory (e.g., bits turning ON)
Scheduler settings	Settings for schedules (e.g., specific times, time intervals)
Trend graphs	Historical trends	CSV files are read and displayed.
Realtime trends (Sampling Mode)	Current sampling data is read and displayed in trend graphics in real time.

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CJ1W-SPU01-V2 Data Sheet	- [821KB]	Apr 02, 201820180402	CJ1W-SPU01-V2 Data Sheet
SPU Unit Catalog	V301-E1-07 [3504KB]	Apr 02, 201820180402	SPU Unit Catalog
HMC-EF183 Data Sheet	- [232KB]	Jun 06, 201220120606	HMC-EF183 Data Sheet

Unit type	Product name	Specifications	No. of unit numbers allocated	Current consump- tion (A)	Model	Stand- ards
PC Card slot	Ethernet (LAN) port	5 V	24 V
CJ1 CPU Bus Units	SPU Unit (High-speed Data Stor- age Unit)	CF Card Type I/II × 1 slot Use an OMRON HMCEF[][][] Memory Card.	1 port (10/100Base- TX)	1	0.56	-	CJ1W-SPU01-V2	UC1, CE

Product name	Specifications	Model	Standards
SPU-Console Support Software	Functions: Unit settings, sampling settings, etc., for High-speed Data Collection Units (required for making settings for this Unit) OS: Windows 7/Windows 8/Windows 8.1/Windows 10	WS02-SPTC1-V2	-

Product name	Specifications	Model	Stand- ards
SPU Unit Data Management Middleware	Function: Data files collected by SPU Unit Data Management Middleware are automatically acquired at the personal computer, and can be registered in a database. OS: Windows XP/Windows Vista/Windows 7/ Windows 8	1 license	WS02-EDMC1-V2	-
5 licenses	WS02-EDMC1-V2L05
Memory Cards	Flash memory, 128 MB	Note: Memory Card is required for data collection.	HMC-EF183	N, L, CE
Flash memory, 256 MB	HMC-EF283
Flash memory, 512 MB	HMC-EF583

Product name	Appear- ance	Specifications	Current con- sumption (A)	Model	Stand- ards
Functions	No. of pors	Failure detection
Industrial Switching Hubs		Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation	3	No	0.22	W4S1-03B	UC, CE
	5	No	0.22	W4S1-05B
5	Yes	0.22	W4S1-05C	CE

Return to OMRON
