OMRON E5C2 lineup

last update: November 05, 2013

Temperature Controllers

Input					Thermocouple
					K (CA) Chromel vs. alumel
Standard scale (°C)					0 to 200	0 to 300	0 to 400	0 to 600	0 to 800	0 to 1,000	0 to 1,200
Setting method	Indication method	Control mode	Output	Minimum scale division (°C)	5	10	10	20	20	25	25
Analog setting	No indication	ON/OFF	Relay	Model	E5C2-R20K
		Propor- tional (P)	Relay	Model	E5C2-R40K					---

Input					Thermocouple
					J (IC) Iron vs. constantan
Standard scale (°C)					0 to 200	0 to 300	0 to 400
Setting method	Indication method	Control mode	Output	Minimum scale division (°C)	5	10	10
Analog setting	No indication	ON/OFF	Relay	Model	E5C2-R20J
		Proportional (P)	Relay	Model	---

Input					Resistance Thermometer
					Platinum resistance thermometer Pt100
Standard scale (°C)					-50 to 50	-20 to 80	0 to 50	0 to 100	0 to 200	0 to 300	0 to 400
Setting method	Indication method	Control mode	Output	Minimum scale division (°C)	2	2	1	2	5	10	10
Analog setting	No indication	ON/OFF	Relay	Model	E5C2-R20P-D
		Proportional (P)	Relay	Model	---

Input					Thermistor
					Thermistor (replaceable element)
Standard scale (°C)					Themistor nominal resistance
					6 kΩ (0°C)	6 kΩ (0°C)	30 kΩ (0°C)	550 Ω (200°C)	4 kΩ (200°C)
					-50 to 50	0 to 100	50 to 150	100 to 200	150 to 300
Setting method	Indication method	Control mode	Output	Minimum scale division (°C)	2	2	2	2	2
Analog setting	No indication	ON/OFF	Relay	Model	E5C2-R20G
		Proportional (P)	Relay	Model	---

Note: When placing an order, specify the temperature range in addition to the model number.

Standard Models

Indication method				No indication
Control mode				ON/OFF	Proportional (P)
Output				Relay
Input/standard scale (°C)	Thermocouple	K (CA) Chromel vs. alumel	0 to 200	E5C2-R20K	E5C2-R40K
			0 to 300	E5C2-R20K	E5C2-R40K
			0 to 400	E5C2-R20K	E5C2-R40K
			0 to 600	E5C2-R20K	E5C2-R40K
			0 to 800	E5C2-R20K	E5C2-R40K
			0 to 1,000	E5C2-R20K	---
			0 to 1,200	E5C2-R20K	---
		J (IC) Iron vs. constantan	0 to 200	E5C2-R20J	---
			0 to 300	E5C2-R20J	---
			0 to 400	E5C2-R20J	---
	Resistance Thermometer	Platinum resistance thermometer Pt100	-50 to 50	E5C2-R20P-D	---
			-20 to 80	E5C2-R20P-D	---
			0 to 50	E5C2-R20P-D	---
			0 to 100	E5C2-R20P-D	---
			0 to 200	E5C2-R20P-D	---
			0 to 300	E5C2-R20P-D	---
			0 to 400	E5C2-R20P-D	---
	Thermistor	THE (replaceable element)	-50 to 50	E5C2-R20G	---
			0 to 100	E5C2-R20G	---
			50 to 150	E5C2-R20G	---
			100 to 200	E5C2-R20G	---
			150 to 300	E5C2-R20G	---

Accessories (Order Separately)

Sockets

Name	Model
Front Connecting Socket	P2CF-08
Back Connecting Socket	P3G-08
Front Connecting Socket with Finger Protection	P2CF-08-E
Protective Cover (for finger protection)	Y92A-48G

Protective Cover

Type	Model
Hard Protective Cover	Y92A-48B

last update: November 05, 2013

OMRON E5C2 dimension

last update: November 06, 2012

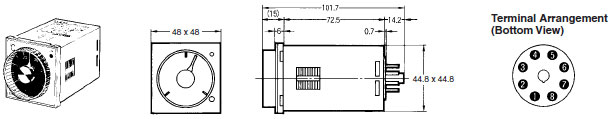

E5C2

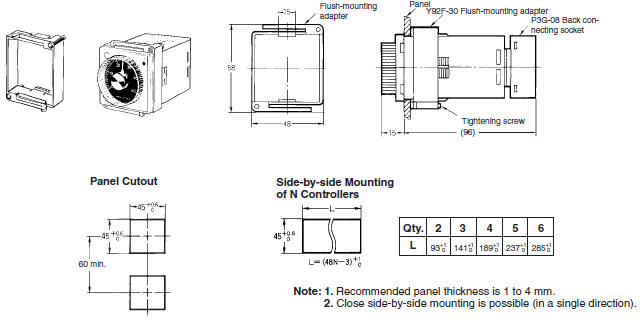

Dimensions with Flush-mounting Adapter (Accessory),
and Back Connecting Socket (Sold Separately)

Accessories (Order Separately)

Connection Sockets

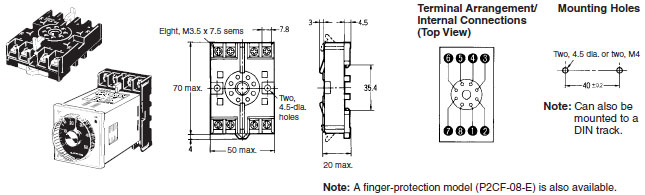

P2CF-08 Front Connecting Socket

P3G-08 Back Connecting Socket (for Flush Mounting)

Hard Protective Cover

A Hard Protective Cover (Y92A-48B) is available. It can be used in the following cases.
• To protect the setting section, against dust and dirt
• To prevent accidently changing settings by touching the front of the Controller.
• To protect the Controller from water drips

Applicable Thermistor

Connect a Thermistor with a replaceable element (E52-THE5A, E52-THE6D, or E52-THE6F) to the E5C2-R20G.

last update: November 06, 2012

OMRON E5C2 specification

last update: August 05, 2015

Ratings

Supply voltage	100 to 240 VAC 50/60 Hz
Operating voltage range	90% to 110% of rated supply voltage
Power consumption	Approx. 3.6 VA
Input	Thermocouple (with sensor burnout detection circuit), platinum resistance thermometer, or thermistor with replaceable element
Control mode	ON/OFF or proportional control
Setting method	Analog setting
Indication method	No indication
Control output	Relay output: SPDT, 3 A at 250 VAC, resistive load (switching capacity: 330 VA)
Ambient operating temperature	-10°C to 55°C (with no icing or condensation)
Ambient operating humidity	45% to 85%

Note: Do not use an inverter output as the power supply. (Refer to Safety Precautions for All Temperature Controllers.)

Characteristics

Setting accuracy	±2% FS max. (Influence of EMS: ±4% FS max.) *1
Hysteresis	Approx. 0.5% FS (fixed)
Proportional band	3% FS (fixed)
Control period	Approx. 20 s
Reset range	5 ±1% FS min. *2
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min between charged terminals and uncharged metallic parts
Vibration resistance	Malfunction: 10 to 55 Hz, 0.15-mm single amplitude for 10 min each in X, Y, and Z directions Destruction: 16.7 Hz, 2-mm double amplitude for 2 hrs each in X, Y, and Z directions
Shock resistance	Malfunction: 147 m/s2, 3 times each in 6 directions Destruction: 294 m/s2, 3 times each in 6 directions
Life expectancy	Electrical: 100,000 operations min. (3 A at 110 VAC, resistive load)
Weight	Approx. 100 g (with flush-mounting adapter)
Degree of protection	Front panel: IEC standard IP40 *3 Terminals: IEC standard IP00
Applicable Socket	P2CF-08 (order separately), P3G-08 (order separately)
Applicable Protective Cover	Y92A-48B (order separately)

*1. At EN 61326-1 (Industrial electromagnetic environment (EN/IEC 61326-1 Table 2))
*2. No reset function is incorporated by any E5C2 model with ON/OFF control.
       The reset function is used to correct offset for proportional control. If there is an offset below the set value, turn the
       reset adjustment clockwise.
*3. A special Watertight Cover is used to achieve this degree of protection (IP66, NEMA4). Refer to Y92A-[][]N.

last update: August 05, 2015
