OMRON CRT1-AD04 / DA02Automation Systems/ Networks/CompoNet
OMRON CRT1-AD04 / DA02 Automation Systems
OMRON CRT1-AD04 / DA02 Dimensions
/Images/l_1825-25-118609-198x198.jpglast update: December 19, 2013
In addition to analog data input and output, Analog I/O Slave Units can use a variety of functions internally, such as scaling, that previously required processing in ladder programming at the host PLC.
• Analog processing equivalent to digital panel meters is supported, such as with the scaling function.
• Use deviation and cumulative counter functions for analog calculations, such as for equipment error prediction and flow rate applications.
• The user adjustment function can be used to compensate offsets in inputs or outputs.
• Easily change the input or output range with a switch setting.
last update: December 19, 2013
Purchase the OMRON CompoNet Please fill in the following
If you have just landed here, this product OMRON CRT1-AD04 / DA02 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CRT1-AD04 / DA02 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CRT1-AD04 / DA02Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NJ301-[][][][] NJ-Series NJ301 CPU Units/Features
GLS Magnetic Proximity Sensor/Features
CJ1W-ID / IA CJ-series Input Units/Features
CJ1W-DRM21 CJ-series DeviceNet Unit/Features
DCA2 / DCN3 / XS4 DeviceNet Connectors with Thick Cables/Features
OMRON CRT1-AD04 / DA02 catalog
CRT1-AD04 / DA02 Analog I/O Slave Units/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CompoNet Catalog | P056-E1-08 [4302KB] | May 07, 201820180507 | CompoNet Catalog |
OMRON CRT1-AD04 / DA02 specification
CRT1-AD04 / DA02 Analog I/O Slave Units/Specificationslast update: September 24, 2012
Basic Performance Specifications
| Item | Specification |
|---|---|
| Communications power supply voltage | 14 to 26.4 VDC |
| I/O power supply voltage *1 | 20.4 to 26.4 VDC (24 VDC -15%/+10%) |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line). |
| Vibration resistance | 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s2 in X, Y, and Z directions for 80 min each |
| Shock resistance | 150 m/s2 (3 times each in 6 directions on 3 axes) |
| Dielectric strength | 500 VAC (between isolated circuits) |
| Insulation resistance | 20 MΩ min. (between isolated circuits) |
| Ambient operating temperature | -10 to 55°C |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Ambient operating atmosphere | No corrosive gases |
| Storage temperature | -25 to 65°C |
| Storage humidity | 25% to 85% (with no condensation) |
| Terminal block screw tightening torque *2 | M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm |
| Installation | Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws (depending on model) |
*1 The I/O power supply is called the sensor power supply in information for the CRT1-VAD04S.
*2 Applicable only to Slaves to which screw terminal blocks are mounted.
Input Section Specifications
| Item | Specification | ||
|---|---|---|---|
| Voltage input | Current input | ||
| Model | CRT1-AD04 | ||
| Input signal ranges | 0 to 5 V 1 to 5 V 0 to 10 V -10 to 10 V | 0 to 20 mA 4 to 20 mA | |
| Maximum signal input | ±15 V | ±30 mA | |
| Input impedance | 1 MΩ min. | Approx. 250 Ω | |
| Resolution | 1/6,000 (full scale) | ||
| Overall accuracy | 25°C | ±0.3% FS | ±0.4% FS |
| -10 to 55°C | ±0.6% FS | ±0.8% FS | |
| Conversion cycle | 1 ms/1 points | ||
| AD conversion data | -10 to 10 V range: F448 to 0BB8 hex full scale (-3,000 to 3,000) Other ranges: 0000 to 1770 hex full scale (0 to 6,000) AD conversion range: ±5% FS of the above data ranges. | ||
| Isolation method | Photocoupler isolation (between input and communications lines) No isolation between input signal wires | ||
| Mounting | DIN Track mounting | ||
| Power supply type | Multi-power supply | ||
| Communications power current consumption | 110 mA max. for 24-VDC power supply 175 mA max. for 14-VDC power supply | ||
| Weight | 153 g | ||
Output Section Specifications
| Item | Specification | ||
|---|---|---|---|
| Voltage output | Current output | ||
| Model | CRT1-DA02 | ||
| Output signal ranges | 0 to 5 V 1 to 5 V 0 to 10 V -10 to 10 V | 0 to 20 mA 4 to 20 mA | |
| External output allowable load resistance | 1 kΩ min. | 600 Ω max. | |
| Resolution | 1/6,000 (full scale) | ||
| Overall accuracy | 25°C | ±0.4% FS | ±0.4% FS * |
| -10 to 55°C | ±0.8% FS | ±0.8% FS * | |
| Conversion cycle | 2 ms/2 points | ||
| DA conversion data | -10 to 10 V range: F448 to 0BB8 hex full scale (-3,000 to 3,000) Other ranges: 0000 to 1770 hex full scale (0 to 6,000) AD conversion range: ±5% FS of the above data ranges. | ||
| Isolation method | Photocoupler isolation (between output and communications lines) No isolation between output signal wires. | ||
| Mounting | DIN Track mounting | ||
| Power supply type | Multi-power supply | ||
| Communications power current consumption | 125 mA max. for 24-VDC power supply 205 mA max. for 14-VDC power supply | ||
| Weight | 155 g | ||
* The specified accuracy does not apply below 0.2 mA when using the 0 to 20 mA range.
last update: September 24, 2012
OMRON CRT1-AD04 / DA02 lineup
CRT1-AD04 / DA02 Analog I/O Slave Units/Lineuplast update: September 24, 2012
| Name | Specifications | Model | |
|---|---|---|---|
| Analog I/O Slave Units * | Analog inputs | 4 inputs | CRT1-AD04 |
| Analog outputs | 2 outputs | CRT1-DA02 | |
* These Units are also available with a DCN-TB4 Terminal Conversion Adapter included in the package. Add "(-B)" to the
end of the model number to receive the Adapter as well.
last update: September 24, 2012

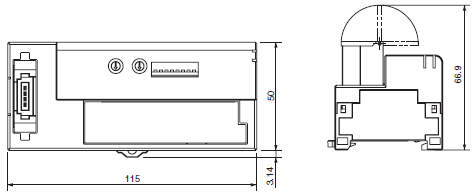

OMRON CRT1-AD04 / DA02 dimension
CRT1-AD04 / DA02 Analog I/O Slave Units/Dimensionslast update: September 24, 2012
CRT1-AD04
CRT1-DA02
last update: September 24, 2012
