OMRON GLS dimension

last update: December 17, 2014

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

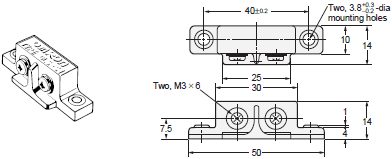

Sensor (terminal block)

GLS-S1

Note: Tighten each M3 screw of the terminal block to a torque of 0.59 N·m. max.

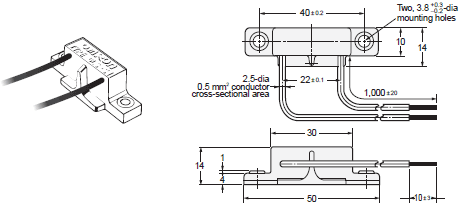

Sensor (pre-wired)

GLS-S1-L

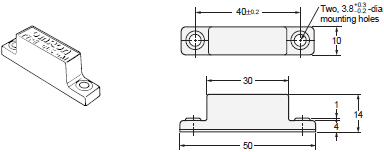

Magnet

GLS-M1

Note:The shape of the magnet is the same for Pre-wired Models and Terminal Block Models, but the magnet specifications are different.

last update: December 17, 2014

OMRON GLS catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
GLS Data Sheet	- [351KB]	Apr 19, 201720170419	GLS Data Sheet

OMRON GLS specification

last update: March 07, 2013

Model		GLS-1	GLS-1L
Sensing distance		15 mm *1
Contact circuit		SPST-NO
Switching capacity *2		Maximum operating voltage: 100 VDC Maximum operating current: 0.1 A DC Maximum switching capacity: 10 W (for both open and closed contacts)
Contact dielectric strength		250 VDC for 1 min with a leakage current of 1 mA max.
Response frequency		20 Hz max.
Ambient temperature range		Operating/Storage: -20 to 60°C (with no icing or condensation)
Ambient humidity range		Operating/storage: 35% to 85% (with no condensation)
Contact resistance		150 mΩ max.	250 mW max. (including conductor resistance of lead wire)
Dielectric strength		1,000 VAC for 1 min between terminals and case
Life expectancy		50,000,000 times min. with 0.1-A resistive load at 24 VDC
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 300 m/s2 3 times each in X, Y, and Z directions
Degree of protection		IP40 (IEC)
Connection method		Terminal block	Pre-wired (standard cable length: 1 m)
Materials	Sensor	ABS
	Magnet

*1. Notice that the actual distance is 15 mm min.
*2. AC power cannot be used.

last update: March 07, 2013

OMRON GLS lineup

last update: July 07, 2015

Terminal Block Model (Sensor)

Name	Model
Set	GLS-1
Sensor	GLS-S1
Magnet	GLS-M1

Pre-wired Model (Sensor)

Name	Cable length	Model
Set	1 m	GLS-1L
Sensor		GLS-S1-L

Note: A magnet of the Pre-wired Model can not be purchased separately.
          The magnet specifications are different for Pre-wired Models and Terminal Block Models.

last update: July 07, 2015
