OMRON DCA2 / DCN3 / XS4 catalog
DCA2 / DCN3 / XS4 DeviceNet Connectors with Thick Cables/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

DeviceNet Catalog Q102-E1-14
[30569KB] Aug 03, 201820180803 DeviceNet Catalog

OMRON DCA2 / DCN3 / XS4 dimension
DCA2 / DCN3 / XS4 DeviceNet Connectors with Thick Cables/Dimensions
last update: July 6, 2018

(Unit: mm)

Peripheral Devices for Environment-resistive Slaves
Peripheral Devices for DeviceNet Communications
Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

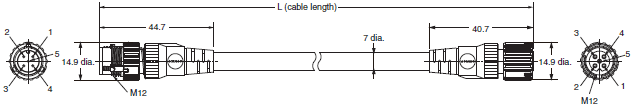

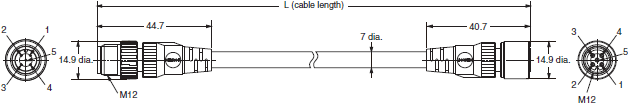

Cables with Connectors on Both Ends
DCA1-5CN[][]W1

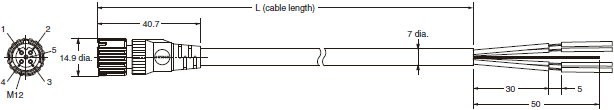

Cables with Connector on Single End (Socket)
DCA1-5CN[][]F1

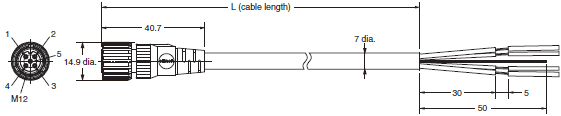

Cables with Connector on Single End (Plug)
DCA1-5CN[][]H1

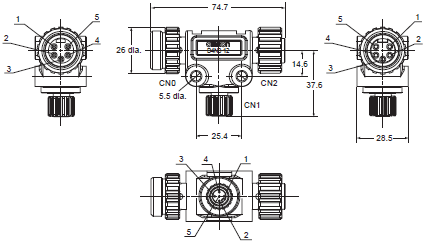

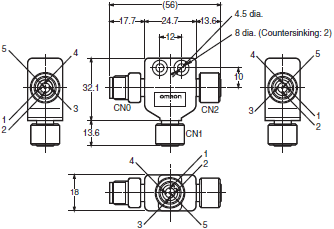

T-branch Connector
DCN2-1

Connectors with Terminating Resistance
DRS2-1 (Plug)
DRS2-2 (Socket)

Note: The diagram shows the DRS2-1 (plug).

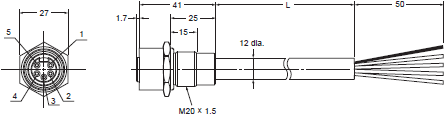

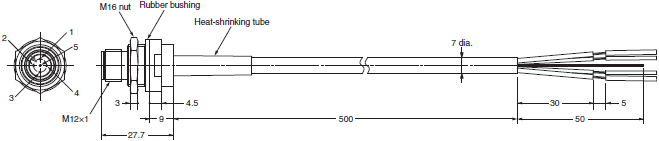

Panel-mounting Connector (Socket) with 0.5 m Cable
DCA1-5CNC5P1

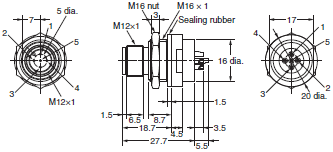

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2P-D522-2

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA1-5CNC5M1

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2M-D524-4

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)
Cables with Connectors on Both Ends

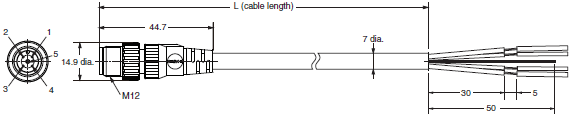

DCA1-5CS[][]W1

Cables with Connector on Single End (Socket)
DCA1-5CS[][]F1

Cables with Connector on Single End (Plug)

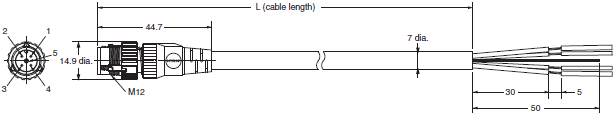

DCA1-5CS[][]H1

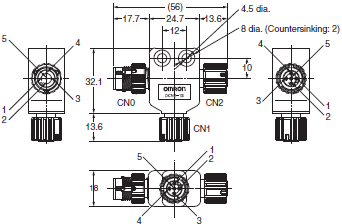

T-branch Connector
DCN2-1S

Connectors with Terminating Resistance
DRS2-1S (Plug)
DRS2-2S (Socket)

Note: The diagram shows the DRS2-1 (plug).

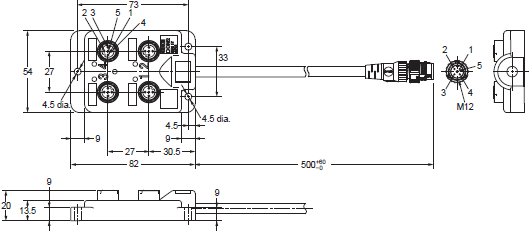

Shielded Branch Relay Box with Four Ports
DCN2-S4C5H1

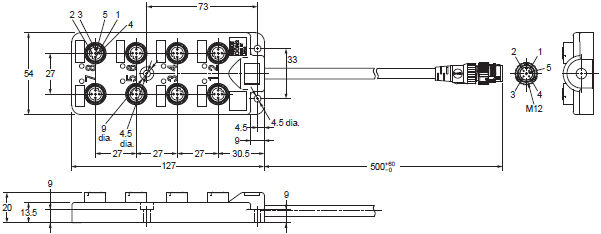

Shielded Branch Relay Box with Eight Ports
DCN2-S8C5H1

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

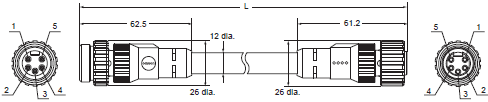

Thick Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA2-5CN[][]W1

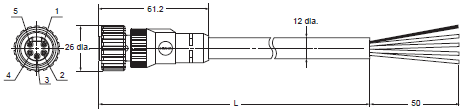

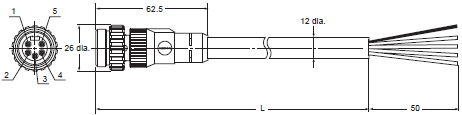

Thick Cable with Connector Socket on One End (5 Conductors for Communications)
DCA2-5CN[][]F1

Thick Cable with Connector Plug on One End (5 Conductors for Communications)
DCA2-5CN[][]H1

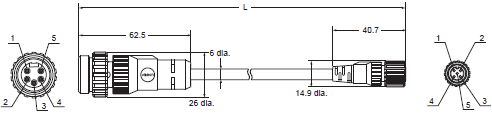

Thin Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA1-5CN[][]W5

Thin Cable with Panel-mounting Connector Socket on One End (5 Conductors for Communications)
DCA2-5CNC5P1

Note: A rubber seal and nut for panel mounting are included.

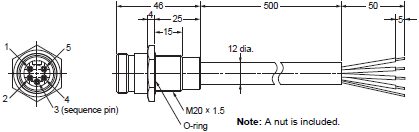

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA2-5CNC5M1

Note: A nut is included.

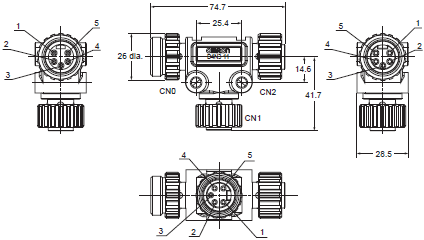

T-branch Connector (5 Conductors for Communications, Thick Wire Branch Line)
DCN3-11

T-branch Connector (5 Conductors for Communications, Thin Wire Branch Line)
DCN3-12

Connector (Plug) with Terminating Resistance
DRS3-1

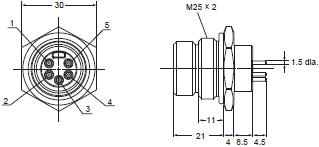

Panel-mounting Connector (5 Pins for Communications)
XS4M-D521-1

Note: A rubber seal and nut for panel mounting are included.

last update: July 6, 2018

OMRON DCA2 / DCN3 / XS4 lineup
DCA2 / DCN3 / XS4 DeviceNet Connectors with Thick Cables/Lineup
last update: August 3, 2018
Peripheral Devices for Environment-resistive Slaves
Peripheral Devices for DeviceNet Communications
Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Product Appearance Model Specifications
Sealed Assembling-type
Connector (male) XS2G-D5S7 For communications (plug)
Sealed Assembling-type
Connector (female) XS2C-D5S7 For communications (socket)
Sealed T-branch
Connector DCN2-1 For 1 branch line
Sealed Connector with
Terminating Resistor DRS2-1 Plug
DRS2-2 Socket
Cables with Sealed
Connectors * DCA1-5CNC5W1 Length (L): 0.5 m Cable with connectors
on both ends
DCA1-5CN01W1 Length (L): 1 m
DCA1-5CN02W1 Length (L): 2 m
DCA1-5CN03W1 Length (L): 3 m
DCA1-5CN05W1 Length (L): 5 m
DCA1-5CN10W1 Length (L): 10 m
DCA1-5CNC5F1 Length (L): 0.5 m Cable with connector
on one end (socket)
DCA1-5CN01F1 Length (L): 1 m
DCA1-5CN02F1 Length (L): 2 m
DCA1-5CN03F1 Length (L): 3 m
DCA1-5CN05F1 Length (L): 5 m
DCA1-5CN10F1 Length (L): 10 m
DCA1-5CNC5H1 Length (L): 0.5 m Cable with connector
on one end (plug)
DCA1-5CN01H1 Length (L): 1 m
DCA1-5CN02H1 Length (L): 2 m
DCA1-5CN03H1 Length (L): 3 m
DCA1-5CN05H1 Length (L): 5 m
DCA1-5CN10H1 Length (L): 10 m
Shielded Panel-
mounting Connectors
(female) DCA1-5CNC5P1 Panel-mounting connector (socket) with
0.5-m cable
XS2P-D522-2 Panel-mounting connector socket
Shielded Panel-
mounting Connectors
(male) DCA1-5CNC5M1 Panel-mounting connector (plug) with
0.5-m cable
XS2M-D524-4 Panel-mounting connector (plug) with
solder-cup terminals
Waterproof cover
(for socket) XS2Z-22 Used to cover an unused connector
section
Dust cover (for socket) XS2Z-15

* Robot cable type connectors with shielded cables (DCA1-5CN[][][]1-R) are also available. Contact your OMRON sales
representative for details.

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Product Appearance Model Specifications
Sealed T-branch
Connector DCN2-1S For 1 branch line
Sealed Assembling
type Connector
(female) DRS2-1S Plug
DRS2-2S Socket
Connectors with
Shielded Cables * DCA1-5CSC5W1 Length (L): 0.5 m Cable with connectors
on both ends
DCA1-5CS01W1 Length (L): 1 m
DCA1-5CS02W1 Length (L): 2 m
DCA1-5CS03W1 Length (L): 3 m
DCA1-5CS05W1 Length (L): 5 m
DCA1-5CS10W1 Length (L): 10 m
DCA1-5CSC5F1 Length (L): 0.5 m Cable with connector
on one end (socket)
DCA1-5CS01F1 Length (L): 1 m
DCA1-5CS02F1 Length (L): 2 m
DCA1-5CS03F1 Length (L): 3 m
DCA1-5CS05F1 Length (L): 5 m
DCA1-5CS10F1 Length (L): 10 m
DCA1-5CSC5H1 Length (L): 0.5 m Cable with connector
on one end (plug)
DCA1-5CS01H1 Length (L): 1 m
DCA1-5CS02H1 Length (L): 2 m
DCA1-5CS03H1 Length (L): 3 m
DCA1-5CS05H1 Length (L): 5 m
DCA1-5CS10H1 Length (L): 10 m
Shielded Branch
Relay Box DCN2-S4C5H1 4 ports, 0.5-m cable
DCN2-S8C5H1 8 ports, 0.5-m cable

* Robot cable type connectors with shielded cables (DCA1-5CN[][][]1-R) are also available. Contact your OMRON sales
representative for details.

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Product Appearance Model Specifications
Sealed T-branch
Connector DCN3-11 T-branch Connector
DCN3-12 T-branch Connector (Branch connector
is M12.)
Sealed Connector
with Terminating
Resistor DRS3-1 Plug
Cables with Sealed
Connectors DCA2-5CN01W1 Length (L): 1 m Cable with connectors
on both ends
DCA2-5CN02W1 Length (L): 2 m
DCA2-5CN05W1 Length (L): 5 m
DCA2-5CN10W1 Length (L): 10 m
DCA2-5CN01F1 Length (L): 1 m Cable with connector
on one end (socket)
DCA2-5CN02F1 Length (L): 2 m
DCA2-5CN05F1 Length (L): 5 m
DCA2-5CN10F1 Length (L): 10 m
DCA2-5CN01H1 Length (L): 1 m Cable with connector
on one end (plug)
DCA2-5CN02H1 Length (L): 2 m
DCA2-5CN05H1 Length (L): 5 m
DCA2-5CN10H1 Length (L): 10 m
DCA1-5CN01W5 Length (L): 1 m Cable with connectors
on both ends
Thin cable
M12 socket
DCA1-5CN02W5 Length (L): 2 m
DCA1-5CN05W5 Length (L): 5 m
DCA1-5CN10W5 Length (L): 10 m
Panel-mounting
Connector (female) DCA2-5CNC5P1 Panel-mounting connector (socket) with
0.5-m cable
Panel-mounting
Connector (male) DCA2-5CNC5M1 Panel-mounting connector (plug) with
0.5-m cable
Panel-mounting
Connector (male) XS4M-D521-1 Panel-mounting connector (plug)
DIP terminals
Waterproof Cap
(for Plug) -- XS4Z-11 Used to cover an unused connector
section.
Waterproof Cap
(for Socket) -- XS4Z-12

last update: August 3, 2018

OMRON DCA2 / DCN3 / XS4 specification
DCA2 / DCN3 / XS4 DeviceNet Connectors with Thick Cables/Specifications
last update: September 24, 2012
Peripheral Devices for Environment-resistive Slaves
Peripheral Devices for DeviceNet Communications
Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Type Connectors with
Cables
DCA1-5CN[][][]1 T-branch
Connector
DCN2-1 Assembling-type
Connector
XS2[]-D5S7 Connectors with
Terminating Resistor
DRS2-[]
Rated current 3 A
Rated voltage 125 VDC
Contact resistance
(connector) 40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength
(connector) 1,500 VAC for 60 seconds (leakage current: 1 mA max.)
Ambient operating
temperature -20°C to 65°C
Storage temperature
range -25°C to 70°C
Degree of protection IEC IP67
Insertion durability 200 times
Cable strength 98 N for 15 s ---
Vibration resistance No current interruptions of more than 1 μs while performing simple vibrations at either 10
to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s², whichever is smaller

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Type Connectors with
Cables
DCA1-5CS[][][]1 T-branch
Connector
DCN2-1S Connectors with
Terminating Resistor
DRS2-[]S Branch Relay Box
DCN2-S[]C5H
Rated current 3 A
Rated voltage 125 VDC
Contact resistance
(connector) 40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength
(connector) 1,500 VAC for 60 seconds (leakage current: 1 mA max.) 1,000 VAC for 60
seconds
Ambient operating
temperature -20°C to 65°C
Storage temperature
range -25°C to 70°C
Degree of protection IEC IP67
Insertion durability 200 times
Cable strength 98 N for 15 s ---
Vibration resistance No current interruptions of more than 1 μs while performing simple vibrations at either 10 to
500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s², whichever is smaller
Lock strength Pulling: 100 N/15 s, Rotating: 1 Nm/15 s
Lock force 0.1 to 0.25 Nm

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Type Connectors
with Thick
Cables
DCA2-
5CN[][][]1 Connectors
with Thin
Cables
DCA1-
5CN[][]W5 T-branch
Connector
DCN3-11 T-branch
Connector
DCN3-12 Connectors
with
Terminating
Resistor
DRS3-1 Panel
Mounting
Connector
DCA2-
5CNC5P1 Panel
Mounting
Connector
XS4M-
D521-1
Rated current 8 A 3 A 8 A 3 A * 8 A
Rated voltage 125 VDC
Contact
resistance
(connector) 30 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation
resistance 1,000 MΩ min. (at 500 VDC)
Dielectric
strength
(connector) 1,500 VAC for 60 seconds (leakage current: 1 mA max.)
Ambient
operating
temperature -20°C to 65°C
Storage
temperature
range -25°C to 70°C
Degree of
protection IEC IP67
Insertion
durability 200 times
Cable strength 98 N for 15 s -- 98 N for
15 s --
Vibration
resistance No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz
with 1.52-mm full amplitude or at acceleration 100 m/s², whichever is smaller

* The rated current between thick wires is 8 A.

last update: September 24, 2012

NO. DCA2 / DCN3 / XS4

TYPE:Networks DeviceNet Peripheral Devices

DATE:2021-06-08

Associated products:
DeviceNet Peripheral Devices DeviceNet Peripheral Devices/Features WS02-ALDC1 DeviceNet Analyzer/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
DeviceNet Catalog	Q102-E1-14 [30569KB]	Aug 03, 201820180803	DeviceNet Catalog

Product	Appearance	Model	Specifications
Sealed Assembling-type Connector (male)		XS2G-D5S7	For communications (plug)
Sealed Assembling-type Connector (female)		XS2C-D5S7	For communications (socket)
Sealed T-branch Connector		DCN2-1	For 1 branch line
Sealed Connector with Terminating Resistor		DRS2-1	Plug
DRS2-2	Socket
Cables with Sealed Connectors *			DCA1-5CNC5W1	Length (L): 0.5 m	Cable with connectors on both ends
DCA1-5CN01W1	Length (L): 1 m
DCA1-5CN02W1	Length (L): 2 m
DCA1-5CN03W1	Length (L): 3 m
DCA1-5CN05W1	Length (L): 5 m
DCA1-5CN10W1	Length (L): 10 m
		DCA1-5CNC5F1	Length (L): 0.5 m	Cable with connector on one end (socket)
DCA1-5CN01F1	Length (L): 1 m
DCA1-5CN02F1	Length (L): 2 m
DCA1-5CN03F1	Length (L): 3 m
DCA1-5CN05F1	Length (L): 5 m
DCA1-5CN10F1	Length (L): 10 m
		DCA1-5CNC5H1	Length (L): 0.5 m	Cable with connector on one end (plug)
DCA1-5CN01H1	Length (L): 1 m
DCA1-5CN02H1	Length (L): 2 m
DCA1-5CN03H1	Length (L): 3 m
DCA1-5CN05H1	Length (L): 5 m
DCA1-5CN10H1	Length (L): 10 m
Shielded Panel- mounting Connectors (female)		DCA1-5CNC5P1	Panel-mounting connector (socket) with 0.5-m cable
	XS2P-D522-2	Panel-mounting connector socket
Shielded Panel- mounting Connectors (male)		DCA1-5CNC5M1	Panel-mounting connector (plug) with 0.5-m cable
	XS2M-D524-4	Panel-mounting connector (plug) with solder-cup terminals
Waterproof cover (for socket)		XS2Z-22	Used to cover an unused connector section
Dust cover (for socket)		XS2Z-15

Product	Appearance	Model	Specifications
Sealed T-branch Connector		DCN2-1S	For 1 branch line
Sealed Assembling type Connector (female)		DRS2-1S	Plug
DRS2-2S	Socket
Connectors with Shielded Cables *			DCA1-5CSC5W1	Length (L): 0.5 m	Cable with connectors on both ends
DCA1-5CS01W1	Length (L): 1 m
DCA1-5CS02W1	Length (L): 2 m
DCA1-5CS03W1	Length (L): 3 m
DCA1-5CS05W1	Length (L): 5 m
DCA1-5CS10W1	Length (L): 10 m
		DCA1-5CSC5F1	Length (L): 0.5 m	Cable with connector on one end (socket)
DCA1-5CS01F1	Length (L): 1 m
DCA1-5CS02F1	Length (L): 2 m
DCA1-5CS03F1	Length (L): 3 m
DCA1-5CS05F1	Length (L): 5 m
DCA1-5CS10F1	Length (L): 10 m
		DCA1-5CSC5H1	Length (L): 0.5 m	Cable with connector on one end (plug)
DCA1-5CS01H1	Length (L): 1 m
DCA1-5CS02H1	Length (L): 2 m
DCA1-5CS03H1	Length (L): 3 m
DCA1-5CS05H1	Length (L): 5 m
DCA1-5CS10H1	Length (L): 10 m
Shielded Branch Relay Box		DCN2-S4C5H1	4 ports, 0.5-m cable
	DCN2-S8C5H1	8 ports, 0.5-m cable

Product	Appearance	Model	Specifications
Sealed T-branch Connector		DCN3-11	T-branch Connector
	DCN3-12	T-branch Connector (Branch connector is M12.)
Sealed Connector with Terminating Resistor		DRS3-1	Plug
Cables with Sealed Connectors			DCA2-5CN01W1	Length (L): 1 m	Cable with connectors on both ends
DCA2-5CN02W1	Length (L): 2 m
DCA2-5CN05W1	Length (L): 5 m
DCA2-5CN10W1	Length (L): 10 m
		DCA2-5CN01F1	Length (L): 1 m	Cable with connector on one end (socket)
DCA2-5CN02F1	Length (L): 2 m
DCA2-5CN05F1	Length (L): 5 m
DCA2-5CN10F1	Length (L): 10 m
		DCA2-5CN01H1	Length (L): 1 m	Cable with connector on one end (plug)
DCA2-5CN02H1	Length (L): 2 m
DCA2-5CN05H1	Length (L): 5 m
DCA2-5CN10H1	Length (L): 10 m
		DCA1-5CN01W5	Length (L): 1 m	Cable with connectors on both ends Thin cable M12 socket
DCA1-5CN02W5	Length (L): 2 m
DCA1-5CN05W5	Length (L): 5 m
DCA1-5CN10W5	Length (L): 10 m
Panel-mounting Connector (female)		DCA2-5CNC5P1	Panel-mounting connector (socket) with 0.5-m cable
Panel-mounting Connector (male)		DCA2-5CNC5M1	Panel-mounting connector (plug) with 0.5-m cable
Panel-mounting Connector (male)		XS4M-D521-1	Panel-mounting connector (plug) DIP terminals
Waterproof Cap (for Plug)	--	XS4Z-11	Used to cover an unused connector section.
Waterproof Cap (for Socket)	--	XS4Z-12

Type	Connectors with Cables DCA1-5CN[][][]1	T-branch Connector DCN2-1	Assembling-type Connector XS2[]-D5S7	Connectors with Terminating Resistor DRS2-[]
Rated current	3 A
Rated voltage	125 VDC
Contact resistance (connector)	40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,500 VAC for 60 seconds (leakage current: 1 mA max.)
Ambient operating temperature	-20°C to 65°C
Storage temperature range	-25°C to 70°C
Degree of protection	IEC IP67
Insertion durability	200 times
Cable strength	98 N for 15 s	---
Vibration resistance	No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s², whichever is smaller

Type	Connectors with Cables DCA1-5CS[][][]1	T-branch Connector DCN2-1S	Connectors with Terminating Resistor DRS2-[]S	Branch Relay Box DCN2-S[]C5H
Rated current	3 A
Rated voltage	125 VDC
Contact resistance (connector)	40 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,500 VAC for 60 seconds (leakage current: 1 mA max.)	1,000 VAC for 60 seconds
Ambient operating temperature	-20°C to 65°C
Storage temperature range	-25°C to 70°C
Degree of protection	IEC IP67
Insertion durability	200 times
Cable strength	98 N for 15 s	---
Vibration resistance	No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s², whichever is smaller
Lock strength	Pulling: 100 N/15 s, Rotating: 1 Nm/15 s
Lock force	0.1 to 0.25 Nm

Type	Connectors with Thick Cables DCA2- 5CN[][][]1	Connectors with Thin Cables DCA1- 5CN[][]W5	T-branch Connector DCN3-11	T-branch Connector DCN3-12	Connectors with Terminating Resistor DRS3-1	Panel Mounting Connector DCA2- 5CNC5P1	Panel Mounting Connector XS4M- D521-1
Rated current	8 A	3 A	8 A	3 A *	8 A
Rated voltage	125 VDC
Contact resistance (connector)	30 mΩ max. (at 20 mVDC max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (connector)	1,500 VAC for 60 seconds (leakage current: 1 mA max.)
Ambient operating temperature	-20°C to 65°C
Storage temperature range	-25°C to 70°C
Degree of protection	IEC IP67
Insertion durability	200 times
Cable strength	98 N for 15 s	--	98 N for 15 s	--
Vibration resistance	No current interruptions of more than 1 μs while performing simple vibrations at either 10 to 500 Hz with 1.52-mm full amplitude or at acceleration 100 m/s², whichever is smaller

Return to OMRON

OMRON DCA2 / DCN3 / XS4Automation Systems/ Networks/DeviceNet

OMRON DCA2 / DCN3 / XS4 Dimensions

Purchase the OMRON DeviceNet Please fill in the following

OMRON DCA2 / DCN3 / XS4 catalog

English

Global Edition

OMRON DCA2 / DCN3 / XS4 dimension

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Cables with Connectors on Both EndsDCA1-5CN[][]W1

Cables with Connector on Single End (Socket)DCA1-5CN[][]F1

Cables with Connector on Single End (Plug)DCA1-5CN[][]H1

T-branch ConnectorDCN2-1

Connectors with Terminating ResistanceDRS2-1 (Plug)DRS2-2 (Socket)

Panel-mounting Connector (Socket) with 0.5 m CableDCA1-5CNC5P1

Panel-mounting Connector (Socket), Solder-cup TerminalsXS2P-D522-2

Panel-mounting Connector (Plug) with 0.5 m CableDCA1-5CNC5M1

Panel-mounting Connector (Socket), Solder-cup TerminalsXS2M-D524-4

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Cables with Connectors on Both EndsDCA1-5CS[][]W1

Cables with Connector on Single End (Socket)DCA1-5CS[][]F1

Cables with Connector on Single End (Plug)DCA1-5CS[][]H1

T-branch ConnectorDCN2-1S

Connectors with Terminating ResistanceDRS2-1S (Plug)DRS2-2S (Socket)

Shielded Branch Relay Box with Four PortsDCN2-S4C5H1

Shielded Branch Relay Box with Eight PortsDCN2-S8C5H1

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Thick Cable with Connectors on Both Ends (5 Conductors for Communications)DCA2-5CN[][]W1

Thick Cable with Connector Socket on One End (5 Conductors for Communications)DCA2-5CN[][]F1

Thick Cable with Connector Plug on One End (5 Conductors for Communications)DCA2-5CN[][]H1

Thin Cable with Connectors on Both Ends (5 Conductors for Communications)DCA1-5CN[][]W5

Thin Cable with Panel-mounting Connector Socket on One End (5 Conductors for Communications)DCA2-5CNC5P1

Panel-mounting Connector (Plug) with 0.5 m CableDCA2-5CNC5M1

T-branch Connector (5 Conductors for Communications, Thick Wire Branch Line)DCN3-11

T-branch Connector (5 Conductors for Communications, Thin Wire Branch Line)DCN3-12

Connector (Plug) with Terminating Resistance DRS3-1

Panel-mounting Connector (5 Pins for Communications) XS4M-D521-1

OMRON DCA2 / DCN3 / XS4 lineup

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

OMRON DCA2 / DCN3 / XS4 specification

Peripheral Devices for Environment-resistive Slaves

Peripheral Devices for DeviceNet Communications

Environment-resistive Connection Products (for Thin Cable, M12 Micro Connectors)

Environment-resistive Models (for Thin Wires and M12 Micro Connectors)

Environment-resistive Models for Thick Wires with 7/8-16UN Mini Connectors

Cables with Connectors on Both Ends
DCA1-5CN[][]W1

Cables with Connector on Single End (Socket)
DCA1-5CN[][]F1

Cables with Connector on Single End (Plug)
DCA1-5CN[][]H1

T-branch Connector
DCN2-1

Connectors with Terminating Resistance
DRS2-1 (Plug)
DRS2-2 (Socket)

Panel-mounting Connector (Socket) with 0.5 m Cable
DCA1-5CNC5P1

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2P-D522-2

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA1-5CNC5M1

Panel-mounting Connector (Socket), Solder-cup Terminals
XS2M-D524-4

Cables with Connectors on Both Ends
DCA1-5CS[][]W1

Cables with Connector on Single End (Socket)
DCA1-5CS[][]F1

Cables with Connector on Single End (Plug)
DCA1-5CS[][]H1

T-branch Connector
DCN2-1S

Connectors with Terminating Resistance
DRS2-1S (Plug)
DRS2-2S (Socket)

Shielded Branch Relay Box with Four Ports
DCN2-S4C5H1

Shielded Branch Relay Box with Eight Ports
DCN2-S8C5H1

Thick Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA2-5CN[][]W1

Thick Cable with Connector Socket on One End (5 Conductors for Communications)
DCA2-5CN[][]F1

Thick Cable with Connector Plug on One End (5 Conductors for Communications)
DCA2-5CN[][]H1

Thin Cable with Connectors on Both Ends (5 Conductors for Communications)
DCA1-5CN[][]W5

Thin Cable with Panel-mounting Connector Socket on One End (5 Conductors for Communications)
DCA2-5CNC5P1

Panel-mounting Connector (Plug) with 0.5 m Cable
DCA2-5CNC5M1

T-branch Connector (5 Conductors for Communications, Thick Wire Branch Line)
DCN3-11

T-branch Connector (5 Conductors for Communications, Thin Wire Branch Line)
DCN3-12

Connector (Plug) with Terminating Resistance
DRS3-1

Panel-mounting Connector (5 Pins for Communications)
XS4M-D521-1
