• Simplifies wiring inside the panel and helps prevent incorrect wiring.

• Terminals are numbered to make it easy to check terminal connections.

• Replacement of relays is easy, improving maintainability.

• Screw-less clamp terminals eliminate the need for extra tightening.

• The Support Software can be connected, enabling on-site adjustment of Light Curtains.

last update: April 24, 2017

Purchase the OMRON Safety Light Curtains Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON F3SP-T01 Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the F3SP-T01 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON F3SP-T01Safety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E6C3-C Rugged Incremental 50-mm-dia. Rotary Encoder/Features
D4V Small Limit Switch/Features
H3DT-G Star-delta Timer/Features
eCobra 800 Inverted Lite / Standard / Pro SCARA Robots/Features
SmartVision MX Vision System/Features

OMRON F3SP-T01 catalog
F3SP-T01 Safety Terminal Relays (for F3SJ-A[][][][]P[][])/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

F3SP-T01 Data Sheet -
[997KB] Jun 16, 200920090616 F3SP-T01 Data Sheet

OMRON F3SP-T01 dimension
F3SP-T01 Safety Terminal Relays (for F3SJ-A[][][][]P[][])/Dimensions
last update: September 24, 2012

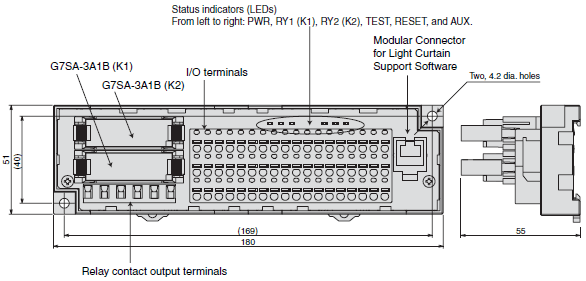

(Unit: mm)
