• Greatly reduce wiring in combination with the Smartclick XS5. Also improves maintenance efficiency.
• Features Smartclick connections that enable the connectors to be locked by simply inserting them and turning them approximately 1/8 of a turn. A positive click indicates locking.
• Because these support Smartclick connections, attaching and removal of central ports (8-port type) is made easier.
• Higher rated current to enable output applications.
• Use previous M12 screw connectors.
last update: August 1, 2018
Purchase the OMRON Sensor I/O Connectors Please fill in the following
If you have just landed here, this product OMRON XW3D Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW3D We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW3DPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E32-LT11N / LD11N / LR11NP Hex-shaped Fiber Unit/Features
E58-CIFQ1 USB-Serial Conversion Cable/Features
H7BX Multifunction Counter (DIN 72 × 72)/Features
S8VK-X Switch Mode Power Supply (60/120/240/480-W Models)/Features
S3D2 Sensor Controller/Features
OMRON XW3D catalog
XW3D Connector Terminal Boxes/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW3D Data Sheet | - [1664KB] | Aug 01, 201820180801 | XW3D Data Sheet |
| Sensor I/O Connector Over | - [3203KB] | Apr 02, 201820180402 | Sensor I/O Connector Over |
OMRON XW3D lineup
XW3D Connector Terminal Boxes/Lineuplast update: August 1, 2018
Main Unit
| No. of connector poles | Cable specifications | Circuits | Applicable sensor type | No. of connection ports | No. of I/O (each port) | Cable length (m) | Model |
|---|---|---|---|---|---|---|---|
| 5 | Standard cable (PVC) | PNP | 3-wire DC | 4 | 1 | 5 | XW3D-P453-G11 |
| 7 | XW3D-P453-H11 | ||||||
| 10 | XW3D-P453-J11 | ||||||
| 8 | 1 | 5 | XW3D-P853-G11 | ||||
| 7 | XW3D-P853-H11 | ||||||
| 10 | XW3D-P853-J11 | ||||||
| 15 | XW3D-P853-K11 | ||||||
| 4 | 2 | 5 | XW3D-P457-G11 | ||||
| 7 | XW3D-P457-H11 | ||||||
| 10 | XW3D-P457-J11 | ||||||
| NPN | 3-wire DC | 4 | 1 | 5 | XW3D-P455-G11 | ||
| 8 | 1 | 5 | XW3D-P855-G11 | ||||
| 4 | 2 | 5 | XW3D-P458-G11 | ||||
| PNP/NPN | 2-wire DC | 4 | 1 | 5 | XW3D-P452-G11 | ||
| 8 | 1 | 5 | XW3D-P852-G11 |
Accessories (Sold Separately)
Waterproof Cover
| Appearance | Model | Material | Remarks |
|---|---|---|---|
 | XS5Z-11 | PBT | The Waterproof Cover ensures IP67. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39 and 0.49 N·m to tighten the Water-resistive Cover. XS5Z-11 is Smartclick mechanism. There's no need to keep track of locking torque. |
 | XS2Z-22 | Brass with Ni plating |
Note 1. The XW3D comes with a dust cover.
If IP67 degree of protection is required, use the XS5Z-11 or XS2Z-22 (sold separately).
2. The XS2Z-22 connection is threaded.
last update: August 1, 2018
OMRON XW3D dimension
XW3D Connector Terminal Boxes/Dimensionslast update: August 1, 2018
(Unit: mm)

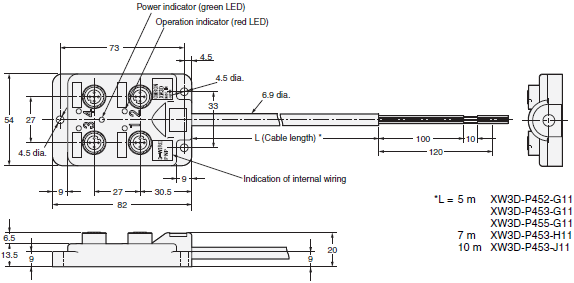

XW3D-P452-[]11
XW3D-P453-[]11
XW3D-P455-[]11
(Model with Four Ports and One I/O)

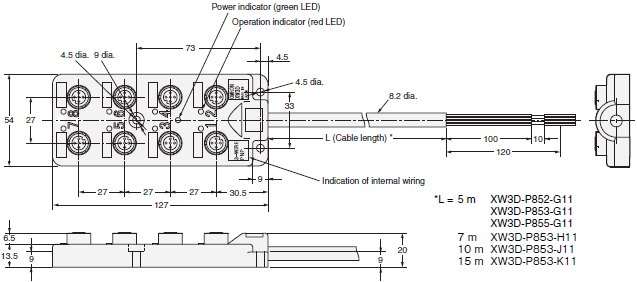

XW3D-P852-[]11
XW3D-P853-[]11
XW3D-P855-[]11
(Model with Eight Ports and One I/O)

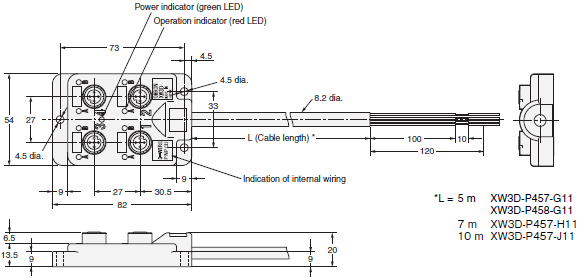

XW3D-P457-[]11
XW3D-P458-[]11
(Model with Four Ports and Two I/O)
last update: August 1, 2018
OMRON XW3D specification
XW3D Connector Terminal Boxes/Specificationslast update: August 1, 2018
Ratings and Specifications
| Rated current | 4 A/port, 12 A/Box (power line) |
|---|---|
| Rated voltage | 10 to 30 VDC |
| Contact resistance (connector) | 40 mΩ max. (20 mV max. and 100 mA max.) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength (connector) | 500 VAC for 1 min (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529) |
| Insertion tolerance | 50 times min. |
| Lock strength | Pulling: 100 N/15 s, Twisting: 1 N·m/15 s |
| Cable holding strength | 100 N/15 s |
| Lock operating force | 0.1 to 0.25 N·m |
| Ambient operating temperature range | -25 to 70°C |
| Ambient humidity range | 25% to 85% |
Materials and Finish
| Model | XW3D | |
|---|---|---|
| Contacts | Material | Brass |
| Finish | Nickel base, 0.4-μm gold plating | |
| Fixtures | Material | Zinc alloy |
| Finish | Nickel plated | |
| Case | PBT resin (UL94V-0), light gray | |
| Bushing | Rubber | |
| O-ring | Rubber | |
| PCB | Glass epoxy board | |
| Seal resin | Urethane resin (UL94V-0) | |
| Cable | UL AWM2464 Signal lines: AWG22 Power and ground lines: AWG18 | |
Connection Combinations
Pin Arrangement
Note: 4-pole connectors (plugs) can also be connected to the mating connector.
last update: August 1, 2018
