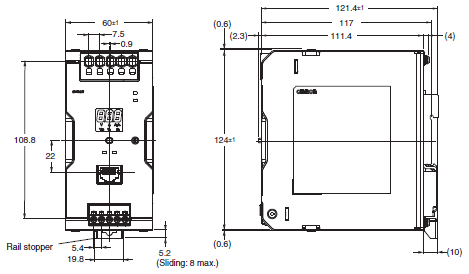

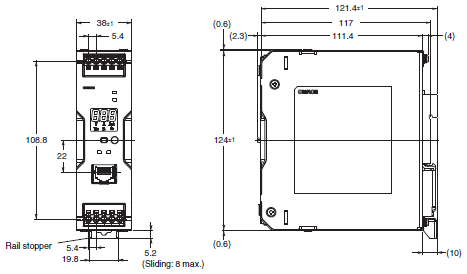

OMRON S8VK-X dimension

last update: December 1, 2017

(Unit: mm)

Unit

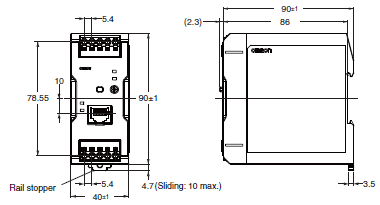

S8VK-X03005-EIP (30 W)
S8VK-X06012-EIP (60 W)
S8VK-X06024-EIP (60 W)

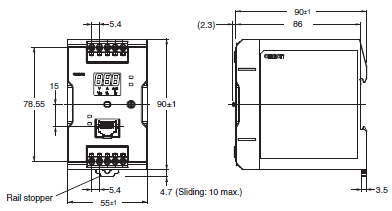

S8VK-X09024[]-EIP (90 W)
S8VK-X12024[]-EIP (120 W)

S8VK-X24024[]-EIP (240 W)

S8VK-X48024[]-EIP (480 W)

DIN Rail Mounting (Order Separately)

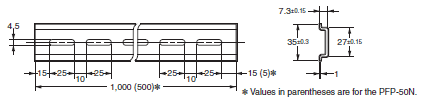

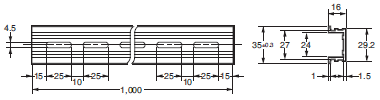

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

PFP-100N2

End Plate

PFP-M

Note: 1. If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic
              filings may result from aluminum abrasion.
          2. If the Unit may be subjected to sliding to either side, attach an End Plate (model PFP-M) on each side of the Unit.

last update: December 1, 2017

OMRON S8VK-X catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
S8VK-X Data Sheet	T210-E1-02 [2212KB]	Nov 19, 201820181119	S8VK-X Data Sheet
S8VK-X Catalog	T211-E1-02 [2519KB]	Jan 07, 201920190107	S8VK-X Catalog

OMRON S8VK-X lineup

last update: November 19, 2018

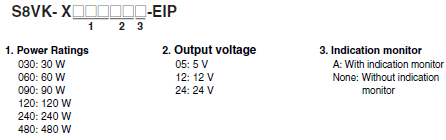

Model Number Structure

Model Number Legend

Note: Not all combinations are possible. Refer to List of Models in Ordering Information, below.

Ordering Information

Note: For details on normal stock models, contact your nearest OMRON representative.

With Indication Monitor

Power rating	Rated input voltage	Rated output voltage (DC)	Rated output current	Maximum boost current	Model number
90 W	100 to 240 VAC (allowable range: 85 to 264 VAC, 90 to 350 VDC)	24 V	3.75 A	---	S8VK-X09024A-EIP
120 W		24 V	5 A	6 A	S8VK-X12024A-EIP
240 W		24 V	10 A	15 A	S8VK-X24024A-EIP
480 W		24 V	20 A	30 A	S8VK-X48024A-EIP

Without Indication Monitor

Power rating	Rated input voltage	Rated output voltage (DC)	Rated output current	Maximum boost current	Model number
30 W	100 to 240 VAC (allowable range: 85 to 264 VAC, 90 to 350 VDC)	5 V	5 A *1	6 A	S8VK-X03005-EIP
60 W		12 V	4.5 A *2	5.4 A	S8VK-X06012-EIP
		24 V	2.5 A	3 A	S8VK-X06024-EIP
90 W		24 V	3.75 A	---	S8VK-X09024-EIP
120 W		24 V	5 A	6 A	S8VK-X12024-EIP
240 W		24 V	10 A	15 A	S8VK-X24024-EIP
480 W		24 V	20 A	30 A	S8VK-X48024-EIP

*1. Output power is 25 W at rated output current.
*2. Output power is 54 W at rated output current.

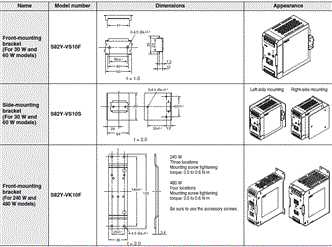

Mounting Brackets (Order Separately)

Name	Model number
Front-mounting bracket (For 30 W and 60 W models)	S82Y-VS10F
Side-mounting bracket (For 30 W and 60 W models)	S82Y-VS10S
Front-mounting bracket (For 240 W and 480 W models)	S82Y-VK10F

DIN Rail Mounting (Order Separately)

Part name	Model number
Mounting Rail (Material: Aluminum)	PFP-100N
	PFP-50N
	PFP-100N2
End Plate	PFP-M

EtherNet/IP communication cable recommended parts (Order Separately)

Please use a Category 5 or higher STP cable (shielded twisted pair cable).

Cable with Connectors

Item		Recommended manufacturer	Cable length (m)	Model
Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH *2	Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plug type *1 Cable color: Yellow *3	OMRON	0.3	XS6W-6LSZH8SS30CM-Y
			0.5	XS6W-6LSZH8SS50CM-Y
			1	XS6W-6LSZH8SS100CM-Y
			2	XS6W-6LSZH8SS200CM-Y
			3	XS6W-6LSZH8SS300CM-Y
			5	XS6W-6LSZH8SS500CM-Y
Wire Gauge and Number of Pairs: AWG22, 2-pair Cable	Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plug type *1 Cable color: Light blue	OMRON	0.3	XS5W-T421-AMD-K
			0.5	XS5W-T421-BMD-K
			1	XS5W-T421-CMD-K
			2	XS5W-T421-DMD-K
			5	XS5W-T421-GMD-K
			10	XS5W-T421-JMD-K

*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
      7.5 m, 10 m, 15 m, 20 m.
      Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
      For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
*3. Cable colors are available in yellow, green, and blue. The last character of the model changes to "-G" or "-B".

Cable/Connector

Part name	Manufacturer	Model
Cable	Hitachi Metals, Ltd.	NETSTAR-C5E SA 0.5 × 4P *
RJ45 connector	Panduit Corporation	MPS588-C *

* It is recommended to use the cable and connector in combination described above.

Recommended Industrial Switching Hubs (Order Separately)

Name	Shape	Specification			Model number
		Functions	No. of ports	Failure detection function
Industrial switching hub		Priority control (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm/ LSI abnormality detection 10/100BASE-TX, Auto-Negotiation	3	No	W4S1-03B
			5	No	W4S1-05B
			5	Yes	W4S1-05C

last update: November 19, 2018

OMRON S8VK-X specification

last update: May 14, 2018

Ratings, Characteristics, and Functions

Power rating			30 W	60W
Rated output voltage			5 V	12 V	24 V
Indication monitor			None	None	None
Efficiency *		115 VAC input	78% typ.	85% typ.	85% typ.
		230 VAC input	77% typ.	86% typ.	86% typ.
Input conditions	Voltage range *		Single-phase, 85 to 264 VAC, 90 to 350 VDC, 265 to 300 VAC (1 second)
	Frequency *		50/60 Hz (47 to 450 Hz)
	Input current *	115 VAC input	0.53 A typ.	0.99 A typ.	1.1 A typ.
		230 VAC input	0.32 A typ.	0.61 A typ.	0.67 A typ.
	Power factor		---
	Leakage current *	115 VAC input	0.5 mA max.
		230 VAC input	1 mA max.
	Inrush current *	115 VAC input	16 A typ.
		230 VAC input	32 A typ.
Output characteristics	Rated output current		5 A	4.5 A	2.5 A
	Rated output power		25 W	54 W	60 W
	Maximum boost current		6 A	5.4 A	3 A
	Voltage adjustment range *		4.5 to 5.8V (with V. ADJ)	10.8 to 14 V (with V. ADJ)	21.6 to 28 V (with V. ADJ)
	Ripple noise voltage *	100 to 240 VAC input	130 mVp-p max. at 20 MHz of bandwidth	120 mVp-p max. at 20 MHz of bandwidth	110 mVp-p max. at 20 MHz of bandwidth
	Input variation influence *		0.5% max.
	Load variation influence *		1.5% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.

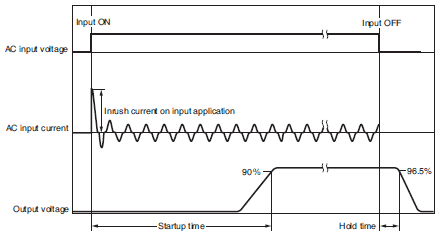

	Start up time *	115 VAC input	1000 ms max.	1000 ms max.	1000 ms max.
		230 VAC input	1000 ms max.	1000 ms max.	1000 ms max.
	Hold time *	115 VAC input	45 ms typ.	20 ms typ.	20 ms typ.
		230 VAC input	240 ms typ.	120 ms typ.	110 ms typ.
Additional functions	Overload protection		Yes, automatic reset, intermittent operation type, Refer to Overload Protection on catalog for details.
	Overvoltage protection		Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again), Refer to Overvoltage Protection on catalog for details.
	Series operation		Yes (For up to two Power Supplies; external diodes required.)
	Parallel operation		Yes (For up to two Power Supplies), Refer to Parallel Operation on catalog for details.
	Output indicator		Yes (LED: Green)
	Alarm indicator		Yes (LED: Red)

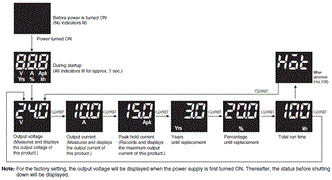

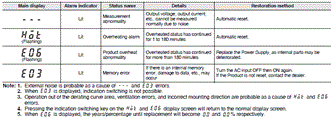

	Indication monitor	Measurement and display details	Refer to Communication and Indication Items on catalog for details.
		Main display	None
	Ethernet communication	Measurement and display details	Refer to Communication and Indication Items on catalog for details.
		Communication protocol	EtherNet/IP, Modbus TCP
		Physical layer	100BASE-TX
		Communication specifications	Refer to Communication Specifications on catalog for details.
Insulation	Withstand voltage		3.0 kVAC for 1 min. (between all input terminals and output terminals, all EtherNet/IP ports), current cutoff 20 mA
			2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA
			1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 30 mA
			0.5 kVAC for 1 min. (between all output terminals and all EtherNet/IP ports), current cutoff 30 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
			100 MΩ min. (between all EtherNet/IP ports and all input terminals) at 500 VDC
Environment	Ambient operating temperature *		-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing)
	Storage temperature		-40 to 85°C (with no condensation or icing)
	Ambient operating humidity		95% max. (Storage humidity: 95% max.)
	Vibration resistance		10 to 55 Hz, maximum 5 G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF *		160,000 hrs typ.

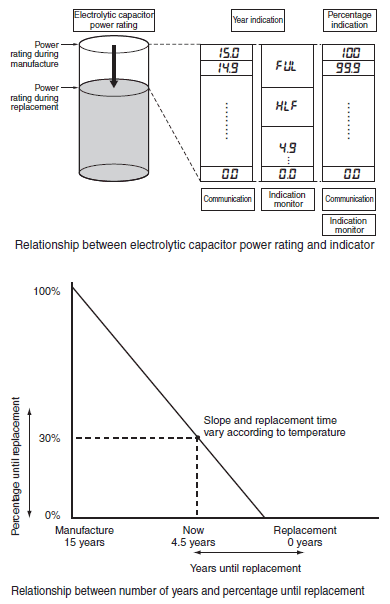

	Life expectancy *		10 years min.
Construction	Weight		250 g max.	250 g max.	250 g max.
	Cooling fan		No
	Degree of protection		IP20 by EN/IEC 60529

Power rating			90 W		120 W
Rated output voltage			24 V		24 V
Indication monitor			Included	None	Included	None
Efficiency *		115 VAC input	86% typ.	87% typ.	90% typ.	90% typ.
		230 VAC input	87% typ.	88% typ.	92% typ.	92% typ.
Input conditions	Voltage range *		Single-phase, 85 to 264 VAC, 90 to 350 VDC, 265 to 300 VAC (1 second)
	Frequency *		50/60 Hz (47 to 450 Hz)		50/60 Hz (47 to 63 Hz)
	Input current *	115 VAC input	1.7 A typ.	1.7 A typ.	1.2 A typ.	1.2 A typ.
		230 VAC input	1.0 A typ.	1.0 A typ.	0.63 A typ.	0.63 A typ.
	Power factor		---		0.9 min.
	Leakage current *	115 VAC input	0.5 mA max.
		230 VAC input	1 mA max.
	Inrush current *	115 VAC input	16 A typ.
		230 VAC input	32 A typ.
Output characteristics	Rated output current		3.75 A		5 A
	Rated output power		90 W		120 W
	Maximum boost current		---		6 A
	Voltage adjustment range *		23.0 to 24.1 V		21.6 to 28 V (with V. ADJ)
	Ripple noise voltage *	100 to 240 VAC input	300 mVp-p max. at 20 MHz of bandwidth		150 mVp-p max. at 20 MHz of bandwidth
	Input variation influence *		0.5% max.
	Load variation influence *		1.5% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	Start up time *	115 VAC input	1000 ms max.		1000 ms max.
		230 VAC input	1000 ms max.		1000 ms max.
	Hold time *	115 VAC input	25 ms typ.		35 ms typ.
		230 VAC input	130 ms typ.		35 ms typ.
Additional functions	Overload protection		Yes, automatic reset, intermittent operation type, Refer to Overload Protection on catalog for details.
	Overvoltage protection		Yes, 110% or higher of rated output voltage (90 W), 130% or higher of rated output voltage (120 W), power shut off (shut off the input voltage and turn on the input again, Refer to Overvoltage Protection on catalog for details.
	Series operation		Yes (For up to two Power Supplies, external diodes are required.)
	Parallel operation		Yes (For up to two Power Supplies), Refer to Parallel Operation on catalog for details.
	Output indicator		Yes (LED: Green)
	Alarm indicator		Yes (LED: Red)
	Indication monitor	Measurement and display details	Refer to Communication and Indication Items on catalog for details.
		Main display	7-segment LED (White)	None	7-segment LED (White)	None
	Ethernet communication	Measurement and display details	Refer to Communication and Indication Items on catalog for details.
		Communication protocol	EtherNet/IP, Modbus TCP
		Physical layer	100BASE-TX
		Communication specifications	Refer to Communication Specifications on catalog for details.
Insulation	Withstand voltage		3.0 kVAC for 1 min. (between all input terminals and output terminals, all EtherNet/IP ports), current cutoff 20 mA
			2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA
			1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 30 mA
			0.5 kVAC for 1 min. (between all output terminals and all EtherNet/IP ports), current cutoff 30 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
			100 MΩ min. (between all EtherNet/IP ports and all input terminals) at 500 VDC
Environment	Ambient operating temperature *		-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing)
	Storage temperature		-40 to 85°C (with no condensation or icing)
	Ambient operating humidity		95% max. (Storage humidity: 95% max.)
	Vibration resistance		10 to 55 Hz, maximum 5 G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF *		110,000 hrs typ.	150,000 hrs typ.	110,000 hrs typ.	140,000 hrs typ.
	Life expectancy *		10 years min.
Construction	Weight		350 g max.		400 g max.
	Cooling fan		No
	Degree of protection		IP20 by EN/IEC 60529

Power rating			240 W		480 W
Rated output voltage			24 V		24 V
Indication monitor			Included	None	Included	None
Efficiency *		115 VAC input	91% typ.	91% typ.	92% typ.	92% typ.
		230 VAC input	93% typ.	93% typ.	94% typ.	94% typ.
Input conditions	Voltage range *		Single-phase, 85 to 264 VAC, 90 to 350 VDC, 265 to 300 VAC (1 second)
	Frequency *		50/60 Hz (47 to 63 Hz)		50/60 Hz (47 to 63 Hz)
	Input current *	115 VAC input	2.4 A typ.	2.4 A typ.	4.6 A typ.	4.6 A typ.
		230 VAC input	1.2 A typ.	1.2 A typ.	2.3 A typ.	2.3 A typ.
	Power factor		0.9 min.
	Leakage current *	115 VAC input	0.5 mA max.
		230 VAC input	1 mA max.
	Inrush current *	115 VAC input	16 A typ.
		230 VAC input	32 A typ.
Output characteristics	Rated output current		10 A		20 A
	Rated output power		240 W		480 W
	Maximum boost current		15 A		30 A
	Voltage adjustment range *		21.6 to 28 V (with V. ADJ)
	Ripple noise voltage *	100 to 240 VAC input	140 mVp-p max. at 20 MHz of bandwidth		130 mVp-p max. at 20 MHz of bandwidth
	Input variation influence *		0.5% max.
	Load variation influence *		1.5% max.
	Temperature variation influence	100 to 240 VAC input	0.05%/°C max.
	Start up time *	115 VAC input	1000 ms max.		1000 ms max.
		230 VAC input	1000 ms max.		1000 ms max.
	Hold time *	115 VAC input	35 ms typ.		25 ms typ.
		230 VAC input	35 ms typ.		25 ms typ.
Additional functions	Overload protection		Yes, automatic reset, intermittent operation type, Refer to Overload Protection on catalog for details.
	Overvoltage protection		Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again), Refer to Overvoltage Protection on catalog for details.
	Series operation		Yes (For up to two Power Supplies; external diodes required.)
	Parallel operation		Yes (For up to two Power Supplies), Refer to Parallel Operation on catalog for details.
	Output indicator		Yes (LED: Green)
	Alarm indicator		Yes (LED: Red)
	Indication monitor	Measurement and display details	Refer to Communication and Indication Items on catalog for details.
		Main display	7-segment LED (White)	None	7-segment LED (White)	None
	Ethernet communication	Measurement and display details	Refer to Communication and Indication Items on catalog for details.
		Communication protocol	EtherNet/IP, Modbus TCP
		Physical layer	100BASE-TX
		Communication specifications	Refer to Communication Specifications on catalog for details.
Insulation	Withstand voltage		3.0 kVAC for 1 min. (between all input terminals and output terminals, all EtherNet/IP ports), current cutoff 20 mA
			2.0 kVAC for 1 min. (between all input terminals and PE terminals), current cutoff 20 mA
			1.0 kVAC for 1 min. (between all output terminals and PE terminals), current cutoff 30 mA
			0.5 kVAC for 1 min. (between all output terminals and all EtherNet/IP ports), current cutoff 30 mA
	Insulation resistance		100 MΩ min. (between all output terminals and all input terminals/PE terminals) at 500 VDC
			100 MΩ min. (between all EtherNet/IP ports and all input terminals) at 500 VDC
Environment	Ambient operating temperature *		-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data) (with no condensation or icing)
	Storage temperature		-40 to 85°C (with no condensation or icing)
	Ambient operating humidity		95% max. (Storage humidity: 95% max.)
	Vibration resistance		10 to 55 Hz, maximum 5 G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions
	Shock resistance		150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Reliability	MTBF *		100,000 hrs typ.	130,000 hrs typ.	90,000 hrs typ.	120,000 hrs typ.
	Life expectancy *		10 years min.
Construction	Weight		700 g max.		1,100 g max.
	Cooling fan		No
	Degree of protection		IP20 by EN/IEC 60529

* Refer to Definitions of the Terms Under Ratings, Characteristics, and Functions on catalog.

Standards

Standards	Harmonic current emissions		Conforms to EN 61000-3-2
	EMI	Conducted emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
		Radiated emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B
	EMS		Conforms to EN 61204-3 high severity levels
	Safety standards		UL 508, ANSI/ISA 12.12.01 (Listing) (For 30 W, 60 W, and 90 W only Class 2 Output: Per UL 1310) CSA C22.2 No. 107.1, CSA C22.2 No. 213 (cUL) (For 30 W, 60 W, and 90 W only Class 2 Output: Per CSA C22.2 No. 223) UL 60950-1, UL 62368-1 (Recognition) OVC II (≤3000 m) Pol2 (For 30 W, 60 W, and 90 W only LPS) CSA C22.2 No. 60950-1, No. 62368-1 (cUR) OVC II (≤3000 m) Pol2 (For 30 W, 60 W, and 90 W only LPS) EN 50178 OVC III (≤2000 m) OVC II (2000 m < and ≤3000 m) Pol2 EN 60950-1, EN 62368-1 OVC II (≤3000 m) Pol2 (For 30 W, 60 W, and 90 W only LPS) EAC (TR CU 004 / 2011, TR CU 020 / 2011) RCM (EN61000-6-4) Korea Radio Waves Act (Law No. 10564) Conforms to PELV (EN/IEC 60204-1) Conforms to EN/IEC 61558-2-16
	SEMI		Conforms to F47-0706 (200 to 240 VAC input)

• EMI (radiated emissions) conform to Class B when this Power Supply is installed in a control panel.
• EN/IEC 61558-2-16
    The S8VK-X was designed based on EN/IEC 61558-2-16.
    Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16.
    When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control
    transformer to the control circuits. However, a control transformer is not always necessary for product that have been
    certified for the safety standard for OVCIII or for product that use a transformer that conforms to EN/IEC 61558-2-16.
• Safety Standards for a DC Input
    When DC is used, UL 60950-1, UL 62368-1, cUR (CSA 22.2 No. 60950-1), cUR (CSA C22.2 No. 62368-1),
    EN/IEC 60950-1, EN/IEC 62368-1, EN 50178 and EN/IEC 61558-2-16 are applicable to safety standards.
    Safety standard compliance is achievable by connecting a UL-certified fuse as specified below.
    Select an external fuse that satisfies the following conditions:
    S8VK-X03005-EIP, S8VK-X06012-EIP, S8VK-X06024-EIP (350 VDC or more, 6 A)
    S8VK-X09024[]-EIP, S8VK-X12024[]-EIP, S8VK-X24024[]-EIP (350 VDC or more, 8 A)
    S8VK-X48024[]-EIP (350 VDC or more, 12 A)
• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective
    earth (PE).

Definitions of the Terms Under Ratings, Characteristics, and Functions

Input conditions	Efficiency	The value is when both rated output voltage and rated output current are satisfied.
	Voltage range	Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the product may result in smoking or burning. If the input is connected to a UPS, do not connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or burning.
	Frequency
	Input current	The value is when both rated output voltage and rated output current are satisfied.
	Leakage current	The value is determined according to the Electrical Appliances and Material Safety Act.
	Inrush current	Values for a cold start at 25°C. Refer to Inrush Current, Startup Time, and Output Hold Time on catalog for details.
Output characteristics	Voltage adjustment range	If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than of the voltage adjustment range. When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not damaged.
	Ripple noise voltage	The value is when both rated output voltage and rated output current are satisfied. A characteristic when the ambient operating temperature is 25°C.
	Static input variation influence	This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable input voltage range at the rated output voltage and rated output current.
	Load variation influence	100 to 240 VAC input, in the range of 0 A to the rated output current.
	Startup time	The value is when both rated output voltage and rated output current are satisfied and at room temperature (25°C). Refer to Inrush Current, Startup Time, and Output Hold Time on catalog for details.
	Hold time	The value is when both rated output voltage and rated output current are satisfied and at room temperature (25°C). Refer to Inrush Current, Startup Time, and Output Hold Time on catalog for details.
Environment	Ambient operating temperature	At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input. Also, the ripple noise value may exceed the value shown in the above table.
Reliability	MTBF	MTBF is calculated according to JEITA RCR-9102. MTBF stands for Mean Time Between Failures, which is calculated according to the probability of accidental device failures, and indicates reliability of devices. Therefore, it does not necessarily represent a life of the product.
	Life expectancy	Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on catalog for details

Communication and Indication Items

Item	Communication *	Indication monitor *	Resolution		Data update cycle	Details
Output voltage measurement	Yes	Yes	0.1 V		5 ms	Measurement accuracy ±2% (percentage of output voltage value) ±1 digit
Output current measurement	Yes	Yes	0.1 A		5 ms	Measurement accuracy ±5% (percentage of rated output current) ±1 digit
Peak hold current measurement	Yes	Yes	0.1 A		5 ms	Measurement accuracy ±5% (percentage of rated output current) ±1 digit
Years until replacement	Yes	Yes	0.1 years		1 min	Range 0.0 to 15.0 years (communication) FUL (Full) / HLF (Half) / 0.0 to 4.9 years (indication monitor)
Percentage until replacement	Yes	Yes	0.1%		1 min	Range 0.0 to 100%
Total run time	Yes	Yes	Communication	1 h	1 min	Range 0 to 262,800 h (communication) 0 to 263 kh (indication monitor)
			Indication monitor	1 kh
Continuous run time	Yes	None	1 min		1 min	Range 0 to 15,768,000 min
Self-diagnostics	Yes	Yes	None		None	Refer to Self-Diagnostics Function on catalog for details.
Product model	Yes	None	None		None	Product model is expressed in ASCII code
Serial number	Yes	None	None		None	Expressed in hexadecimal (4-byte)
Firmware version	Yes	None	None		None	Expressed in hexadecimal (2-byte)
MAC address	Yes	None	None		None	None
IP address	Yes	None	None		None	None
IP address setting method	Yes	None	None		None	Static IP address/BOOTP selection

Note: For details on the communication function and setting method, refer to the Switch Mode Power Supply S8VK-X
          Communication Manual (Man. No. T213).
* Communication cycle can be set from 100 to 10,000 ms. The indication update cycle is 50 ms.

Inrush Current, Startup Time, and Output Hold Time

Note: Twice the normal inrush current will flow during parallel operation or for backup operation. Also, if crossover wiring
          is used for N number of Power Supplies, an inrush current of N times the inrush current for a standalone Power Supply
          will flow. Therefore, check the fusing characteristics of fuses and operating characteristics of breakers making sure that
          the external fuses will not burn out and the circuit breakers will not be activated by the inrush current.

Overload Protection

When the load current reaches 121% to 160% of the rated current for S8VK-X03005-EIP, S8VK-X06012-EIP, S8VK-X06024-EIP, and S8VK-X12024[]-EIP, 101% to 110% for S8VK-X09024[]-EIP, or 151% to 165% for S8VK-X24024[]-EIP and S8VK-X48024[]-EIP, output voltage is automatically lowered to protect the Power Supply from short-circuit currents and overcurrents.
When the output current falls within the rated range, the overload protection function is automatically cleared.

Note: 1. Internal parts may possibly deteriorate or be damaged if a short-circuited or overcurrent state continues during
              operation.
          2. Internal parts may possibly deteriorate or be damaged if the Power Supply is used for applications with frequent
              inrush current or overloading at the load end. Do not use the Power Supply for such applications.

Overvoltage Protection

Overvoltage will be detected to prevent the load from being subjected to excessive voltage when the feedback circuit in the Power Supply fails, etc.
If an excessive voltage that is approximately 130% of the rated output voltage (but approximately 110% of the rated output voltage for only the S8VK-X09024[]-EIP) or more is output, the output voltage is shut OFF.
Reset the input power by turning it OFF for at least three minutes and then turning it back ON again.
Note: Do not turn ON the power again until the cause of the overvoltage has been removed.

Communication Specifications

Item		Specification
Media access method		CSMA/CD
Modulation system		Baseband
Topology		Star configuration
Transmission speed		100 Mbps
Transmission medium		Twisted pair cable (with shield: STP): Category 5, 5e or above
Maximum transmission distance (distance between hub and node)		100 m
Tag data Link	Class1	Possible
	Connection resouce	1
	No. of connected nodes	1
	No. of tag sets	1
	Packet interval (RPI)	100 to 10,000 ms
	Time-out value	Multiple of RPI
	Connection type	Point To Point Connection (fixed)
Explicit Message	Class3	Possible
	UCMM	Possible
	Connection resouce	2 (Class3 server)
	No. of clients for which simultaneous UCMM communication is possible	2
Factory default values	IP address	192.168.250.20
	Subnet mask	255.255.255.0
	Default gateway	0.0.0.0
	IP address setting method	Static IP address

Module Status and Network Status Indicators

Name	Color	Status	Operating status
Module status Indicator (MS)	Green	Lit	Normal
		Flashing	---
	Red	Lit	RAM abnormality, EEPROM abnormality
		Flashing	Voltage measurement abnormality, current measurement abnormality
	-	Not lit	No power supply
	Green/Red	Flashing	When power is turned ON
Network status Indicator (NS)	Green	Lit	Connection established
		Flashing	Connection not established
	Red	Lit	Multiple IP addresses
		Flashing	Connection timeout BOOTP server connection abnormality
	---	Not lit	No power supply
	Green/Red	Flashing	When power is turned ON

Communication Reset Function

This function temporarily resets the communication settings to their factory default values. Use this function when the IP address previously set is no longer known and communication is not possible.

Setting Method

(1) With the reset key pressed, turn on the power supply.
(2) Continue to hold the reset key for 10 seconds.
      While pressed, an alarm indicator will flash in 0.5-second intervals.
      (For models with an indication monitor, the main display and operation indicator will also repeatedly turn all indicators
       on and off in 0.5-second intervals.)
(3) After 10 seconds have elapsed, the system shifts into the communication reset state, and the communication setting
      values temporarily reset to their factory default values.
      In the communication reset state, the alarm indicator will flash in 1-second intervals. (For models with an indication
      monitor, the main display and operation indicator will return to normal operation.)
(4) In the communication reset state, reset the communication settings from the host device.
(5) After setting, turn on the power supply once again, and confirm that the set values have been changed.

Note: 1. After confirming that the product output indicator has turned off, turn on the power supply once again.
          2. The only way to exit the communication reset state is to restart the power supply.
          3. If you do not change the communication settings during step (4), settings will return to their prior values once
              the communication reset is ended.

Switching Indications

All indicators of the indication monitor will be lit for 1 second when power is turned on. After that, each status can be displayed using the Indication switching key.

Peak Hold Current

The output current maximum value is stored as the peak hold current. (5 ms average value)
Measurement is not performed for approximately 3 seconds immediately after the input power is turned ON.

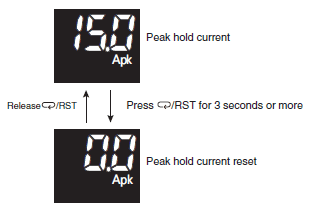

Peak Hold Curmrent Reset

When the peak hold current is displayed, it can be reset by pressing the Reset key for 3 seconds or more.

Note: For types without an indication monitor, it is not possible to reset the peak hold current via reset key operation.

Replacement Time Calculation Function

This Power Supply is equipped with electrolytic capacitors. The electrolyte inside the electrolytic capacitors penetrates the sealing rubber and evaporates as time passes after it is manufactured. This causes deterioration of characteristics, such as decreasing the capacitance. Due to this deterioration of the characteristics of the electrolytic capacitor, this Power Supply decreases its performance as time passes. The replacement time calculation function calculates an approximate period left for maintenance of this Power Supply due to deterioration of electrolytic capacitors. Use this function to know the approximate replacement time of the Power Supply.

Note: The replacement time calculation function indicates an approximate period left for maintenance, based on deterioration
          of the electrolytic capacitors. It does not predict failures resulting from other causes.

Principle of Operation

The deterioration speed of the electrolytic capacitors varies considerably with the ambient temperature. (Generally the speed follows the Arrhenius Law, i.e., for every 10°C increase in the temperature, the rate of degradation doubles.) The S8VK-X monitors the temperature inside the Power Supply, and calculates the amount of deterioration according to the running hours and internal temperature.

Note: 1. Due to degradation of internal electronic parts, replace the Power Supply approximately 15 years after purchase
              even if the replacement time calculation for years and percentage do not appear.
          2. The replacement time is accelerated or decelerated according to operating conditions. Periodically check
              indication.
          3. The accuracy of the replacement time calculation function will be reduced in applications where the input power
              turns ON and OFF frequently.

Years until replacement

(Indication monitor)
 is indicated at the time of purchase (when initially powered on), and continues to be indicated for approximately one month.
Afterward, the state of deterioration for the electrolytic capacitor is calculated based on the usage environment, and  is indicated when deterioration progresses. When the years until replacement reaches 5 years or less, it is indicated in 0.1 step increments within the range of 4.9 to 0.0. (Depending on the usage environment, the number of years may be indicated after  without  being indicated.)
(Communication)
Communication is calculated in 0.1 step increments within a range of 15.0 to 0.0.

Note: The number of years until replacement may vary if there are frequent load variations or in locations where the ambient
          temperature fluctuates drastically.

Percentage until replacement

With the number of years until replacement at the time of manufacture set as 100%, as deterioration of the electrolytic capacitor progresses through use, it decreases in 0.1% step increments.

Difference between Expected Life and Replacement Time

OMRON calculates the expected life based on the following conditions.
1.Rated input voltage
2. Load rate: 50%
3. Ambient temperature: +40°C
4. Standard mounting

Note: As the values were calculated using an aluminum electrolytic condenser temperature rise test, they are not
          guaranteed. Use this data as a reference for maintenance and replacement time calculation.

The expected life span of the S8VK-X is 10 years minimum.
Also, a replacement time calculation function is included among the functions of the S8VK-X. The replacement time is the service life (the Power Supply's internal temperature is monitored at all times) of the internal electrolytic capacitor in actual operating conditions, and varies according to the customers operating conditions. 15 years is taken as the maximum period of the maintenance forecast.

Total Run Time

The accumulated value of the product's time powered on is measured as the total run time.
(With indication monitor)
Total run time increases in  (kh) steps with use.
(Communication)
Total run time increases in  (h) steps with use.

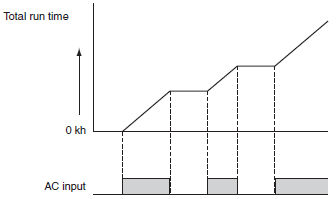

Time Chart

Note: 1. The total run time does not include the time that the Power Supply is OFF.
          2. The total run time measures the total time that power is being supplied and is not related in any way to deterioration
               in the electrolytic capacitor built into the Power Supply or to the effects of the ambient temperature.

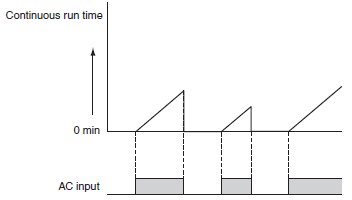

Continuous Run Time (Communication Only)

The product's time powered on is measured as continuous run time, and the continuous run time increases in 1 (min) steps with use.
Continuous run time will be reset when power is turned off.

Time Chart

Note: 1. The continuous run time does not include the time that the Power Supply is OFF.
          2. The continuous run time measures the total time that power is being supplied and is not related in any way to
               deterioration in the electrolytic capacitor built into the Power Supply or to the effects of the ambient temperature.

Self-Diagnostics Function

last update: May 14, 2018

• NO. S8VK-X
• TYPE:Power Supplies Switch mode power supplies Copyright Statement
• DATE:2021-06-08
• Associated products:
  V680S Series RFID System/Features V780 Series UHF RFID System/Features
