Heater Burnout Detection
• Built-in Current Transformer (CT) helps reduce wiring steps.
• Detects the burnout of any one of a group of heaters.
• Detects the burnout of 3-phase heaters.
• Detects SSR short-circuit failures.
• Error detection level can be easily set with a switch.
• Mounts to a DIN track or with screws.
• Three types of input terminals available: M3 terminals, screwless clamp terminals (detachable), or compact slotted screw terminals (detachable).
• Certified for CSA and EN (TÜV).
• The G3PF-2[][]B-[][][] Series is UL certified.
last update: April 24, 2017
Purchase the OMRON For Heater Control Please fill in the following
If you have just landed here, this product OMRON G3PF Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PF We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PFRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2K-C Long-distance type/Features
G9SB Safety Relay Unit/Features
E5CN-H Advanced Digital Temperature Controller (48 x 48 mm)/Features
E5CC-800, E5CC-U-800 Digital Temperature Controller (Simple Type) (48 × 48 mm)/Features
SRT2-[]D08S Sensor Terminals/Features
OMRON G3PF dimension
G3PF Solid State Relays with Built-in Current Transformer/Dimensionslast update: September 24, 2012

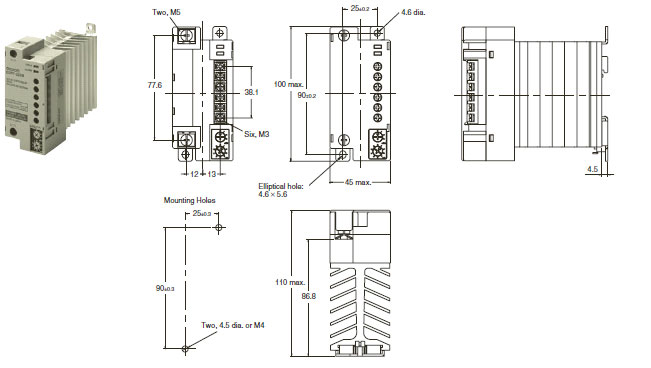

G3PF-[]25B
![G3PF Dimensions 2 G3PF-[]25B_Dim](/images/8767/g3pf_dm_125-107728.jpg)

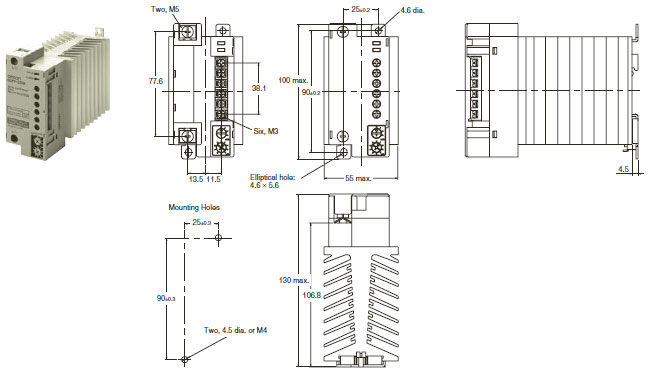

G3PF-[]35B
![G3PF Dimensions 4 G3PF-[]35B_Dim](/images/8767/g3pf_dm_225-107730.jpg)

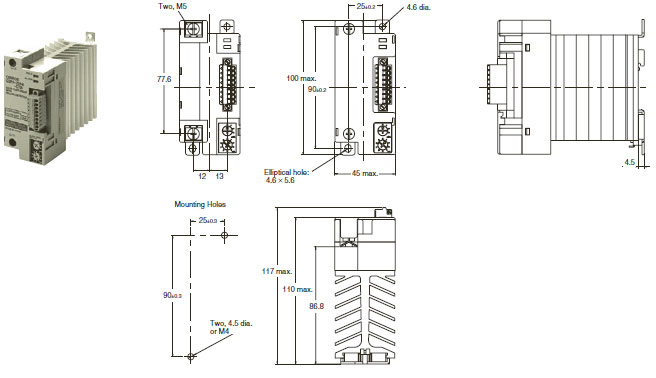

G3PF-[]25B-CTB
![G3PF Dimensions 6 G3PF-[]25B-CTB_Dim](/images/8767/g3pf_dm_325-107732.jpg)

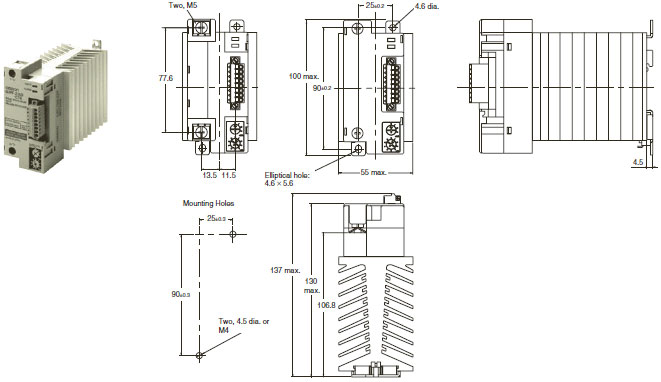

G3PF-[]35B-CTB
![G3PF Dimensions 8 G3PF-[]35B-CTB_Dim](/images/8767/g3pf_dm_425-107734.jpg)

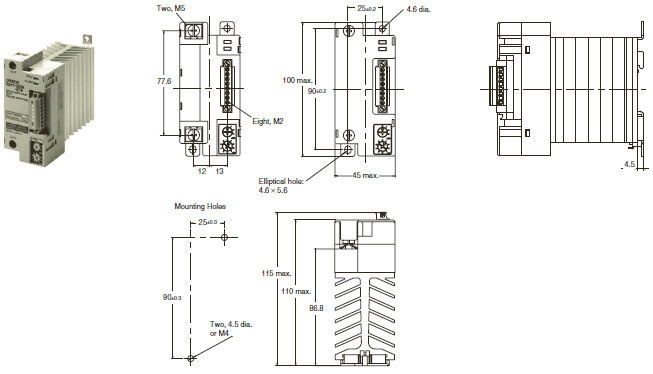

G3PF-[]25B-STB
![G3PF Dimensions 10 G3PF-[]25B-STB_Dim](/images/8767/g3pf_dm_525-107736.jpg)

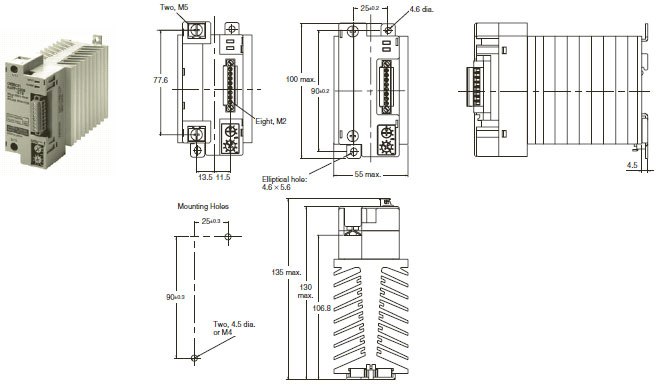

G3PF-[]35B-STB
