OMRON SRT2-[]D08S specification

last update: November 27, 2013

Ratings

Input

Item	SRT2-ID08S/-ND08S
Input current	10 mA max./point
ON delay time	1 ms max.
OFF delay time	1.5 ms max.
ON voltage	12 VDC min. between each input terminal and VCC, the external sensor power supply
OFF voltage	4 VDC max. between each input terminal and VCC, the external sensor power supply
OFF current	1 mA max.
Insulation method	Photocoupler
Input indicator	LED (yellow)

Output

Item	SRT2-ND08S	SRT2-OD08S
Rated output current	20 mA/point	300 mA/point
Residual voltage	1 V max.	0.6 V max.
ON delay time	1 ms max.	---
OFF delay time	1.5 ms max.	---
Leakage current	0.1 mA max.
Insulation method	Photocoupler
Output indicator	LED (yellow)

Characteristics

Communications power supply voltage *1	14 to 26.4 VDC
Current consumption *2	50 mA max. at 24 VDC
Connection method	Multi-drop method and T-branch method
Dielectric strength	500 VAC for 1 min (1-mA sensing current between insulated circuits)
Noise immunity	Conforms to IEC61000-4-4 2kV (power lines)
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Malfunction: 200 m/s2 Destruction: 300 m/s2
Mounting method	M4 screw mounting or 35-mm DIN track mounting
Mounting strength	No damage when 50 N pull load was applied for 10 s in all directions (except the DIN track directions and a pulling force of 10 N)
Terminal strength	No damage when 50 N pull load was applied for 10 s in all directions Tighten each screw to a torque of 0.6 to 1.18 N m
Ambient temperature	Operating: 0°C to 55°C (with no icing or condensation) Storage: -20°C to 65°C (with no icing or condensation)
Ambient humidity	Operating: 35% to 85%
Weight	SRT2-ID08S/OD08S: 100 g max., SRT2-ND08S: 80 g max.

*1. The communications power supply voltage must be 20.4 to 26.4 VDC if the Unit is connected to 2-wire proximity
       sensors.
*2. The above current consumption is a value with all the points turned OFF excluding the current consumption of the
       sensor connected to the Sensor Terminal.

External Sensor Power Supply

Power supply voltage	13.5 to 26.4 VDC
Current consumption	500 mA max. in total

last update: November 27, 2013

OMRON SRT2-[]D08S lineup

last update: November 27, 2013

Classification	Internal I/O circuit common	I/O points	Model
For input	NPN (- common)	8 input points	SRT2-ID08S
For I/O	NPN (- common)	4 input/4 output points	SRT2-ND08S
For output	NPN (- common)	8 output points	SRT2-OD08S

last update: November 27, 2013

OMRON SRT2-[]D08S dimension

last update: November 27, 2013

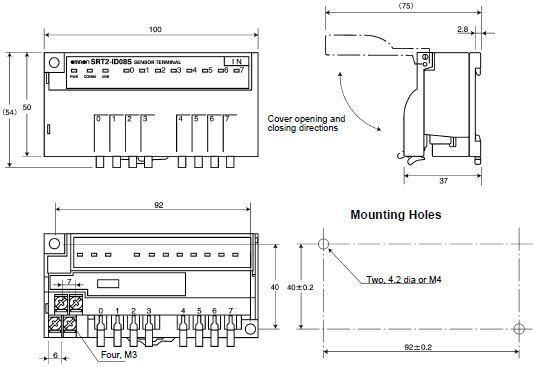

SRT2-ID08S

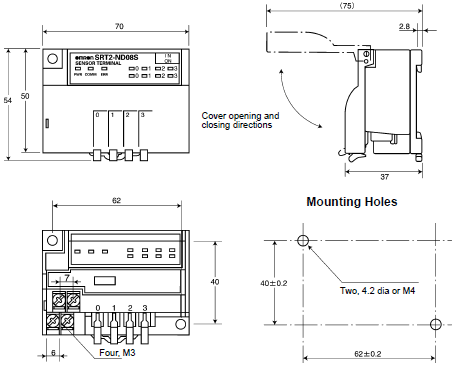

SRT2-ND08S

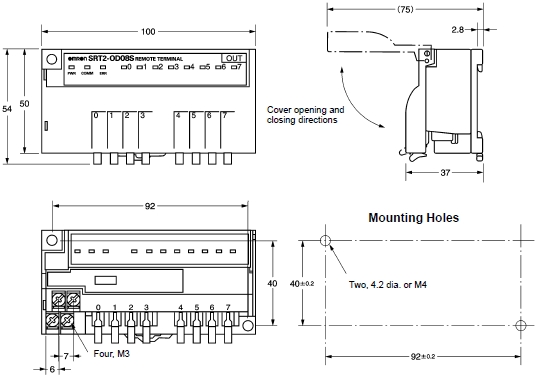

SRT2-OD08S

Cable Connector for SRT2-[]D08S

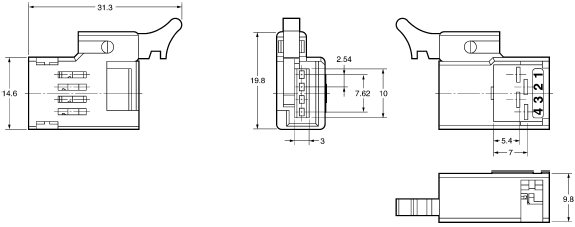

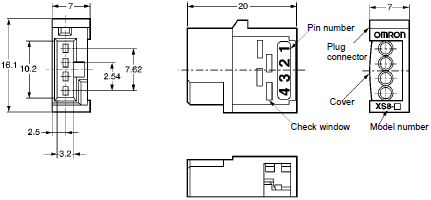

XS8A-044[] (Cable Connector)

XS8B-0443 (Relay Socket)

Calculate the cable conductor size as explained below.
The following information is given on each sensor cable:
     Cable dia. (Number of conductors/Conductor dia.)
     Conductor size (mm²) = (Conductor dia./2)² x π x Number of conductors
Example: E3S-A
     4 dia. (18/0.12)
     Conductor size (mm²) = (0.12/2)² x 3.14 x 18 0.20
The conductor size is 0.2 mm². Therefore, use the XS8A-0442.
