OMRON H3CR-AControl Components/ Timers/Analog Timers
OMRON H3CR-A Control Components
OMRON H3CR-A Dimensions
/Images/l_193-25-118910-198x198.jpglast update: August 22, 2013
• A wide AC/DC power supply range greatly reduces the number of timer models kept in stock.
• A wide range of applications with multiple operating modes, eight modes for 11-pin models and five modes for 8-pin models.
• Ecological design with reduced current consumption.
• Easy sequence checking with instantaneous outputs for a zero set value.
• Length of 75 mm or less when panel-mounted with a P3G-08 Socket (H3CR-A8E, 100 to 240 VAC, 100 to 125 VDC)
• PNP input models available.
• Standards: UL, CSA, NK, LR, CCC, EN 61812-1, and CE Marking.
last update: August 22, 2013
Purchase the OMRON Analog Timers Please fill in the following
If you have just landed here, this product OMRON H3CR-A Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3CR-A We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3CR-AControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
F39-TC5 Connector Terminal Box (Muting Terminals)/Features
E5EC-800 Digital Temperature Controller (Simple Type) (48 × 96 mm)/Features
H3DT-F Twin Timer/Features
H3Y-[]-B Solid-state Timer/Features
eCobra 800 Inverted Lite / Standard / Pro SCARA Robots/Features
OMRON H3CR-A lineup
H3CR-A Solid-state Multi-functional Timers/Lineuplast update: April 15, 2013
11-pin Models

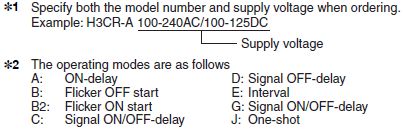

| Output | Supply voltage | Input type | Time range | Operating mode *2 | Model *1 |
|---|---|---|---|---|---|
| Contact | 100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC | No-voltage input | 0.05 s to 300 h | Eight multi-modes: A, B, B2, C, D, E, G, J | H3CR-A |
| 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | |||||
| 100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC | Voltage input | Eight multi-modes: A, B, B2, C, D, E, G, J | H3CR-AP | ||
| 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | |||||
| 100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC | No-voltage input | 0.1 s to 600 h | H3CR-A-301 | ||
| 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | |||||
| Transistor (Photocoupler) | 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | 0.05 s to 300 h | H3CR-AS |
8-pin Models
| Output | Supply voltage | Input type | Time range | Operating mode *2 | Model *1 |
|---|---|---|---|---|---|
| Contact | 100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC | No-input available | 0.05 s to 300 h | Five multi-modes: A, B, B2, E, J (Power supply start) | H3CR-A8 |
| 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | |||||
| 100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC | 0.1 s to 600 h | H3CR-A8-301 | |||
| 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | |||||
| Transistor (Photocoupler) | 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC | 0.05 s to 300 h | H3CR-A8S | ||
| Time-limit contact and instantaneous contact | 100 to 240 VAC (50/60 Hz)/ 100 to 125 VDC | H3CR-A8E | |||
| 24 to 48 VAC/VDC (50/60 Hz) |
Accessories (Order Separately)
Adapter, Protective Cover, Hold down Clip, Setting Ring and Panel Cover
| Name/specifications | Models | |
|---|---|---|
| Flush Mounting Adapter | Y92F-30 | |
| Y92F-73 *1 | ||
| Y92F-74 *1 | ||
| Protective Cover | Y92A-48B *2 | |
| Hold-down Clip (Sold in sets of two) | For PF085A Socket | Y92H-8 |
| For PL08 or PL11 Sockets | Y92H-7 | |
| Setting Ring A | Y92S-27 *3 | |
| Setting Ring B and C | Y92S-28 *3 | |
| Panel Cover | Light gray (5Y7/1) | Y92P-48GL *4 |
| Black (N1.5) | Y92P-48GB *4 | |
*1. The Y92A-48B Protective Cover and the Y92P-48G[] Panel Cover can not be used at the same time with the Y92F-73/
-74 Flush Mounting Adapter.
*2. The Y92A-48B Protective Cover is made from hard plastic. Remove the Protective Cover to change to set value. The
Y92F-73/-74 Flush Mounting Adapter and the Y92P-48G[] Panel Cover cannot be used at the same time with Y92A-
48B Protective Cover.
*3. The Y92S-27/-28 Setting Ring cannot be used alone. It must be used together with the Y92P-48G[] Panel Cover.
*4. The Y92A-48B Protective Cover and the Y92F-73/-74 Flush Mounting Adapter cannot be used at the same time with the
Y92P-48G[] Panel Cover.
Sockets
| Timer | Round Sockets | ||
|---|---|---|---|
| Pin | Connection | Terminal | Models |
| 11-pin | Front Connecting | DIN track mounting | P2CF-11 |
| DIN track mounting (Finger-safe type) | P2CF-11-E | ||
| Back Connecting | Screw terminal | P3GA-11 | |
| Solder terminal | PL11 | ||
| Wrapping terminal | PL11-Q | ||
| PCB terminal | PLE11-0 | ||
| 8-pin | Front Connecting | DIN track mounting | P2CF-08 |
| DIN track mounting (Finger-safe type) | P2CF-08-E | ||
| DIN track mounting | PF085A | ||
| Back Connecting | Screw terminal | P3G-08 | |
| Solder terminal | PL08 | ||
| Wrapping terminal | PL08-Q | ||
| PCB terminal | PLE08-0 | ||
Note: 1. The P2CF-[][]-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp
terminals.
2. The P3GA-11 and P3G-08 Socket can be used together with the Y92A-48G Terminal Cover to implement finger
protection.
3. For details, refer to your OMRON website.
Terminal Cover
| Application | Model | Remarks |
|---|---|---|
| For back connecting socket | Y92A-48G | For P3G-08 and P3GA-11 |
Note: For details, refer to your OMRON website.
last update: April 15, 2013
OMRON H3CR-A specification
H3CR-A Solid-state Multi-functional Timers/Specificationslast update: October 9, 2018
General
| Item | H3CR-A/-AS/-A-301 | H3CR-AP | H3CR-A8/-A8S/-A8-301 | H3CR-A8E |
|---|---|---|---|---|
| Operating mode | A: ON-delay B: Flicker OFF start B2: Flicker ON start C: Signal ON/OFF-delay D: Signal OFF-delay E: Interval G: Signal ON/OFF-delay J: One-shot | A: ON-delay (power supply start) B: Flicker OFF start (power supply start) B2: Flicker ON start (power supply start) E: Interval (power supply start) J: One-shot (power supply start) | ||
| Pin type | 11-pin | 8-pin | ||
| Input type | No-voltage input | Voltage input | --- | |
| Time-limit output type | H3CR-A/-A8/-AP/-A-301/-A8-301: Relay output (DPDT) H3CR-AS/-A8S: Transistor output (NPN/PNP universal) *1 | Relay output (SPDT) | ||
| Instantaneous output type | --- | Relay output (SPDT) | ||
| Mounting method | DIN track mounting, surface mounting, and flush mounting | |||
| Approved standards | UL508, CSA C22.2 No.14, NK, Lloyds, CCC: GB/T 14048.5 *2 Conforms to EN61812-1 and IEC60664-1 (VDE0110) 4kV/2. Output category according to EN60947-5-1 for Timers with Contact Outputs. Output category according to EN60947-5-2 for Timers with Transistor Outputs. | |||
*1 The internal circuits are optically isolated from the output. This enables universal application as NPN or PNP transistor.
For details, refer to your OMRON website.
*2 CCC certification requirements
| Recommended fuse | Contact Output: 0216005 (250 VAC, 5 A), manufactured by Littelfuse Transistor Output: 0216.100 (250 VAC, 100 mA) manufactured by Littelfuse |
|---|---|
| Rated operating voltage Ue Rated operating current Ie | Contact Output: AC-15: Ue: 250 VAC, Ie: 3 A AC-13: Ue: 250 VAC, Ie: 5 A DC-13: Ue: 30 VDC, Ie: 0.5 A Transistor Output: DC-13: Ue: 30 VDC, Ie: 0.1 A |
| Rated insulation voltage | 250 V |
| Rated impulse withstand voltage (altitude: 2,000 m max.) | 4 kV (at 240 VAC) |
| Conditional short-circuit current | 1000 A |
Time Ranges
Note: When the time setting knob is turned below "0" until the point where the time setting knob stops, the output will
operate instantaneously at all time range settings.
For details, refer to your OMRON website.
Standard (0.05-s to 300-h) Models
| Time unit | s (sec) | ×10 s (10 sec) | min (min) | ×10 min (10 min) | h (hrs) | ×10 h (10 hrs) | |
|---|---|---|---|---|---|---|---|
| Full scale setting | 1.2 | 0.05 to 1.2 | 1.2 to 12 | 0.12 to 1.2 | 1.2 to 12 | 0.12 to 1.2 | 1.2 to 12 |
| 3 | 0.3 to 3 | 3 to 30 | 0.3 to 3 | 3 to 30 | 0.3 to 3 | 3 to 30 | |
| 12 | 1.2 to 12 | 12 to 120 | 1.2 to 12 | 12 to 120 | 1.2 to 12 | 12 to 120 | |
| 30 | 3 to 30 | 30 to 300 | 3 to 30 | 30 to 300 | 3 to 30 | 30 to 300 | |
Ratings
| Rated supply voltage *1 *2 *5 | 100 to 240 VAC (50/60 Hz)/100 to 125 VDC, 24 to 48 VAC (50/60 Hz)/ 12 to 48 VDC (24 to 48 VAC/VDC for H3CR-A8E) *3 |
|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage (90% to 110% at 12 VDC) |
| Power reset | Minimum power-opening time: 0.1 s |
| Input *6 | No-voltage Input ON impedance: 1 kΩ max. ON residual voltage: 1 V max. OFF impedance: 100 kΩ min. Voltage Input Max. permissible capacitance between inputs lines (terminals 6 and 7): 1,200 pF Load connectable in parallel with inputs (terminals 6 and 7). 100 to 240 VAC/100 to 125 VDC High (logic) level: 85 to 264 VAC/85 to 137.5 VDC Low (logic) level: 0 to 10 VAC/0 to 10 VDC 24 to 48 VAC/12 to 48 VDC High (logic) level: 20.4 to 52.8 VAC/10.8 to 52.8 VDC Low (logic) level: 0 to 2.4 VAC/0 to 1.2 VDC |
| Power consumption | H3CR-A/-A8 100 to 240 VAC/100 to 125 VDC (When at 240 VAC, 60 Hz) Relay ON: approx. 2.0 VA (1.6 W), Relay OFF: approx. 1.3 VA (1.1 W) 24 to 48 VAC/12 to 48 VDC (When at 24 VDC) Relay ON: approx. 0.8 W, Relay OFF: approx. 0.2 W H3CR-AP *3 100 to 240 VAC/100 to 125 VDC (When at 240 VAC, 60 Hz) Relay ON: approx. 2.5 VA (2.2 W) *4, Relay OFF: approx. 1.8 VA (1.7 W) *4 24 to 48 VAC/12 to 48 VDC (When at 24 VDC) Relay ON: approx. 0.9 W *4, Relay OFF: approx. 0.3 W *4 H3CR-A8E 100 to 240 VAC/100 to 125 VDC (When at 240 VAC, 60 Hz) Relay ON/OFF: approx. 2 VA (0.9 W) 24 to 48 VAC/VDC (When at 24 VDC) Relay ON/OFF: approx. 0.9 W H3CR-AS/-A8S 24 to 48 VAC/12 to 48 VDC (When at 24 VDC) Output ON: 0.3 W, Output OFF: 0.2 W |
| Control outputs | Models with Contact Outputs H3CR-A/-A8/-AP 5A at 250 VAC/30 VDC, 0.15A at 125 VDC, resistive load (cosφ = 1) Minimum applied load: 10mA at 5 VDC (failure level: P reference value) Contact materials: Ag-alloy H3CR-A8E 5A at 250 VAC/30 VDC, 0.15A at 125 VDC, resistive load (cosφ = 1) Minimum applied load: 10mA at 5 VDC (failure level: P reference value) Contact materials: AgSnIn Transistor output: Open collector(NPN/PNP) H3CR-AS/-A8S 100 mA max at 30 VDC max., residual voltage: 2 VDC max. |
*1. DC ripple rate: 20% max. (A single-phase, full-wave-rectification power supply can be used).
*2. Do not use an inverter output as the power supply. Refer to your OMRON website for details.
*3. Models with 24-to-48-VAC or 12-to-48-VDC power supply have inrush current. Caution is thus required when turning
ON and OFF power to the Timer with a non-contact output from a device such as a sensor. (Models with an inrush
current of approximately 50 mA and a 24-VDC power supply are available (the H3CR-A-302 and H3CR-A8-302).)
For details, consult your OMRON sales representative.
*4. The values are for when the terminals 2 and 7 and terminals 10 and 6 are short-circuited, and include the
consumption current of the input circuit.
*5. Refer to your OMRON website when using the Timer together with a 2-wire AC proximity sensor.
*6. For details, see Input Connections: No-voltage Input Signal Levels on Catalog, and Input Connections: Voltage Input
Signal Levels on Catalog.
Characteristics
| Accuracy of operating time | ±0.2% FS max. (±0.2%±10 ms max. in a range of 1.2 s or 3 s) |
|---|---|
| Setting error | ±5% FS ±50 ms *1 |
| Reset time | Min. power-opening time: 0.1 s max. Min. pulse width: 0.05 s (H3CR-A/-AS) |
| Reset voltage | 10% max. of rated supply voltage |
| Influence of voltage *2 | ±0.2% FS max. (±0.2%±10 ms max. in a range of 1.2 s or 3 s) |
| Influence of temperature | ±1% FS max. (±1%±10 ms max. in a range of 1.2 s or 3 s) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 2,000 VAC (1,000 VAC for H3CR-A[]S), 50/60 Hz for 1 min (between current-carrying metal parts and exposed non-current-carrying metal parts) 2,000 VAC (1,000 VAC for H3CR-A[]S), 50/60 Hz for 1 min (between control output terminals and operating circuit) 2,000 VAC, 50/60 Hz for 1 min (between contacts of different polarities) 1,000 VAC, 50/60 Hz for 1 min (between contacts not located next to each other) 2,000 VAC, 50/60 Hz for 1 min (between input and control output terminals and operation circuit) for H3CR-AP |
| Impulse withstand voltage | 5 kV (between power terminals) for 100 to 240 VAC/100 to 125 VDC, 1 kV for 24 to 48 VAC/12 to 48 VDC 5 kV (between current-carrying terminal and exposed non-current-carrying metal parts) for 100 to 240 VAC/100 to 125 VDC, 1.5 kV for 24 to 48 VAC/12 to 48 VDC and 24 to 48 VAC/VDC |
| Noise immunity | ±1.5 kV (between power terminals) and ±600 V (between no-voltage input terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise) |
| Static immunity | Malfunction: 8 kV Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz with 0.75-mm single amplitude each in 3 directions for 2 hours each Malfunction: 10 to 55 Hz with 0.5-mm single amplitude each in 3 directions for 10 minutes each |
| Shock resistance | Destruction: 1,000 m/s2 3 times each in 6 directions Malfunction: 100 m/s2 3 times each in 6 directions |
| Ambient temperature | Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing) |
| Ambient humidity | Operating: 35% to 85% |
| Life expectancy *4 | Mechanical: 20,000,000 operations min. (under no load at 1,800 operations/h) Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h) *3 |
| EMC | (EMI) EN61812-1 Emission Enclosure: EN55011 Group 1 class A Emission AC Mains: EN55011 Group 1 class A (EMS) EN61812-1 Immunity ESD: IEC61000-4-2 Immunity RF-interference: IEC61000-4-3 Immunity Burst: IEC61000-4-4 Immunity Surge: IEC61000-4-5 Immunity Conducted Disturbance: IEC61000-4-6 Immunity Voltage Dip/Interruption: IEC61000-4-11 |
| Case color | Light gray (Munsell 5Y7/1) |
| Degree of protection | IP40 (panel surface) |
| Weight | Approx. 90 g |
*1. The value is ±5% FS +100 ms to −0 ms max. when the C, D, or G mode signal of the H3CR-AP is OFF.
*2. The influence of voltage of the H3CR-A8E (24 to 48 VAC/12 to 48 VDC) is ±2.0% FS max. with a single-phase power
supply with fullwave rectification.
*3. Refer to the Life-test Curve (Reference).
*4. Contact output only.
Life-test Curve (Reference)
Reference:
A maximum current of 0.15 A can be switched at 125 VDC (cosφ = 1) and a maximum current of 0.1A can be switched at 125V DC and L/R = 7ms.
In both cases, a life of 100,000 operations can be expected.
The minimum applicable load is 10 mA at 5 VDC (failure level: P).
last update: October 9, 2018
OMRON H3CR-A dimension
H3CR-A Solid-state Multi-functional Timers/Dimensionslast update: April 15, 2013

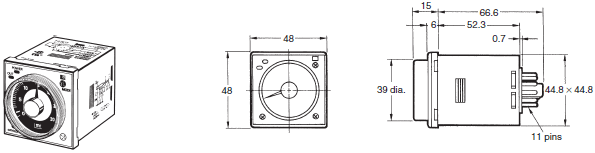

H3CR-A
H3CR-AP
H3CR-AS
H3CR-A-301

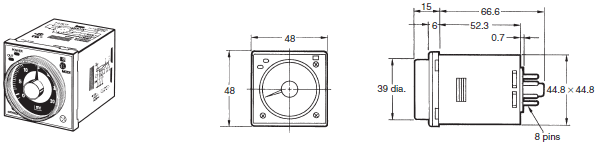

H3CR-A8
H3CR-A8S
H3CR-A8E
H3CR-A8-301

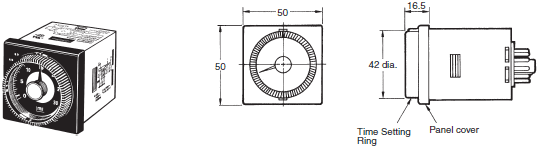

Dimensions with Set Ring
Y92S-27/-28 (Order Separately)

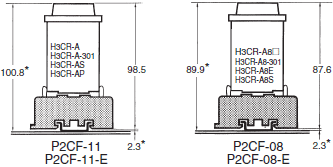

Dimensions with Front Connecting Socket
P2CF-08-[]/P2CF-11-[]
Note: There are no restrictions to the mounting direction.
* These dimensions vary with the kind of DIN track (reference value).

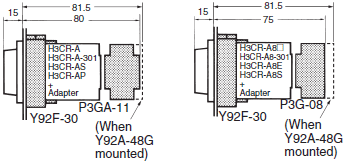

Dimensions with Back Connecting Socket
P3G-08/P3GA-11
last update: April 15, 2013
OMRON H3CR-A catalog
H3CR-A Solid-state Multi-functional Timers/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 H3CR Data Sheet | L084-E1-07 [6793KB] | Oct 09, 201820181009 | H3CR Data Sheet |
| Model Selection Guide for Timers | L130-E1-01 [2548KB] | Jun 12, 201720170612 | Model Selection Guide for Timers |
| Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance | - [43KB] | Mar 12, 201820180312 | Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance |
| H3CR-A AC24-48/DC12-48 MAINTENANCE SHEET | L131-E1-02 [6668KB] | Jan 07, 201920190107 | H3CR-A AC24-48/DC12-48 MAINTENANCE SHEET |
| H3CR-A AC100-240/DC100-125 MAINTENANCE SHEET | L132-E1-02 [6645KB] | Jan 07, 201920190107 | H3CR-A AC100-240/DC100-125 MAINTENANCE SHEET |
| H3CR-AP AC100-240/DC100-125 MAINTENANCE SHEET | L142-E1-02 [6755KB] | Jan 07, 201920190107 | H3CR-AP AC100-240/DC100-125 MAINTENANCE SHEET |
| H3CR-AP AC24-48/DC12-48 MAINTENANCE SHEET | L143-E1-02 [6754KB] | Jan 07, 201920190107 | H3CR-AP AC24-48/DC12-48 MAINTENANCE SHEET |
| H3CR-AS AC24-48/DC12-48 MAINTENANCE SHEET | L144-E1-02 [6743KB] | Jan 07, 201920190107 | H3CR-AS AC24-48/DC12-48 MAINTENANCE SHEET |
| H3CR-A8 AC100-240/DC100-125 MAINTENANCE SHEET | L135-E1-02 [6345KB] | Jan 07, 201920190107 | H3CR-A8 AC100-240/DC100-125 MAINTENANCE SHEET |
| H3CR-A8 AC24-48/DC12-48 MAINTENANCE SHEET | L136-E1-02 [6338KB] | Jan 07, 201920190107 | H3CR-A8 AC24-48/DC12-48 MAINTENANCE SHEET |
| H3CR-A8E AC/DC24-48 MAINTENANCE SHEET | L139-E1-02 [6422KB] | Jan 07, 201920190107 | H3CR-A8E AC/DC24-48 MAINTENANCE SHEET |
| H3CR-A8E AC100-240/DC100-125 MAINTENANCE SHEET | L140-E1-02 [6428KB] | Jan 07, 201920190107 | H3CR-A8E AC100-240/DC100-125 MAINTENANCE SHEET |
| H3CR-A8S AC24-48/DC12-48 MAINTENANCE SHEET | L141-E1-02 [6232KB] | Jan 07, 201920190107 | H3CR-A8S AC24-48/DC12-48 MAINTENANCE SHEET |
| H3CR-A-301 AC100-240/DC100-125 MAINTENANCE SHEET | L133-E1-02 [6649KB] | Jan 07, 201920190107 | H3CR-A-301 AC100-240/DC100-125 MAINTENANCE SHEET |
| H3CR-A-301 AC24-48/DC12-48 MAINTENANCE SHEET | L134-E1-02 [6647KB] | Jan 07, 201920190107 | H3CR-A-301 AC24-48/DC12-48 MAINTENANCE SHEET |
| H3CR-A8-301 AC100-240/DC100-125 MAINTENANCE SHEET | L137-E1-02 [6347KB] | Jan 07, 201920190107 | H3CR-A8-301 AC100-240/DC100-125 MAINTENANCE SHEET |
| H3CR-A8-301 AC24-48/DC12-48 MAINTENANCE SHEET | L138-E1-02 [6340KB] | Jan 07, 201920190107 | H3CR-A8-301 AC24-48/DC12-48 MAINTENANCE SHEET |
