• Provides IP67 protection against water and dust.
• Connection using connectors significantly reduces wiring work.
• The wiring status can be checked at a glance with the LED indicators.
• The Support Software can be connected, enabling on-site adjustment of a Light Curtain.
last update: April 24, 2017
Purchase the OMRON Safety Light Curtains Please fill in the following
If you have just landed here, this product OMRON F39-TC5 Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the F39-TC5 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON F39-TC5Safety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2EC-M / -Q Stainless Steel Sensing Surface Amplifier Proximity Sensor/Features
TL-LP / LY Long-distance Proximity Sensor/Features
61F-AN / -APN2 Alternate Operation Relay/Features
CS Series Programmable Controllers/Features
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-...

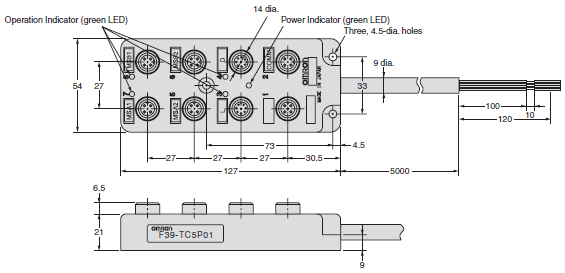

OMRON F39-TC5 dimension
