OMRON H3Y-[]-B Control Components
last update: April 1, 2016
• UL listed when used with a Push-In Plus Terminal Block Socket. *
Conforms to CSA, CE Marking, CCC and LR.
• Black design with power supply terminals on top and contact output terminals on bottom.
• Large transparent time setting knob facilitates time setting. A flat-blade and Phillips screwdriver can also be used for time setting.
• Semi-multi power supply voltage.
* When used in combination with a Push-In Plus Terminal Block Socket (PYF-[]-PU-L).
last update: April 1, 2016
If you have just landed here, this product OMRON H3Y-[]-B Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3Y-[]-B We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3Y-[]-BControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CJ1W-NC[][]4 CJ-series Position Control Units (High-Speed type)/Features
D4C Enclosed Switch/Features
H5CX Digital Timer/Features
CS1W-AD SYSMAC CS-series Analog I/O Unit/Features
Quattro 650H / HS Parallel Robots/Features
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | M092-E1-02 [5030KB] | Nov 01, 201820181101 | H3Y Series Data Sheet |
![]() | - [43KB] | Mar 12, 201820180312 | Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance |
last update: September 6, 2018
Operation/resetting system | Time-limit contact | Time ranges | Supply voltage | Mounting |
---|---|---|---|---|
Surface/DIN-track mounting (with socket) | ||||
Time-limit operation/ self-resetting | DPDT (for power switching) | 0.04 s to 3 h | 100 to 120, 200 to 230 VAC (50/60 Hz); 12, 24, 48, 100 to 110 VDC | H3Y-2-B |
4PDT | H3Y-4-B * |
Note: Sockets and Hold-down Clips are not included with the H3Y-B. They must be ordered separately.
* Use the H3Y-4-B Series when switching micro loads.
Name/specification | Model | |
---|---|---|
Hold-down Clips | For PYF-[]-PU-L | Y92H-3 |
Note: For details, refer to Catalog
Timer | Square Sockets | |||||
---|---|---|---|---|---|---|
Contact | Model | Pin | Connection | Terminal | Model | Terminal Type |
DPDT | H3Y-2-B | 8-pin | Front Connecting | DIN track mounting | PYF-08-PU-L | Push-In Plus Terminal Block |
4PDT | H3Y-4-B | 14-pin | Front Connecting | DIN track mounting | PYF-14-PU-L | Push-In Plus Terminal Block |
Note: 1. Cannot be used with the H3Y-[]-0 (PCB terminals).
2. For details, refer to Catalog.
last update: September 6, 2018
last update: November 1, 2018

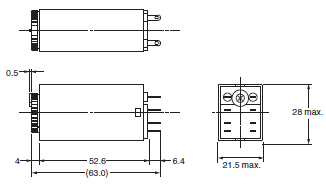

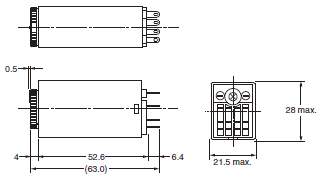

(Unit: mm)
Note: 1. The are no restrictions to the mounting direction.
2. Always use the PYF-[]-PU-L with the H3Y-[]-B or H3YN-[]-B.
*2. Models in parentheses are Connecting Sockets to the H3Y-4-B, H3YN-4-B/-41-B, or H3YN-4-Z-B/-41-Z-B.
*3. These values apply when the PFP-[]N is used.
Add 9 mm if you use the PFP-[]N2.

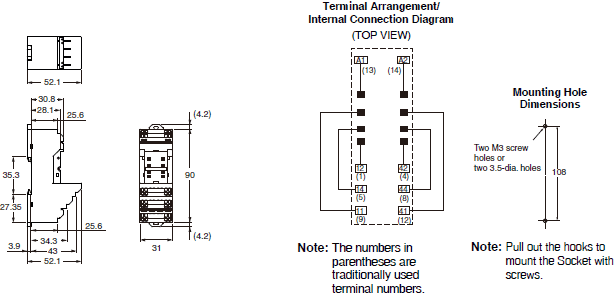

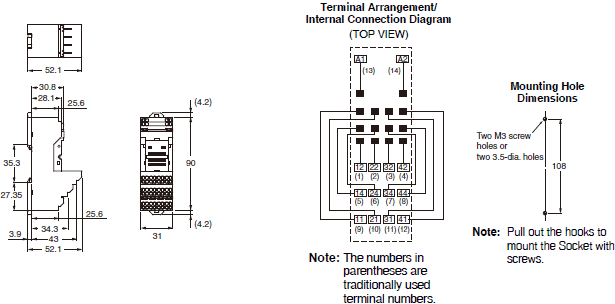

H3Y-[]-B/H3YN-[]-B Series for PYF-[]-PU-L Socket
Y92H-3
(Set of Two Clips)
PYF-08-PU-L
PYF-14-PU-L

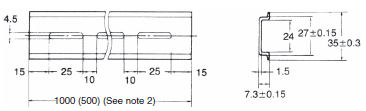

PFP-100N/PFP-50N (see note 1)
Note: 1. Meets DIN EN50022
2. This dimension applies to PFP-50N.
PFP-M
PFP-S
last update: November 1, 2018
last update: October 9, 2018
Rated time | Time setting range | Rated time | Time setting range |
---|---|---|---|
0.5 s | 0.04 to 0.5 s | 3 min | 0.1 to 3 min |
1 s | 0.1 to 1 s | 5 min | 0.2 to 5 min |
5 s | 0.2 to 5 s | 10 min | 0.5 to 10 min |
10 s | 0.5 to 10 s | 30 min | 1 to 30 min |
30 s | 1.0 to 30 s | 60 min | 2 to 60 min |
60 s | 2.0 to 60 s | 3 h | 0.1 to 3 h |
120 s | 5.0 to 120 s | --- | --- |
Item | H3Y-2-B/H3Y-4-B |
---|---|
Rated supply voltage *6, *7 | 100 to 120 (50/60 Hz), 200 to 230 VAC (50/60 Hz), 24 VAC (50/60 Hz) *1 12, 24, 48, 125, 100 to 110 VDC *2, *3 |
Operating voltage range | All rated voltages except 12 VDC: 85% to 110% of rated supply voltage 12 VDC: 90% to 110% of rated supply voltage *4 |
Reset voltage | 10% min. of rated supply voltage *5 |
Power consumption | 100 to 120 VAC: 1.5 VA (at 120 VAC) 200 to 230 VAC: 1.8 VA (at 230 VAC) 24 VAC: 1.5 VA (at 24 VAC) 12 VDC: 0.9 W (at 12 VDC) 24 VDC: 0.9 W (at 24 VDC) 48 VDC: 1.0 W (at 48 VDC) 100 to 110 VDC: 1.3 W (at 110 VDC) 125 VDC: 1.3 W (at 125 VDC) |
Control outputs | H3Y-2-B: 5 A at 250 VAC, resistive load (cosφ = 1) The minimum applicable load is 1 mA at 5 VDC (P reference value). Contact materials: Ag H3Y-4-B: 3 A at 250 VAC, resistive load (cosφ = 1) The minimum applicable load is 1 mA at 1 VDC (P reference value). Contact materials: Au-clad + Ag-alloy |
Ambient operating temperature | -10°C to 55°C (with no icing) |
Storage temperature | -25°C to 65°C |
Ambient operating humidity | 35% to 85% |
*1. Do not use the output from an inverter as the power supply. Refer to Safety Precautions for All Timers for details on your OMRON website.
*2. With DC ratings, single-phase full-wave rectified power sources may be used.
*3. Only the H3Y-2-B Series include 12 VDC models.
*4. Use the Timer within 90% to 110% of the rated supply voltage (95% to 110% for 12 VDC) when using it continuously under an ambient operating temperature of 50°C.
*5. Set the reset voltage as follows to ensure proper resetting.
100 to 120 VAC: 10 VAC max.
200 to 230 VAC: 20 VAC max.
100 to 110 VDC: 10 VDC max.
*6. Refer to Safety Precautions for All Timers on your OMRON website when combining the Timer with an AC 2-wire proximity sensor.
*7. A diode to prevent reverse voltages is provided only on models with a DC power supply.
Accuracy of operating time | ±1% FS max. (0.5 s range: ±1%±10 ms max.) *1 |
---|---|
Setting error | ±10%±50 ms FS max. |
Reset time | Min. power-opening time: 0.1 s max. (including halfway reset) |
Influence of voltage | ±2% FS max. *1 |
Influence of temperature | ±2% FS max. *1 |
Insulation resistance | 100 MΩ min. (at 500 VDC) |
Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying metal parts) *2 2,000 VAC, 50/60 Hz for 1 min (between operating power circuit and control output) *2 2,000 VAC, 50/60 Hz for 1 min (between different pole contacts; 2-pole model) *2 1,500 VAC, 50/60 Hz for 1 min (between different pole contacts; 4-pole model) 1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts) |
Impulse withstand voltage | Between power terminals: 3 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC 1 kV for 12 VDC, 24 VDC, 48 VDC Between exposed non-current-carrying metal parts: 4.5 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC 1.5 kV for 12 VDC, 24 VDC, 48 VDC |
Noise immunity | ±1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise) |
Static immunity | Destruction: 8 kV Malfunction: 4 kV |
Vibration resistance | Destruction: 10 to 55 Hz, 0.75-mm single amplitude Malfunction: 10 to 55 Hz, 0.5-mm single amplitude |
Shock resistance | Destruction: 1,000 m/s2 (approx. 100G) *3 Malfunction: 100 m/s2 (approx. 10G) |
Life expectancy | Mechanical:10,000,000 operations min. (under no load at 1,800 operations/h) Electrical: H3Y-2-B: 500,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h) H3Y-4-B: 200,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h) *4 |
Enclosure rating | IP40 |
Weight | Approx. 50 g |
EMC | (EMI) EN 61812-1 Emission Enclosure: EN 55011 Group 1 class A Emission AC Mains: EN 55011 Group 1 class A (EMS) EN 61812-1 Immunity ESD: IEC 61000-4-2 Immunity RF-interference: IEC 61000-4-3 Immunity Burst: IEC 61000-4-4 Immunity Surge: IEC 61000-4-5 Immunity Conducted Disturbance: IEC 61000-4-6 Immunity Voltage Dip/Interruption: IEC 61000-4-11 |
Approved standards | UL 508/CSA C22.2 No.14 *5, CSA C22.2 No.14, Lloyds, CCC: GB/T 14048.5 *7 Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3Y-2-B *6, 2.5 kV/1 for H3Y-4-B *6) |
*1. Add ±10 mS to the above value for the 0.5-S range model.
*2. Terminal screw sections are excluded.
*3. The destructive shock resistance test was performed on the Timer.

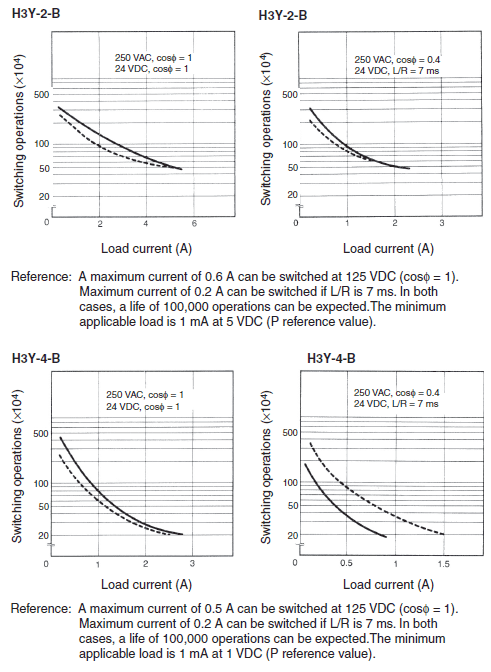

*4. Check the electrical life curve.
