OMRON F3W-E dimension

last update: September 24, 2012

Sensors

F3W-E

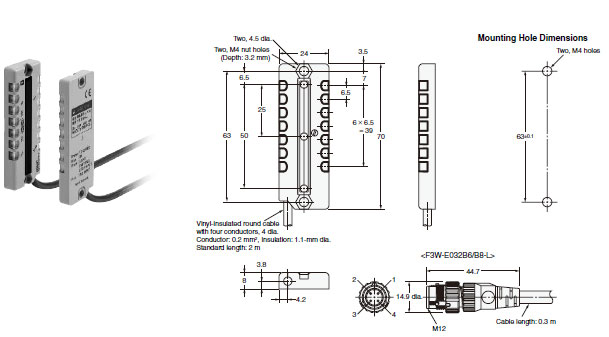

Emitter
F3W-E032A6/A8-L
F3W-E032B6/B8-L

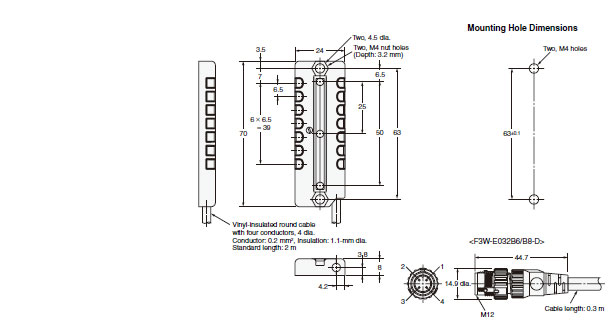

Receiver
F3W-E032A6/A8-D
F3W-E032B6/B8-D

Accessories (Optional)

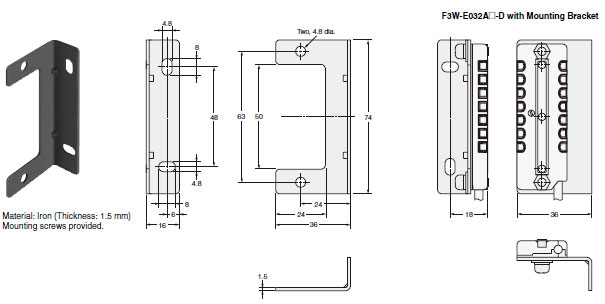

Mounting Brackets
F39-LE2 (L-shaped)

Mounting Brackets
F39-LE1 (Flat)

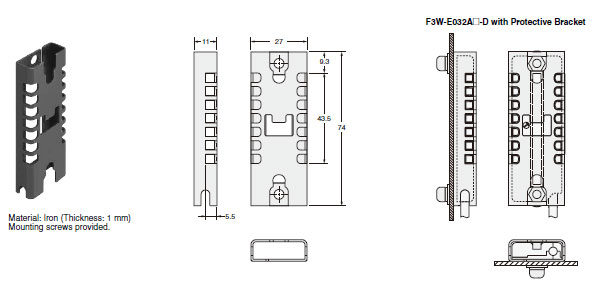

Protective Bracket
F39-LE3

last update: September 24, 2012

OMRON F3W-E catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
F3W-E Data Sheet	- [2188KB]	Aug 01, 201820180801	F3W-E Data Sheet

OMRON F3W-E specification

last update: September 23, 2012

Sensing method Model		Through-beam
		F3W-E032A6/A8	F3W-E032B6/B8
Sensing distance		30 to 300 mm
Beam gap		25 mm
Number of beams		3
Sensing width		50 mm
Standard sensing object		Opaque, 28-mm dia. min.
Light source (emission wavelength)		Infrared LED (860 nm)
Power supply voltage		12 to 24 VDC ±10% (ripple (p-p): 10% max.)
Current consumption		Emitter: 40 mA max., Receiver: 40 mA max.
Control output		NPN or PNP open collector output Load power supply: 30 VDC, Load current: 100 mA max. (Residual voltage: 1.8 V max.) Dark-ON or Light-ON (selectable)
Picking instruction indicator input		Relay or open collector input NPN input Indicator ON: Input voltage of 0 to 2 V Indicator OFF: Open (with leakage current of 0.1 mA max.) PNP input Indicator ON: Input voltage: (+DC - 2 V) to +DC * Indicator OFF: Open (with leakage current of 0.1 mA max.)
Emission stop input		Relay or open collector input NPN input Emission stop input voltage: 0 to 2 V Emission input voltage: Open (with leakage current of 0.1 mA max.) PNP input Emission stop input voltage: (+DC - 2 V) to +DC * Emission input voltage: Open (with leakage current of 0.1 mA max.)
Protection circuits		Reverse-connection protection, output short protection, and mutual interference prevention function (set with frequency switch)
Response time		Operate/Reset: 100 ms max.
Indicators	Receiver	Operation indicator (orange), stability indicator (green), and picking indicators (orange)
	Emitter	Power indicator (green), emission stop indicator (orange), and picking indicators (orange)
Ambient temperature		Operating: -10 to 55 ° C, Storage: -25 to 70 ° C (with no icing or condensation)
Ambient humidity		Operating/storage: 35% to 85% (with no condensation)
Ambient illumination		Sunlight: 10,000 lx at light-receiving surface, Incandescent light: 3,000 lx at light-receiving surface
Insulation resistance		20 M Ω min. (at 500 VDC)
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)		10 to 50 Hz, 1.5-mm double-amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2, 3 times in X, Y, and Z directions
Degree of protection		IP62 (IEC60529)
Connection method		Pre-wired Standard cable length: 2 m	Pre-wired connector Standard cable length: 0.3 m (M12, 4-pin connector)
Weight (packed state)		Approx. 125 g	Approx. 85 g
Materials	Case	ABS resin
	Lens	Acrylic resin
	Cable	Oil-resistant PVC
Accessories		Instruction manual

*+DC is the power supply voltage.

last update: September 23, 2012

OMRON F3W-E lineup

last update: August 1, 2018

Sensors

Sensing method	Appearance	Connection method (cable length)	Sensing distance	Beams		Sensing width (mm)	Output type	Model
				Gap	Qty
Through- beam		Pre-wired (2 m)	300 mm (Infrared LED)	25 mm	3	50	NPN open collector	F3W-E032A6
							PNP open collector	F3W-E032A8
		Pre-wired connector (0.3 m)					NPN open collector	F3W-E032B6
							PNP open collector	F3W-E032B8

Accessories (Optional)

Mounting Brackets

Appearance	Model	Qty	Remarks
	F39-LE2	2	L-shaped Mounting Bracket
	F39-LE1	2	Flat Mounting Bracket

Protective Bracket

Appearance	Model	Qty
	F39-LE3	2

Sensor I/O Connectors

(Models for Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Size	Type	Appearance		Cable length	Model
M12	Socket on one cable end	Smartclick connector Straight *2		2 m	XS5F-D421-D80-F
				5 m	XS5F-D421-G80-F
		Smartclick connector L-shape *2		2 m	XS5F-D422-D80-F
				5 m	XS5F-D422-G80-F
	Socket and plug on cable ends *1	Smartclick connector Straight/Straight *2		2 m	XS5W-D421-D81-F
				5 m	XS5W-D421-G81-F
		Smartclick connector L-shape/L-shape *2		2 m	XS5W-D422-D81-F
				5 m	XS5W-D422-G81-F

Note:1. Each model includes one cable. A cable is required for both the Emitter and the Receiver (two cables total).
        2. Refer to Sensor I/O Connectors/Sensor Controllers on your OMRON website for details.
*1. Straight type/L-shape type combinations are also available.
*2. The connectors will not rotate after they are connected.

last update: August 1, 2018
