OMRON G3FMRelays/ Solid-state Relays/Socket / Plug-in Type
OMRON G3FM Relays
OMRON G3FM Dimensions
/Images/l_1010-25-118855-198x198.jpglast update: June 13, 2016
• Reduces wiring work by 60% when combined with the PFY-08- PU Push-In Plus Socket (according to actual OMRON measurements).
• 1 mA to 500 mA micro-load switching.
• Switch to both AC and DC with no polarity.
• Switch for a wide range of voltages; 19.2 to 264 VAC, 19.2 to 125 VDC.
• Switch full- and half-wave rectifier AC loads.
• Same sizes and terminal arrangements as OMRON Power Relay MY Series.
• Switch MY Series (without bleeder resistor).
• Superior surge absorption with a built-in varistor.
• Optimum SSR to control minute load, valves, and solenoids.
last update: June 13, 2016
Purchase the OMRON Socket / Plug-in Type Please fill in the following
If you have just landed here, this product OMRON G3FM Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3FM We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3FMRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R88M-K, R88D-KN[]-ML2 G5-series AC Servomotors/Servo Drives with Built-in MECHATROLINK-II Communi...
R87B Box Fan/Features
3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Features
D4BS Safety-door Switch/Features
G3J-T-C Solid State Contactor for 3-phase Motors with Built-in Soft Start/Stop and Monitor Output...

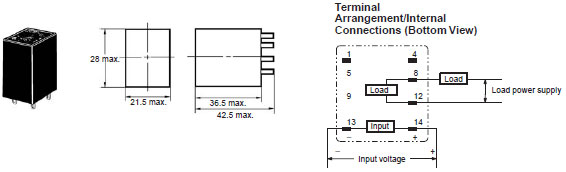

OMRON G3FM dimension
G3FM Solid State Relays/Dimensionslast update: June 13, 2016
G3FM
Accessories (Order Separately)
Connection Socket
Hold-down Clips
DIN Track Mounting Parts
Refer to Products Related to Common Sockets and DIN Tracks for precautions on the applicable Sockets of your OMRON website.
Refer to PYF-[][]-PU/P2RF-[][]-PU for precautions on Push-In Plus Terminal Block Sockets of your OMRON website.
last update: June 13, 2016
OMRON G3FM specification
G3FM Solid State Relays/Specificationslast update: July 22, 2013
Ratings (at an Ambient Temperature of 25°C)
| Model | Input | Output | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Rated voltage | Operating voltage | Impedance | Voltage levels | Applicable load | |||||
| Must operate voltage | Must release voltage | Rated load voltage | Load voltage range | Load current | Inrush current | ||||
| G3FM- 2R5SLN | 5 VDC | 4 to 6 VDC | 250 Ω±20% | 4 VDC max. | 1 VDC min. | 24 to 240 VAC 24 to 110 VDC | 19.2 to 264 VAC 19.2 to 125 VDC | 1 to 500 mA at 40°C | 6 A (10 ms) |
| 12 VDC | 9.6 to 14.4 VDC | 600 Ω±20% | 9.6 VDC max. | ||||||
| 24 VDC | 19.2 to 28.8 VDC | 1.2 kΩ±20% | 19.2 VDC | ||||||
Characteristics
| Operate time | 5 ms max. |
|---|---|
| Release time | 10 ms max. |
| Output ON voltage drop | 3 V (RMS) max. |
| Leakage current | 0.1 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 1,500 VAC, 50/60 Hz for 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude |
| Shock resistance | 1,000 m/s2 |
| Ambient temperature | Operating: -30°C to 80°C (with no icing or condensation) Storage: -30°C to 100°C (with no icing or condensation) |
| Ambient humidity | Operating: 45% to 85% |
| Weight | Approx. 50 g |
last update: July 22, 2013
OMRON G3FM catalog
G3FM Solid State Relays/Catalog- Catalog
- Manual
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G3FM Data Sheet | - [587KB] | Nov 01, 201820181101 | G3FM Data Sheet |
OMRON G3FM lineup
G3FM Solid State Relays/Lineuplast update: November 1, 2018
| Isolation | Zero cross function | Indicator | Rated output load | Rated input voltage | Model |
|---|---|---|---|---|---|
| Photo-voltage coupler | No | Yes | 0.5 A at 24 to 240 VAC 0.5 A at 24 to 110 VDC | 5 VDC | G3FM-2R5SLN |
| 12 VDC | |||||
| 24 VDC |
Note: When ordering, specify the rated input voltage.
Accessories (Order Separately)
Connection Sockets
| Classification | Terminal type | Appearance | Model |
|---|---|---|---|
| Front-mounting | Screw terminals (finger protection structure) |  | PYF08A-E |
| Screw terminals (finger protection structure) |  | PYF08A-N | |
| Screw terminals |  | PYF08A | |
| Push-In Plus terminal blocks (Socket combination) |  | PYF-08-PU | |
| Back-mounting | Relays with PCB Terminals |  | PY08-02 |
Refer to Common Socket and DIN Track Products for details on Connection Sockets and DIN Track products (sold separately) of your OMRON website.
Refer to PYF[][]-PU/P2RF-[][]-PU for details on A Push-In Plus Terminal Block Socket of your OMRON website.
Hold-down Clips
| Applicable Socket | Hold-down Clips | ||
|---|---|---|---|
| Classification | Terminal type | Model | Model * |
| For front-mounting | Screw terminals (finger protection structure) | PYF08A-E and PYF08A-N | PYC-A1 |
| Screw terminals | PYF08A | ||
| For back-mounting | Relays with PCB Terminals | PY08-02 | PYC-P |
* PYC-A1 is provided with two clips.
DIN Track Mounting Parts
| Classification/division | Type | Appearance | Model | |
|---|---|---|---|---|
| For front-mounting | DIN Tracks | Shallow type, total length: 1 m |  | PFP-100N |
| Shallow type, total length: 0.5 m | PFP-50N | |||
| Deep type, total length: 1 m |  | PFP-100N2 | ||
| End Plate |  | PFP-M | ||
| Spacer |  | PFP-S | ||
last update: November 1, 2018
