• Circuits for the required safety category are easy to build.
• The safety circuits you create can be registered as templates and reused, for easy standardization.
• A wide range of TÜV-certified templates is also available.
• The NE0A operating conditions can be monitored from a standard DeviceNet Master.
• Network distribution is possible by combining with an NE1A Safety Controller.
• ISO13849-1 (PLe) and IEC 61508 SIL3 certification.
last update: April 25, 2017
Purchase the OMRON NE1A/NE0A-series Safety Network Controllers Please fill in the following
If you have just landed here, this product OMRON NE0A-SCPU01 Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NE0A-SCPU01 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NE0A-SCPU01Safety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
TL-L Ultra-long Sensing-distance Proximity Sensor/Features
D4SL-N, D4SL-NSK10-LK[] Guard Lock Safety-door Switch/D4SL-N-mounting Slide Key/Features
E5CC-800, E5CC-U-800 Digital Temperature Controller (Simple Type) (48 × 48 mm)/Features
H7HP Total Counter/Time Counter (DIN 72 x 36)/Features
K8AK-PA Three-phase Asymmetry and Phase-sequence Phase-loss Relay/Features
OMRON NE0A-SCPU01 lineup
NE0A-SCPU01 Safety Network Controller/Lineuplast update: May 23, 2013
| Name | No. of I/O points | Model | Unit version | ||
|---|---|---|---|---|---|
| Safety inputs | Test outputs | Safety outputs | |||
| Safety Network Controllers | 12 * | 2 | 6 | NE0A-SCPU01 | Ver. 1.0 |
Note: 1. The standard NE0A Safety Network Controller is equipped with spring-cage terminal blocks, but screw
terminal blocks are available if desired, e.g., to replace previous terminals.
2. Network Configurator version 2.1[] or higher must be used when using a NE0A-SCPU01 Safety Network
Controller.
* When using the NE0A-SCPU01 as a standalone Controller, one input each is required for the feedback input and
manual restart.
last update: May 23, 2013
OMRON NE0A-SCPU01 dimension

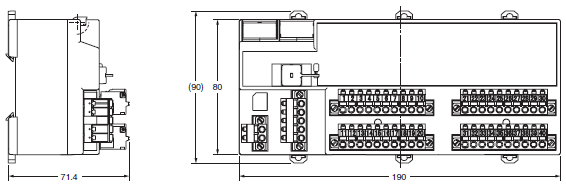

NE0A-SCPU01 Safety Network Controller/Dimensionslast update: May 23, 2013
