OMRON TL-L Dimensions

/Images/l_479-25-119028-198x198.jpg

last update: April 21, 2017

• Ultra long-distance detection of 100 mm for both ferrous and non-ferrous substances.

• Models also available for use under water.

last update: April 21, 2017

Purchase the OMRON Others Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON TL-L Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the TL-L We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON TL-LSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

GLS Magnetic Proximity Sensor/Features
1ZAP2 / 1VAP2 Door Switches/Features
F3SG-R Series Safety Light Curtain/Features
K8DS-PZ Three-phase Voltage, Asymmetry, and Phase-sequence Phase-loss Relay/Features
K8AK-TS / PT Thermistor Motor Protection Relay/Features

OMRON TL-L specification
TL-L Ultra-long Sensing-distance Proximity Sensor/Specifications
last update: September 24, 2012

Output specifications Current output

TL-L100-7

Sensing distance 100 mm ±10%

Set distance 0 to 80 mm

Differential travel 15% max. of sensing distance

Detectable object Ferrous metal and non-ferrous metal

Standard sensing object Iron, 200 × 200 × 1 mm

Response time 100 ms max.

Power supply voltage
(operating voltage range) 10 to 30 VDC including 10% ripple (p-p)

Current consumption 40 mA DC max.

Control output 200 mA DC max. (residual voltage: 1 V max.)

Indicators Operation indicator (red)

Operation mode
(with sensing object approaching) NO; For details, refer to Datasheet

Protection circuits Reverse polarity protection, Surge suppressor

Ambient temperature range Operating/Storage: -25 to 55°C (with no icing or condensation)

Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)

Temperature influence ±30% max. of sensing distance at 20°C in the temperature range of -10 to 40°C

Voltage influence ±5% max. of sensing distance at rated voltage in rated voltage ±10% range

Insulation resistance 5 MΩ min. (at 500 VDC) between current-carrying parts and case

Dielectric strength 500 VAC, 50/60 Hz for 1 min between current-carrying parts and case

Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions

Shock resistance Destruction: 200 m/s² 10 times each in X, Y, and Z directions

Degree of protection IP66 (IEC)

Connection method Pre-wired Models (Standard cable length: 1m)

Weight (packed state) Approx. 1.5 kg

Materials Case: Aluminum die-cast, Sensing surface: Epoxy resin

Accessories Instruction manual

last update: September 24, 2012

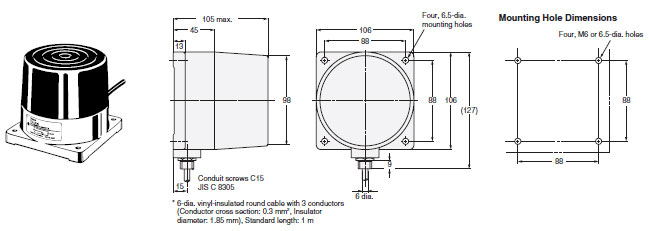

OMRON TL-L dimension
TL-L Ultra-long Sensing-distance Proximity Sensor/Dimensions
last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

TL-L100-7

last update: November 12, 2012

OMRON TL-L lineup
TL-L Ultra-long Sensing-distance Proximity Sensor/Lineup
last update: September 24, 2012

Appearance Sensing distance Output configuration Model

Cylindrical
(flat surface installation) 100 mm Current output TL-L100-7 1M

Note: The TL-L100-10 is also available for use under water (JIS0920: Withstand pressure of 0.39 MPa).

last update: September 24, 2012

OMRON TL-L catalog
TL-L Ultra-long Sensing-distance Proximity Sensor/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

TL-L Data Sheet -
[255KB] Aug 24, 201220120824 TL-L Data Sheet

NO. TL-L

TYPE:Proximity Sensors Others Copyright Statement

DATE:2021-06-18

Associated products:
E2J Long Sensing-distance Capacitive Separate Amplifier Proximity Sensor/Features GLS Magnetic Proximity Sensor/Features

Output specifications	Current output
TL-L100-7
Sensing distance	100 mm ±10%
Set distance	0 to 80 mm
Differential travel	15% max. of sensing distance
Detectable object	Ferrous metal and non-ferrous metal
Standard sensing object	Iron, 200 × 200 × 1 mm
Response time	100 ms max.
Power supply voltage (operating voltage range)	10 to 30 VDC including 10% ripple (p-p)
Current consumption	40 mA DC max.
Control output	200 mA DC max. (residual voltage: 1 V max.)
Indicators	Operation indicator (red)
Operation mode (with sensing object approaching)	NO; For details, refer to Datasheet
Protection circuits	Reverse polarity protection, Surge suppressor
Ambient temperature range	Operating/Storage: -25 to 55°C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±30% max. of sensing distance at 20°C in the temperature range of -10 to 40°C
Voltage influence	±5% max. of sensing distance at rated voltage in rated voltage ±10% range
Insulation resistance	5 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 200 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IP66 (IEC)
Connection method	Pre-wired Models (Standard cable length: 1m)
Weight (packed state)	Approx. 1.5 kg
Materials	Case: Aluminum die-cast, Sensing surface: Epoxy resin
Accessories	Instruction manual

Appearance	Sensing distance	Output configuration	Model
Cylindrical (flat surface installation)	100 mm	Current output	TL-L100-7 1M

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
TL-L Data Sheet	- [255KB]	Aug 24, 201220120824	TL-L Data Sheet
