OMRON G3PE (Single-phase)Relays/ Solid-state Relays/For Heater Control
OMRON G3PE (Single-phase) Relays
OMRON G3PE (Single-phase) Dimensions
/Images/l_2001-25-118865-198x198.jpglast update: April 25, 2017
• RoHS compliant.
• Models also available with no zero cross
• Surge pass protection improved surge dielectric strength for output currents. (OMRON testing)
• Compact with a slim profile.
• Mount to DIN Track or with screws.
• Conforms to UL, CSA, and EN standards (TÜV certification).
last update: April 25, 2017
Purchase the OMRON For Heater Control Please fill in the following
If you have just landed here, this product OMRON G3PE (Single-phase) Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3PE (Single-phase) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3PE (Single-phase)Relays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G3PE (Single-phase) Solid State Relays for Heaters/Features
ES1-N Infrared Thermosensor/Features
K3HB-R Rotary Pulse Indicator/Features
KM50-C Smart Power Monitor/Features
K8AK-VS Single-phase Voltage Relay/Features
OMRON G3PE (Single-phase) catalog
G3PE (Single-phase) Solid State Relays for Heaters/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G3PE Data Sheet | J174-E1-02 [3137KB] | Jan 17, 201820180117 | G3PE Data Sheet |
OMRON G3PE (Single-phase) lineup
G3PE (Single-phase) Solid State Relays for Heaters/Lineuplast update: September 24, 2012
| Number of phases | Insulation method | Operation indicator | Rated input voltage | Zero cross function | Applicable load * | Model |
|---|---|---|---|---|---|---|
| Single- phase | Phototriac coupler | Yes (yellow) | 12 to 24 VDC | Yes | 15 A, 100 to 240 VAC | G3PE-215B DC12-24 |
| 25 A, 100 to 240 VAC | G3PE-225B DC12-24 | |||||
| 35 A, 100 to 240 VAC | G3PE-235B DC12-24 | |||||
| 45 A, 100 to 240 VAC | G3PE-245B DC12-24 | |||||
| No | 15 A, 100 to 240 VAC | G3PE-215BL DC12-24 | ||||
| 25 A, 100 to 240 VAC | G3PE-225BL DC12-24 | |||||
| 35 A, 100 to 240 VAC | G3PE-235BL DC12-24 | |||||
| 45 A, 100 to 240 VAC | G3PE-245BL DC12-24 | |||||
| Yes | 15 A, 200 to 480 VAC | G3PE-515B DC12-24 | ||||
| 25 A, 200 to 480 VAC | G3PE-525B DC12-24 | |||||
| 35 A, 200 to 480 VAC | G3PE-535B DC12-24 | |||||
| 45 A, 200 to 480 VAC | G3PE-545B DC12-24 | |||||
| No | 15 A, 200 to 480 VAC | G3PE-515BL DC12-24 | ||||
| 25 A, 200 to 480 VAC | G3PE-525BL DC12-24 | |||||
| 35 A, 200 to 480 VAC | G3PE-535BL DC12-24 | |||||
| 45 A, 200 to 480 VAC | G3PE-545BL DC12-24 |
* The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient
Temperature in Engineering Data on Data Sheet.
last update: September 24, 2012
OMRON G3PE (Single-phase) dimension
G3PE (Single-phase) Solid State Relays for Heaters/Dimensionslast update: November 12, 2012
Solid State Relays

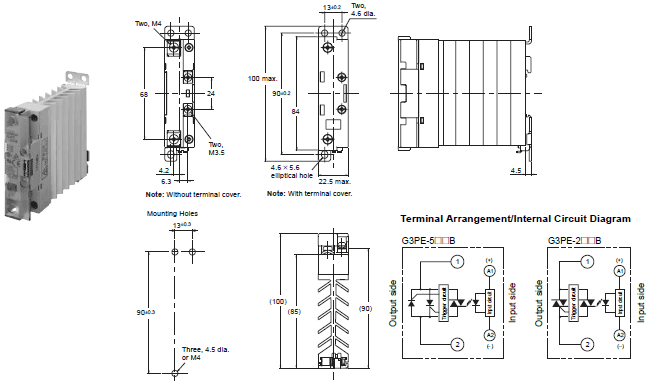

G3PE-215B(L)
G3PE-225B(L)
G3PE-515B(L)
G3PE-525B(L)

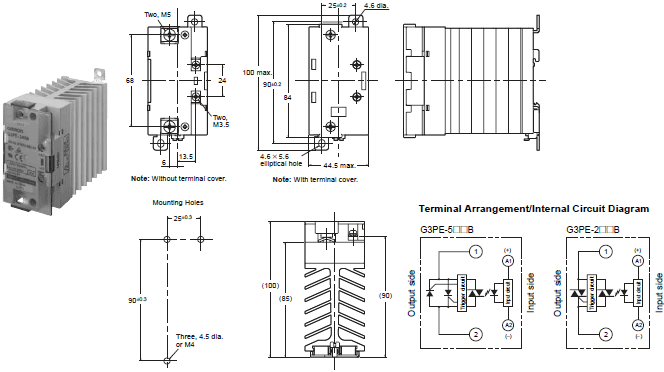

G3PE-235B(L)
G3PE-245B(L)
G3PE-535B(L)
G3PE-545B(L)
last update: November 12, 2012
OMRON G3PE (Single-phase) specification
G3PE (Single-phase) Solid State Relays for Heaters/Specificationslast update: September 24, 2012
Certification
UL508, CSA22.2 No.14, and EN60947-4-3
Ratings
Input (at an Ambient Temperature of 25°C)
| Model | Rated voltage | Operating voltage range | Rated input current | Voltage level | |
|---|---|---|---|---|---|
| Must operate voltage | Must release voltage | ||||
| G3PE-[][][]B | 12 to 24 VDC | 9.6 to 30 VDC | 7 mA max. | 9.6 VDC max. | 1.0 VDC max. |
| G3PE-[][][]BL | 15 mA max. | ||||
Output
| Model | G3PE- 215B(L) | G3PE- 225B(L) | G3PE- 235B(L) | G3PE- 245B(L) | G3PE- 515B(L) | G3PE- 525B(L) | G3PE- 535B(L) | G3PE- 545B(L) |
|---|---|---|---|---|---|---|---|---|
| Rated load voltage | 100 to 240 VAC (50/60 Hz) | 200 to 480 VAC (50/60 Hz) | ||||||
| Load voltage range | 75 to 264 VAC (50/60 Hz) | 180 to 528 VAC (50/60 Hz) | ||||||
| Applicable load current * | 0.1 to 15 A (at 40 °C) | 0.1 to 25 A (at 40 °C) | 0.5 to 35 A (at 25 °C) | 0.5 to 45 A (at 25 °C) | 0.1 to 15 A (at 40 °C) | 0.1 to 25 A (at 40 °C) | 0.5 to 35 A (at 25 °C) | 0.5 to 45 A (at 25 °C) |
| Inrush current resistance | 150 A (60 Hz, 1 cycle) | 220 A (60 Hz, 1 cycle) | 440 A (60 Hz, 1 cycle) | 150 A (60 Hz, 1 cycle) | 220 A (60 Hz, 1 cycle) | 440 A (60 Hz, 1 cycle) | ||
| Permissible I2t (reference value) | 121A2s | 260A2s | 1,260A2s | 128A2s | 1,350A2s | 6,600A2s | ||
| Applicable load (resistive load) | 3 kW (at 200 VAC) | 5 kW (at 200 VAC) | 7 kW (at 200 VAC) | 9 kW (at 200 VAC) | 6 kW (at 400 VAC) | 10 kW (at 400 VAC) | 14 kW (at 400 VAC) | 18 kW (at 400 VAC) |
* The applicable load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient
Temperature in Engineering Data on Data Sheet.
Characteristics
| Model | G3PE -215B | G3PE -225B | G3PE -235B | G3PE -245B | G3PE -215BL | G3PE -225BL | G3PE -235BL | G3PE -245BL |
|---|---|---|---|---|---|---|---|---|
| Operate time | 1/2 of load power source cycle + 1 ms max. | 1 ms max. | ||||||
| Release time | 1/2 of load power source cycle + 1 ms max. | |||||||
| Output ON voltage drop | 1.6 V (RMS) max. | |||||||
| Leakage current | 10 mA max. (at 200 VAC) | |||||||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |||||||
| Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |||||||
| Vibration resistance | 10 to 55 to10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) (Mounted to DIN track) | |||||||
| Shock resistance | Destruction: 294 m/s2 (Mounted to DIN track) | |||||||
| Ambient storage temperature | - 30 to 100 °C (with no icing or condensation) | |||||||
| Ambient operating temperature | - 30 to 80 °C (with no icing or condensation) | |||||||
| Ambient operating humidity | 45% to 85% | |||||||
| Weight | Approx. 240 g | Approx. 400 g | Approx. 240 g | Approx. 400 g | ||||
| Model | G3PE -515B | G3PE -525B | G3PE -535B | G3PE -545B | G3PE -515BL | G3PE -525BL | G3PE -535BL | G3PE -545BL |
|---|---|---|---|---|---|---|---|---|
| Operate time | 1/2 of load power source cycle + 1 ms max. | 1 ms max. | ||||||
| Release time | 1/2 of load power source cycle + 1 ms max. | |||||||
| Output ON voltage drop | 1.8 V (RMS) max. | |||||||
| Leakage current | 20 mA max. (at 480 VAC) | |||||||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |||||||
| Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |||||||
| Vibration resistance | 10 to 55 to10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) (Mounted to DIN track) | |||||||
| Shock resistance | Destruction: 294 m/s2 (Mounted to DIN track) | |||||||
| Ambient storage temperature | - 30 to 100 °C (with no icing or condensation) | |||||||
| Ambient operating temperature | - 30 to 80 °C (with no icing or condensation) | |||||||
| Ambient operating humidity | 45% to 85% | |||||||
| Weight | Approx. 240 g | Approx. 400 g | Approx. 240 g | Approx. 400 g | ||||
last update: September 24, 2012
