OMRON H5AN lineup

last update: April 09, 2014

Operation system	Resetting system	No. of digits	Backup power supply function for memory protection	Model
Time-limit operation, integrating operation	Power-OFF resetting (excluding -M), external resetting, manual resetting, automatic resetting	4 digits (switch-selectable): 0.01 to 99.99 s, 0.1 to 999.9 s, 1 to 9999 s, 0.1 to 999.9 min, 0.1 to 999.9 hrs, 1 to 9999 hrs, 1 s to 99 min 59 s, 1 min to 99 hrs 59 min	Not provided	H5AN-4D
			Can be enabled and disabled with a DIP switch.	H5AN-4DM

Note: 1. Specify both the model number and supply voltage when ordering.
           2. The Timer is supplied with two mounting fixtures.

last update: April 09, 2014

OMRON H5AN specification

last update: April 3, 2017

Ratings

Item	H5AN-4D/H5AN-4DM
Rated supply voltage	H5AN-4D: 100 to 240 VAC (50/60 Hz), 12 to 24, 48, or 100 VDC (permissible ripple: 20% max.) H5AN-4DM: 100 to 240 VAC (50/60 Hz), 12 to 24 VDC (permissible ripple: 20% max.)
Operating voltage range	85% to 110% of rated supply voltage
Power consumption	Approx. 10 VA (at 240 VAC), approx. 5 W (at 24 VDC)
Resetting system and gate input	Reset by power-OFF: min. power OFF time: 0.5 s * External reset or gate (common to contact and transistor inputs): min. reset input signal width: 0.02 s
One-shot output time	0.1 to 1 s (adjustable)
Control outputs	Contact output: SPDT, 3 A at 250 VAC, resistive load (cosφ = 1) Transistor output: Open collector, 100 mA max. at 30 VDC max.
Power supply for externally connected components	12 VDC±10%, 80 mA (permissible ripple: 5% max.)
Case color	Light gray (Munsell 5Y7/1)

* This does not apply to to the models ending with -M when memory backup is enabled.

Characteristics

Accuracy of operating time	±0.01% ±0.05 s max. （power OFF start）, ±0.005% ±0.03 s max. （reset start） *1
Setting error
Influence of voltage
Influence of temperature
Insulation resistance	100 MΩ min. （at 500 VDC） （between current-carrying terminal and exposed non- current carrying metal parts, between non-continuous contacts）
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min （between current-carrying and non-current-carrying metal parts） 750 VAC, 50/60 Hz for 1 min （between non-continuous contacts）
Impulse withstand voltage	6 kV （between power supply terminal） 6 kV （between current-carrying terminal and exposed non-current carrying metal parts）
Vibration resistance	Destruction: 10 to 55 Hz with 0.75-mm double amplitude Malfunction: 10 to 55 Hz with 0.5-mm double amplitude
Shock resistance	Destruction: 300 m/s2 （approx. 30G） Malfunction: 100 m/s2 （approx. 10G）
Ambient temperature	Operating: -10°C to 55°C Storage: -25°C to 65°C
Ambient humidity	Operating: 35% to 85%
Life expectancy	Mechanical: 10,000,000 operations min. （under no load at 1,800 operations/h） Electrical: 100,000 operations min. （3 A at 250 VAC, resistive load）
Memory backup storage method *2	Non-volatile memory （Number of writes: 1 million times, Data retention: 10 years）
Weight	Approx. 360 g

*1. This value denotes the average of the repeat accuracy, setting error, and variations due to voltage and temperature
       changes. It includes the rise time of the power supply, and the operating time of the internal and output circuits.
*2. This applies only to the models ending with -M.

Applicable Standards

Approved safety standards	UL508/CSA C22.2 No. 14 conforms to EN61812-1 （Pollution degree 2/overvoltage category III） CCC: Pollution degree 2, Overvoltage category II
EMC	（EMI） EN61812-1 Emission Enclosure: EN55011 Group 1 class A Emission AC mains: EN55011 Group 1 class A （EMS） EN61812-1 Immunity ESD: IEC61000-4-2 Immunity RF-interference: IEC61000-4-3 Immunity Burst: IEC61000-4-4 Immunity Surge: IEC61000-4-5 Immunity Conducted Disturbance: IEC61000-4-6 Immunity Voltage Dip/Interruption:IEC61000-4-11

last update: April 3, 2017

OMRON H5AN catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
H5AN Data Sheet	- [2323KB]	Jul 12, 201720170712	H5AN Data Sheet
Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance	- [43KB]	Mar 12, 201820180312	Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

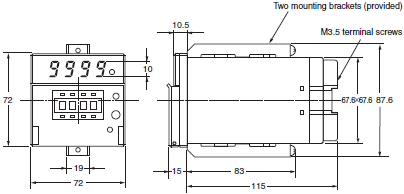

OMRON H5AN dimension

last update: July 12, 2017

(Unit: mm)

H5AN

Note: 1. The panel cutouts for the H5AN are as shown (according to DIN437000).
         2. The recommended mounting panel thickness is from 1 to 5 mm.
         3. Use the mounting bracket (sold together) to mount the digital timer.
             Use model number Y92H-5 (2 pcs) to order additional brackets.

Panel Cutouts

(Panel cutout conforms to DIN 43700)

(When N units are flush-mounted horizontally.)

(n-1) × 72 + 70 min. (including a tolerance of 2 mm)

last update: July 12, 2017
