OMRON SC dimension

last update: November 06, 2012

Connectors for Cabtire Cable

As for models without an O-ring, please use sealing tape with SC Connectors.

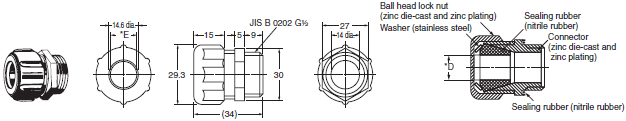

Metal Models without O-ring
G½
SC-21 to 25

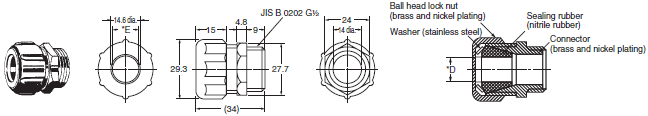

Metal Models with O-ring
G½
SC-1M to 5M

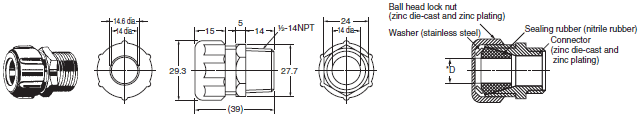

Metal Models without O-ring
½-14NPT
(U.S.-standard screws)
SC-1PT to 5PT

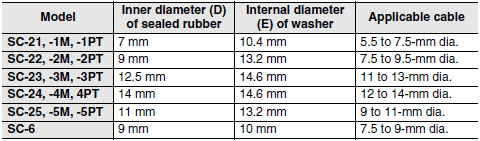

Note: Dimensions not shown in the above diagrams have a variation of ±0.4 mm.

Simple Connectors

(Not Suitable for Locations Subject to Oil or Water)

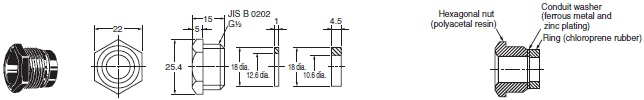

Resin Models
G½
SC-P2

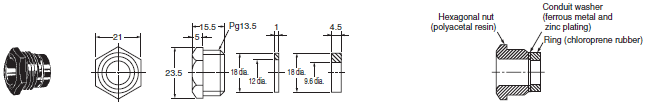

Resin Models
Pg13.5
SC-P3

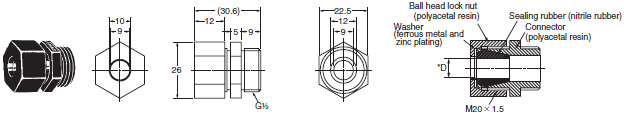

Resin Models
G½
SC-6

Note: Dimensions not shown in the above diagrams have a variation of ±0.4 mm.

* Diameter of Part Marked with Asterisk

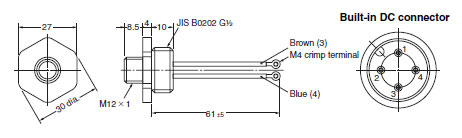

SC-2F

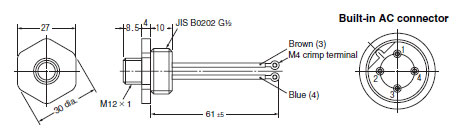

SC-2FAD

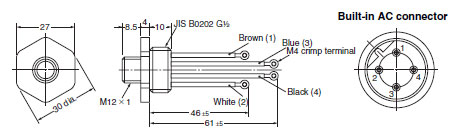

SC-4F4AD

SC-4F4D

Note: 1. Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
           2. Figures in parentheses are connector pin numbers.

last update: November 06, 2012

OMRON SC lineup

last update: July 15, 2015

Connectors (SC Series)

Connector for Cabtire Cable

Conduit	Applicable cable	Inner diameter (D) of seal rubber	External diameter of cable		Model	Applicable model
			Min.	Max.
JIS B 0202 G1/2	Cabtire cable (general-purpose)	7 mm	5.5 mm	7.5 mm	SC-1M	WL-N, WL, D4A-[]N, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2
		9 mm	7.5 mm	9.5 mm	SC-2M
		12.5 mm	11 mm	13 mm	SC-3M
		14 mm	12 mm	14 mm	SC-4M
		11 mm	9 mm	11 mm	SC-5M
	Cabtire cable (anti-corrosive)	7 mm	5.5 mm	7.5 mm	SC-21
		9 mm	7.5 mm	9.5 mm	SC-22
		12.5 mm	11 mm	13 mm	SC-23
		14 mm	12 mm	14 mm	SC-24
		11 mm	9 mm	11 mm	SC-25
1/2-14NPT	Cabtire cable	7 mm	5.5 mm	7.5 mm	SC-1PT	D4A-[]N
		9 mm	7.5 mm	9.5 mm	SC-2PT
		12.5 mm	11 mm	13 mm	SC-3PT
		14 mm	12 mm	14 mm	SC-4PT
		11 mm	9 mm	11 mm	SC-5PT

Note: Please use sealling tape with SC Connectors. SC-1M to SC-5M, however, are provided with an O-ring (NBR) and
          therefore sealing tape is not necessary to ensure a proper seal.

Simple Connector

(Not Suitable for Locations Subject to Oil or Water)

Conduit	Applicable cable	Inner diameter (D) of seal rubber	External diameter of cable		Model	Applicable model
			Min.	Max.
JIS B 0202 G1/2	Cabtire cable	10.6 mm	8.5 mm	10.5 mm	SC-P2	WL-N, WL, D4A-[]N, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2
Pg13.5		9.6 mm	7.5 mm	9.5 mm	SC-P3	WL[]-G
JIS B 0202 G1/2		9 mm	7.5 mm	9 mm	SC-6	WL-N, WL, D4A-[]N, D4N *, D4N-[]R *, D4B-[]N, ZE, ZV, ZV2, XE, XV, XV2

Note: Simple connector are made of resin. If more sealing capability is required, use one of SC-1M to SC-5M, which
          have metal casings.
          Models marked with an asterisk (*) however, can only be used with resin connectors.

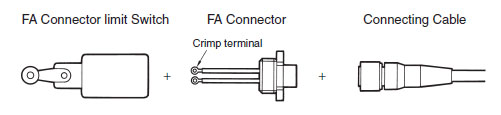

SC-[]F[] FA Connectors

FA Connectors

Model	Number of conductors	Voltage specification	Size of conduit	Size of crimp terminal	Applicable model
SC-2F	2	125 VDC	JIS B 0202 G½	M4	WL
SC-2FAD	2	250 VAC
SC-4F4D	4	125 VDC
SC-4F4AD	4	250 VAC

Connecting Cables

Voltage specification	Number of conductors	Cable length	Model
AC	2	2 m	XS2F-A421-DB0-F
		5 m	XS2F-A421-GB0-F
	4	2 m	XS2F-A421-D90-F
		5 m	XS2F-A421-G90-F
DC	2	2 m	XS2F-D421-DD0
		5 m	XS2F-D421-GD0
	4	2 m	XS2F-D421-D80-F
		5 m	XS2F-D421-G80-F

last update: July 15, 2015

OMRON SC specification

last update: September 24, 2012

No information is provided on the ratings and Specifications of this product.

last update: September 24, 2012

OMRON SC catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
SC Data Sheet	- [519KB]	Aug 18, 201520150818	SC Data Sheet
