OMRON H3Y Dimensions

/Images/l_196-25-118920-198x198.jpg

last update: April 1, 2016

• Semi-multi power supply voltage.

• Large transparent time setting knob facilitates time setting.
A flat-blade and Phillips screwdriver can also be used for time setting.

• Pin configuration compatible with MY Power Relay.

• LED indication for power and output statuses.

• Conforms to EMC standards.

• Conforms to EN 61812-1 and approved by UL and CSA.

last update: April 1, 2016

Purchase the OMRON Analog Timers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H3Y Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H3Y We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H3YControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

D4V Small Limit Switch/Features
E5ZN-DRT DeviceNet Communications Unit/Features
CRT1-VID16ML(-1) / VOD16ML(-1) Digital I/O Slave Units with MIL Connector (Vertical type)/Features
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Features
GT1-ROS16 / ROP08 / FOP08 Relay Output Units/Features

OMRON H3Y dimension
H3Y Solid-state Timer/Dimensions
last update: April 01, 2016
Timers

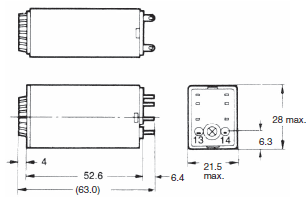

H3Y-2

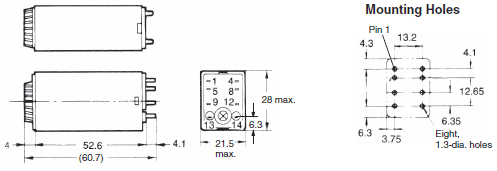

H3Y-2-0

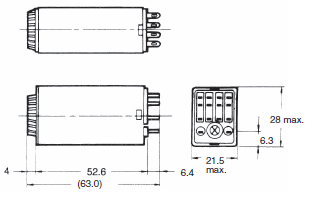

H3Y-4

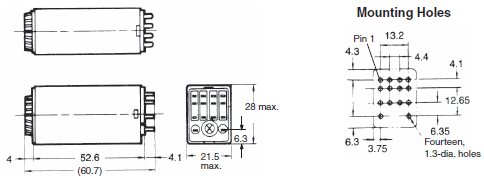

H3Y-4-0

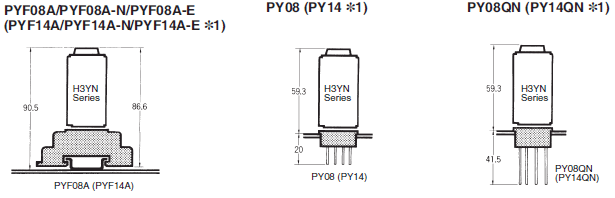

Mounting Height

Note: 1. The are no restrictions to the mounting direction.
*1. Models in parentheses are Connecting Sockets to the H3Y-4, H3YN-4/-41, or H3YN-4-Z/-41-Z.

Accessories (Order Separately)

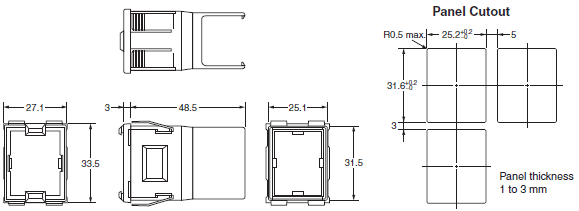

Flush Mounting Adapter

Y92F-78

Note: 1. Push the H3Y in until the Adaptor (Y92F-78) hooks engage with its rear panel.
           2. Do not round the corners of the cutout on the rear panel surface, otherwise the Adaptor (Y92F-78) tabs may
                not engage properly.

Socket Mounting Plates (t = 1.6)

PYP-1

PYP-18

Relay Hold-down Clips

H3Y/H3YN Series for PYF[]A Socket
Y92H-3
(Set of Two Clips)

Y92H-4 for PY[] Socket

H3Y/H3YN Series Track Mounting/Front Connecting Sockets

PYF08A

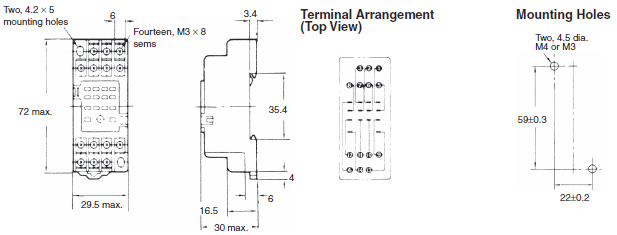

PYF14A

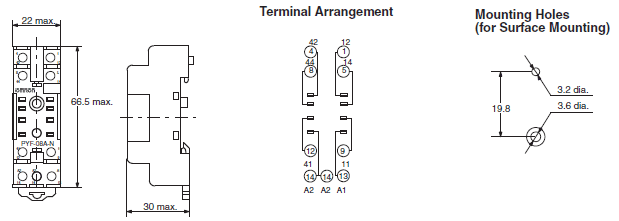

PYF08A-N

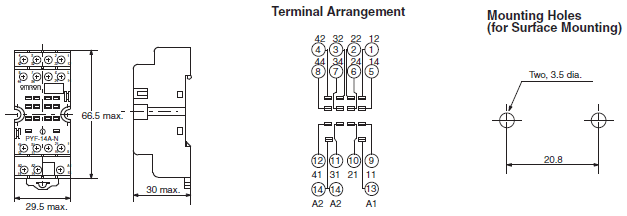

PYF14A-N

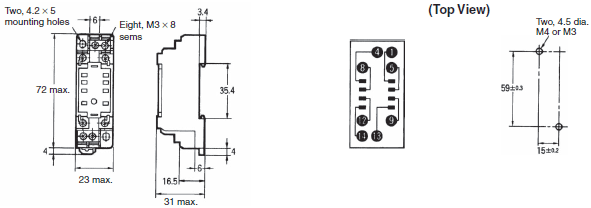

PYF08A-E

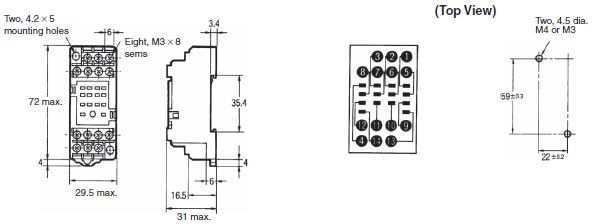

PYF14A-E

H3Y/H3YN Series Back Connecting Sockets

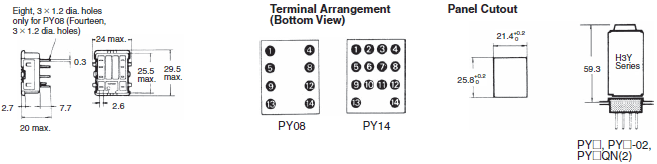

PY08, PY14

PY08QN, PY14QN

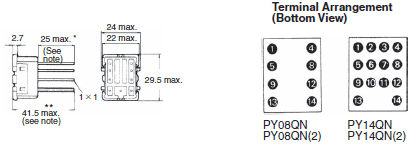

PY08QN(2), PY14QN(2)

Note: With PY[]QN(2), dimension
* should read 20 max. and dimension
** 36.5 max.

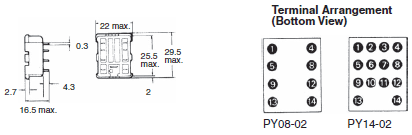

PY08-02, PY14-02

Mounting Track

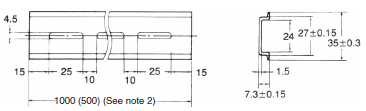

PFP-100N/PFP-50N (see note 1)

Note: 1. Meets DIN EN50022
           2. This dimension applies to PFP-50N.

End Plate

PFP-M

Spacer

PFP-S

last update: April 01, 2016

OMRON H3Y lineup
H3Y Solid-state Timer/Lineup
last update: September 6, 2018
List of Models

Operation/
resetting
system Time-limit
contact Time
ranges Supply voltage Mounting
Surface/DIN-track
mounting (with socket) Surface mounting
(with PCB terminals)
Time-limit
operation/
self-resetting DPDT
(for power
switching) 0.04 s to
3 h 24, 100 to 120, 200 to 230, 240
VAC (50/60 Hz);
12, 24, 48, 125, 100 to
110 VDC H3Y-2 H3Y-2-0
4PDT H3Y-4 * H3Y-4-0 *

Note: Sockets and Hold-down Clips are not included with the H3Y. They must be ordered separately.
* Use the H3Y-4 or H3Y-4-0 Series when switching micro loads.

Accessories (Order Separately)
Adapter, Mounting Plate, Hold-down Clips

Name/specification Model
Flush mounting adapter Y92F-78
Mounting Plate for Socket For 1 Socket PYP-1
For 18 Sockets PYP-18
Hold-down Clips For PYF[]A Y92H-3
For PY[] and PYF[]M Y92H-4

Note: For details, refer to catalog.

Socket

Timer Square Sockets
Contact Model Pin Connection Terminal Model
DPDT H3Y-2 8-pin Front Connecting DIN track mounting PYF08A
DIN track mounting
(Finger Protection Structure) PYF08A-E
Screw mounting PYF08M
Back Connecting Solder terminal PY08
PCB terminal PY08-02
4PDT H3Y-4 14-pin Front Connecting DIN track mounting PYF14A
DIN track mounting
(Finger Protection Structure) PYF14A-E
Back Connecting Solder terminal PY14
PCB terminal PY14-02

Note: 1. Cannot be used with the H3Y-[]-0 (PCB terminals).
2. The PYF[][]A-E has a finger-protection structure. Round crimp terminals cannot be used. Use forked crimp terminals.

last update: September 6, 2018

OMRON H3Y specification
H3Y Solid-state Timer/Specifications
last update: October 9, 2018
Time Ranges

Rated time Time setting range Rated time Time setting range
0.5 s 0.04 to 0.5 s 3 min 0.1 to 3 min
1 s 0.1 to 1 s 5 min 0.2 to 5 min
5 s 0.2 to 5 s 10 min 0.5 to 10 min
10 s 0.5 to 10 s 30 min 1 to 30 min
30 s 1.0 to 30 s 60 min 2 to 60 min
60 s 2.0 to 60 s 3 h 0.1 to 3 h
120 s 5.0 to 120 s --- ---

Ratings

Item H3Y-2(-0)/H3Y-4(-0)
Rated supply voltage
*6 *7 100 to 120 (50/60 Hz), 200 to 230 VAC (50/60 Hz), 24 VAC (50/60 Hz) *1
12, 24, 48, 125, 100 to 110 VDC *2, *3
Operating voltage range All rated voltages except 12 VDC: 85% to 110% of rated supply voltage
12 VDC: 90% to 110% of rated supply voltage *4
Reset voltage 10% min. of rated supply voltage *5
Power consumption 100 to 120 VAC: 1.5 VA (at 120 VAC)
200 to 230 VAC: 1.8 VA (at 230 VAC)
24 VAC: 1.5 VA (at 24 VAC)
12 VDC: 0.9 W (at 12 VDC)
24 VDC: 0.9 W (at 24 VDC)
48 VDC: 1.0 W (at 48 VDC)
100 to 110 VDC: 1.3 W (at 110 VDC)
125 VDC: 1.3 W (at 125 VDC)
Control outputs H3Y-2(-0):
5 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load is 1 mA at 5 VDC (P reference value).
Contact materials: Ag
H3Y-4(-0):
3 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load is 1 mA at 1 VDC (P reference value).
Contact materials: Au-clad + Ag-alloy
Ambient operating temperature -10°C to 50°C (with no icing)
Storage temperature -25°C to 65°C
Ambient operating humidity 35% to 85%

*1. Do not use the output from an inverter as the power supply. Refer to Safety Precautions for All Timers for details on your OMRON website.
*2. With DC ratings, single-phase full-wave rectified power sources may be used.
*3. Only the H3Y-2 and H3Y-2-0 Series include 12 VDC models.
*4. Use the Timer within 90% to 110% of the rated supply voltage (95% to 110% for 12 VDC) when using it continuously
      under an ambient operating temperature of 50°C.
*5. Set the reset voltage as follows to ensure proper resetting.
        100 to 120 VAC:10 VAC max.
        200 to 230 VAC:20 VAC max.
        100 to 110 VDC:10 VDC max.
*6.Refer to Safety Precautions for All Timers on your OMRON website when combining the Timer with an AC 2-wire proximity sensor.
*7. A diode to prevent reverse voltages is provided only on models with a DC power supply.

Characteristics

Accuracy of operating time ±1% FS max. (0.5 s range: ±1%±10 ms max.) *1
Setting error ±10%±50 ms FS max.
Reset time Min. power-opening time: 0.1 s max. (including halfway reset)
Influence of voltage ±2% FS max. *1
Influence of temperature ±2% FS max. *1
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min
(between current-carrying terminals and exposed non-current-carrying metal parts) *2
2,000 VAC, 50/60 Hz for 1 min (between operating power circuit and control output) *2
2,000 VAC, 50/60 Hz for 1 min (between different pole contacts; 2-pole model) *2
1,500 VAC, 50/60 Hz for 1 min (between different pole contacts; 4-pole model)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Impulse withstand voltage Between power terminals:
3 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC
1 kV for 12 VDC, 24 VDC, 48 VDC
Between exposed non-current-carrying metal parts:
4.5 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC
1.5 kV for 12 VDC, 24 VDC, 48 VDC
Noise immunity ±1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity Destruction: 8 kV
Malfunction: 4 kV
Vibration resistance Destruction: 10 to 55 Hz, 0.75-mm single amplitude
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude
Shock resistance Destruction: 1,000 m/s² (approx. 100G) *3
Malfunction: 100 m/s² (approx. 10G)
Life expectancy Mechanical:10,000,000 operations min. (under no load at 1,800 operations/h)
Electrical:
H3Y-2: 500,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h)
H3Y-4: 200,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h) *4
Enclosure rating IP40
Weight Approx. 50 g
EMC (EMI) EN 61812-1
Emission Enclosure: EN 55011 Group 1 class A
Emission AC Mains: EN 55011 Group 1 class A
(EMS) EN 61812-1
Immunity ESD: IEC 61000-4-2
Immunity RF-interference: IEC 61000-4-3
Immunity Burst: IEC 61000-4-4
Immunity Surge: IEC 61000-4-5
Immunity Conducted Disturbance: IEC 61000-4-6
Immunity Voltage Dip/Interruption: IEC 61000-4-11
Approved standards UL 508, CSA C22.2 No. 14, Lloyds, CCC: GB/T 14048.5 *6
Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3Y-2/-2-0, 2.5 kV/1 for H3Y-4/
-4-0) *5

*1. Add ±10 mS to the above value for the 0.5-S range model.
*2. Terminal screw sections are excluded.
*3. The destructive shock resistance test was performed on the Timer.
*4. Check the electrical life curve.
*5. Overvoltage category II.
*6. CCC certification requirements

Model H3Y-2 (-0) H3Y-4 (-0)
Recommended fuse RT14-20/6A (380 VAC 6 A),
manufactured by DELIXI RT14-20/4A (380 VAC 4 A),
manufactured by DELIXI
Rated operating voltage Ue
Rated operating current Ie AC-15: Ue: 250 VAC, Ie: 3 A
AC-13: Ue: 250 VAC, Ie: 5 A
DC-13: Ue: 30 VDC, Ie: 0.5 A AC-15: Ue: 250 VAC, Ie: 2 A
AC-13: Ue: 250 VAC, Ie: 3 A
DC-13: Ue: 30 VDC, Ie: 0.5 A
Rated insulation voltage 250 V
Rated impulse withstand voltage
(altitude: 2,000 m max.) 2.5 kV (at 240 VAC)
Conditional short-circuit current 1000 A

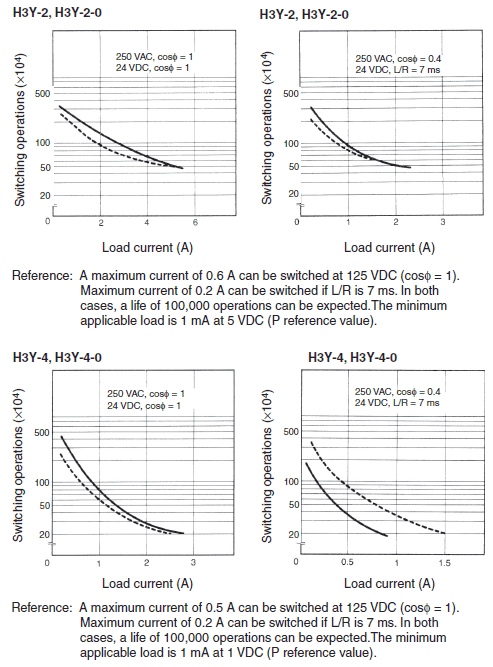

Engineering Data

last update: October 9, 2018

OMRON H3Y catalog
H3Y Solid-state Timer/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

H3Y Series Data Sheet M092-E1-02
[5030KB] Nov 01, 201820181101 H3Y Series Data Sheet

Model Selection Guide for Timers L130-E1-01
[2548KB] Jun 12, 201720170612 Model Selection Guide for Timers

Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance -
[43KB] Mar 12, 201820180312 Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

NO. H3Y

TYPE:Timers Analog Timers Copyright Statement

DATE:2021-06-08

Associated products:
H3CR-F Solid-state Timer/Features H3YN Solid-state Timer/Features

Operation/ resetting system	Time-limit contact	Time ranges	Supply voltage	Mounting
Surface/DIN-track mounting (with socket)	Surface mounting (with PCB terminals)
Time-limit operation/ self-resetting	DPDT (for power switching)	0.04 s to 3 h	24, 100 to 120, 200 to 230, 240 VAC (50/60 Hz); 12, 24, 48, 125, 100 to 110 VDC	H3Y-2	H3Y-2-0
4PDT	H3Y-4 *	H3Y-4-0 *

Name/specification	Model
Flush mounting adapter	Y92F-78
Mounting Plate for Socket	For 1 Socket	PYP-1
For 18 Sockets	PYP-18
Hold-down Clips	For PYF[]A	Y92H-3
For PY[] and PYF[]M	Y92H-4

Timer	Square Sockets
Contact	Model	Pin	Connection	Terminal	Model
DPDT	H3Y-2	8-pin	Front Connecting	DIN track mounting	PYF08A
DIN track mounting (Finger Protection Structure)	PYF08A-E
Screw mounting	PYF08M
Back Connecting	Solder terminal	PY08
PCB terminal	PY08-02
4PDT	H3Y-4	14-pin	Front Connecting	DIN track mounting	PYF14A
DIN track mounting (Finger Protection Structure)	PYF14A-E
Back Connecting	Solder terminal	PY14
PCB terminal	PY14-02

Rated time	Time setting range	Rated time	Time setting range
0.5 s	0.04 to 0.5 s	3 min	0.1 to 3 min
1 s	0.1 to 1 s	5 min	0.2 to 5 min
5 s	0.2 to 5 s	10 min	0.5 to 10 min
10 s	0.5 to 10 s	30 min	1 to 30 min
30 s	1.0 to 30 s	60 min	2 to 60 min
60 s	2.0 to 60 s	3 h	0.1 to 3 h
120 s	5.0 to 120 s	---	---

Item	H3Y-2(-0)/H3Y-4(-0)
Rated supply voltage 6 7	100 to 120 (50/60 Hz), 200 to 230 VAC (50/60 Hz), 24 VAC (50/60 Hz) 1 12, 24, 48, 125, 100 to 110 VDC 2, *3
Operating voltage range	All rated voltages except 12 VDC: 85% to 110% of rated supply voltage 12 VDC: 90% to 110% of rated supply voltage *4
Reset voltage	10% min. of rated supply voltage *5
Power consumption	100 to 120 VAC: 1.5 VA (at 120 VAC) 200 to 230 VAC: 1.8 VA (at 230 VAC) 24 VAC: 1.5 VA (at 24 VAC) 12 VDC: 0.9 W (at 12 VDC) 24 VDC: 0.9 W (at 24 VDC) 48 VDC: 1.0 W (at 48 VDC) 100 to 110 VDC: 1.3 W (at 110 VDC) 125 VDC: 1.3 W (at 125 VDC)
Control outputs	H3Y-2(-0): 5 A at 250 VAC, resistive load (cosφ = 1) The minimum applicable load is 1 mA at 5 VDC (P reference value). Contact materials: Ag H3Y-4(-0): 3 A at 250 VAC, resistive load (cosφ = 1) The minimum applicable load is 1 mA at 1 VDC (P reference value). Contact materials: Au-clad + Ag-alloy
Ambient operating temperature	-10°C to 50°C (with no icing)
Storage temperature	-25°C to 65°C
Ambient operating humidity	35% to 85%

Accuracy of operating time	±1% FS max. (0.5 s range: ±1%±10 ms max.) *1
Setting error	±10%±50 ms FS max.
Reset time	Min. power-opening time: 0.1 s max. (including halfway reset)
Influence of voltage	±2% FS max. *1
Influence of temperature	±2% FS max. *1
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying metal parts) 2 2,000 VAC, 50/60 Hz for 1 min (between operating power circuit and control output) 2 2,000 VAC, 50/60 Hz for 1 min (between different pole contacts; 2-pole model) *2 1,500 VAC, 50/60 Hz for 1 min (between different pole contacts; 4-pole model) 1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Impulse withstand voltage	Between power terminals: 3 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC 1 kV for 12 VDC, 24 VDC, 48 VDC Between exposed non-current-carrying metal parts: 4.5 kV for 100 to 120 VAC, 200 to 230 VAC, 100 to 110 VDC, 125 VDC 1.5 kV for 12 VDC, 24 VDC, 48 VDC
Noise immunity	±1.5 kV, square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)
Static immunity	Destruction: 8 kV Malfunction: 4 kV
Vibration resistance	Destruction: 10 to 55 Hz, 0.75-mm single amplitude Malfunction: 10 to 55 Hz, 0.5-mm single amplitude
Shock resistance	Destruction: 1,000 m/s² (approx. 100G) *3 Malfunction: 100 m/s² (approx. 10G)
Life expectancy	Mechanical:10,000,000 operations min. (under no load at 1,800 operations/h) Electrical: H3Y-2: 500,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h) H3Y-4: 200,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h) *4
Enclosure rating	IP40
Weight	Approx. 50 g
EMC	(EMI) EN 61812-1 Emission Enclosure: EN 55011 Group 1 class A Emission AC Mains: EN 55011 Group 1 class A (EMS) EN 61812-1 Immunity ESD: IEC 61000-4-2 Immunity RF-interference: IEC 61000-4-3 Immunity Burst: IEC 61000-4-4 Immunity Surge: IEC 61000-4-5 Immunity Conducted Disturbance: IEC 61000-4-6 Immunity Voltage Dip/Interruption: IEC 61000-4-11
Approved standards	UL 508, CSA C22.2 No. 14, Lloyds, CCC: GB/T 14048.5 6 Conforms to EN 61812-1 and IEC 60664-1. (2.5 kV/2 for H3Y-2/-2-0, 2.5 kV/1 for H3Y-4/ -4-0) 5

Model	H3Y-2 (-0)	H3Y-4 (-0)
Recommended fuse	RT14-20/6A (380 VAC 6 A), manufactured by DELIXI	RT14-20/4A (380 VAC 4 A), manufactured by DELIXI
Rated operating voltage Ue Rated operating current Ie	AC-15: Ue: 250 VAC, Ie: 3 A AC-13: Ue: 250 VAC, Ie: 5 A DC-13: Ue: 30 VDC, Ie: 0.5 A	AC-15: Ue: 250 VAC, Ie: 2 A AC-13: Ue: 250 VAC, Ie: 3 A DC-13: Ue: 30 VDC, Ie: 0.5 A
Rated insulation voltage	250 V
Rated impulse withstand voltage (altitude: 2,000 m max.)	2.5 kV (at 240 VAC)
Conditional short-circuit current	1000 A

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
H3Y Series Data Sheet	M092-E1-02 [5030KB]	Nov 01, 201820181101	H3Y Series Data Sheet
Model Selection Guide for Timers	L130-E1-01 [2548KB]	Jun 12, 201720170612	Model Selection Guide for Timers
Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance	- [43KB]	Mar 12, 201820180312	Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

Return to OMRON
