OMRON A22TK Dimensions

/Images/l_2071-25-118539-198x198.jpg

last update: January 06, 2014

Because the A22TK Safety Key Selector Switch uses the same key as the Guard Lock Safety-door Switch, the operator is prevented from forgetting to remove the key. The result is a safer working environment when performing maintenance.

Common Key for Door Switch and Selector Switch

*To unify keys, specify the same key type.

Broad range of applications include use with door locks, mode switching, and emergency stops when teaching

With the Selector Switch, it is possible to switch between normal operation mode (use of Door Switch is available) and maintenance mode (use of Enabling Grip Switch is available).

last update: January 06, 2014

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON A22TK Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A22TK We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A22TKSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A22E / A22NE-P / A22NE-PD Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)/Features
K6CM Motor Condition Monitoring Device/Features
PFP-[]N / -M / -S Optional DIN Track Products/Features
A30NS / A30NW Selector Switches/Features
3G8F7-CRM21 CompoNet Master Board for PCI Bus/CompactPCI Bus/Features

OMRON A22TK dimension
A22TK Safety Key Selector Switch/Dimensions
last update: October 12, 2017

(Unit: mm)

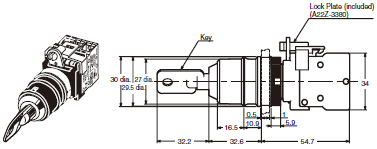

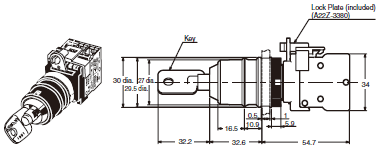

Switch

A22TK-2LL

A22TK-2RL

Accessories
Control Box

A22Z-B101Y (1 hole)

Control Box

A22Z-B201Y (1 hole)

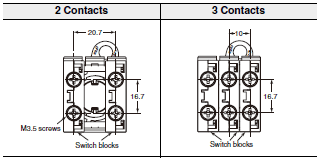

Terminal Arrangement (Bottom View)

Terminal Connection

last update: October 12, 2017

OMRON A22TK specification
A22TK Safety Key Selector Switch/Specifications
last update: October 5, 2018
Approved Standard Ratings

UL, cUL (File No. E41515): 6 A at 220 VAC, 10 A at 110 VAC
TÜV (EN60947-5-1) (Low Voltage Directive): 3 A at 220 VAC
CCC (GB/T 14048.5): 3 A at 240 VAC, 1.5 A at 24 VDC

Certified Standards

Certification body Standards File No.
UL *1 UL508, C22.2 No.14 E41515
TÜV SÜD EN60947-5-1
(certified direct opening mechanism) Consult your OMRON representative for details.
CQC(CCC) GB/T 14048.5
KOSHA EN60947-5-1

Note: Only models with NC contacts have a direct opening mechanism.
*1. UL-certification for CSA C22.2 No. 14 has been obtained. (Certification has been obtained for the Switch Unit only)

Ratings
Contacts (Standard load)

Rated carry current
(A) Rated voltage
(V) Rated current (A)
AC15
(inductive load) AC12
(resistive load) DC13
(inductive load) DC12
(resistive load)
10 24 VAC 10 10 --- ---
110 5 10
220 3 6
380 2 3
440 1 2
24 VDC --- --- 1.5 10
110 0.5 2
220 0.2 0.6
380 0.1 0.2

Note: 1. Rated current values are determined according to the testing conditions. The above ratings were obtained by
conducting tests under the following conditions.
(1) Ambient temperature: 20±2C°
(2) Ambient humidity: 65±5% RH
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC

Characteristics

Model A22TK
Allowable operating
frequency Mechanical 30 operations/minute max.
Electrical 30 operations/minute max.
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength Between terminals of same polarity 2,500 VAC, 50/60 Hz for 1 min.
Between each terminal and ground 2,500 VAC, 50/60 Hz for 1 min.
Vibration resistance *1 10 to 55 Hz, 1.5-mm double amplitude (within 1 ms)
Shock resistance Destruction 1000 m/s²
Malfunction *1 250 m/s² max.
Durability Mechanical 100,000 operations min.
Electrical 100,000 operations min.
Ambient operating temperature *2 20 to +70°C
Ambient operating humidity 35% to 85%RH
Ambient storage temperature 40 to +70°C
Degree of protection IP65 *3
Electric shock protection class Class II
PTI (tracking characteristic) 175
Degree of contamination 3 (EN60947-5-1)

*1. Malfunction within 1 ms.
*2. With no icing or condensation.
*3. The degree of protection from the front of the panel.
Note: 1. Do not allow the load current to exceed the rated value.
2. The contact ON/OFF timing is not synchronized. Confirm performance before application.
3. Once the contacts have been used to switch a load, however, they cannot be used to switch smaller loads. The
contact surfaces will become rough once they have been used and contact reliability for smaller loads may be
reduced.

last update: October 5, 2018

OMRON A22TK catalog
A22TK Safety Key Selector Switch/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

A22TK Data Sheet A189-E1-02
[1385KB] Oct 05, 201820181005 A22TK Data Sheet

OMRON A22TK lineup
A22TK Safety Key Selector Switch/Lineup
last update: October 12, 2017

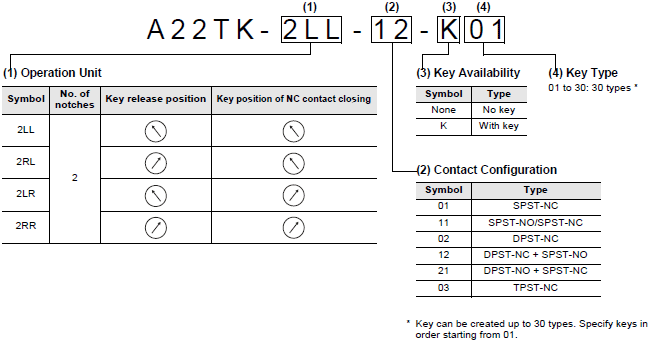

Model Number Structure

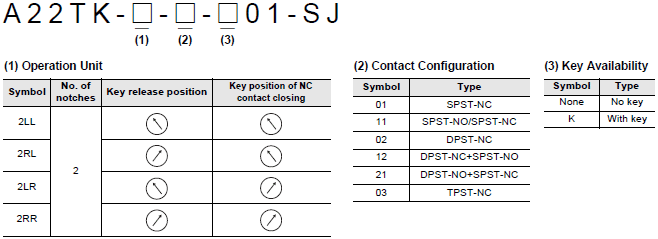

Model Number Legend (Ordering as a set)

The Operation Unit and Switch are delivered as a set. For information on combinations, refer to Ordering Information on below.
The models numbers of only Operation Units are they same as the set model numbers without (2) Contact Configuration.
Example: The model number of the Operation Unit from the A22TK-2LL-12-K01 Set is A22TK-2LL-K01.
Ask your OMRON representative about parts without model numbers when ordering.

Key drop preventive type

Switch
List of Models (Completely Assembled)

Shipped as a set which includes the Operation Unit and Switch.
The models numbers of only Operation Units are they same as the set model numbers without (2) Contact Configuration.
Example: The model number of the Operation Unit from the A22TK-2LL-12-K01 Set is A22TK-2LL-K01.
Ask your OMRON representative about parts without model numbers when ordering.

Appearance Key release
position Key position
of NC contact
closing Contact
Configuration Key
availability Model
SPST-NC Yes A22TK-2LL-01-K01
SPST-NO/SPST-NC A22TK-2LL-11-K01
DPST-NC A22TK-2LL-02-K01
DPST-NC + SPST-NO A22TK-2LL-12-K01
DPST-NO + SPST-NC A22TK-2LL-21-K01
TPST-NC A22TK-2LL-03-K01
SPST-NC A22TK-2RL-01-K01
SPST-NO/SPST-NC A22TK-2RL-11-K01
DPST-NC A22TK-2RL-02-K01
DPST-NC + SPST-NO A22TK-2RL-12-K01
DPST-NO + SPST-NC A22TK-2RL-21-K01
TPST-NC A22TK-2RL-03-K01
SPST-NC A22TK-2LR-01-K01
SPST-NO/SPST-NC A22TK-2LR-11-K01
DPST-NC A22TK-2LR-02-K01
DPST-NC + SPST-NO A22TK-2LR-12-K01
DPST-NO + SPST-NC A22TK-2LR-21-K01
TPST-NC A22TK-2LR-03-K01
SPST-NC A22TK-2RR-01-K01
SPST-NO/SPST-NC A22TK-2RR-11-K01
DPST-NC A22TK-2RR-02-K01
DPST-NC + SPST-NO A22TK-2RR-12-K01
DPST-NO + SPST-NC A22TK-2RR-21-K01
TPST-NC A22TK-2RR-03-K01
SPST-NC No A22TK-2LL-01-01
SPST-NO/SPST-NC A22TK-2LL-11-01
DPST-NC A22TK-2LL-02-01
DPST-NC + SPST-NO A22TK-2LL-12-01
DPST-NO + SPST-NC A22TK-2LL-21-01
TPST-NC A22TK-2LL-03-01
SPST-NC A22TK-2RL-01-01
SPST-NO/SPST-NC A22TK-2RL-11-01
DPST-NC A22TK-2RL-02-01
DPST-NC + SPST-NO A22TK-2RL-12-01
DPST-NO + SPST-NC A22TK-2RL-21-01
TPST-NC A22TK-2RL-03-01
SPST-NC A22TK-2LR-01-01
SPST-NO/SPST-NC A22TK-2LR-11-01
DPST-NC A22TK-2LR-02-01
DPST-NC + SPST-NO A22TK-2LR-12-01
DPST-NO + SPST-NC A22TK-2LR-21-01
TPST-NC A22TK-2LR-03-01
SPST-NC A22TK-2RR-01-01
SPST-NO/SPST-NC A22TK-2RR-11-01
DPST-NC A22TK-2RR-02-01
DPST-NC + SPST-NO A22TK-2RR-12-01
DPST-NO + SPST-NC A22TK-2RR-21-01
TPST-NC A22TK-2RR-03-01
SPST-NC Yes A22TK-2LL-01-K01-SJ
SPST-NO/SPST-NC A22TK-2LL-11-K01-SJ
DPST-NC A22TK-2LL-02-K01-SJ
DPST-NC + SPST-NO A22TK-2LL-12-K01-SJ
DPST-NO + SPST-NC A22TK-2LL-21-K01-SJ
TPST-NC A22TK-2LL-03-K01-SJ
SPST-NC A22TK-2RL-01-K01-SJ
SPST-NO/SPST-NC A22TK-2RL-11-K01-SJ
DPST-NC A22TK-2RL-02-K01-SJ
DPST-NC + SPST-NO A22TK-2RL-12-K01-SJ
DPST-NO + SPST-NC A22TK-2RL-21-K01-SJ
TPST-NC A22TK-2RL-03-K01-SJ
SPST-NC A22TK-2LR-01-K01-SJ
SPST-NO/SPST-NC A22TK-2LR-11-K01-SJ
DPST-NC A22TK-2LR-02-K01-SJ
DPST-NC + SPST-NO A22TK-2LR-12-K01-SJ
DPST-NO + SPST-NC A22TK-2LR-21-K01-SJ
TPST-NC A22TK-2LR-03-K01-SJ
SPST-NC A22TK-2RR-01-K01-SJ
SPST-NO/SPST-NC A22TK-2RR-11-K01-SJ
DPST-NC A22TK-2RR-02-K01-SJ
DPST-NC + SPST-NO A22TK-2RR-12-K01-SJ
DPST-NO + SPST-NC A22TK-2RR-21-K01-SJ
TPST-NC A22TK-2RR-03-K01-SJ
SPST-NC No A22TK-2LL-01-01-SJ
SPST-NO/SPST-NC A22TK-2LL-11-01-SJ
DPST-NC A22TK-2LL-02-01-SJ
DPST-NC + SPST-NO A22TK-2LL-12-01-SJ
DPST-NO + SPST-NC A22TK-2LL-21-01-SJ
TPST-NC A22TK-2LL-03-01-SJ
SPST-NC A22TK-2RL-01-01-SJ
SPST-NO/SPST-NC A22TK-2RL-11-01-SJ
DPST-NC A22TK-2RL-02-01-SJ
DPST-NC + SPST-NO A22TK-2RL-12-01-SJ
DPST-NO + SPST-NC A22TK-2RL-21-01-SJ
TPST-NC A22TK-2RL-03-01-SJ
SPST-NC A22TK-2LR-01-01-SJ
SPST-NO/SPST-NC A22TK-2LR-11-01-SJ
DPST-NC A22TK-2LR-02-01-SJ
DPST-NC + SPST-NO A22TK-2LR-12-01-SJ
DPST-NO + SPST-NC A22TK-2LR-21-01-SJ
TPST-NC A22TK-2LR-03-01-SJ
SPST-NC A22TK-2RR-01-01-SJ
SPST-NO/SPST-NC A22TK-2RR-11-01-SJ
DPST-NC A22TK-2RR-02-01-SJ
DPST-NC + SPST-NO A22TK-2RR-12-01-SJ
DPST-NO + SPST-NC A22TK-2RR-21-01-SJ
TPST-NC A22TK-2RR-03-01-SJ

Accessories

Name Appearance Classification Model Remarks
Control Box One hole,
yellow box A22Z-B101Y Material: Polycarbonate resin
The A22Z-B101Y do not support 2NO, 2NC,
or 1NO + 1NC One-piece Switch Blocks.
The A22Z-B201Y do not support A22-series
Alternate-action Switches. They also do not
support 2NO, 2NC, or 1NO + 1NC One-piece
Switch Blocks.
A22Z-B201Y

Note: For information on two-hole and three-hole control boxes, contact your OMRON representative.
The Switch Block, Mounting Latch, Connector, and Lock Plate of A22E can be used.

last update: October 12, 2017

NO. A22TK

TYPE:Safety Key Selector Switches / Enabling Grip Switches Copyright Statement Copyright Statement

DATE:2021-06-10

Associated products:
A22LK Guard Lock Safety Key Selector Switch/Features A4EG Enabling Grip Switch/Features

Certification body	Standards	File No.
UL *1	UL508, C22.2 No.14	E41515
TÜV SÜD	EN60947-5-1 (certified direct opening mechanism)	Consult your OMRON representative for details.
CQC(CCC)	GB/T 14048.5
KOSHA	EN60947-5-1

Rated carry current (A)	Rated voltage (V)	Rated current (A)
AC15 (inductive load)	AC12 (resistive load)	DC13 (inductive load)	DC12 (resistive load)
10	24 VAC	10	10	---	---
110	5	10
220	3	6
380	2	3
440	1	2
24 VDC	---	---	1.5	10
110	0.5	2
220	0.2	0.6
380	0.1	0.2

Model	A22TK
Allowable operating frequency	Mechanical	30 operations/minute max.
Electrical	30 operations/minute max.
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	Between terminals of same polarity	2,500 VAC, 50/60 Hz for 1 min.
Between each terminal and ground	2,500 VAC, 50/60 Hz for 1 min.
*Vibration resistance 1**	10 to 55 Hz, 1.5-mm double amplitude (within 1 ms)
Shock resistance	Destruction	1000 m/s²
*Malfunction 1**	250 m/s² max.
Durability	Mechanical	100,000 operations min.
Electrical	100,000 operations min.
*Ambient operating temperature 2**	20 to +70°C
Ambient operating humidity	35% to 85%RH
Ambient storage temperature	40 to +70°C
Degree of protection	IP65 *3
Electric shock protection class	Class II
PTI (tracking characteristic)	175
Degree of contamination	3 (EN60947-5-1)

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
A22TK Data Sheet	A189-E1-02 [1385KB]	Oct 05, 201820181005	A22TK Data Sheet

Appearance	Key release position	Key position of NC contact closing	Contact Configuration	Key availability	Model
			SPST-NC	Yes	A22TK-2LL-01-K01
SPST-NO/SPST-NC	A22TK-2LL-11-K01
DPST-NC	A22TK-2LL-02-K01
DPST-NC + SPST-NO	A22TK-2LL-12-K01
DPST-NO + SPST-NC	A22TK-2LL-21-K01
TPST-NC	A22TK-2LL-03-K01
		SPST-NC	A22TK-2RL-01-K01
SPST-NO/SPST-NC	A22TK-2RL-11-K01
DPST-NC	A22TK-2RL-02-K01
DPST-NC + SPST-NO	A22TK-2RL-12-K01
DPST-NO + SPST-NC	A22TK-2RL-21-K01
TPST-NC	A22TK-2RL-03-K01
		SPST-NC	A22TK-2LR-01-K01
SPST-NO/SPST-NC	A22TK-2LR-11-K01
DPST-NC	A22TK-2LR-02-K01
DPST-NC + SPST-NO	A22TK-2LR-12-K01
DPST-NO + SPST-NC	A22TK-2LR-21-K01
TPST-NC	A22TK-2LR-03-K01
		SPST-NC	A22TK-2RR-01-K01
SPST-NO/SPST-NC	A22TK-2RR-11-K01
DPST-NC	A22TK-2RR-02-K01
DPST-NC + SPST-NO	A22TK-2RR-12-K01
DPST-NO + SPST-NC	A22TK-2RR-21-K01
TPST-NC	A22TK-2RR-03-K01
			SPST-NC	No	A22TK-2LL-01-01
SPST-NO/SPST-NC	A22TK-2LL-11-01
DPST-NC	A22TK-2LL-02-01
DPST-NC + SPST-NO	A22TK-2LL-12-01
DPST-NO + SPST-NC	A22TK-2LL-21-01
TPST-NC	A22TK-2LL-03-01
		SPST-NC	A22TK-2RL-01-01
SPST-NO/SPST-NC	A22TK-2RL-11-01
DPST-NC	A22TK-2RL-02-01
DPST-NC + SPST-NO	A22TK-2RL-12-01
DPST-NO + SPST-NC	A22TK-2RL-21-01
TPST-NC	A22TK-2RL-03-01
		SPST-NC	A22TK-2LR-01-01
SPST-NO/SPST-NC	A22TK-2LR-11-01
DPST-NC	A22TK-2LR-02-01
DPST-NC + SPST-NO	A22TK-2LR-12-01
DPST-NO + SPST-NC	A22TK-2LR-21-01
TPST-NC	A22TK-2LR-03-01
		SPST-NC	A22TK-2RR-01-01
SPST-NO/SPST-NC	A22TK-2RR-11-01
DPST-NC	A22TK-2RR-02-01
DPST-NC + SPST-NO	A22TK-2RR-12-01
DPST-NO + SPST-NC	A22TK-2RR-21-01
TPST-NC	A22TK-2RR-03-01
			SPST-NC	Yes	A22TK-2LL-01-K01-SJ
SPST-NO/SPST-NC	A22TK-2LL-11-K01-SJ
DPST-NC	A22TK-2LL-02-K01-SJ
DPST-NC + SPST-NO	A22TK-2LL-12-K01-SJ
DPST-NO + SPST-NC	A22TK-2LL-21-K01-SJ
TPST-NC	A22TK-2LL-03-K01-SJ
		SPST-NC	A22TK-2RL-01-K01-SJ
SPST-NO/SPST-NC	A22TK-2RL-11-K01-SJ
DPST-NC	A22TK-2RL-02-K01-SJ
DPST-NC + SPST-NO	A22TK-2RL-12-K01-SJ
DPST-NO + SPST-NC	A22TK-2RL-21-K01-SJ
TPST-NC	A22TK-2RL-03-K01-SJ
		SPST-NC	A22TK-2LR-01-K01-SJ
SPST-NO/SPST-NC	A22TK-2LR-11-K01-SJ
DPST-NC	A22TK-2LR-02-K01-SJ
DPST-NC + SPST-NO	A22TK-2LR-12-K01-SJ
DPST-NO + SPST-NC	A22TK-2LR-21-K01-SJ
TPST-NC	A22TK-2LR-03-K01-SJ
		SPST-NC	A22TK-2RR-01-K01-SJ
SPST-NO/SPST-NC	A22TK-2RR-11-K01-SJ
DPST-NC	A22TK-2RR-02-K01-SJ
DPST-NC + SPST-NO	A22TK-2RR-12-K01-SJ
DPST-NO + SPST-NC	A22TK-2RR-21-K01-SJ
TPST-NC	A22TK-2RR-03-K01-SJ
			SPST-NC	No	A22TK-2LL-01-01-SJ
SPST-NO/SPST-NC	A22TK-2LL-11-01-SJ
DPST-NC	A22TK-2LL-02-01-SJ
DPST-NC + SPST-NO	A22TK-2LL-12-01-SJ
DPST-NO + SPST-NC	A22TK-2LL-21-01-SJ
TPST-NC	A22TK-2LL-03-01-SJ
		SPST-NC	A22TK-2RL-01-01-SJ
SPST-NO/SPST-NC	A22TK-2RL-11-01-SJ
DPST-NC	A22TK-2RL-02-01-SJ
DPST-NC + SPST-NO	A22TK-2RL-12-01-SJ
DPST-NO + SPST-NC	A22TK-2RL-21-01-SJ
TPST-NC	A22TK-2RL-03-01-SJ
		SPST-NC	A22TK-2LR-01-01-SJ
SPST-NO/SPST-NC	A22TK-2LR-11-01-SJ
DPST-NC	A22TK-2LR-02-01-SJ
DPST-NC + SPST-NO	A22TK-2LR-12-01-SJ
DPST-NO + SPST-NC	A22TK-2LR-21-01-SJ
TPST-NC	A22TK-2LR-03-01-SJ
		SPST-NC	A22TK-2RR-01-01-SJ
SPST-NO/SPST-NC	A22TK-2RR-11-01-SJ
DPST-NC	A22TK-2RR-02-01-SJ
DPST-NC + SPST-NO	A22TK-2RR-12-01-SJ
DPST-NO + SPST-NC	A22TK-2RR-21-01-SJ
TPST-NC	A22TK-2RR-03-01-SJ

Name	Appearance	Classification	Model	Remarks
Control Box		One hole, yellow box	A22Z-B101Y	Material: Polycarbonate resin The A22Z-B101Y do not support 2NO, 2NC, or 1NO + 1NC One-piece Switch Blocks. The A22Z-B201Y do not support A22-series Alternate-action Switches. They also do not support 2NO, 2NC, or 1NO + 1NC One-piece Switch Blocks.
A22Z-B201Y

Return to OMRON
