last update: October 1, 2018

A22E Screw Terminal Block types

• Increase wiring efficiency with three-row mounting of Switch Units. (with non-lighted Switch Blocks, three Units can be mounted for multiple contacts).

• Mounted using either open-type (fork-type) or closed-type (round-type) crimp terminals.

• Oil-resistant to IP65 (non-lighted models) / IP65 (lighted models).

• A lock plate is provided as a standard feature to ensure that the control box and switch are not easily separated.

A22NE-P Push-in Plus Terminal Block Models

• The small size of the control panel is realized by conserving space and changing the direction of the wiring.

• Since there is no looseness in the wiring, there is a reduction in the maintenance efforts.

• A lock lever mechanism that can be easily operated is adopted.

• A maximum of up to six contact points can be combined together in the contact-point configuration.

• Oil-resistant to IP65 (non-lighted models) / IP65 (lighted models) / Supports IP69K high-temperature, high-pressure cleaning (pull-reset models).

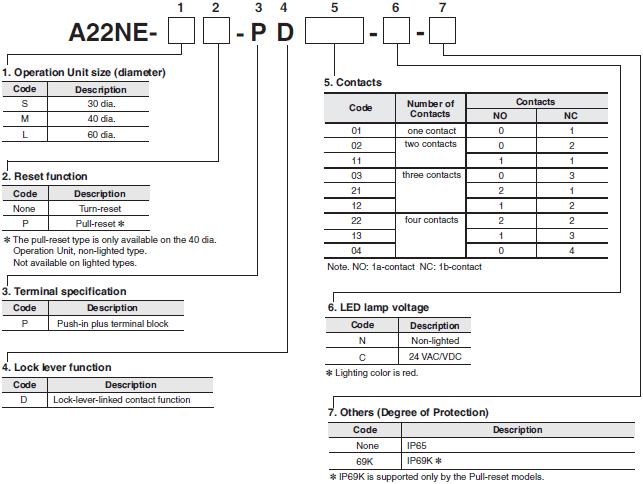

A22NE-PD Push-in Plus Terminal Block Models [Coming soon]

• The small size of the control panel is realized by conserving space and changing the direction of the wiring.

• Since there is no looseness in the wiring, there is a reduction in the maintenance efforts.

• A maximum of up to four contact points can be combined together in the contact-point configuration.

• Oil-resistant to IP65 (non-lighted models) / IP65 (lighted models) / IP69K high-temperature, high-pressure cleaning (pull-reset models).

•Whether or not the Operation Unit and the Switch Unit have been properly mounted can be detected from the open/closed state of the contact (Lock-lever-linked contact function).

Note: This product is scheduled to be released soon.
This product is under development and product specification may be changed without notice.

last update: October 1, 2018

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON A22E / A22NE-P / A22NE-PD Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A22E / A22NE-P / A22NE-PD We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A22E / A22NE-P / A22NE-PDSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

PYF[][]S / P2RF-[][]-S Screwless Clamp Terminal Sockets/Features
H3DT-N / -L Multi-range, Multi-mode Timer/Features
CK3E Programmable Multi-Axis Controller/Features
Cobra 650 SCARA Robots/Features
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Features

OMRON A22E / A22NE-P / A22NE-PD catalog
A22E / A22NE-P / A22NE-PD Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

A22E/A22NE-P/A22-PD Catalog A263-E1-04
[26960KB] Jan 17, 201920190117 A22E/A22NE-P/A22-PD Catalog

A22N-P/A30N-P, M22N-P, A22NE-P Catalog A253-E1-04
[4664KB] Dec 03, 201820181203 A22N-P/A30N-P, M22N-P, A22NE-P Catalog

Innovation in Control Panel Building Y218-E1-03
[13592KB] Oct 02, 201720171002 Innovation in Control Panel Building

OMRON A22E / A22NE-P / A22NE-PD lineup
A22E / A22NE-P / A22NE-PD Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)/Lineup
A22E Screw Terminal Block types
A22NE-P Push-in Plus Terminal Block Models
A22NE-PD Push-in Plus Terminal Block Models [Coming soon]
Common Accessories and Tools (Order Separately)
last update: January 7, 2019
A22E Screw Terminal Block types
Model Number Structure

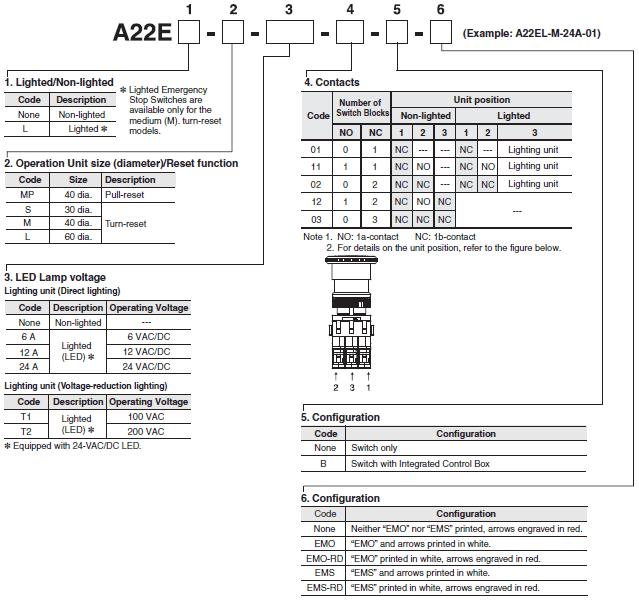

Model Number Legend (Completely Assembled)

Shipped as a set which includes the Operation Unit, LED Lamp (lighted model only), Mounting Latches, Switch Block, and Lock Plate

Ordering Information
List of Models (Completely Assembled)
Non-lighted Models (Without EMO/EMS Indication)

Appearance Operation Degree of
Protection Contact
configuration *1 Set Model Color of cap
40-dia. head
Medium Pull-reset
A22E-MP IP65
oil-resistant
models 1NC (1) A22E-MP-01 Red
1NC, 1NO (2) A22E-MP-11
2NC (2) A22E-MP-02
30-dia. head
Small Turn-reset
A22E-S 1NC (1) A22E-S-01 *2
1NC, 1NO (2) A22E-S-11 *2
2NC (2) A22E-S-02 *2
2NC, 1NO (3) A22E-S-12 *2
3NC (3) A22E-S-03 *2
40-dia. head
Medium Turn-reset
A22E-M 1NC (1) A22E-M-01 *2
1NC, 1NO (2) A22E-M-11 *2
2NC (2) A22E-M-02 *2
2NC, 1NO (3) A22E-M-12 *2
3NC (3) A22E-M-03 *2
60-dia.
Large Turn-reset
A22E-L 1NC (1) A22E-L-01 *2
1NC, 1NO (2) A22E-L-11 *2
2NC (2) A22E-L-02 *2

*1. The number in parentheses ( ) indicates the number of switch units.
*2. Models with Korean S-mark certification
Note: Yellow cap models are also available (not for emergency stop use). Contact your OMRON representative.

Non-lighted Models (With EMO/EMS Indication)

Appearance Operation Degree of
Protection Contact
configuration *1 Set Model Color of cap
40-dia. head
Medium Turn-reset
With EMO Indication IP65
oil-resistant
models 1NC (1) A22E-M-01-EMO *2 Red
A22E-M-01-EMO-RD
1NC, 1NO (2) A22E-M-11-EMO *2
A22E-M-11-EMO-RD
2NC (2) A22E-M-02-EMO *2
A22E-M-02-EMO-RD
2NC, 1NO (3) A22E-M-12-EMO *2
A22E-M-12-EMO-RD
3NC (3) A22E-M-03-EMO *2
A22E-M-03-EMO-RD
40-dia. head
Medium Turn-reset
With EMS Indication 1NC (1) A22E-M-01-EMS *2
A22E-M-01-EMS-RD
1NC, 1NO (2) A22E-M-11-EMS *2
A22E-M-11-EMS-RD
2NC (2) A22E-M-02-EMS *2
A22E-M-02-EMS-RD
2NC, 1NO (3) A22E-M-12-EMS *2
A22E-M-12-EMS-RD
3NC (3) A22E-M-03-EMS *2
A22E-M-03-EMS-RD

*1. The number in parentheses ( ) indicates the number of switch units.
*2. Models with Korean S-mark certification
Note: The colors of switch blocks are as follows:
NO (a-contact): Black
NC (b-contact): Red
The above illustration shows the 2NC (2b-contact) configuration.

Lighted Models

Appearance Operation Degree of
Protection Contact
configuration *1 LED Lamp
voltage Set Model Color
of cap
40-dia. head
Push-lock
Turn-reset
Lighting unit
(Direct lighting)
A22E IP65 1NC (1) 6 VAC/VDC A22EL-M-6A-01 *2 Red
12 VAC/VDC A22EL-M-12A-01 *2
24 VAC/VDC A22EL-M-24A-01 *2
1NC, 1NO (2) 6 VAC/VDC A22EL-M-6A-11 *2
12 VAC/VDC A22EL-M-12A-11 *2
24 VAC/VDC A22EL-M-24A-11 *2
2NC (2) 6 VAC/VDC A22EL-M-6A-02 *2
12 VAC/VDC A22EL-M-12A-02 *2
24 VAC/VDC A22EL-M-24A-02 *2
40-dia. head
Push-lock
Turn-reset
Lighting unit
(Voltage-reduction
lighting)
A22E 1NC (1) 100 VAC A22EL-M-T1-01
200 VAC A22EL-M-T2-01
1NC, 1NO (2) 100 VAC A22EL-M-T1-11
200 VAC A22EL-M-T2-11
2NC (2) 100 VAC A22EL-M-T1-02
200 VAC A22EL-M-T2-02

*1. The number in parentheses ( ) indicates the number of switch units.
*2. Models with Korean S-mark certification

Switch with Integrated Control Box

Appearance Contact configuration
(Number of switch blocks) Model
1NC (1) A22E-M-01B *
1NC, 1NO (2) A22E-M-11B *
2NC (2) A22E-M-02B *

Note: The A22Z-B101Y Control Box is used.
* Models with Korean S-mark certification

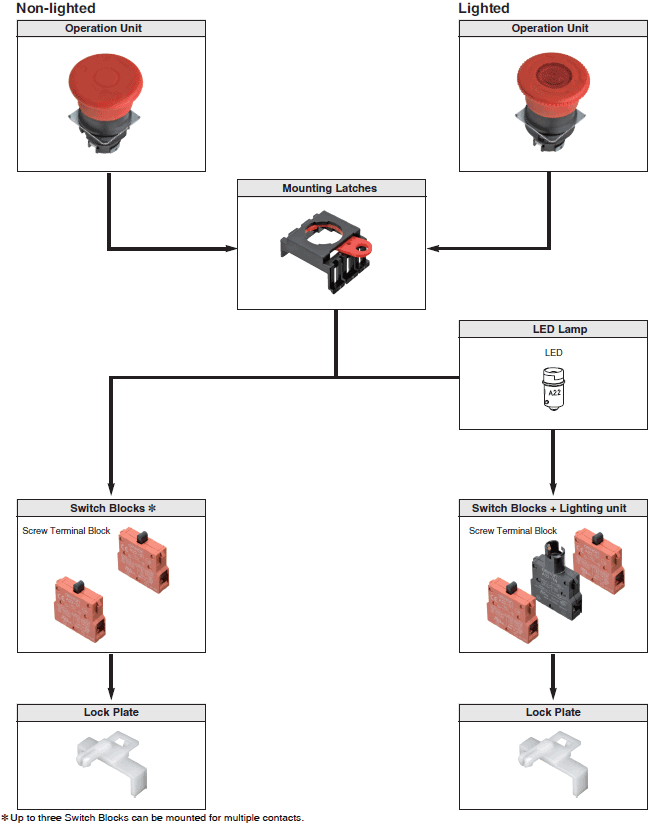

Subassembled

The Operation Unit, LED Lamp, Mounting Latches, and Switch Blocks can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

Operation Unit
Non-lighted

Size Small (30 dia.) Medium (40 dia.) Large (60 dia.)
Function Sealing capability Single item order model
Pull-reset IP65
oil-resistant
models --- A22E-MP
---
Turn-reset A22E-S
A22E-M
A22E-L
A22E-M-EMO
A22E-M-EMO-RD
A22E-M-EMS
A22E-M-EMS-RD

Lighted

Size Medium (40 dia.)
Function Sealing capability Single item order model
Turn-reset IP65 A22EL-M

LED lamp

Appearance LED light Rated voltage Model
Red Standard 6 VAC/VDC A22-6AR
12 VAC/VDC A22-12AR
24 VAC/VDC A22-24AR

Note: For a model with a Lighting unit (Voltage-reduction lighting), use the A22-24AR.

Switch
Non-lighted / Direct lighting

Classification Non-lighted Direct lighting
Appearance
Contact specifications/
Configuration (Number of switch blocks) Model Model
For Standard loads 1NC (1) A22-01M A22L-01M
1NC, 1NO (2) A22-11M A22L-11M
2NC (2) A22-02M A22L-02M

Voltage-reduction lighting (100 VAC, 200 VAC)

Classification 100 VAC, Lighted 200 VAC, Lighted
Appearance
Contact specifications/
Configuration (Number of switch blocks) Model Model
For Standard loads 1NC (1) A22L-01M-T1 A22L-01M-T2
1NC, 1NO (2) A22L-11M-T1 A22L-11M-T2
2NC (2) A22L-02M-T1 A22L-02M-T2

Note: For a model with a Lighting unit (Voltage-reduction lighting), use the A22-24AR.

Accessories (Order Separately)

Item Appearance Contact specifications Model Remarks
Switch Blocks
(one contact) 1NO (Black) Standard load A22-10 Provided as standard.
Order Switch Blocks only when
adding or replacing them.
Microload A22-10S
1NC (Red) Standard load A22-01
Microload A22-01S

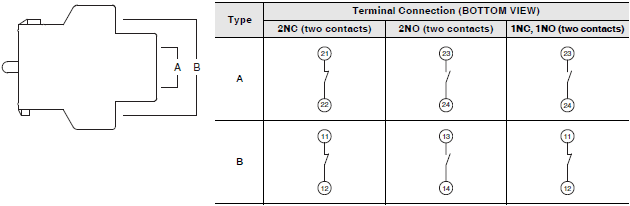

Switch Blocks
(two contacts) 2NO (Black) Standard load A22-20 Order Switch Blocks only when
adding or replacing them.
Microload A22-20S
2NC (Red) Standard load A22-02
Microload A22-02S
1NC + 1NO
Contact
(Black/Red) Standard load A22-11
Microload A22-11S
Lighting unit Direct lighting A22-TN Used when changing the lighting
method.
Voltage-
reduction
lighting 100 VAC A22-T1
200 VAC A22-T2
Mounting
Latches --- A22-3200 Provided as standard.
Order Mounting Latches only
when mounting Switch Blocks
or Lighting Units that are
purchased individually.
Lock Plate --- A22Z-3380 Use to fix the lever on the
Switch.

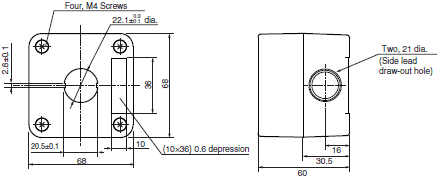

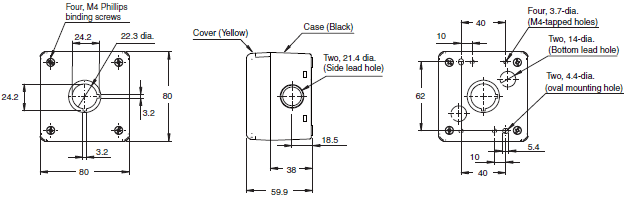

Control Boxes

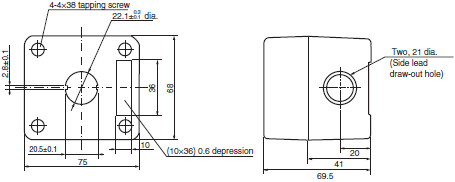

(Enclosures) One hole, yellow box A22Z-B101Y Material: Polycarbonate resin.
When using a Control Box, 2NO,
2NC, or 1NC + 1NO two-
contact Switch Blocks are not
supported. *
A22Z-B201Y

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types,
refer to "Common Accessories and Tools (Order Separately)" on below.
* The A22NZ-B101Y and A22NZ-B201Y Control Box cannot be used in combination with the A22Z-3476-1 90-dia.
Legend Plates for Emergency Stop or the A22Z-EG[] E-stop Shrouds.

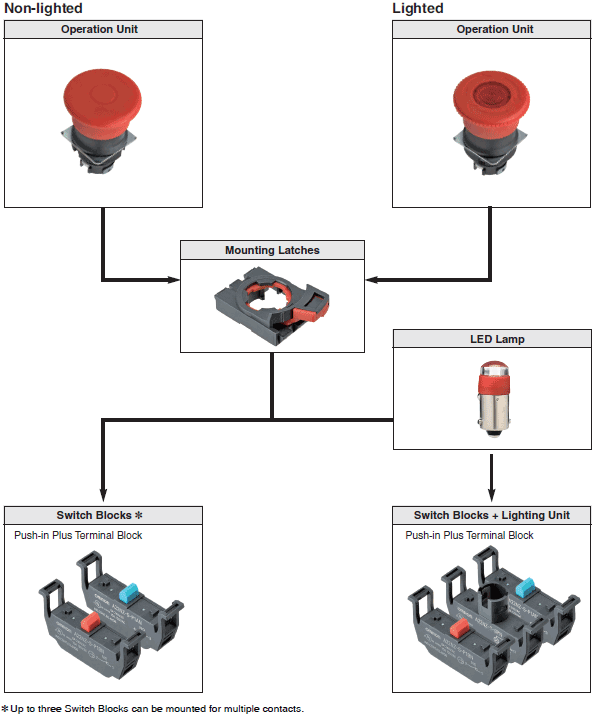

A22NE-P Push-in Plus Terminal Block Models
Model Number Structure

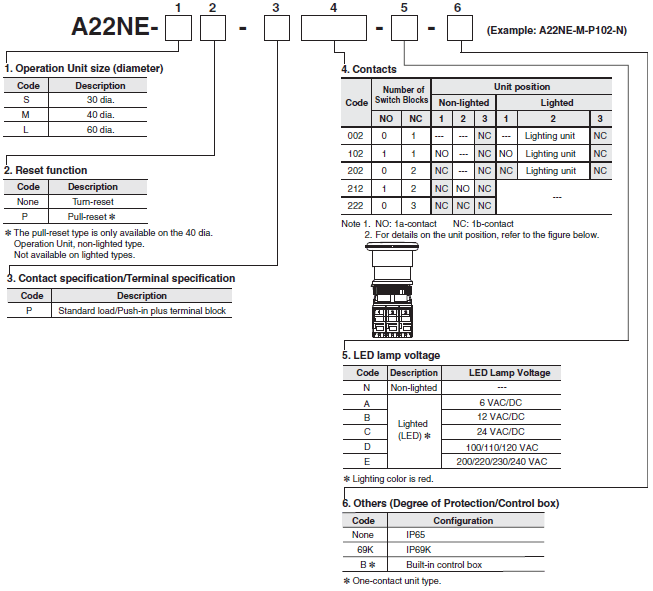

Model Number Legend (Completely Assembled)

Shipped as a set which includes the Operation Unit, LED Lamp (lighted model only), Mounting Latches, Lighting Units (lighted model only), and Switch Block.

Ordering Information
List of Models (Completely Assembled)
Non-lighted Models

Appearance Operation Degree of
Protection Contact
configuration * Set Model Color
of cap
40-dia. head
Medium Pull-reset
A22NE-MP-P[][]2-N IP65
oil-resistant
models 1NC (1) A22NE-MP-P002-N Red
1NC, 1NO (2) A22NE-MP-P102-N
2NC (2) A22NE-MP-P202-N
2NC, 1NO (3) A22NE-MP-P212-N
3NC (3) A22NE-MP-P222-N
40-dia. head
Medium Pull-reset
A22NE-MP-P[][]2-N-69K IP69K 1NC (1) A22NE-MP-P002-N-69K
1NC, 1NO (2) A22NE-MP-P102-N-69K
2NC (2) A22NE-MP-P202-N-69K
2NC, 1NO (3) A22NE-MP-P212-N-69K
3NC (3) A22NE-MP-P222-N-69K
30-dia. head
Small Turn-reset
A22NE-S-P[][]2-N IP65
oil-resistant
models 1NC (1) A22NE-S-P002-N
1NC, 1NO (2) A22NE-S-P102-N
2NC (2) A22NE-S-P202-N
2NC, 1NO (3) A22NE-S-P212-N
3NC (3) A22NE-S-P222-N
40-dia. head
Medium Turn-reset
A22NE-M-P[][]2-N 1NC (1) A22NE-M-P002-N
1NC, 1NO (2) A22NE-M-P102-N
2NC (2) A22NE-M-P202-N
2NC, 1NO (3) A22NE-M-P212-N
3NC (3) A22NE-M-P222-N
60-dia.
Large Turn-reset
A22NE-L-P[][]2-N 1NC (1) A22NE-L-P002-N
1NC, 1NO (2) A22NE-L-P102-N
2NC (2) A22NE-L-P202-N
2NC, 1NO (3) A22NE-L-P212-N
3NC (3) A22NE-L-P222-N

* The number in parentheses ( ) indicates the number of switch units.

Lighted Model

Appearance Operation Degree of
Protection Contact
configuration * LED Lamp
voltage Set Model Color
of cap
40-dia. head
Medium Turn-reset
A22NE-M-P[][]2-A IP65 1NC (1) 6 VAC/VDC A22NE-M-P002-A Red
1NC, 1NO (2) A22NE-M-P102-A
2NC (2) A22NE-M-P202-A
40-dia. head
Medium Turn-reset
A22NE-M-P[][]2-B 1NC (1) 12 VAC/VDC A22NE-M-P002-B
1NC, 1NO (2) A22NE-M-P102-B
2NC (2) A22NE-M-P202-B
40-dia. head
Medium Turn-reset
A22NE-M-P[][]2-C 1NC (1) 24 VAC/VDC A22NE-M-P002-C
1NC, 1NO (2) A22NE-M-P102-C
2NC (2) A22NE-M-P202-C
40-dia. head
Medium Turn-reset
A22NE-M-P[][]2-D 1NC (1) 100, 110,
120 VAC A22NE-M-P002-D
1NC, 1NO (2) A22NE-M-P102-D
2NC (2) A22NE-M-P202-D
40-dia. head
Medium Turn-reset
A22NE-M-P[][]2-E 1NC (1) 220, 230,
240 VAC A22NE-M-P002-E
1NC, 1NO (2) A22NE-M-P102-E
2NC (2) A22NE-M-P202-E

* The number in parentheses ( ) indicates the number of switch units.

Switch with Integrated Control Box

Appearance Contact configuration
(Number of switch blocks) Model
1NC (1) A22NE-M-P002-N-B
1NC, 1NO (2) A22NE-M-P102-N-B
2NC (2) A22NE-M-P202-N-B

Subassembled

The Operation Unit, LED Lamp, Mounting Latches, Switch Blocks, and Lighting Unit can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

Operation Unit
Non-lighted

Size Small (30 dia.) Medium (40 dia.) Large (60 dia.)
Function Sealing capability Single item order model
Pull-reset IP65
oil-resistant models --- A22NE-MP-N
---
IP69K --- A22NE-MP-N-69K
---
Turn-reset IP65
oil-resistant models A22NE-S-N
A22NE-M-N
A22NE-L-N
A22NE-MRO-N
A22NE-MRO-N-RD
A22NE-MRS-N
A22NE-MRS-N-RD

Lighted

Size Medium (40 dia.)
Function Sealing capability Single item order model
Turn-reset IP65 A22NE-M-L

LED lamp

Appearance LED light Rated voltage Model Remarks
Red 6 VAC/VDC A22NZ-L-RA These LED lamps are for exclusive use with the
A22N and the A22NE-P. These are provided with
the completely assembled set of lighted models.
Order LED lamps only when replacing them.
12 VAC/VDC A22NZ-L-RB
24 VAC/VDC A22NZ-L-RC
100, 110, 120 VAC A22NZ-L-RD
200, 220, 230, 240 VAC A22NZ-L-RE

Accessories (Order Separately)

Item Appearance Contact specifications Model Remarks
Switch Blocks
(one contact) 1NO (Blue) Standard load A22NZ-S-P1AN Provided as standard.
Order Switch Blocks only when
adding or replacing them.
1NC (Red) Standard load A22NZ-S-P1BN
Switch Blocks
(two contacts) 2NC (Red) Standard load A22NZ-S-P2BN Order Switch Blocks only when
adding or replacing them.
1NO/1NC
(White) Standard load A22NZ-S-P2CN
Lighting unit 6 VAC/VDC A22NZ-T-APN These are provided with the
completely assembled set of
lighted models. Order Lighting
Units only when replacing
them.
12 VAC/VDC A22NZ-T-BPN
24 VAC/VDC A22NZ-T-CPN
100, 110, 120 VAC A22NZ-T-DPN
200, 220, 230, 240 VAC A22NZ-T-EPN
Mounting
Latches --- A22NZ-H-02 This Mounting Latch is for
exclusive use with the
A22NE-P.
It is provided with the
completely assembled set.
Order Mounting Latches only
when mounting Switch Blocks
or Lighting Units that are
purchased individually.
Control Boxes
(Enclosures) One hole, yellow box A22NZ-A-B01Y Material: Polycarbonate resin.
Can be combined with
1-contact Switch Blocks.
(Cannot be combined with
2-contact Switch Blocks.) *

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types,
refer to "Common Accessories and Tools (Order Separately)" on below.
* The A22NZ-A-B01Y Control Box cannot be used in combination with the A22Z-3476-1 90-dia. Legend Plates for
Emergency Stop or the A22Z-EG[]E-stop Shrouds.

A22NE-PD Push-in Plus Terminal Block Models [Coming soon]
Model Number Structure
Model Number Legend (Completely Assembled)

Shipped as a set which includes the Operation Unit, LED Lamp (lighted models only), and Switch Block.

Ordering Information
List of Models (Completely Assembled)
Non-lighted Models (Without EMO/EMS Indication)

Appearance Operation Degree of
Protection Contact
configuration * Set Model Color of cap
40-dia. head
Medium Pull-reset
A22NE-MP-PD[][]-N IP65 oil-resistant
models 2NC A22NE-MP-PD02-N Red
2NC, 1NO A22NE-MP-PD12-N
3NC A22NE-MP-PD03-N
2NC, 2NO A22NE-MP-PD22-N
3NC, 1NO A22NE-MP-PD13-N
4NC A22NE-MP-PD04-N
40-dia. head
Medium Pull-reset
A22NE-MP-PD[][]-N-69K IP69K 2NC A22NE-MP-PD02-N-69K
2NC, 1NO A22NE-MP-PD12-N-69K
3NC A22NE-MP-PD03-N-69K
2NC, 2NO A22NE-MP-PD22-N-69K
3NC, 1NO A22NE-MP-PD13-N-69K
4NC A22NE-MP-PD04-N-69K
30-dia. head
Small Turn-reset
A22NE-S-PD[][]-N IP65 oil-resistant
models 2NC A22NE-S-PD02-N
2NC, 1NO A22NE-S-PD12-N
3NC A22NE-S-PD03-N
2NC, 2NO A22NE-S-PD22-N
3NC, 1NO A22NE-S-PD13-N
4NC A22NE-S-PD04-N
40-dia. head
Medium Turn-reset
A22NE-M-PD[][]-N IP65 oil-resistant
models 2NC A22NE-M-PD02-N
2NC, 1NO A22NE-M-PD12-N
3NC A22NE-M-PD03-N
2NC, 2NO A22NE-M-PD22-N
3NC, 1NO A22NE-M-PD13-N
4NC A22NE-M-PD04-N
60-dia. head
Large Turn-reset
A22NE-L-PD[][]-N IP65 oil-resistant
models 2NC A22NE-L-PD02-N
2NC, 1NO A22NE-L-PD12-N
3NC A22NE-L-PD03-N
2NC, 2NO A22NE-L-PD22-N
3NC, 1NO A22NE-L-PD13-N
4NC A22NE-L-PD04-N

* In addition to the above, we also provide the following contact configurations: [1NC], [1NC, 1NO], and [1NC, 2NO]. Ask your OMRON representative for details.

Lighted Model (Without EMO/EMS Indication)

Appearance Operation Degree of
Protection Contact
configuration
* LED Lamp
voltage Set Model Color
of cap
40-dia. head
Medium Turn-reset
A22NE-M-PD[][]-C IP65 2NC 24 V AC/DC A22NE-M-PD02-C Red
2NC, 1NO A22NE-M-PD12-C
3NC A22NE-M-PD03-C
2NC, 2NO A22NE-M-PD22-C
3NC, 1NO A22NE-M-PD13-C
4NC A22NE-M-PD04-C

* In addition to the above, we also provide the following contact configurations: [1NC], [1NC, 1NO], and [1NC, 2NO]. Ask your OMRON representative for details.

Accessories (Order Separately)

Operation Unit
Non-lighted

Size Small (30 dia.) Medium (40 dia.) Large (60 dia.)
Function Degree of Protection Single item order model
Pull-reset IP65
oil-resistant models --- A22NE-MP-N
---
IP69K --- A22NE-MP-N-69K
---
Turn-reset IP65
oil-resistant models A22NE-S-N
A22NE-M-N
A22NE-L-N
A22NE-MRO-N
A22NE-MRO-N-RD
A22NE-MRS-N
A22NE-MRS-N-RD

Lighted

Size Medium (40 dia.)
Function Sealing capability Single item order model
Turn-reset IP65 A22NE-M-L

LED lamp

Appearance LED light Rated voltage Model Remarks
Red 24 VAC/VDC A22NZ-L-RC These are provided with the
completely assembled set of
lighted models. Order LED Lamps
only when replacing them.

Note: For details on the accessories common to the screw terminal block models and push-in plus terminal block models, refer to "Common Accessories and Tools (Order Separately)" .

Common Accessories and Tools (Order Separately)
Common to Push-in Plus Terminal Block types (A22NE-PD/A22NE-P)/Screw Terminal Block types (A22E)

Item Appearance Classification Model Remarks
Legend Plates
for Emergency
Stop 60-dia. black letters on
yellow back-ground A22Z-3466-1 Used in combination with the rubber packing when the level of protection is to be met between panels. *1
90-dia. black letters on
yellow back-ground A22Z-3476-1 Used in combination with the rubber packing when the level of protection is to be met between panels. *1 *3
60-dia. black letters on
yellow background A22Z-3466-2 Used in combination with the rubber packing when the level of protection is to be met between panels. *1
Hole Plug Round A22Z-3530 Used for covering the panel cutouts for future panel expansion.
Black color.
Connectors Applicable
cable diameter 7 to 9 dia. A22Z-3500-1 Plastic connector used to extend a cable from the Switch Box. (Refer to Data Sheet).
9 to 11 dia. A22Z-3500-2
25-dia. Ring --- A22Z-R25 Use when mounting to a panel with a 25-dia. hole. (Refer to Data Sheet).
Material: Rubber, Level of protection: IP65
30-dia.
Resin
Attachment --- A22Z-A30 Use when mounting to a panel with a 30-dia. hole. (Refer to Data Sheet).
A rubber packing is provided with the product.
Lock Ring --- A22Z-3360 The body is equipped with a Lock Ring.
This Lock Ring is used when a more secure lock feature is required. (Refer to Data Sheet).
Tightening
Tool --- A22Z-3905 Used for tightening the tightening nut from the back side of the panel, and for removing the cap in lighted models.

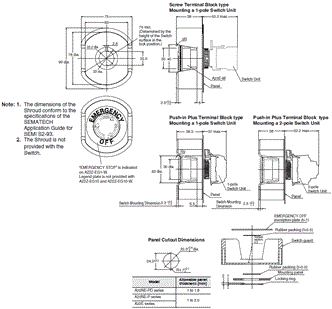

E-stop Shroud
for EMO,
Yellow --- A22Z-EG1 Provides SEMI-S2/SEMATECH
APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible
Shroud and legend plate for EMERGENCY
OFF come as a set. Use with an A22E
Emergency Stop Switch (for emergency
shutoff)*2 *3
E-stop Shroud
for EMO,
Yellow Legend plate for
EMERGENCY OFF is not
included. A22Z-EG10 Provides SEMI-S2/SEMATECH
APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMO
indication. (for emergency off) *3
E-stop Shroud
for EMS,
White --- A22Z-EG1-W Provides SEMI-S2/SEMATECH
APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible
Shroud and legend plate for EMERGENCY
STOP come as a set. Use with an A22E
Emergency Stop Switch. (for emergency
stop) *2 *3
E-stop Shroud
for EMS,
White Legend plate for
EMERGENCY STOP is not
included. A22Z-EG10-W Provides SEMI-S2/SEMATECH
APPLICATION GUIDE FOR SEMI S2
compatibility. Use with an A22E with EMS
indication. (for emergency stop) *3

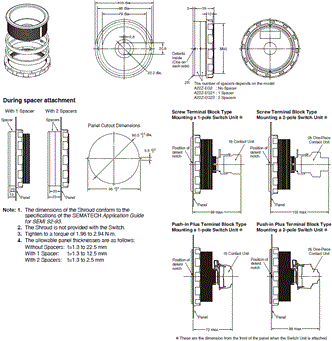

E-stop Shroud,
Yellow Spacer Unit is not included. A22Z-EG2 SEMI-S2/SEMATECH APPLICATION
GUIDE FOR SEMI S2-compatible Shroud.
(for emergency shutoff) *2 *3
Use together with an A22E Emergency
Stop Switch.
One Spacer Unit is included. A22Z-EG21
Two Spacer Units are
included. A22Z-EG22

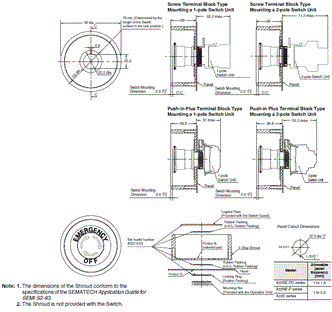

E-stop Shroud
for EMO,
Yellow --- A22Z-EG3 Provides SEMI-S2/SEMATECH
APPLICATION GUIDE FOR SEMI-S2
compatibility. The SEMI-S2-compatible
Shroud and legend plate for EMERGENCY
OFF come as a set. Use with an A22E
Emergency Stop Switch.(for emergency
shutoff) *2 *3
Rubber
Packing A22Z-R Used together with accessories.
Contains 10 packings.

*1. If you use Legend Plates for Emergency Stop, set the thickness of the panels between 1 to 4 mm.
*2. These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any
other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses,
Industrial machinery, etc).
*3. The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the
A22Z-EG[] E-stop Shrouds.
Note: 1. Accessories for A22Z-EG1: one “EMERGENCY OFF” label, two rubber packings, and one lock ring
2. Accessories for A22Z-EG10: one rubber packing and one lock ring (without label)

last update: January 7, 2019

OMRON A22E / A22NE-P / A22NE-PD specification
A22E / A22NE-P / A22NE-PD Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)/Specifications
A22E Screw Terminal Block types
A22NE-P Push-in Plus Terminal Block Models
A22NE-PD Push-in Plus Terminal Block Models [Coming soon]
last update: October 1, 2018
A22E Screw Terminal Block types
Certified Standard Ratings

• UL, cUL (File No. E41515)
6 A at 220 VAC, 10 A at 110 VAC
• TÜV (EN60947-5-1) (Low Voltage Directive)
3 A at 220 VAC
• CCC (GB14048.5)
3 A at 240 VAC, 1.5 A at 24 VDC

Certified Standards

Certification body Standards File No.
UL *1 UL508, C22.2 No.14 E41515
TÜV SÜD EN60947-5-1 (Certified direct opening),
EN60947-5-5 Consult your OMRON representative for details.
CQC (CCC) GB14048.5 2003010303070635
KOSHA *2 EN60947-5-1 Consult your OMRON representative for details.

Note: Only models with NC contacts have a direct opening mechanism.
*1. UL-certification for CSA C22.2 No. 14 has been obtained.
Certification has been obtained for individual Switch Blocks and Lighting Units.
*2. Some models have been certified.

Ratings
Contacts (Standard Load)

Rated carry
current (A) Rated
voltage (V) Rated current (A)
AC15
(Inductive load) AC12
(Resistive load) DC13
(Inductive load) DC12
(Resistive load)
10 24 VAC 10 10 --- ---
110 VAC 5 10
220 VAC 3 6
380 VAC 2 3
440 VAC 1 2
24 VDC --- --- 1.5 10
110 VDC 0.5 2
220 VDC 0.2 0.6
380 VDC 0.1 0.2

Note: 1. Rated current values are determined according to the testing conditions. The above ratings were obtained by
conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC

LED Lamp

Rated voltage Operating voltage Current value
6 VAC/VDC 6 VAC/VDC ± 5% Approx. 8 mA
12 VAC/VDC 12 VAC/VDC ± 5%
24 VAC/VDC 24 VAC/VDC ± 5%

Voltage-reduction lighting

Rated voltage Operating voltage Rated current Applicable lamp
(BA9S/Base: 13)
110 VAC 100 VAC
(95 to 115 V) Approx. 8 mA LED lamp
A22-24A[]
220 VAC 200 VAC
(190 to 230 V)

Characteristics

Type Turn-reset Pull-reset
Non-lighted model Lighted model Non-lighted model
Allowable
operating
frequency Mechanical 30 operations/minute (One operation consists of set and reset operations.)
Electrical 30 operations/minute (One operation consists of set and reset operations.)
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength Between terminals
of same polarity 2,500 VAC, 50/60 Hz for 1 min.
Between each
terminal and ground 2,500 VAC, 50/60 Hz for 1 min.
Vibration resistance 10 to 55 Hz, 1.5-mm double amplitude (contact separation within 1 ms)
Shock
resistance Destruction 1000 m/s²
Malfunction 250 m/s² max. (contact separation within 1 ms)
Durability Mechanical 300,000 operations min. (One operation consists of set and reset operations.)
Electrical 300,000 operations min. (One operation consists of set and reset operations.)
Ambient operating temperature *1 -20 to +70°C -20 to +55°C -20 to +70°C
Ambient operating humidity 35 to 85% RH
Ambient storage temperature -40 to +70°C
Degree of protection IP65 oil-resistant models *2 *3 IP65 *2 IP65 oil-resistant models *2 *3
Electric shock protection class Class II
PTI (tracking characteristic) 175
Degree of contamination 3 (EN60947-5-1)
Minimum direct opening stroke 11 mm
Minimum direct opening force 45 N
Conditional short-circuit current 100 A (EN 60947-5-1)
Weight (for a 40-dia. head 1NC/1NO
Operation Unit) Approx. 65 g Approx. 80 g Approx. 100 g

*1. With no icing or condensation.
*2. The degree of protection from the front of the panel.
*3. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.

Operating Characteristics

Item Turn-reset Pull-reset
Total travel force (TTF) 44.1 N max. 58.8 N max.
Return force (RF) 0.25 N·m max. * 58.8 N max.
Total travel (TT) 10 ±1 mm 5.5 ±1 mm

* Rotation torque value.

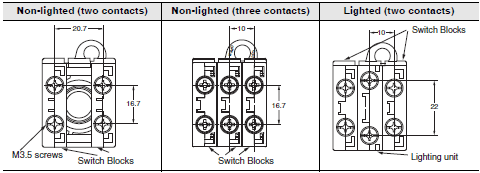

Terminal Arrangement (BOTTOM VIEW)

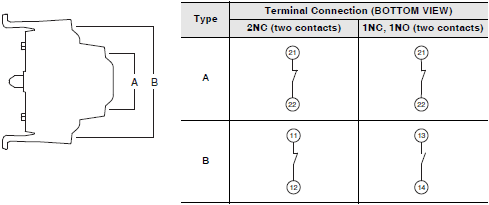

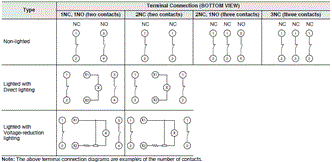

Terminal connection

Terminal wiring drawings of two-contact Switch Units

A22NE-P Push-in Plus Terminal Block Models
Certified Standard Ratings

• UL508 (File No. E76675), CSA C22.2 No.14
6 A at 240 VAC, 10 A at 120 VAC
• TÜV (EN60947-5-1) - Certified direct opening -
(EN60947-5-5)
AC-15 3 A at 240 VAC
DC-13 4 A at 24 VDC
• CCC (GB14048.5)
AC-15 3 A at 240 VAC
DC-13 4 A at 24 VDC

Applicable Standards

UL1059, UL486E (Push-in Plus Terminal Block Types)

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device. This fuse is not
provided in the main unit.

Certified Standards

Certification body Standards File No.
UL * UL508, C22.2 No.14 E76675
TÜV SÜD EN60947-5-1 (Certified direct opening),
EN60947-5-5 Consult your OMRON representative for details.
CQC (CCC) GB14048.5 2017010305959182

Note: Only models with NC contacts have a direct opening mechanism.
* UL-certification for CSA C22.2 No. 14 has been obtained.

Ratings
Contacts (Standard Load)

Rated
insulation
voltage (V) Rated carry
current (A) Rated
voltage
(V) Rated current (A)
AC15
(Inductive load) AC12
(Resistive load) DC13
(Inductive load) DC12
(Resistive load)
600 10 24 VAC 10 10 --- ---
120 VAC 6 10
240 VAC 3 6
380 VAC 1.9 2
440 VAC 1.6 2
24 VDC --- --- 4 8
120 VDC 1.1 2.2
240 VDC 0.55 1.1

Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3)Operating frequency: 20 operations/minute
2. Minimum applicable load: 10 mA at 5 VDC (Resistive load)
The operating range may vary depending on the usage conditions and type of load.

LED Lamp

Rated voltage Operating voltage Current value
6 VAC/VDC 6 VAC/VDC ± 10% Approx. 11 mA
12 VAC/VDC 12 VAC/VDC ± 10% Approx. 12 mA
24 VAC/VDC 24 VAC/VDC ± 10% Approx. 12 mA
100 VAC 100 VAC ± 10% Approx. 12 mA
110 VAC 110 VAC ± 10%
120 VAC 100 VAC to 130 VAC
200 VAC 200 VAC ± 10% Approx. 12 mA
220 VAC 220 VAC ± 10%
230 VAC 230 VAC ± 10%
240 VAC 220 VAC to 250 VAC

Characteristics

Operation Turn-reset Pull-reset
Non-lighted model Lighted Model Non-lighted model
A22NE-[]-P[][][]-N A22NE-M-P[][][]-[] A22NE-MP-P[][][]-N A22NE-MP-P[][][]-N-69K
Allowable
operating
frequency Mechanical 30 operations/minute or less
(One operation consists of set and reset operations.)
Electrical 30 operations/minute or less
(One operation consists of set and reset operations.)
Insulation resistance *1 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength Between
terminals of
same polarity
*1 2,500 VAC, 50/60 Hz 1 minute (initial value)
Between each
terminal and
ground 2,500 VAC, 50/60 Hz 1 minute (initial value)
Vibration
resistance Malfunction 10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms)
Shock
resistance Malfunction 250 m/s² max. (contact separation within 1 ms)
Durability Mechanical 300,000 operations min.
(One operation consists of set and reset operations.) 100,000 operations min.
(One operation consists of
set and reset operations.)
Electrical 300,000 operations min.
(One operation consists of set and reset operations.) 100,000 operations min.
(One operation consists of
set and reset operations.)
Ambient operating
temperature *2 -20 to +70°C -20 to +55°C -20 to +70°C
Ambient operating
humidity 35 to 85% RH
Ambient storage
temperature *2 -40 to +70°C
Degree of protection*3 IP65 oil-resistant models *4 IP65 IP65 oil-resistant models *4 IP69K
Electric shock
protection class Class II
PTI
(tracking characteristic) 175
Degree of contamination 3 (EN 60947-5-1)
Minimum direct
opening stroke 11 mm
Minimum direct
opening force 45 N
Conditional
short-circuit current 100 A (EN 60947-5-1)
Wight (for a 40-dia. Head
1NC/1NO Operation Unit) Approx. 55 g Approx. 60 g Approx. 85 g Approx. 115 g

*1. State when an LED is not added between terminals of the same polarity on a lighting unit. Does not apply to
lighted-type 100 to 200 V lighting units.
*2. With no icing or condensation.
*3. The degree of protection from the front of the panel.
*4. The degree of protection is IP65 even with an integrated control box, but the system is not oil resistant.

Operating Characteristics

Item Turn-reset Pull-reset
Lighted /
non-lighted models Non-lighted model Non-lighted model
(Models with IP69K)
Total travel force (TTF) 45 N max. 60 N max. 70 N max.
Return force (RF) 0.25N·m * max. 60 N max. 70 N max.
Total travel (TT) 10 ±1 mm 5.5 ±1 mm 5.5 ±1 mm

* Rotation torque value.

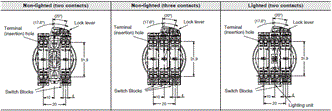

Terminal Arrangement (BOTTOM VIEW)

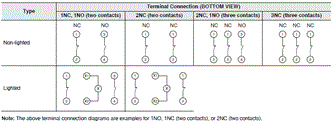

Terminal connection

Terminal wiring drawings of two-contact Switch Units

A22NE-PD Push-in Plus Terminal Block Models [Coming soon]

Note: This product is scheduled to be released soon.
　　　This product is under development and product specification may be changed without notice.

Certified Standard Ratings

• UL508 (File No. E76675), CSA C22.2 No.14
5 A at 125 VAC, 3 A at 250 VAC B300
• TÜV (EN60947-5-1) - Certified direct opening -
(EN60947-5-5)
AC-15 3 A at 125 VAC
DC-13 1 A at 30 VDC
• CCC (GB14048.5)
AC-15 3 A at 125 VAC
DC-13 1 A at 30 VDC

Applicable Standards

UL1059, UL486E

Note: Use a 10 A fuse type gI or gG that conforms to IEC60269 as a short-circuit protection device.
This fuse is not provided in the main unit.

Certified Standards

Certification body Standards File No.
UL * UL508, C22.2 No.14 E76675
TÜV SÜD EN60947-5-1(Certified direct opening),
EN60947-5-5 Consult your OMRON representative for details.
CQC (CCC) GB14048.5 Consult your OMRON representative for details.

Note: Only models with NC contacts have a direct opening mechanism.
* UL-certification for CSA C22.2 No. 14 has been obtained.

Ratings
Contacts (Standard Load)

Rated
insulation
voltage (V) Rated carry
current (A) Rated
voltage
(V) Rated current (A)
AC15
(Inductive load) AC12
(Resistive load) DC13
(Inductive load) DC12
(Resistive load)
250 5 30 VAC --- --- --- ---
125 VAC 3 A 5 A --- ---
250 VAC 1.5 A 3 A --- ---
30 VDC --- --- 1 A 2 A
125 VDC --- --- 0.22 A 0.4 A
250 VDC --- --- 0.1 A 0.2 A

Note: 1. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20°±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 20 operations/minute
Note: 2. Minimum applicable load: 1 mA at 5 VDC (Resistive load)
The operating range may vary depending on the usage conditions and type of load.

LED Lamp (A22NZ-L-RC)

Rated voltage Operating voltage Current value
24 VAC/VDC 24 VAC/VDC ± 10% Approx. 12 mA

Characteristics

Operation Turn-reset Pull-reset
Non-lighted model Lighted Model Non-lighted model Non-lighted model
(Models with IP69K)
A22NE-[]-PD[][]-N-[] A22NE-M-PD[][]-C-[] A22NE-MP-PD[][]-N-[] A22NE-MP-PD[][]-N-69K
Allowable
operating
frequency Mechanical 30 operations/minute or less (One operation consists of set and reset operations.)
Electrical 30 operations/minute or less (One operation consists of set and reset operations.)
Insulation resistance *1 100 MΩ min. (at 500 VDC)
Contact resistance 100 mΩ max. (initial value)
Dielectric
strength Between
terminals of
same polarity*1 2,000 VAC, 50/60 Hz 1 minute (initial value)
Between
terminals of
different polarity 2,000 VAC, 50/60 Hz 1 minute (initial value)
Between each
terminal and
ground 2,000 VAC, 50/60 Hz 1 minute (initial value)
Vibration
resistance Malfunction 10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms)
Shock
resistance Malfunction 250 m/s² max. (contact separation within 1 ms)
Durability Mechanical 300,000 operations min. (One operation consists of set and reset operations.) 100,000 operations min.
(One operation consists of
set and reset operations.)
Electrical
(100 mA at 24
VAC (Resistive
load)) 250,000 operations min. (One operation consists of set and reset operations.) 100,000 operations min.
(One operation consists of
set and reset operations.)
Electrical
(3 mA at 250
VAC (Resistive
load)) 100,000 operations min. (One operation consists of set and reset operations.)
Ambient operating temperature *2 -20 to +70°C -20 to +55°C -20 to +70°C
Ambient operating humidity 35 to 85% RH
Ambient storage temperature *2 -40 to +70°C
Degree of protection*3 IP65 oil-resistant models IP65 IP65 oil-resistant models IP69K
Electric shock protection class Class II
PTI (tracking characteristic) 175
Degree of contamination 3 (EN 60947-5-1)
Minimum direct opening stroke 11 mm
Minimum direct opening force 45 N
Conditional short-circuit current 100 A (EN 60947-5-1)
Wight (for a 40-dia. head
2NC/2NO Operation Unit) Approx. 95 g Approx. 95 g Approx. 125 g Approx. 135 g

*1. State when an LED is not added between terminals of the same polarity on a lighting unit.
*2. With no icing or condensation.
*3. The degree of protection from the front of the panel.

Operating Characteristics

Item Turn-reset Pull-reset
Lighted / non-lighted models Non-lighted model Non-lighted model
(Models with IP69K)
Total travel force (TTF) 45 N max. 60 N max. 70 N max.
Return force (RF) 0.25N·m max. * 60 N max. 70 N max.
Total travel (TT) 10 ±1 mm 5.5 ±1 mm

* Rotation torque value.

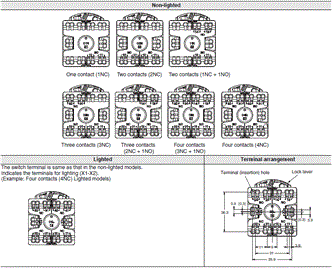

Terminal Arrangement (BOTTOM VIEW)

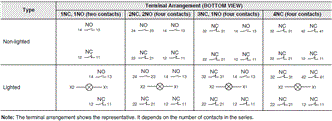

Terminal Arrangement

last update: October 1, 2018

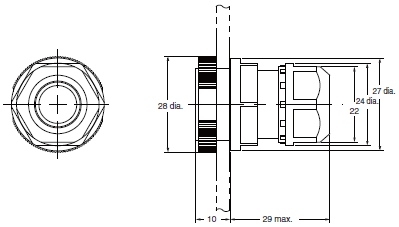

OMRON A22E / A22NE-P / A22NE-PD dimension
A22E / A22NE-P / A22NE-PD Emergency Stop Pushbutton Switches (22-dia. or 25-dia.)/Dimensions
A22E Screw Terminal Block types
A22NE-P Push-in Plus Terminal Block Models
A22NE-PD Push-in Plus Terminal Block Models [Coming soon]
Common Accessories and Tools (Order Separately)
last update: January 17, 2019

(Unit: mm)

A22E Screw Terminal Block types
Non-lighted Models

A22E-MP
Medium Pull-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

A22E-S
Small Turn-reset (30-dia.) Degree of Protection: IP65 oil-resistant models

A22E-M
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Note: The dimensions are the same as for EMO/EMS indication models.

A22E-L
Large Turn-reset (60-dia.)Degree of Protection: IP65 oil-resistant models

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Lighted Model

A22EL-M
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Switch dimensions when mounted to a 2NO (2NC) one-piece switch block

Note: The operation unit is an example for the A22E-M.

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Accessories (Order Separately)
LED Lamp

A22-6[], 12[], 24[]

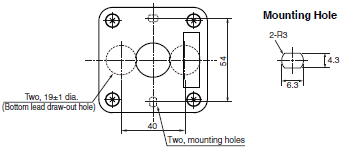

Control Box

A22Z-B101Y (1-hole)

Cable Draw-out Hole (Top View)

A22Z-B201Y (1-hole)

Cable Draw-out Hole (Top View)

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types,
refer to "Common Accessories and Tools (Order Separately)" on below.

A22NE-P Push-in Plus Terminal Block Models
Non-lighted Models

A22NE-MP-P[][]2-N
Pull-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-MP-P[][]2-N-69K
Pull-reset (40-dia.) Degree of Protection: IP69K

A22NE-S-P[][]2-N
Small Turn-reset (30-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-M-P[][]2-N
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Note: The dimensions the same even if the Operation Unit is replaced with the A22NE-MR[]-N or the A22NE-MR[]-N-RD.

A22NE-L-P[][]2-N
Large Turn-reset (60-dia.) Degree of Protection: IP65 oil-resistant models

Lighted Model

A22NE-M-P[][]2-[]
Medium Turn-reset (40-dia.) Degree of Protection: IP65

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Dimensions when a two-contact Switch Block is attached

Accessories (Order Separately)
Switch Block with Push-In Plus technology
Switch Block (one contact)

A22NZ-S-P1[]N

Switch Block (two contacts)

A22NZ-S-P2[]N

Lighting unit

A22NZ-T-[]PN

Mounting Latches

A22NZ-H-02

LED Lamp

A22NZ-L-[][]

Control Box

A22NZ-A-B01Y

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types, refer to "Common Accessories and Tools (Order Separately)" on below.

A22NE-PD Push-in Plus Terminal Block Models [Coming soon]
Non-lighted Models

A22NE-MP-PD[][]-N
Pull-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-MP-PD[][]-N-69K
Pull-reset (40-dia.) Degree of Protection: IP69K

A22NE-S-PD[][]-N
Small Turn-reset (30-dia.) Degree of Protection: IP65 oil-resistant models

A22NE-M-PD[][]-N
Medium Turn-reset (40-dia.) Degree of Protection: IP65 oil-resistant models

Note: The dimensions the same even if the Operation Unit is replaced with the A22NE-MR[]-N or the A22NE-MR[]-N-RD.

A22NE-L-PD[][]-N
Large Turn-reset (60-dia.) Degree of Protection: IP65 oil-resistant models

Lighted Model

A22NE-M-PD[][]-C
Medium Turn-reset (40-dia.) Degree of Protection: IP65

Note: Unless otherwise specified, a tolerance of ±0.8mm applies to all dimensions.

Accessories (Order Separately)
LED Lamp

A22NZ-L-RC

Note: For details on the accessories common to the screw terminal block types and push-in plus terminal block types, refer to "Common Accessories and Tools (Order Separately)".

Common Accessories and Tools (Order Separately)
Common to Push-in Plus Terminal Block types (A22NE-PD/A22NE-P)/Screw Terminal Block types (A22E)
Hole Plug

Round A22Z-3530

30-dia. Resin Attachment

A22Z-A30

Legend Plates for Emergency Stop

A22Z-3476-1 (90 dia.)

A22Z-3466-1 (60 dia.)

A22Z-3466-2 (60 dia.)

Lock Ring
A22Z-3360

Material: Nickel plated on iron

25-dia. Ring
A22Z-R25

Material: NBR (black)

Tightening Tool

A22Z-3905

Rubber Packing

A22Z-R

Connector

A22Z-3500

Common E-stop Shrouds

A22Z-EG1, A22Z-EG1-W, A22Z-EG10, A22Z-EG10-W

E-stop Shrouds

A22Z-EG2, A22Z-EG21, A22Z-EG22

E-stop Shroud

A22Z-EG3

last update: January 17, 2019

NO. A22E / A22NE-P / A22NE-PD

TYPE:Emergency Stop Switches Copyright Statement Copyright Statement

DATE:2021-06-10

Associated products:
SGE / SCC Safety Edge/Edge Controller/Features A165E Emergency Stop Switch (16-dia.)/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
A22E/A22NE-P/A22-PD Catalog	A263-E1-04 [26960KB]	Jan 17, 201920190117	A22E/A22NE-P/A22-PD Catalog
A22N-P/A30N-P, M22N-P, A22NE-P Catalog	A253-E1-04 [4664KB]	Dec 03, 201820181203	A22N-P/A30N-P, M22N-P, A22NE-P Catalog
Innovation in Control Panel Building	Y218-E1-03 [13592KB]	Oct 02, 201720171002	Innovation in Control Panel Building

Appearance	Operation	Degree of Protection	Contact configuration *1	Set Model	Color of cap
	40-dia. head Medium Pull-reset A22E-MP	IP65 oil-resistant models	1NC (1)	A22E-MP-01	Red
1NC, 1NO (2)	A22E-MP-11
2NC (2)	A22E-MP-02
	30-dia. head Small Turn-reset A22E-S	1NC (1)	*A22E-S-01 2**
1NC, 1NO (2)	*A22E-S-11 2**
2NC (2)	*A22E-S-02 2**
2NC, 1NO (3)	*A22E-S-12 2**
3NC (3)	*A22E-S-03 2**
	40-dia. head Medium Turn-reset A22E-M	1NC (1)	*A22E-M-01 2**
1NC, 1NO (2)	*A22E-M-11 2**
2NC (2)	*A22E-M-02 2**
2NC, 1NO (3)	*A22E-M-12 2**
3NC (3)	*A22E-M-03 2**
	60-dia. Large Turn-reset A22E-L	1NC (1)	*A22E-L-01 2**
1NC, 1NO (2)	*A22E-L-11 2**
2NC (2)	*A22E-L-02 2**

Appearance	Operation	Degree of Protection	Contact configuration *1	Set Model	Color of cap
	40-dia. head Medium Turn-reset With EMO Indication	IP65 oil-resistant models	1NC (1)	*A22E-M-01-EMO 2**	Red
A22E-M-01-EMO-RD
1NC, 1NO (2)	*A22E-M-11-EMO 2**
A22E-M-11-EMO-RD
2NC (2)	*A22E-M-02-EMO 2**
A22E-M-02-EMO-RD
2NC, 1NO (3)	*A22E-M-12-EMO 2**
A22E-M-12-EMO-RD
3NC (3)	*A22E-M-03-EMO 2**
A22E-M-03-EMO-RD
	40-dia. head Medium Turn-reset With EMS Indication	1NC (1)	*A22E-M-01-EMS 2**
A22E-M-01-EMS-RD
1NC, 1NO (2)	*A22E-M-11-EMS 2**
A22E-M-11-EMS-RD
2NC (2)	*A22E-M-02-EMS 2**
A22E-M-02-EMS-RD
2NC, 1NO (3)	*A22E-M-12-EMS 2**
A22E-M-12-EMS-RD
3NC (3)	*A22E-M-03-EMS 2**
A22E-M-03-EMS-RD

Appearance	Operation	Degree of Protection	Contact configuration *1	LED Lamp voltage	Set Model	Color of cap
	40-dia. head Push-lock Turn-reset Lighting unit (Direct lighting) A22E	IP65	1NC (1)	6 VAC/VDC	*A22EL-M-6A-01 2**	Red
12 VAC/VDC	*A22EL-M-12A-01 2**
24 VAC/VDC	*A22EL-M-24A-01 2**
1NC, 1NO (2)	6 VAC/VDC	*A22EL-M-6A-11 2**
12 VAC/VDC	*A22EL-M-12A-11 2**
24 VAC/VDC	*A22EL-M-24A-11 2**
2NC (2)	6 VAC/VDC	*A22EL-M-6A-02 2**
12 VAC/VDC	*A22EL-M-12A-02 2**
24 VAC/VDC	*A22EL-M-24A-02 2**
	40-dia. head Push-lock Turn-reset Lighting unit (Voltage-reduction lighting) A22E	1NC (1)	100 VAC	A22EL-M-T1-01
200 VAC	A22EL-M-T2-01
1NC, 1NO (2)	100 VAC	A22EL-M-T1-11
200 VAC	A22EL-M-T2-11
2NC (2)	100 VAC	A22EL-M-T1-02
200 VAC	A22EL-M-T2-02

Appearance	Contact configuration (Number of switch blocks)	Model
	1NC (1)	A22E-M-01B *
1NC, 1NO (2)	A22E-M-11B *
2NC (2)	A22E-M-02B *

Size	Small (30 dia.)	Medium (40 dia.)	Large (60 dia.)
Function	Sealing capability	Single item order model
Pull-reset	IP65 oil-resistant models	---	A22E-MP	---
Turn-reset	A22E-S	A22E-M	A22E-L
A22E-M-EMO A22E-M-EMO-RD
A22E-M-EMS A22E-M-EMS-RD

Size	Medium (40 dia.)
Function	Sealing capability	Single item order model
Turn-reset	IP65	A22EL-M

Appearance	LED light	Rated voltage	Model
	Red	Standard	6 VAC/VDC	A22-6AR
12 VAC/VDC	A22-12AR
24 VAC/VDC	A22-24AR

Classification	Non-lighted	Direct lighting
Appearance
Contact specifications/ Configuration (Number of switch blocks)	Model	Model
For Standard loads	1NC (1)	A22-01M	A22L-01M
1NC, 1NO (2)	A22-11M	A22L-11M
2NC (2)	A22-02M	A22L-02M

Classification	100 VAC, Lighted	200 VAC, Lighted
Appearance
Contact specifications/ Configuration (Number of switch blocks)	Model	Model
For Standard loads	1NC (1)	A22L-01M-T1	A22L-01M-T2
1NC, 1NO (2)	A22L-11M-T1	A22L-11M-T2
2NC (2)	A22L-02M-T1	A22L-02M-T2

Item	Appearance	Contact specifications	Model	Remarks
Switch Blocks (one contact)		1NO (Black)	Standard load	A22-10	Provided as standard. Order Switch Blocks only when adding or replacing them.
Microload	A22-10S
1NC (Red)	Standard load	A22-01
Microload	A22-01S
Switch Blocks (two contacts)		2NO (Black)	Standard load	A22-20	Order Switch Blocks only when adding or replacing them.
Microload	A22-20S
2NC (Red)	Standard load	A22-02
Microload	A22-02S
1NC + 1NO Contact (Black/Red)	Standard load	A22-11
Microload	A22-11S
Lighting unit		Direct lighting	A22-TN	Used when changing the lighting method.
Voltage- reduction lighting	100 VAC	A22-T1
200 VAC	A22-T2
Mounting Latches		---	A22-3200	Provided as standard. Order Mounting Latches only when mounting Switch Blocks or Lighting Units that are purchased individually.
Lock Plate		---	A22Z-3380	Use to fix the lever on the Switch.
Control Boxes (Enclosures)		One hole, yellow box	A22Z-B101Y	Material: Polycarbonate resin. When using a Control Box, 2NO, 2NC, or 1NC + 1NO two- contact Switch Blocks are not supported. *
A22Z-B201Y

Appearance	Operation	Degree of Protection	Contact configuration *	Set Model	Color of cap
	40-dia. head Medium Pull-reset A22NE-MP-P[][]2-N	IP65 oil-resistant models	1NC (1)	A22NE-MP-P002-N	Red
1NC, 1NO (2)	A22NE-MP-P102-N
2NC (2)	A22NE-MP-P202-N
2NC, 1NO (3)	A22NE-MP-P212-N
3NC (3)	A22NE-MP-P222-N
	40-dia. head Medium Pull-reset A22NE-MP-P[][]2-N-69K	IP69K	1NC (1)	A22NE-MP-P002-N-69K
1NC, 1NO (2)	A22NE-MP-P102-N-69K
2NC (2)	A22NE-MP-P202-N-69K
2NC, 1NO (3)	A22NE-MP-P212-N-69K
3NC (3)	A22NE-MP-P222-N-69K
	30-dia. head Small Turn-reset A22NE-S-P[][]2-N	IP65 oil-resistant models	1NC (1)	A22NE-S-P002-N
1NC, 1NO (2)	A22NE-S-P102-N
2NC (2)	A22NE-S-P202-N
2NC, 1NO (3)	A22NE-S-P212-N
3NC (3)	A22NE-S-P222-N
	40-dia. head Medium Turn-reset A22NE-M-P[][]2-N	1NC (1)	A22NE-M-P002-N
1NC, 1NO (2)	A22NE-M-P102-N
2NC (2)	A22NE-M-P202-N
2NC, 1NO (3)	A22NE-M-P212-N
3NC (3)	A22NE-M-P222-N
	60-dia. Large Turn-reset A22NE-L-P[][]2-N	1NC (1)	A22NE-L-P002-N
1NC, 1NO (2)	A22NE-L-P102-N
2NC (2)	A22NE-L-P202-N
2NC, 1NO (3)	A22NE-L-P212-N
3NC (3)	A22NE-L-P222-N

Appearance	Operation	Degree of Protection	Contact configuration *	LED Lamp voltage	Set Model	Color of cap
	40-dia. head Medium Turn-reset A22NE-M-P[][]2-A	IP65	1NC (1)	6 VAC/VDC	A22NE-M-P002-A	Red
1NC, 1NO (2)	A22NE-M-P102-A
2NC (2)	A22NE-M-P202-A
	40-dia. head Medium Turn-reset A22NE-M-P[][]2-B	1NC (1)	12 VAC/VDC	A22NE-M-P002-B
1NC, 1NO (2)	A22NE-M-P102-B
2NC (2)	A22NE-M-P202-B
	40-dia. head Medium Turn-reset A22NE-M-P[][]2-C	1NC (1)	24 VAC/VDC	A22NE-M-P002-C
1NC, 1NO (2)	A22NE-M-P102-C
2NC (2)	A22NE-M-P202-C
	40-dia. head Medium Turn-reset A22NE-M-P[][]2-D	1NC (1)	100, 110, 120 VAC	A22NE-M-P002-D
1NC, 1NO (2)	A22NE-M-P102-D
2NC (2)	A22NE-M-P202-D
	40-dia. head Medium Turn-reset A22NE-M-P[][]2-E	1NC (1)	220, 230, 240 VAC	A22NE-M-P002-E
1NC, 1NO (2)	A22NE-M-P102-E
2NC (2)	A22NE-M-P202-E

Appearance	Contact configuration (Number of switch blocks)	Model
	1NC (1)	A22NE-M-P002-N-B
1NC, 1NO (2)	A22NE-M-P102-N-B
2NC (2)	A22NE-M-P202-N-B

Size	Small (30 dia.)	Medium (40 dia.)	Large (60 dia.)
Function	Sealing capability	Single item order model
Pull-reset	IP65 oil-resistant models	---	A22NE-MP-N	---
IP69K	---	A22NE-MP-N-69K	---
Turn-reset	IP65 oil-resistant models	A22NE-S-N	A22NE-M-N	A22NE-L-N
A22NE-MRO-N A22NE-MRO-N-RD
A22NE-MRS-N A22NE-MRS-N-RD

Size	Medium (40 dia.)
Function	Sealing capability	Single item order model
Turn-reset	IP65	A22NE-M-L

Appearance	LED light	Rated voltage	Model	Remarks
	Red	6 VAC/VDC	A22NZ-L-RA	These LED lamps are for exclusive use with the A22N and the A22NE-P. These are provided with the completely assembled set of lighted models. Order LED lamps only when replacing them.
12 VAC/VDC	A22NZ-L-RB
24 VAC/VDC	A22NZ-L-RC
100, 110, 120 VAC	A22NZ-L-RD
200, 220, 230, 240 VAC	A22NZ-L-RE

Item	Appearance	Contact specifications	Model	Remarks
Switch Blocks (one contact)		1NO (Blue)	Standard load	A22NZ-S-P1AN	Provided as standard. Order Switch Blocks only when adding or replacing them.
1NC (Red)	Standard load	A22NZ-S-P1BN
Switch Blocks (two contacts)		2NC (Red)	Standard load	A22NZ-S-P2BN	Order Switch Blocks only when adding or replacing them.
1NO/1NC (White)	Standard load	A22NZ-S-P2CN
Lighting unit		6 VAC/VDC	A22NZ-T-APN	These are provided with the completely assembled set of lighted models. Order Lighting Units only when replacing them.
12 VAC/VDC	A22NZ-T-BPN
24 VAC/VDC	A22NZ-T-CPN
100, 110, 120 VAC	A22NZ-T-DPN
200, 220, 230, 240 VAC	A22NZ-T-EPN
Mounting Latches		---	A22NZ-H-02	This Mounting Latch is for exclusive use with the A22NE-P. It is provided with the completely assembled set. Order Mounting Latches only when mounting Switch Blocks or Lighting Units that are purchased individually.
Control Boxes (Enclosures)		One hole, yellow box	A22NZ-A-B01Y	Material: Polycarbonate resin. Can be combined with 1-contact Switch Blocks. (Cannot be combined with 2-contact Switch Blocks.) *

Appearance	Operation	Degree of Protection	Contact configuration *	Set Model	Color of cap
	40-dia. head Medium Pull-reset A22NE-MP-PD[][]-N	IP65 oil-resistant models	2NC	A22NE-MP-PD02-N	Red
2NC, 1NO	A22NE-MP-PD12-N
3NC	A22NE-MP-PD03-N
2NC, 2NO	A22NE-MP-PD22-N
3NC, 1NO	A22NE-MP-PD13-N
4NC	A22NE-MP-PD04-N
	40-dia. head Medium Pull-reset A22NE-MP-PD[][]-N-69K	IP69K	2NC	A22NE-MP-PD02-N-69K
2NC, 1NO	A22NE-MP-PD12-N-69K
3NC	A22NE-MP-PD03-N-69K
2NC, 2NO	A22NE-MP-PD22-N-69K
3NC, 1NO	A22NE-MP-PD13-N-69K
4NC	A22NE-MP-PD04-N-69K
	30-dia. head Small Turn-reset A22NE-S-PD[][]-N	IP65 oil-resistant models	2NC	A22NE-S-PD02-N
2NC, 1NO	A22NE-S-PD12-N
3NC	A22NE-S-PD03-N
2NC, 2NO	A22NE-S-PD22-N
3NC, 1NO	A22NE-S-PD13-N
4NC	A22NE-S-PD04-N
	40-dia. head Medium Turn-reset A22NE-M-PD[][]-N	IP65 oil-resistant models	2NC	A22NE-M-PD02-N
2NC, 1NO	A22NE-M-PD12-N
3NC	A22NE-M-PD03-N
2NC, 2NO	A22NE-M-PD22-N
3NC, 1NO	A22NE-M-PD13-N
4NC	A22NE-M-PD04-N
	60-dia. head Large Turn-reset A22NE-L-PD[][]-N	IP65 oil-resistant models	2NC	A22NE-L-PD02-N
2NC, 1NO	A22NE-L-PD12-N
3NC	A22NE-L-PD03-N
2NC, 2NO	A22NE-L-PD22-N
3NC, 1NO	A22NE-L-PD13-N
4NC	A22NE-L-PD04-N

Appearance	Operation	Degree of Protection	Contact configuration *	LED Lamp voltage	Set Model	Color of cap
	40-dia. head Medium Turn-reset A22NE-M-PD[][]-C	IP65	2NC	24 V AC/DC	A22NE-M-PD02-C	Red
2NC, 1NO	A22NE-M-PD12-C
3NC	A22NE-M-PD03-C
2NC, 2NO	A22NE-M-PD22-C
3NC, 1NO	A22NE-M-PD13-C
4NC	A22NE-M-PD04-C

Size	Small (30 dia.)	Medium (40 dia.)	Large (60 dia.)
Function	Degree of Protection	Single item order model
Pull-reset	IP65 oil-resistant models	---	A22NE-MP-N	---
IP69K	---	A22NE-MP-N-69K	---
Turn-reset	IP65 oil-resistant models	A22NE-S-N	A22NE-M-N	A22NE-L-N
A22NE-MRO-N A22NE-MRO-N-RD
A22NE-MRS-N A22NE-MRS-N-RD

Size	Medium (40 dia.)
Function	Sealing capability	Single item order model
Turn-reset	IP65	A22NE-M-L

Appearance	LED light	Rated voltage	Model	Remarks
	Red	24 VAC/VDC	A22NZ-L-RC	These are provided with the completely assembled set of lighted models. Order LED Lamps only when replacing them.

Item	Appearance	Classification	Model	Remarks
Legend Plates for Emergency Stop		60-dia. black letters on yellow back-ground	A22Z-3466-1	Used in combination with the rubber packing when the level of protection is to be met between panels. *1
90-dia. black letters on yellow back-ground	A22Z-3476-1	Used in combination with the rubber packing when the level of protection is to be met between panels. 1 3
	60-dia. black letters on yellow background	A22Z-3466-2	Used in combination with the rubber packing when the level of protection is to be met between panels. *1
Hole Plug		Round	A22Z-3530	Used for covering the panel cutouts for future panel expansion. Black color.
Connectors		Applicable cable diameter	7 to 9 dia.	A22Z-3500-1	Plastic connector used to extend a cable from the Switch Box. (Refer to Data Sheet).
9 to 11 dia.	A22Z-3500-2
25-dia. Ring		---	A22Z-R25	Use when mounting to a panel with a 25-dia. hole. (Refer to Data Sheet). Material: Rubber, Level of protection: IP65
30-dia. Resin Attachment		---	A22Z-A30	Use when mounting to a panel with a 30-dia. hole. (Refer to Data Sheet). A rubber packing is provided with the product.
Lock Ring		---	A22Z-3360	The body is equipped with a Lock Ring. This Lock Ring is used when a more secure lock feature is required. (Refer to Data Sheet).
Tightening Tool		---	A22Z-3905	Used for tightening the tightening nut from the back side of the panel, and for removing the cap in lighted models.
E-stop Shroud for EMO, Yellow		---	A22Z-EG1	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch (for emergency shutoff)2 3
E-stop Shroud for EMO, Yellow		Legend plate for EMERGENCY OFF is not included.	A22Z-EG10	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMO indication. (for emergency off) *3
E-stop Shroud for EMS, White		---	A22Z-EG1-W	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY STOP come as a set. Use with an A22E Emergency Stop Switch. (for emergency stop) 2 3
E-stop Shroud for EMS, White		Legend plate for EMERGENCY STOP is not included.	A22Z-EG10-W	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMS indication. (for emergency stop) *3
E-stop Shroud, Yellow		Spacer Unit is not included.	A22Z-EG2	SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2-compatible Shroud. (for emergency shutoff) 2 3 Use together with an A22E Emergency Stop Switch.
One Spacer Unit is included.	A22Z-EG21
Two Spacer Units are included.	A22Z-EG22
E-stop Shroud for EMO, Yellow		---	A22Z-EG3	Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch.(for emergency shutoff) 2 3
Rubber Packing			A22Z-R	Used together with accessories. Contains 10 packings.

Certification body	Standards	File No.
UL *1	UL508, C22.2 No.14	E41515
TÜV SÜD	EN60947-5-1 (Certified direct opening), EN60947-5-5	Consult your OMRON representative for details.
CQC (CCC)	GB14048.5	2003010303070635
KOSHA *2	EN60947-5-1	Consult your OMRON representative for details.

Rated carry current (A)	Rated voltage (V)	Rated current (A)
AC15 (Inductive load)	AC12 (Resistive load)	DC13 (Inductive load)	DC12 (Resistive load)
10	24 VAC	10	10	---	---
110 VAC	5	10
220 VAC	3	6
380 VAC	2	3
440 VAC	1	2
24 VDC	---	---	1.5	10
110 VDC	0.5	2
220 VDC	0.2	0.6
380 VDC	0.1	0.2

Rated voltage	Operating voltage	Current value
6 VAC/VDC	6 VAC/VDC ± 5%	Approx. 8 mA
12 VAC/VDC	12 VAC/VDC ± 5%
24 VAC/VDC	24 VAC/VDC ± 5%

Rated voltage	Operating voltage	Rated current	Applicable lamp (BA9S/Base: 13)
110 VAC	100 VAC (95 to 115 V)	Approx. 8 mA	LED lamp A22-24A[]
220 VAC	200 VAC (190 to 230 V)

Type	Turn-reset	Pull-reset
Non-lighted model	Lighted model	Non-lighted model
Allowable operating frequency	Mechanical	30 operations/minute (One operation consists of set and reset operations.)
Electrical	30 operations/minute (One operation consists of set and reset operations.)
Insulation resistance	100 MΩ min. (at 500 VDC)
Contact resistance	100 mΩ max. (initial value)
Dielectric strength	Between terminals of same polarity	2,500 VAC, 50/60 Hz for 1 min.
Between each terminal and ground	2,500 VAC, 50/60 Hz for 1 min.
Vibration resistance	10 to 55 Hz, 1.5-mm double amplitude (contact separation within 1 ms)
Shock resistance	Destruction	1000 m/s²
Malfunction	250 m/s² max. (contact separation within 1 ms)
Durability	Mechanical	300,000 operations min. (One operation consists of set and reset operations.)
Electrical	300,000 operations min. (One operation consists of set and reset operations.)
*Ambient operating temperature 1**	-20 to +70°C	-20 to +55°C	-20 to +70°C
Ambient operating humidity	35 to 85% RH
Ambient storage temperature	-40 to +70°C
Degree of protection	IP65 oil-resistant models 2 3	IP65 *2	IP65 oil-resistant models 2 3
Electric shock protection class	Class II
PTI (tracking characteristic)	175
Degree of contamination	3 (EN60947-5-1)
Minimum direct opening stroke	11 mm
Minimum direct opening force	45 N
Conditional short-circuit current	100 A (EN 60947-5-1)
Weight (for a 40-dia. head 1NC/1NO Operation Unit)	Approx. 65 g	Approx. 80 g	Approx. 100 g

Item	Turn-reset	Pull-reset
Total travel force (TTF)	44.1 N max.	58.8 N max.
Return force (RF)	0.25 N·m max. *	58.8 N max.
Total travel (TT)	10 ±1 mm	5.5 ±1 mm

Certification body	Standards	File No.
UL *	UL508, C22.2 No.14	E76675
TÜV SÜD	EN60947-5-1 (Certified direct opening), EN60947-5-5	Consult your OMRON representative for details.
CQC (CCC)	GB14048.5	2017010305959182

Rated insulation voltage (V)	Rated carry current (A)	Rated voltage (V)	Rated current (A)
AC15 (Inductive load)	AC12 (Resistive load)	DC13 (Inductive load)	DC12 (Resistive load)
600	10	24 VAC	10	10	---	---
120 VAC	6	10
240 VAC	3	6
380 VAC	1.9	2
440 VAC	1.6	2
24 VDC	---	---	4	8
120 VDC	1.1	2.2
240 VDC	0.55	1.1

Rated voltage	Operating voltage	Current value
6 VAC/VDC	6 VAC/VDC ± 10%	Approx. 11 mA
12 VAC/VDC	12 VAC/VDC ± 10%	Approx. 12 mA
24 VAC/VDC	24 VAC/VDC ± 10%	Approx. 12 mA
100 VAC	100 VAC ± 10%	Approx. 12 mA
110 VAC	110 VAC ± 10%
120 VAC	100 VAC to 130 VAC
200 VAC	200 VAC ± 10%	Approx. 12 mA
220 VAC	220 VAC ± 10%
230 VAC	230 VAC ± 10%
240 VAC	220 VAC to 250 VAC

Operation	Turn-reset	Pull-reset
Non-lighted model	Lighted Model	Non-lighted model
A22NE-[]-P[][][]-N	A22NE-M-P[][][]-[]	A22NE-MP-P[][][]-N	A22NE-MP-P[][][]-N-69K
Allowable operating frequency	Mechanical	30 operations/minute or less (One operation consists of set and reset operations.)
Electrical	30 operations/minute or less (One operation consists of set and reset operations.)
*Insulation resistance 1**	100 MΩ min. (at 500 VDC)
Contact resistance	100 mΩ max. (initial value)
Dielectric strength	Between terminals of same polarity *1	2,500 VAC, 50/60 Hz 1 minute (initial value)
Between each terminal and ground	2,500 VAC, 50/60 Hz 1 minute (initial value)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms)
Shock resistance	Malfunction	250 m/s² max. (contact separation within 1 ms)
Durability	Mechanical	300,000 operations min. (One operation consists of set and reset operations.)	100,000 operations min. (One operation consists of set and reset operations.)
Electrical	300,000 operations min. (One operation consists of set and reset operations.)	100,000 operations min. (One operation consists of set and reset operations.)
Ambient operating temperature *2	-20 to +70°C	-20 to +55°C	-20 to +70°C
Ambient operating humidity	35 to 85% RH
Ambient storage temperature *2	-40 to +70°C
*Degree of protection3**	IP65 oil-resistant models *4	IP65	IP65 oil-resistant models *4	IP69K
Electric shock protection class	Class II
PTI (tracking characteristic)	175
Degree of contamination	3 (EN 60947-5-1)
Minimum direct opening stroke	11 mm
Minimum direct opening force	45 N
Conditional short-circuit current	100 A (EN 60947-5-1)
Wight (for a 40-dia. Head 1NC/1NO Operation Unit)	Approx. 55 g	Approx. 60 g	Approx. 85 g	Approx. 115 g

Item	Turn-reset	Pull-reset
Lighted / non-lighted models	Non-lighted model	Non-lighted model (Models with IP69K)
Total travel force (TTF)	45 N max.	60 N max.	70 N max.
Return force (RF)	0.25N·m * max.	60 N max.	70 N max.
Total travel (TT)	10 ±1 mm	5.5 ±1 mm	5.5 ±1 mm

Certification body	Standards	File No.
UL *	UL508, C22.2 No.14	E76675
TÜV SÜD	EN60947-5-1(Certified direct opening), EN60947-5-5	Consult your OMRON representative for details.
CQC (CCC)	GB14048.5	Consult your OMRON representative for details.

Rated insulation voltage (V)	Rated carry current (A)	Rated voltage (V)	Rated current (A)
AC15 (Inductive load)	AC12 (Resistive load)	DC13 (Inductive load)	DC12 (Resistive load)
250	5	30 VAC	---	---	---	---
125 VAC	3 A	5 A	---	---
250 VAC	1.5 A	3 A	---	---
30 VDC	---	---	1 A	2 A
125 VDC	---	---	0.22 A	0.4 A
250 VDC	---	---	0.1 A	0.2 A

Rated voltage	Operating voltage	Current value
24 VAC/VDC	24 VAC/VDC ± 10%	Approx. 12 mA

Operation	Turn-reset	Pull-reset
Non-lighted model	Lighted Model	Non-lighted model	Non-lighted model (Models with IP69K)
A22NE-[]-PD[][]-N-[]	A22NE-M-PD[][]-C-[]	A22NE-MP-PD[][]-N-[]	A22NE-MP-PD[][]-N-69K
Allowable operating frequency	Mechanical	30 operations/minute or less (One operation consists of set and reset operations.)
Electrical	30 operations/minute or less (One operation consists of set and reset operations.)
*Insulation resistance 1**	100 MΩ min. (at 500 VDC)
Contact resistance	100 mΩ max. (initial value)
Dielectric strength	Between terminals of same polarity*1	2,000 VAC, 50/60 Hz 1 minute (initial value)
Between terminals of different polarity	2,000 VAC, 50/60 Hz 1 minute (initial value)
Between each terminal and ground	2,000 VAC, 50/60 Hz 1 minute (initial value)
Vibration resistance	Malfunction	10 to 55 Hz, 1.5 mm double amplitude (contact separation within 1 ms)
Shock resistance	Malfunction	250 m/s² max. (contact separation within 1 ms)
Durability	Mechanical	300,000 operations min. (One operation consists of set and reset operations.)	100,000 operations min. (One operation consists of set and reset operations.)
Electrical (100 mA at 24 VAC (Resistive load))	250,000 operations min. (One operation consists of set and reset operations.)	100,000 operations min. (One operation consists of set and reset operations.)
Electrical (3 mA at 250 VAC (Resistive load))	100,000 operations min. (One operation consists of set and reset operations.)
*Ambient operating temperature 2**	-20 to +70°C	-20 to +55°C	-20 to +70°C
Ambient operating humidity	35 to 85% RH
*Ambient storage temperature 2**	-40 to +70°C
*Degree of protection3**	IP65 oil-resistant models	IP65	IP65 oil-resistant models	IP69K
Electric shock protection class	Class II
PTI (tracking characteristic)	175
Degree of contamination	3 (EN 60947-5-1)
Minimum direct opening stroke	11 mm
Minimum direct opening force	45 N
Conditional short-circuit current	100 A (EN 60947-5-1)
Wight (for a 40-dia. head 2NC/2NO Operation Unit)	Approx. 95 g	Approx. 95 g	Approx. 125 g	Approx. 135 g

Item	Turn-reset	Pull-reset
Lighted / non-lighted models	Non-lighted model	Non-lighted model (Models with IP69K)
Total travel force (TTF)	45 N max.	60 N max.	70 N max.
Return force (RF)	0.25N·m max. *	60 N max.	70 N max.
Total travel (TT)	10 ±1 mm	5.5 ±1 mm

Return to OMRON
