OMRON H5L Dimensions

/Images/l_216-25-118927-198x198.jpg

last update: December 19, 2013

Easy Programming with Large Display and InteractiveFunctions.

• Easy operation with five keys.

• Up to 24 steps of ON/OFF operations can be set.

• Power supply freely selectable from 100 to 240 VAC.

• Memory protection during power failure for up to 10 years.

• Certified for UL and CSA safety standards.

• The same setting can be used for multiple-day operation andtimer operation.

last update: December 19, 2013

Purchase the OMRON Time Switches Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON H5L Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H5L We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H5LControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A22LK Guard Lock Safety Key Selector Switch/Features
NYM Industrial PC Platform NY-series Industrial Monitor/Features
E3S-R Transparent Object Detection Sensor/Features
XS5, XS6 Industrial Ethernet Cables/Features
VT-S730 PCB Inspection System/Features

OMRON H5L specification
H5L Daily Time Switch/Specifications
last update: September 24, 2012
Time Ranges

Rated time Time setting range Time division

24 hrs x 7 days 00:00 to 23:59 1 min

Ratings

Rated supply voltage 100 to 240 VAC (50/60 Hz)

Operating voltage range 85% to 110% of rated supply voltage

Power consumption Approx. 4 VA at 240 VAC

Control outputs 15 A at 250 VAC, resistive load at 50°C
12 A at 250 VAC, resistive load at 55°C
Minimum applied load: 100 mA at 5 VDC (failure level: P, reference value)

Characteristics

Accuracy of operating time ±0.01% ±0.05 s max. (see note 1)

Setting error

Influence of voltage

Influence of temperature

Time accuracy ±15 s per month (at 25°C)

Insulation resistance 100 MΩ min.

Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying
metal parts and between control power supply circuit and contact control output circuits)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)

Vibration resistance Destruction: 10 to 55 Hz with 0.75-mm double amplitude
Malfunction: 10 to 55 Hz with 0.5-mm double amplitude

Shock resistance Destruction: 300 m/s² (approx. 30G)
Malfunction: 100 m/s² (approx. 10G)

Ambient temperature Operating: -10°C to 55°C

Ambient humidity Operating: 35% to 85%

Life expectancy 100,000 operations min. (15 A at 250 VAC, resistive load)

Approved standards UL (File No. E52800), CSA (File No. LR22310)

Weight Approx. 350 g

Note:The overall error, which includes repeat accuracy, setting error, and variations due to changes in voltage and temperature, is ±0.01% or ±0.05 s max. The accuracy of ±0.01% also indicates the error in the time interval of the set time.

last update: September 24, 2012

OMRON H5L catalog
H5L Daily Time Switch/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

H5L Data Sheet -
[1263KB] Aug 27, 201220120827 H5L Data Sheet

Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance -
[43KB] Mar 12, 201820180312 Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

OMRON H5L dimension
H5L Daily Time Switch/Dimensions
last update: September 24, 2012

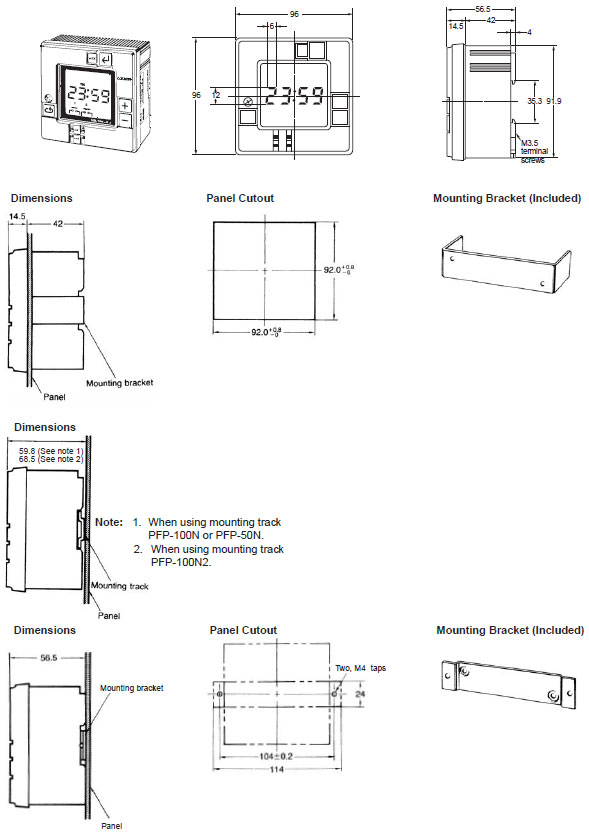

H5L-A

Accessories (Order Separately)

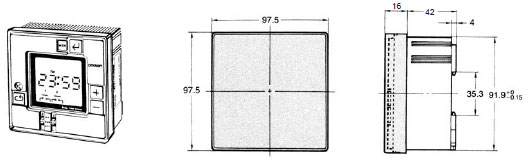

Front CoverY92A-96A

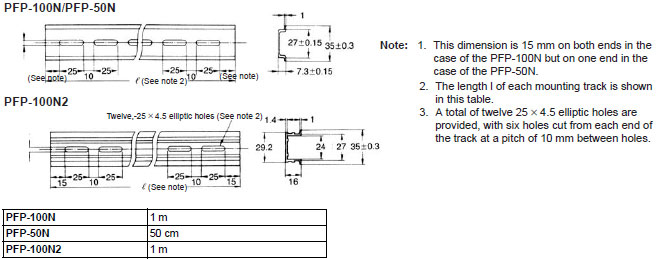

Mounting Track (Meets DIN EN 50022)

last update: September 24, 2012

OMRON H5L lineup
H5L Daily Time Switch/Lineup
last update: September 24, 2012
List of Models

Wiring Backup power supply function
for memory protection No. of program steps Model

Screw terminals Provided
(approx. 10 years at 25°C) 24
(Each ON or OFF is considered to be one step.) H5L-A

last update: September 24, 2012

NO. H5L

TYPE:Timers Time Switches Copyright Statement

DATE:2021-06-11

Associated products:
H5F Digital Daily Time Switch/Features H7CX-A Multifunction Preset Counter/Features

Rated time	Time setting range	Time division
24 hrs x 7 days	00:00 to 23:59	1 min

Rated supply voltage	100 to 240 VAC (50/60 Hz)
Operating voltage range	85% to 110% of rated supply voltage
Power consumption	Approx. 4 VA at 240 VAC
Control outputs	15 A at 250 VAC, resistive load at 50°C 12 A at 250 VAC, resistive load at 55°C Minimum applied load: 100 mA at 5 VDC (failure level: P, reference value)

Accuracy of operating time	±0.01% ±0.05 s max. (see note 1)
Setting error
Influence of voltage
Influence of temperature
Time accuracy	±15 s per month (at 25°C)
Insulation resistance	100 MΩ min.
Dielectric strength	2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying metal parts and between control power supply circuit and contact control output circuits) 1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
Vibration resistance	Destruction: 10 to 55 Hz with 0.75-mm double amplitude Malfunction: 10 to 55 Hz with 0.5-mm double amplitude
Shock resistance	Destruction: 300 m/s² (approx. 30G) Malfunction: 100 m/s² (approx. 10G)
Ambient temperature	Operating: -10°C to 55°C
Ambient humidity	Operating: 35% to 85%
Life expectancy	100,000 operations min. (15 A at 250 VAC, resistive load)
Approved standards	UL (File No. E52800), CSA (File No. LR22310)
Weight	Approx. 350 g

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
H5L Data Sheet	- [1263KB]	Aug 27, 201220120827	H5L Data Sheet
Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance	- [43KB]	Mar 12, 201820180312	Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance

Wiring	Backup power supply function for memory protection	No. of program steps	Model
Screw terminals	Provided (approx. 10 years at 25°C)	24 (Each ON or OFF is considered to be one step.)	H5L-A
