OMRON NYM lineup

last update: July 3, 2017

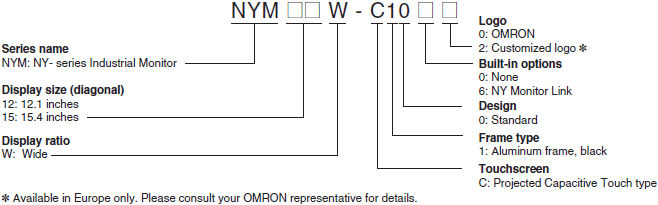

Model Number Structure

Ordering Information

NY-series Industrial PC Platform

Product name	Specifications			Model
		Interface	Display size
Industrial Monitor	An industrial monitor with a touchscreen as the user interface designed to work in industrial environments	DVI-D	12.1 inches	NYM12W-C1000
			15.4 inches	NYM15W-C1000
		NY Monitor Link	12.1 inches	NYM12W-C1060
			15.4 inches	NYM15W-C1060

Optional Hardware

Product Item	Specifications	Model
Power Supply	• Output voltage: 24 VDC • Push-In Plus terminal blocks	S8VK-S[][][]24
USB Type-A to USB Type-B Cables	Cable length: 2 m USB 2.0 Minimum bend radius: 25 mm	FH-VUAB 2M
	Cable length: 5 m USB 2.0 Minimum bend radius: 25 mm	FH-VUAB 5M
DVI Cables	Cable length: 2 m Supports DVI-D Minimum bend radius: 36 mm	NY000-AC00 2M
	Cable length: 5 m Supports DVI-D Minimum bend radius: 36 mm	NY000-AC00 5M

Software

Item	Descriptions
Industrial Monitor Utility	The Industrial Monitor Utility provides a user interface to control settings and display details of connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor Brightness Utility	The Industrial Monitor Brightness Utility is a small software utility that allows you to control the brightness of the screen backlight of all connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Tray Utility	The Industrial PC Tray Utility is a software utility that provides information about the current state of the Industrial PC, its related devices, and associated software. It is pre-installed on an Industrial Box PC and the Industrial Panel PC.
Industrial Monitor API	The Industrial Monitor API allows programmers to create applications that can control the hardware features and retrieve information from connected Industrial Monitors. It is pre-installed on the Industrial Panel PC and Industrial Box PC. Install the Industrial Monitor SDK to use the Industrial Monitor API on development PCs.

last update: July 3, 2017

OMRON NYM catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
NYM Data Sheet	- [1367KB]	May 07, 201820180507	NYM Data Sheet
Industrial PC Platform Catalog	P118-E1-06 [24126KB]	Jun 01, 201820180601	Industrial PC Platform Catalog
Industrial PC Platform NY Monitor Link Catalog	P126-E1-01 [1281KB]	Dec 11, 201720171211	Industrial PC Platform NY Monitor Link Catalog

OMRON NYM specification

last update: May 7, 2018

Specifications

Performance Specifications

Display Specifications

Item			Specifications
			12.1 Inch models	15.4 Inch models
Display	Display panel *1	Display device	TFT LCD
		Screen size	12.1 inches	15.4 inches
		Surface treatment	Anti glare treatment
		Surface hardness	Mohs scale: 5 - 6
		Resolution	1,280 ✕ 800 pixels at 60 Hz (horizontal ✕ vertical)
		Colors	16,770,000 colors
		Effective display area	261 ✕ 163 mm (horizontal ✕ vertical)	331 ✕ 207 mm (horizontal ✕ vertical)
		View angles	Left: 60°, Right: 60°, Top: 60°, Bottom: 60°
		Life	50,000 hours min. *2
		Brightness adjustment *3	200 levels
	Touch	Technology	Projected capacitive
		Touch resolution	Touch accuracy 1.5% (4-5 mm)
		Multitouch	Up to 5 simultaneous touches
		Features	Water detection *4, hand palm rejection *5, gloves *6
		Life	50,000,000 operations min.
		EMC	Correct touchscreen operation is possible within allowable EMC immunity conditions

*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and dark
     pixels fall within the following standard range: light and dark pixels 10 or less. (There must not be 3 adjacent light/dark
     pixels.)
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity.
     The life expectancy is drastically shortened if used at high temperatures.
*3. If the brightness is set to very dark, it causes flickering or the screen will be too dark to use.
*4. If water is detected the touch functionality will not be available.
*5. If a palm is detected that specific area is neglected.
*6. The touchscreen can be operated when wearing gloves. Confirm the touchscreen can be operated with gloves before
     actual operation.

Connector Specifications

Item			Industrial Monitor
			NYM12W- C100[]	NYM15W- C100[]	NYM12W- C106[]	NYM15W- C106[]
Connectors	Power connector		24 VDC
	USB2.0 Type-A	Number of ports	2
		Maximum current	500 mA max.
		Maximum cable length	5 m
	USB2.0 Type-B	Number of ports	1		-
		Maximum cable length	5 m		-
	DVI-D connector	Video interface	Digital only		-
		Resolution	1,280 x 800 pixels at 60 Hz		-
		Maximum DVI cable length	5 m		-
	NY Monitor Link	Video interface	-		Digital only
		Resolution	-		1,280 x 800 pixels at 60 Hz
		Connector type	-		RJ45
		Cable shielding, type and max. length	-		S/FTP, Cat.6A, 100 m
		USB data throughput	-		280 Mbps max.

Electrical Specifications

Item			Specifications
			NYM12W-C100[]	NYM15W-C100[]	NYM12W-C106[]	NYM15W-C106[]
			DVI-D interface		NY Monitor Link interface
Rated power supply voltage			24 VDC
Allowable power supply voltage range			19.2 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 5 A / 10 ms max.
Overvoltage category			JIS B3502 and IEC 61131-2: Category II
EMC immunity level			IEC 61131-2: Zone B
Power consumption	Maximum power consumption		25 W max.	25 W max.	30 W max.	31 W max.
	Expansions	USB	5 W max (2 x 500 mA at 5 V), included above.

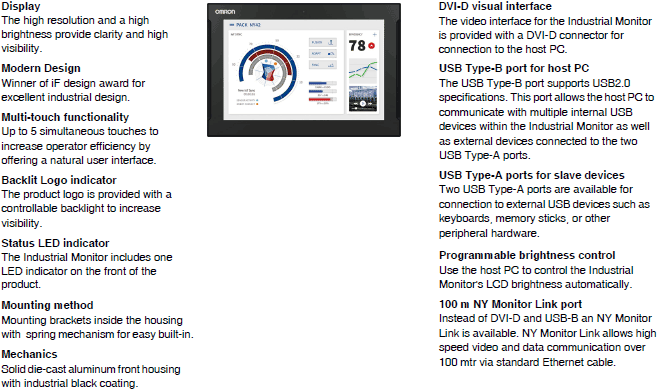

Components and functions

The Industrial Monitor is intended to be used as a display and touch interface for the Industrial PC Platform variants. The Industrial Monitor allows the user to interact through touch interactions on the LCD display.

Environmental Specifications

Item		Specifications
operation environment	Ambient operating temperature	0 to 55°C *1
	Ambient storage temperature	-20 to 70°C *1
	Ambient operating humidity	10% to 90% with no condensation *1
	Ambient storage humidity	10% to 90% with no condensation *1
	Operating atmosphere	No corrosive gases
	Altitude	2,000 m max.
	Pollution degree	2 or less: Conforms to JIS B3502 and IEC 61131-2
	Noise resistance (during operation)	Conforms to IEC61000-4-4, 2kV (power lines)
	Vibration resistance (during operation)	Conforms to IEC 60068-2-6. 5 to 8.4Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 10 times each in X, Y and Z directions
	Shock resistance (during operation)	Conforms to IEC 60068-2-27. 147 m/s2, 3 times in each X, Y and Z directions
	Installation method	Mount on panel
	Degree of protection	Front of product: IP65 *2
Applicable standards *3		EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS Directive KC Registration, RCM, cULus, EAC

*1. See Temperature and Humidity Specifications.
*2. The Industrial Monitor may not operate properly in locations subjected to oil splashes for extended periods of time.
*3. Contact your OMRON representative for the most recent applicable standards for each model.

Temperature and Humidity Specifications

The allowed ambient temperature and humidity conditions during operation and storage for the Industrial Monitor are specified in the following graphs.

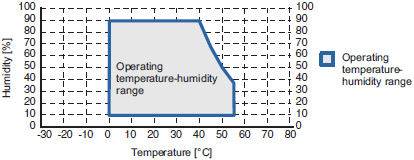

• Operate the Industrial Monitor within the following ambient temperature and humidity ranges.

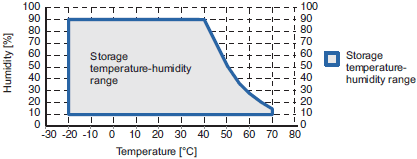

• Store the Industrial Monitor within the following ambient temperature and humidity ranges.

Monitor Temperature Specifications

Ambient operating temperature specifications for a Monitor

Product Orientation	Mounting Angle	Configuration
		With a DVI-D interface	With an NY Monitor Link interface
Landscape and Portrait	0° to 45°	0 to 55°C	0 to 50°C
Landscape	45° to 90°	0 to 55°C
	90° to 135°	0 to 55°C
Portrait	45° to 90°	0 to 55°C
	90° to 135°	0 to 55°C

last update: May 7, 2018

OMRON NYM dimension

last update: September 01, 2016

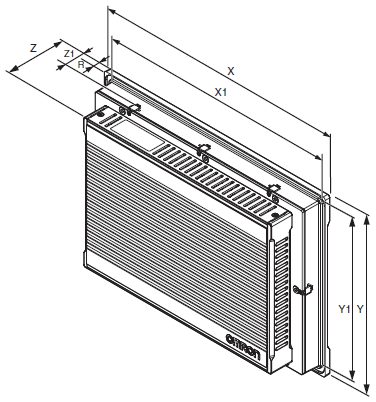

Item	Specifications
	12.1 inch models	15.4 inch models
Panel cutout dimensions	Cutout Width X1 = 314-0 +1 mm Cutout Height Y1 = 216-0 +1 mm	Cutout Width X1 = 383-0 +1 mm Cutout Height Y1 = 259-0 +1 mm
Panel thickness range *	Panel thickness range Z1 = 1.6 to 6.0 mm	Panel thickness range Z1 = 1.6 to 6.0 mm
Dimensions	Width X = 332 mm Height Y = 234 mm Depth Z = 66 mm	Width X = 401 mm Height Y = 277 mm Depth Z = 66 mm
Monitor thickness on top of panel	Rim thickness R = 8.0 mm
Weight	3.3 kg	4.3 kg

* The minimum panel thickness depends on the panel material.
