OMRON XS5, XS6 Dimensions

/Images/l_2715-25-119062-198x198.jpg

last update: October 18, 2017

Cables with Standard RJ45 Connectors

• The lineup features LSZH cables* for in-panel wiring and PUR cables for wiring outside of panels.
• The Standard RJ45 Connectors reduce cable routing space.
LSZH cables are AWG26 with an outer diameter of 6.3 mm.
PUR Cables are AWG26 with an outer diameter of 6.0 mm.
• Cable colors include blue, yellow, or green.
• LSZH cables are available in 12 lengths from 0.2 to 20 m and PUR cables are available in 10 lengths from 0.5 to 20 m.
• Single-shielded cables with individual aluminum tape on each wire pair to reduce EMC interference in industrial
environments.
Note. PUR cables are double-shielded cables with overall braiding and individual aluminum tape on each wire pair.
* Low-smoke zero-halogen cables.

Shape of RJ45 Connector

Cables with Rugged RJ45 Connectors

• Tough latches and RJ45 connectors with strong cable holding strength are used to enable connections outside of
control panels.
• Quad AWG22 cable with PVC cover of 6.5 mm outer diameter.
• Double-shielded cables with overall braiding and individual foil shield to reduce EMC interference in industrial
environments.

Shape of RJ45 Connector

PVC Cable with Double Shield

Assembly Connectors

You can easily assemble Ethernet cables onsite without crimping tools or other special tools.
Refer to Catalog for the assembly procedure.

Cable Extension Length

Standard Connectors (RJ45 Connectors)

Rugged Connectors (RJ45 Connectors)

Cables with M12 Connectors (Waterproof)

Resistance to harsh environments with IP67 protection.
SmartClick Connectors that provide one-step (1/8th turn) connection are used (compatible with standard M12 screw connectors).
A wide range of variations, such as cables with right-angle connectors and PCB connectors.
Cables with sockets and robot cables were added to the series.

Shape of M12 Connector

PVC Cable with Double Shield

Cables with M12 Connectors Shield Strengthening Cables specification

• Cable specification with strengthened shield for higher noise resistance. Recommended for EtherCAT communications.
• In addition to a double shield structure, copper foil tape is added to the M12 connector to improve communication characteristics (see below).

Shield Strengthening Cable (Double shield structure + copper foil tape wrapping)

Shield Effectiveness Data for Rugged RJ45 Connectors and M12 Connectors (Waterproof)

The following data is the results of OMRON testing. Shield effectiveness may vary for your environment and application conditions.

Comparison of Shield Effectiveness with Product without a Double Shield

The following table shows the differences with a structure without a double shield. Higher numeric values show greater shield effectiveness.

• SmartClick is a registered trademark of OMRON Corporation.
• EtherCAT® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
• Other company names and product names in this document are the trademarks or registered rademarks of their respective companies.

last update: October 18, 2017

Purchase the OMRON Industrial Ethernet Connectors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON XS5, XS6 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XS5, XS6 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XS5, XS6Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZEN V2 Programmable Relay/Features
ZJ-FA20 Ionizer (Basic Fan Type)/Features
E39-L / -S / -R Mounting Brackets, Slits, Reflectors/Features
3Z4S-LT Series Lighting System/Features
G3J Simple Solid State Contactors/Features

OMRON XS5, XS6 dimension
XS5, XS6 Industrial Ethernet Cables/Dimensions
last update: September 3, 2018

(Unit: mm)

Cables with Standard RJ45 Connectors

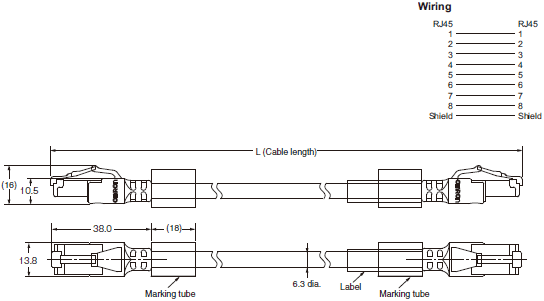

Cable with Connectors on Both Ends (RJ45/RJ45)

XS6W-6LSZH8SS[][][][]CM-[]
XS6W-5PUR8SS[][][][]CM-G

Cables with Rugged RJ45 Connectors and Cables with M12 Connectors

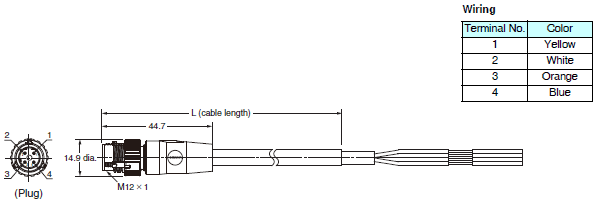

Cable with Plug on One End (M12 Straight)

XS5H-T421-[]M0-K

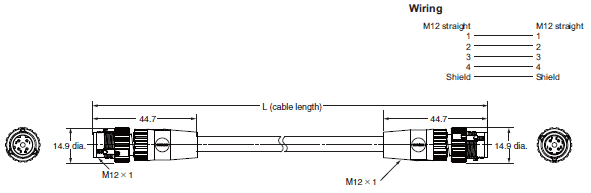

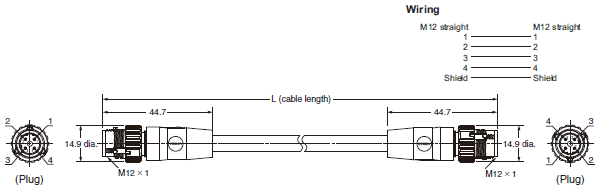

Cable with Plugs on Both End (M12 Straight/M12 Straight)

XS5W-T421-[]M2-K
XS5W-T421-[]M2-KR
XS5W-T421-[]M2-Y
XS5W-T421-[]M2-YR

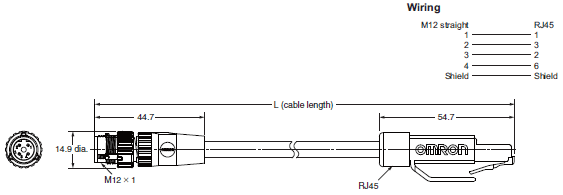

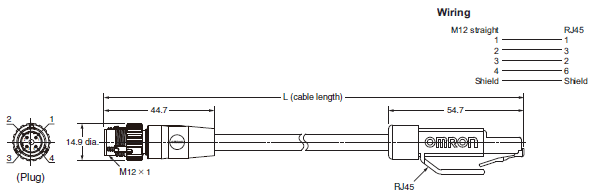

Cable with Plugs on Both Ends (M12 Straight/RJ45)

XS5W-T421-[]MC-K
XS5W-T421-[]MC-KR
XS5W-T421-[]MC-Y
XS5W-T421-[]MC-YR

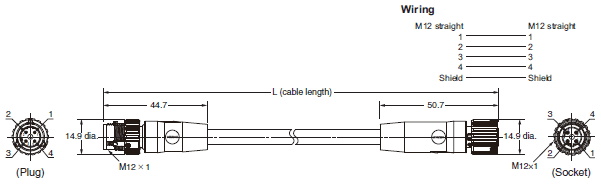

Cable with Plug on One End and Socket on Other End (M12 Straight/M12 Straight)

XS5W-T421-[]M1-K
XS5W-T421-[]M1-KR

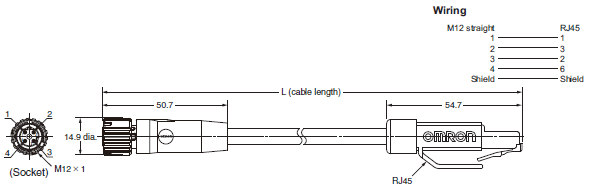

Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45)

XS5W-T421-[]ME-K

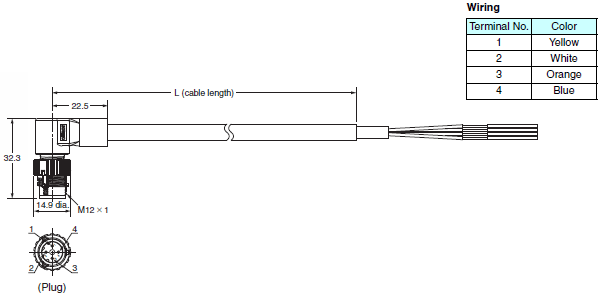

Cable with Plug One End (M12 Right-angle)

XS5H-T422-[]M0-K

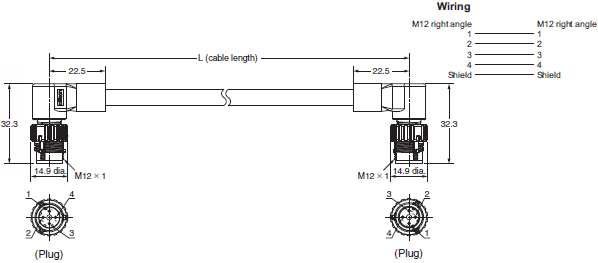

Cable with Plugs on Both Ends (M12 Right-angle/M12 Right-angle)

Wiring XS5W-T422-[]M2-K

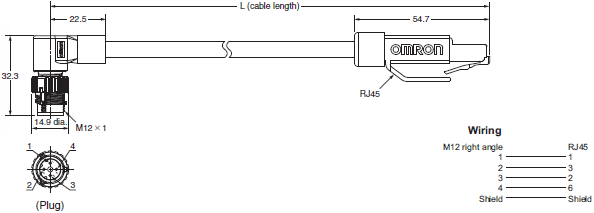

Cable with Plugs on Both Ends (M12 Right-angle/RJ45)

XS5W-T422-[]MC-K

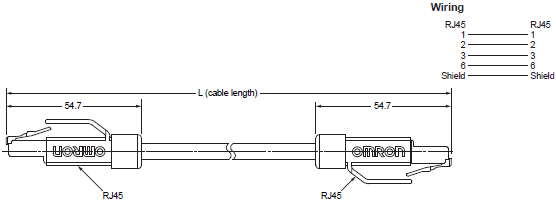

Cable with Plugs on Both Ends (RJ45/RJ45)

XS5W-T421-[]MD-K
XS5W-T421-[]MD-KR
XS5W-T421-[]MD-YR

Cable with Plugs on Both Ends (M12 Straight/M12 Straight)

Shield Strengthening Cable
XS5W-T421-[]M2-SS

Cable with Plugs on Both Ends (M12 Straight/RJ45)

Shield Strengthening Cable
XS5W-T421-[]MC-SS

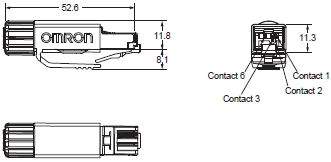

RJ45 Assembly Connector

XS6G-T421-1

Applicable wires
Sheath outer diameter: 6.1 to 6.9 mm
Core size:
AWG22 to AWG24 (stranded wires)
AWG22 to AWG23 (solid wires)
Insulation outer diameter: 1.6 mm max.

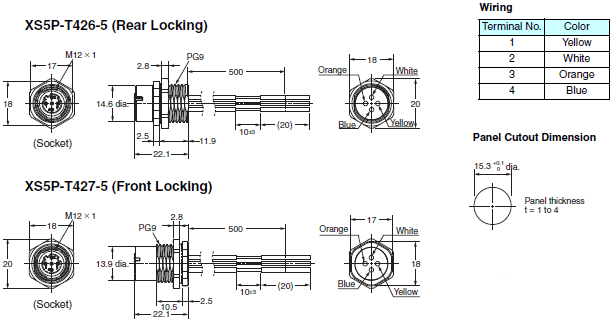

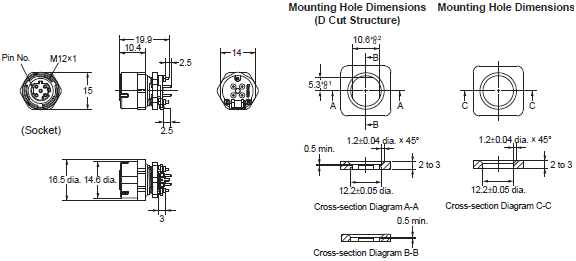

M12 Connector for Panel Mounting

XS5P-T42[]-5

Note 1: The panel cutout dimension is the same for Front-locking and Rearlocking Connectors.
Note 2: Rotational positioning is not possible for connector rotation.

M12 Panel-mounting PCB Straight Terminals

XS5P-T426-1

last update: September 3, 2018

OMRON XS5, XS6 specification
XS5, XS6 Industrial Ethernet Cables/Specifications
last update: April 2, 2018
Cables with Standard RJ45 Connectors
Specifications

Type Cable with Connectors on
Both Ends (RJ45/RJ45)/LSZH Cable with Connectors on
Both Ends (RJ45/RJ45)/PUR
Model XS6W-6LSZH8SS[][][][]CM-[] XS6W-5PUR8SS[][][][]CM-G
Rated current 1 A (at 50°C)
Withstand voltage 1,000 VDC for 60 s (leakage current: 1 mA max.)
Ambient operating temperature -20 to 75°C -40 to 80°C
Ambient storage temperature -20 to 75°C -40 to 80°C
Ambient installation temperature 0 to 50°C -10 to 60°C
Protective structure IP20

Materials and Finish
Connectors

Type Cable with Connectors on
Both Ends (RJ45/RJ45)/LSZH Cable with Connectors on
Both Ends (RJ45/RJ45)/PUR
Model XS6W-6LSZH8SS[][][][]CM-[] XS6W-5PUR8SS[][][][]CM-G
Connector housing PC resin (UL94V-0)/transparent
Contacts Copper alloy/nickel base, gold plated
Shield Brass/nickel plated
Cover (structured to prevent the
tab from breaking) PA/Black
Marking tube PVC resin (UL94V-0)/transparent

Cables

Type Cable with Connectors on
Both Ends (RJ45/RJ45)/LSZH Cable with Connectors on
Both Ends (RJ45/RJ45)/PUR
Model XS6W-6LSZH8SS[][][][]CM-[] XS6W-5PUR8SS[][][][]CM-G
Compliant standard IEC 60332-1 /UL444 IEC 60332-1
Number of cores AWG26
Outer diameter *1 6.3 mm 6.0 mm
Sheath color *2 Blue, yellow, or green Green
Sheath material LSZH PUR
Shield structure Single shield Double shield

Cables with Rugged RJ45 Connectors and Cables with M12 Connectors
Specifications

Type Cable with
Plug on One
End (M12) Cable with Plugs on
Both Ends
(M12/M12) Cable with Plug on
One End and Socket
on Other End
(M12/M12) Cable with Plugs on
Both Ends
(M12/RJ45)
Model XS5H-T42[]-
[]M0-K XS5W-T42[]-[]M2-K,
-KR XS5W-T42[]-[]M1-K,
-KR XS5W-T42[]-[]MC-K,
-KR
Rated current 3 A 2.5 A
Rated voltage 30 V
Contact resistance 40 mΩ max.
Insulation resistance 1,000 MΩ min.
Withstand voltage 1,000 VAC for 60 s (leak current: 1 mA max.)
Ambient operating
temperature -25 to 70°C *
Ambient storage
temperature -25 to 70°C
Protective structure M12: IEC IP67, RJ45: IEC IP20

Type Cable with Plug on
One End and Socket
on Other End
(M12/RJ45) Cable with Plugs on
Both Ends
(RJ45/RJ45) RJ45
Assembly
Connector M12
Connector
for Panel
Mounting M12 Panel-
mounting
PCB Straight
Terminals
Model XS5W-T421-[]ME-K XS5W-T421-[]MD-K,
-KR XS6G-
T421-1 XS5P-
T42[]-5 XS5P-
T426-1
Rated current 2.5 A 4 A
Rated voltage 30 V 125 VDC
Contact
resistance 40 mΩ max.
Insulation
resistance 500 MΩ min. 1,000 MΩ min.
Withstand voltage 1,000 VAC for 60 s (leak current: 1 mA max.) 1,500 VAC for 60 s
(leakage current: 1 mA max.)
Ambient operating
temperature -25 to 70°C *
Ambient storage
temperature -25 to 70°C
Protective
structure M12: IEC IP67, RJ45: IEC IP20

* Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from being broken when bending it.

Materials and Finish
Connectors

Model M12 RJ45
XS5H and XS5W XS5P-T42[]-5 XS5P-T426-1 XS5W and XS6G
Contact blocks PBT resin (UL94V-0)/light gray PA resin (UL94V-0)/
black PA resin (UL94V-0)/
black
Contacts Phosphor bronze/nickel base, gold plated
(0.4 μm) Brass/nickel base,
gold plated (0.4 μm) Phosphor bronze/nickel
base, gold plated (1.4 μm)
Anchors Zinc diecast/nickel plating ---
Anchors (tabs) SUS ---
Cover TPE (Thermo Plastic
Elastomer) /black ---
Sealing resin --- Epoxy resin ---
O-rings Rubber ---
Grounding
fixture --- Phosphor bronze/
nickel base, tin
plated (2.0 μm) ---
Anchor cover --- SUS ---
Nuts --- Brass/nickel plated ---

Cables

Model Standard Cables Robot Cables Shield Strengthening Cables
Compliant standard UL CM
Category Category 5e
Core/color AWG22 (7/0.26):
Yellow · Orange · White · Blue AWG22 (7/24/0.05):
Yellow · Orange · White · Blue AWG22 (7/0.26):
Yellow · Orange · White · Blue
Outer diameter *1 6.5 dia.
Sheath color *2 Light blue, Yellow Black
Sheath material PVC
Shield structure Double shield SF/UTP

Note. For the XS5H and XS5W, cables are available only with connectors attached.

last update: April 2, 2018

OMRON XS5, XS6 lineup
XS5, XS6 Industrial Ethernet Cables/Lineup
last update: April 2, 2018
Cables with Standard RJ45 Connectors

Appearance Type Category Cable sheath
material Cable
color Cable
length (m) Model
Cable with
Connectors
on Both Ends
(RJ45/RJ45) Cat.6a LSZH Blue 0.2 XS6W-6LSZH8SS20CM-B
0.3 XS6W-6LSZH8SS30CM-B
0.5 XS6W-6LSZH8SS50CM-B
1 XS6W-6LSZH8SS100CM-B
1.5 XS6W-6LSZH8SS150CM-B
2 XS6W-6LSZH8SS200CM-B
3 XS6W-6LSZH8SS300CM-B
5 XS6W-6LSZH8SS500CM-B
7.5 XS6W-6LSZH8SS750CM-B
10 XS6W-6LSZH8SS1000CM-B
15 XS6W-6LSZH8SS1500CM-B
20 XS6W-6LSZH8SS2000CM-B
Yellow 0.2 XS6W-6LSZH8SS20CM-Y
0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
1.5 XS6W-6LSZH8SS150CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
7.5 XS6W-6LSZH8SS750CM-Y
10 XS6W-6LSZH8SS1000CM-Y
15 XS6W-6LSZH8SS1500CM-Y
20 XS6W-6LSZH8SS2000CM-Y
Green 0.2 XS6W-6LSZH8SS20CM-G
0.3 XS6W-6LSZH8SS30CM-G
0.5 XS6W-6LSZH8SS50CM-G
1 XS6W-6LSZH8SS100CM-G
1.5 XS6W-6LSZH8SS150CM-G
2 XS6W-6LSZH8SS200CM-G
3 XS6W-6LSZH8SS300CM-G
5 XS6W-6LSZH8SS500CM-G
7.5 XS6W-6LSZH8SS750CM-G
10 XS6W-6LSZH8SS1000CM-G
15 XS6W-6LSZH8SS1500CM-G
20 XS6W-6LSZH8SS2000CM-G
Cat.5 PUR Green 0.5 XS6W-5PUR8SS50CM-G
1 XS6W-5PUR8SS100CM-G
1.5 XS6W-5PUR8SS150CM-G
2 XS6W-5PUR8SS200CM-G
3 XS6W-5PUR8SS300CM-G
5 XS6W-5PUR8SS500CM-G
7.5 XS6W-5PUR8SS750CM-G
10 XS6W-5PUR8SS1000CM-G
15 XS6W-5PUR8SS1500CM-G
20 XS6W-5PUR8SS2000CM-G

Cables with Rugged RJ45 Connectors and Cables with M12 Connectors

Appearance Cable
type Type Cable
color Cable
length (m) Model
Standard
Cables Cable with Plug
on One End
(M12 Straight) Light blue 0.5 XS5H-T421-BM0-K
1 XS5H-T421-CM0-K
2 XS5H-T421-DM0-K
3 XS5H-T421-EM0-K
5 XS5H-T421-GM0-K
10 XS5H-T421-JM0-K
15 XS5H-T421-KM0-K
Cable with Plugs
on Both Ends
(M12 Straight/
M12 Straight) Light blue 0.5 XS5W-T421-BM2-K
1 XS5W-T421-CM2-K
2 XS5W-T421-DM2-K
3 XS5W-T421-EM2-K
5 XS5W-T421-GM2-K
10 XS5W-T421-JM2-K
15 XS5W-T421-KM2-K
Yellow 0.3 XS5W-T421-AM2-Y
0.5 XS5W-T421-BM2-Y
1 XS5W-T421-CM2-Y
2 XS5W-T421-DM2-Y
3 XS5W-T421-EM2-Y
5 XS5W-T421-GM2-Y
Cable with Plugs
on Both Ends
(M12 Straight/RJ45) Light blue 0.3 XS5W-T421-AMC-K
0.5 XS5W-T421-BMC-K
1 XS5W-T421-CMC-K
2 XS5W-T421-DMC-K
3 XS5W-T421-EMC-K
5 XS5W-T421-GMC-K
10 XS5W-T421-JMC-K
15 XS5W-T421-KMC-K
Yellow 0.3 XS5W-T421-AMC-Y
0.5 XS5W-T421-BMC-Y
1 XS5W-T421-CMC-Y
2 XS5W-T421-DMC-Y
3 XS5W-T421-EMC-Y
5 XS5W-T421-GMC-Y
Cable with Plug
on One End
(M12 Right-angle) Light blue 0.5 XS5H-T422-BM0-K
1 XS5H-T422-CM0-K
2 XS5H-T422-DM0-K
3 XS5H-T422-EM0-K
5 XS5H-T422-GM0-K
10 XS5H-T422-JM0-K
15 XS5H-T422-KM0-K
Cable with Plugs
on Both Ends
(M12 Right-angle/
M12 Right-angle) Light blue 0.5 XS5W-T422-BM2-K
1 XS5W-T422-CM2-K
2 XS5W-T422-DM2-K
3 XS5W-T422-EM2-K
5 XS5W-T422-GM2-K
10 XS5W-T422-JM2-K
15 XS5W-T422-KM2-K
Cable with Plugs
on Both Ends
(M12 Right-angle/
RJ45) Light blue 0.3 XS5W-T422-AMC-K
0.5 XS5W-T422-BMC-K
1 XS5W-T422-CMC-K
2 XS5W-T422-DMC-K
3 XS5W-T422-EMC-K
5 XS5W-T422-GMC-K
10 XS5W-T422-JMC-K
15 XS5W-T422-KMC-K
Cable with Plugs
on Both Ends
(RJ45/RJ45) Light blue 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
3 XS5W-T421-EMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
15 XS5W-T421-KMD-K
Cable with Plug
on One End and
Socket on Other End
(M12 Straight/
M12 Straight) Light blue 0.5 XS5W-T421-BM1-K
1 XS5W-T421-CM1-K
2 XS5W-T421-DM1-K
3 XS5W-T421-EM1-K
5 XS5W-T421-GM1-K
10 XS5W-T421-JM1-K
15 XS5W-T421-KM1-K
Cable with Plug
on One End
and Socket on
Other End
(M12 Straight/RJ45) Light blue 0.5 XS5W-T421-BME-K
1 XS5W-T421-CME-K
2 XS5W-T421-DME-K
3 XS5W-T421-EME-K
5 XS5W-T421-GME-K
10 XS5W-T421-JME-K
15 XS5W-T421-KME-K
Robot
Cables Cable with Plug
on One End
and Socket on
Other End
(M12 Straight/
M12 Straight) Light blue 0.5 XS5W-T421-BM1-KR
1 XS5W-T421-CM1-KR
2 XS5W-T421-DM1-KR
3 XS5W-T421-EM1-KR
5 XS5W-T421-GM1-KR
10 XS5W-T421-JM1-KR
15 XS5W-T421-KM1-KR
Cable with Plugs
on Both Ends
(M12 Straight/
M12 Straight) Light blue 0.5 XS5W-T421-BM2-KR
1 XS5W-T421-CM2-KR
2 XS5W-T421-DM2-KR
3 XS5W-T421-EM2-KR
5 XS5W-T421-GM2-KR
10 XS5W-T421-JM2-KR
15 XS5W-T421-KM2-KR
Yellow 2 XS5W-T421-DM2-YR
Cable with Plugs
on Both Ends
(M12 Straight/RJ45) Light blue 0.5 XS5W-T421-BMC-KR
1 XS5W-T421-CMC-KR
2 XS5W-T421-DMC-KR
3 XS5W-T421-EMC-KR
5 XS5W-T421-GMC-KR
10 XS5W-T421-JMC-KR
15 XS5W-T421-KMC-KR
Yellow 3 XS5W-T421-EMC-YR
5 XS5W-T421-GMC-YR
Cable with Plugs
on Both Ends
(RJ45/RJ45) Light blue 0.5 XS5W-T421-BMD-KR
1 XS5W-T421-CMD-KR
2 XS5W-T421-DMD-KR
3 XS5W-T421-EMD-KR
5 XS5W-T421-GMD-KR
10 XS5W-T421-JMD-KR
15 XS5W-T421-KMD-KR
Yellow 0.5 XS5W-T421-BMD-YR
1 XS5W-T421-CMD-YR
2 XS5W-T421-DMD-YR
3 XS5W-T421-EMD-YR
5 XS5W-T421-GMD-YR
Shield
Streng-
thening
Cables Cable with Plugs
on Both Ends
(M12 Straight/
M12 Straight) Black 0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Plugs
on Both Ends
(M12 Straight/RJ45) Black 0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS
Standard
Cables RJ45 Assembly
Connector --- --- XS6G-T421-1
M12
Connector
for Panel
Mounting Rear
locking --- 0.5 XS5P-T426-5
Front
locking --- 0.5 XS5P-T427-5
M12
Panel-mounting PCB
Straight Terminals --- --- XS5P-T426-1

last update: April 2, 2018

OMRON XS5, XS6 catalog
XS5, XS6 Industrial Ethernet Cables/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

XS5, XS6 Data Sheet G019-E1-07
[4189KB] Sep 03, 201820180903 XS5, XS6 Data Sheet

NO. XS5, XS6

TYPE:Wiring Systems Industrial Ethernet Connectors Copyright Statement

DATE:2021-06-08

Associated products:
V780 Series UHF RFID System/Features GRT1-PNT SmartSlice/Features

Type	Cable with Connectors on Both Ends (RJ45/RJ45)/LSZH	Cable with Connectors on Both Ends (RJ45/RJ45)/PUR
Model	XS6W-6LSZH8SS[][][][]CM-[]	XS6W-5PUR8SS[][][][]CM-G
Rated current	1 A (at 50°C)
Withstand voltage	1,000 VDC for 60 s (leakage current: 1 mA max.)
Ambient operating temperature	-20 to 75°C	-40 to 80°C
Ambient storage temperature	-20 to 75°C	-40 to 80°C
Ambient installation temperature	0 to 50°C	-10 to 60°C
Protective structure	IP20

Type	Cable with Connectors on Both Ends (RJ45/RJ45)/LSZH	Cable with Connectors on Both Ends (RJ45/RJ45)/PUR
Model	XS6W-6LSZH8SS[][][][]CM-[]	XS6W-5PUR8SS[][][][]CM-G
Connector housing	PC resin (UL94V-0)/transparent
Contacts	Copper alloy/nickel base, gold plated
Shield	Brass/nickel plated
Cover (structured to prevent the tab from breaking)	PA/Black
Marking tube	PVC resin (UL94V-0)/transparent

Type	Cable with Connectors on Both Ends (RJ45/RJ45)/LSZH	Cable with Connectors on Both Ends (RJ45/RJ45)/PUR
Model	XS6W-6LSZH8SS[][][][]CM-[]	XS6W-5PUR8SS[][][][]CM-G
Compliant standard	IEC 60332-1 /UL444	IEC 60332-1
Number of cores	AWG26
*Outer diameter 1**	6.3 mm	6.0 mm
*Sheath color 2**	Blue, yellow, or green	Green
Sheath material	LSZH	PUR
Shield structure	Single shield	Double shield

Type	Cable with Plug on One End (M12)	Cable with Plugs on Both Ends (M12/M12)	Cable with Plug on One End and Socket on Other End (M12/M12)	Cable with Plugs on Both Ends (M12/RJ45)
Model	XS5H-T42[]- []M0-K	XS5W-T42[]-[]M2-K, -KR	XS5W-T42[]-[]M1-K, -KR	XS5W-T42[]-[]MC-K, -KR
Rated current	3 A	2.5 A
Rated voltage	30 V
Contact resistance	40 mΩ max.
Insulation resistance	1,000 MΩ min.
Withstand voltage	1,000 VAC for 60 s (leak current: 1 mA max.)
Ambient operating temperature	-25 to 70°C *
Ambient storage temperature	-25 to 70°C
Protective structure	M12: IEC IP67, RJ45: IEC IP20

Type	Cable with Plug on One End and Socket on Other End (M12/RJ45)	Cable with Plugs on Both Ends (RJ45/RJ45)	RJ45 Assembly Connector	M12 Connector for Panel Mounting	M12 Panel- mounting PCB Straight Terminals
Model	XS5W-T421-[]ME-K	XS5W-T421-[]MD-K, -KR	XS6G- T421-1	XS5P- T42[]-5	XS5P- T426-1
Rated current	2.5 A	4 A
Rated voltage	30 V	125 VDC
Contact resistance	40 mΩ max.
Insulation resistance	500 MΩ min.	1,000 MΩ min.
Withstand voltage	1,000 VAC for 60 s (leak current: 1 mA max.)	1,500 VAC for 60 s (leakage current: 1 mA max.)
Ambient operating temperature	-25 to 70°C *
Ambient storage temperature	-25 to 70°C
Protective structure	M12: IEC IP67, RJ45: IEC IP20

Model	M12	RJ45
XS5H and XS5W	XS5P-T42[]-5	XS5P-T426-1	XS5W and XS6G
Contact blocks	PBT resin (UL94V-0)/light gray	PA resin (UL94V-0)/ black	PA resin (UL94V-0)/ black
Contacts	Phosphor bronze/nickel base, gold plated (0.4 μm)	Brass/nickel base, gold plated (0.4 μm)	Phosphor bronze/nickel base, gold plated (1.4 μm)
Anchors	Zinc diecast/nickel plating	---
Anchors (tabs)	SUS	---
Cover	TPE (Thermo Plastic Elastomer) /black	---
Sealing resin	---	Epoxy resin	---
O-rings	Rubber	---
Grounding fixture	---	Phosphor bronze/ nickel base, tin plated (2.0 μm)	---
Anchor cover	---	SUS	---
Nuts	---	Brass/nickel plated	---

Model	Standard Cables	Robot Cables	Shield Strengthening Cables
Compliant standard	UL CM
Category	Category 5e
Core/color	AWG22 (7/0.26): Yellow · Orange · White · Blue	AWG22 (7/24/0.05): Yellow · Orange · White · Blue	AWG22 (7/0.26): Yellow · Orange · White · Blue
*Outer diameter 1**	6.5 dia.
*Sheath color 2**	Light blue, Yellow	Black
Sheath material	PVC
Shield structure	Double shield SF/UTP

Appearance	Type	Category	Cable sheath material	Cable color	Cable length (m)	Model
	Cable with Connectors on Both Ends (RJ45/RJ45)	Cat.6a	LSZH	Blue	0.2	XS6W-6LSZH8SS20CM-B
0.3	XS6W-6LSZH8SS30CM-B
0.5	XS6W-6LSZH8SS50CM-B
1	XS6W-6LSZH8SS100CM-B
1.5	XS6W-6LSZH8SS150CM-B
2	XS6W-6LSZH8SS200CM-B
3	XS6W-6LSZH8SS300CM-B
5	XS6W-6LSZH8SS500CM-B
7.5	XS6W-6LSZH8SS750CM-B
10	XS6W-6LSZH8SS1000CM-B
15	XS6W-6LSZH8SS1500CM-B
20	XS6W-6LSZH8SS2000CM-B
	Yellow	0.2	XS6W-6LSZH8SS20CM-Y
0.3	XS6W-6LSZH8SS30CM-Y
0.5	XS6W-6LSZH8SS50CM-Y
1	XS6W-6LSZH8SS100CM-Y
1.5	XS6W-6LSZH8SS150CM-Y
2	XS6W-6LSZH8SS200CM-Y
3	XS6W-6LSZH8SS300CM-Y
5	XS6W-6LSZH8SS500CM-Y
7.5	XS6W-6LSZH8SS750CM-Y
10	XS6W-6LSZH8SS1000CM-Y
15	XS6W-6LSZH8SS1500CM-Y
20	XS6W-6LSZH8SS2000CM-Y
	Green	0.2	XS6W-6LSZH8SS20CM-G
0.3	XS6W-6LSZH8SS30CM-G
0.5	XS6W-6LSZH8SS50CM-G
1	XS6W-6LSZH8SS100CM-G
1.5	XS6W-6LSZH8SS150CM-G
2	XS6W-6LSZH8SS200CM-G
3	XS6W-6LSZH8SS300CM-G
5	XS6W-6LSZH8SS500CM-G
7.5	XS6W-6LSZH8SS750CM-G
10	XS6W-6LSZH8SS1000CM-G
15	XS6W-6LSZH8SS1500CM-G
20	XS6W-6LSZH8SS2000CM-G
	Cat.5	PUR	Green	0.5	XS6W-5PUR8SS50CM-G
1	XS6W-5PUR8SS100CM-G
1.5	XS6W-5PUR8SS150CM-G
2	XS6W-5PUR8SS200CM-G
3	XS6W-5PUR8SS300CM-G
5	XS6W-5PUR8SS500CM-G
7.5	XS6W-5PUR8SS750CM-G
10	XS6W-5PUR8SS1000CM-G
15	XS6W-5PUR8SS1500CM-G
20	XS6W-5PUR8SS2000CM-G

Appearance	Cable type	Type	Cable color	Cable length (m)	Model
	Standard Cables	Cable with Plug on One End (M12 Straight)	Light blue	0.5	XS5H-T421-BM0-K
1	XS5H-T421-CM0-K
2	XS5H-T421-DM0-K
3	XS5H-T421-EM0-K
5	XS5H-T421-GM0-K
10	XS5H-T421-JM0-K
15	XS5H-T421-KM0-K
	Cable with Plugs on Both Ends (M12 Straight/ M12 Straight)	Light blue	0.5	XS5W-T421-BM2-K
1	XS5W-T421-CM2-K
2	XS5W-T421-DM2-K
3	XS5W-T421-EM2-K
5	XS5W-T421-GM2-K
10	XS5W-T421-JM2-K
15	XS5W-T421-KM2-K
Yellow	0.3	XS5W-T421-AM2-Y
0.5	XS5W-T421-BM2-Y
1	XS5W-T421-CM2-Y
2	XS5W-T421-DM2-Y
3	XS5W-T421-EM2-Y
5	XS5W-T421-GM2-Y
	Cable with Plugs on Both Ends (M12 Straight/RJ45)	Light blue	0.3	XS5W-T421-AMC-K
0.5	XS5W-T421-BMC-K
1	XS5W-T421-CMC-K
2	XS5W-T421-DMC-K
3	XS5W-T421-EMC-K
5	XS5W-T421-GMC-K
10	XS5W-T421-JMC-K
15	XS5W-T421-KMC-K
Yellow	0.3	XS5W-T421-AMC-Y
0.5	XS5W-T421-BMC-Y
1	XS5W-T421-CMC-Y
2	XS5W-T421-DMC-Y
3	XS5W-T421-EMC-Y
5	XS5W-T421-GMC-Y
	Cable with Plug on One End (M12 Right-angle)	Light blue	0.5	XS5H-T422-BM0-K
1	XS5H-T422-CM0-K
2	XS5H-T422-DM0-K
3	XS5H-T422-EM0-K
5	XS5H-T422-GM0-K
10	XS5H-T422-JM0-K
15	XS5H-T422-KM0-K
	Cable with Plugs on Both Ends (M12 Right-angle/ M12 Right-angle)	Light blue	0.5	XS5W-T422-BM2-K
1	XS5W-T422-CM2-K
2	XS5W-T422-DM2-K
3	XS5W-T422-EM2-K
5	XS5W-T422-GM2-K
10	XS5W-T422-JM2-K
15	XS5W-T422-KM2-K
	Cable with Plugs on Both Ends (M12 Right-angle/ RJ45)	Light blue	0.3	XS5W-T422-AMC-K
0.5	XS5W-T422-BMC-K
1	XS5W-T422-CMC-K
2	XS5W-T422-DMC-K
3	XS5W-T422-EMC-K
5	XS5W-T422-GMC-K
10	XS5W-T422-JMC-K
15	XS5W-T422-KMC-K
	Cable with Plugs on Both Ends (RJ45/RJ45)	Light blue	0.3	XS5W-T421-AMD-K
0.5	XS5W-T421-BMD-K
1	XS5W-T421-CMD-K
2	XS5W-T421-DMD-K
3	XS5W-T421-EMD-K
5	XS5W-T421-GMD-K
10	XS5W-T421-JMD-K
15	XS5W-T421-KMD-K
	Cable with Plug on One End and Socket on Other End (M12 Straight/ M12 Straight)	Light blue	0.5	XS5W-T421-BM1-K
1	XS5W-T421-CM1-K
2	XS5W-T421-DM1-K
3	XS5W-T421-EM1-K
5	XS5W-T421-GM1-K
10	XS5W-T421-JM1-K
15	XS5W-T421-KM1-K
	Cable with Plug on One End and Socket on Other End (M12 Straight/RJ45)	Light blue	0.5	XS5W-T421-BME-K
1	XS5W-T421-CME-K
2	XS5W-T421-DME-K
3	XS5W-T421-EME-K
5	XS5W-T421-GME-K
10	XS5W-T421-JME-K
15	XS5W-T421-KME-K
	Robot Cables	Cable with Plug on One End and Socket on Other End (M12 Straight/ M12 Straight)	Light blue	0.5	XS5W-T421-BM1-KR
1	XS5W-T421-CM1-KR
2	XS5W-T421-DM1-KR
3	XS5W-T421-EM1-KR
5	XS5W-T421-GM1-KR
10	XS5W-T421-JM1-KR
15	XS5W-T421-KM1-KR
	Cable with Plugs on Both Ends (M12 Straight/ M12 Straight)	Light blue	0.5	XS5W-T421-BM2-KR
1	XS5W-T421-CM2-KR
2	XS5W-T421-DM2-KR
3	XS5W-T421-EM2-KR
5	XS5W-T421-GM2-KR
10	XS5W-T421-JM2-KR
15	XS5W-T421-KM2-KR
Yellow	2	XS5W-T421-DM2-YR
	Cable with Plugs on Both Ends (M12 Straight/RJ45)	Light blue	0.5	XS5W-T421-BMC-KR
1	XS5W-T421-CMC-KR
2	XS5W-T421-DMC-KR
3	XS5W-T421-EMC-KR
5	XS5W-T421-GMC-KR
10	XS5W-T421-JMC-KR
15	XS5W-T421-KMC-KR
Yellow	3	XS5W-T421-EMC-YR
5	XS5W-T421-GMC-YR
	Cable with Plugs on Both Ends (RJ45/RJ45)	Light blue	0.5	XS5W-T421-BMD-KR
1	XS5W-T421-CMD-KR
2	XS5W-T421-DMD-KR
3	XS5W-T421-EMD-KR
5	XS5W-T421-GMD-KR
10	XS5W-T421-JMD-KR
15	XS5W-T421-KMD-KR
Yellow	0.5	XS5W-T421-BMD-YR
1	XS5W-T421-CMD-YR
2	XS5W-T421-DMD-YR
3	XS5W-T421-EMD-YR
5	XS5W-T421-GMD-YR
	Shield Streng- thening Cables	Cable with Plugs on Both Ends (M12 Straight/ M12 Straight)	Black	0.5	XS5W-T421-BM2-SS
1	XS5W-T421-CM2-SS
2	XS5W-T421-DM2-SS
3	XS5W-T421-EM2-SS
5	XS5W-T421-GM2-SS
10	XS5W-T421-JM2-SS
	Cable with Plugs on Both Ends (M12 Straight/RJ45)	Black	0.5	XS5W-T421-BMC-SS
1	XS5W-T421-CMC-SS
2	XS5W-T421-DMC-SS
3	XS5W-T421-EMC-SS
5	XS5W-T421-GMC-SS
10	XS5W-T421-JMC-SS
	Standard Cables	RJ45 Assembly Connector	---	---	XS6G-T421-1
	M12 Connector for Panel Mounting	Rear locking	---	0.5	XS5P-T426-5
Front locking	---	0.5	XS5P-T427-5
	M12 Panel-mounting PCB Straight Terminals	---	---	XS5P-T426-1

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
XS5, XS6 Data Sheet	G019-E1-07 [4189KB]	Sep 03, 201820180903	XS5, XS6 Data Sheet

Return to OMRON
