OMRON 3F88L-160 / 162 specification

last update: October 08, 2013

General Specifications

Model	3F88L-160	3F88L-162
Supply voltage	100 to 240 VAC, 50/60 Hz
Allowable supply voltage	85 to 264 VAC
Power consumption	27 VA max.
Inrush current	40 A at 10 ms max.
I/O power supply	145 mA at 24 VDC
Allowable I/O supply voltage	20.4 to 26.4 VDC
Insulation resistance	20 MΩ min. between all external AC power supply terminals and the protective ground terminal (at 500 VDC) *
Dielectric strength	2,300 VAC at 50/60 Hz for 1 min between all external AC power supply terminals and the protective ground terminal (leakage current: 10 mA max.) *
Noise immunity	IEC 61000-4-4: 2 kV power line
Vibration resistance	Conforms to JIS C0911: 10 to 57 Hz with 0.075-mm single amplitude 80 min each in X, Y, and Z directions, 57 to 150 Hz at 9.8-m/s2 acceleration (sweeps: 8 min × 10 sweeps = 80 min total)
Shock resistance	Conforms to JIS C0912: 147 m/s2 three times each in X, Y, and Z directions
Ambient operating temperature	0 to 55°C
Ambient operating humidity	10% to 90% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Ambient storage temperature	-20 to 75°C
Terminals screw size	Power supply input: M3.5, control I/O: M3
Momentary power interruption detection time	Does not detect momentary power interruptions lasting less than 15 ms.
Dimensions	110 × 100 × 82.5 mm (W × H × D)
Weight	1 kg max.
Structure	Mounted inside panel
Mounting method	Screw mounting (two M4 screws) or DIN Track mounting

* Disconnect the functional ground terminal from the protective ground terminal before performing insulation resistance or dielectric strength tests.

Characteristics

Model	3F88L-160	3F88L-162
No. of outputs	16	32
Output performance	Open-collector output, maximum switching capacity: 300 mA at 26.4 VDC (1.6 A max. per connector)
No. of banks	8 banks at 360 resolution, 4 banks at 720 resolution
Display	7-segment LED (current bank, speed, current angle)
Response speed	1,600 r/min at 360 resolution, 800 r/min at 720 resolution
Detection cycle	100 μs max.
Reproducibility	0.2°
Memory backup	No. of non-volatile memory (EEPROM) writes: 100,000 times
Control unit	1/360 at 360 resolution, 1/720 at 720 resolution
Origin compensation	1 to 359 at 360 resolution, 1 to 719 at 720 resolution
Backlash compensation	1 to 179 at 360 resolution, 1 to 359 at 720 resolution
Advance angle compensation	Advance angle compensation Range:1 to 359 at 360 resolution, 1 to 719 at 720 resolution Speed input range: 1 to 1,600 at 360 resolution, 1 to 800 at 720 resolution Note: Only zero will be accepted for the angle advancement input when the speed input is zero.
Control inputs	START, TRIG, BANK 1 to 3, and RESET Photocoupler input impedance: 4.7 kΩ
Control outputs	RUN, ERROR, and M·DET Open-collector output, maximum switching capacity, 300 mA at 26.4 VDC
Speed detection accuracy	5 r/min max.

last update: October 08, 2013

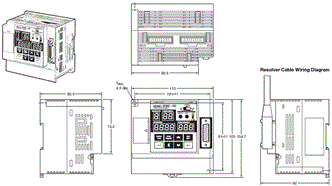

OMRON 3F88L-160 / 162 dimension

last update: October 08, 2013

Note: All units are in millimeters unless otherwise indicated.

3F88L-160/-162

3F88L-160
3F88L-162

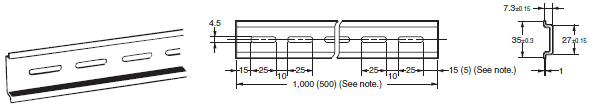

Mounting Track

PFP-100N
PFP-50N

Note: The values shown in parentheses are for the PFP-50N.

Mounting Track

PFP-100N2

last update: October 08, 2013

OMRON 3F88L-160 / 162 lineup

last update: October 08, 2013

Name			Model
Cam Positioner		16 outputs	3F88L-160
		32 outputs	3F88L-162
Resolver	Shaft: 10 dia.	Standard model	3F88L-RS17
		High-torque model	3F88L-RS17T
	Shaft: 6 dia.	Connector type	3F88L-RS15
		Lead-wire type	3F88L-RS15W
Resolver Extension Cable with Connectors on Both Ends		2 m	3F88L-CR002C
		5 m	3F88L-CR005C
		10 m	3F88L-CR010C
		20 m	3F88L-CR020C
RS15 Resolver Cable with Connectors on Both Ends		3 m	3F88L-CR003NA
		5 m	3F88L-CR005NA
		10 m	3F88L-CR010NA
		15 m	3F88L-CR015NA
		20 m	3F88L-CR020NA
RS15W Resolver Cable with Connector on One End		3 m	3F88L-CR003SA
		5 m	3F88L-CR005SA
		10 m	3F88L-CR010SA
Cam Output Cable with Connector on One End		1 m	3F88L-CG001S
		3 m	3F88L-CG003S

Mounting Track

Model
PFP-100N
PFP-50N

Mounting Track

Model
PFP-100N2

last update: October 08, 2013
