OMRON GQ-CRM21 Dimensions

/Images/l_2892-25-136422-198x198.jpg

last update: November 25, 2013

• Branching is easily made with CompoNet. Wiring material cost can be reduced.

• Bit-level I/O distribution reduces wiring in the system.

• A wide variety of CompoNet Slave Units contribute to system size reduction.

• Seven-segment Display on the Gateway Unit helps to detect errors on site.

• The Participation Flags and Communications Error Flags can be checked at the Host Controller to detect the location and content of the error.

last update: November 25, 2013

Purchase the OMRON CompoNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON GQ-CRM21 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GQ-CRM21 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GQ-CRM21Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NJ101-[][][][] NJ-Series NJ101 CPU Units/Features
E2V-X[] All Metals and Long-distance Types/Features
D4V Small Limit Switch/Features
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Features
DCN4-[][]4D Flat Cable Connector/Features

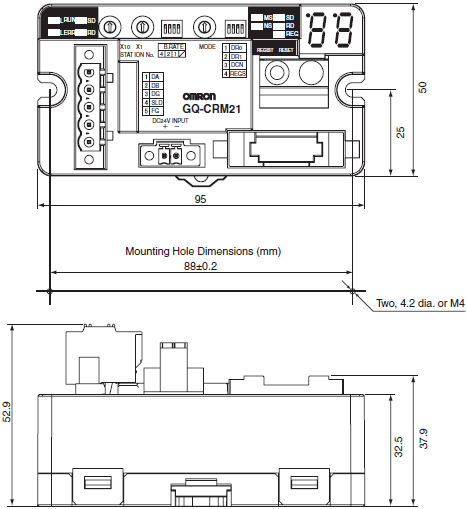

OMRON GQ-CRM21 dimension
GQ-CRM21 CompoNet Gateway Unit for CC-Link/Dimensions
last update: November 25, 2013
GQ-CRM21

last update: November 25, 2013

OMRON GQ-CRM21 specification
GQ-CRM21 CompoNet Gateway Unit for CC-Link/Specifications
last update: November 25, 2013
General Specifications

Item Specification
Unit power supply voltage 21.6 to 26.4 VDC (24 VDC±10%) (Supplied from power supply connector.)
Current
consumption Communications power
supply 3.80 A at 24 VDC
Internal current power
consumption 0.13 A at 24 VDC
Noise immunity Conforms to IEC 61000-4-4, 2.0 kV
Vibration resistance Malfunction: 10 to 60 Hz with 0.7-mm double amplitude, 60 to 150 Hz,
50 m/s² for 80 min in X, Y, and Z directions
Shock resistance 150 m/s², 3 times in 6 directions on 3 axes
Dielectric strength 500 VAC
Installation method Mounted to DIN Track or by using M4 screws
Ambient operating temperature 0 to 55°C
Ambient operating humidity 10% to 90% (with no condensation)
Ambient storage temperature -25 to 65°C
Weight 110 g max.
Ambient operating atmosphere No corrosive gases

CC-Link Communications Specifications

Item Specification
Version CC-Link version 1.10 or 2.00 (Selected using mode switch.)
Baud rate 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, or 10 Mbps
Communications method Broadcast polling
Synchronization method Frame synchronization
Encoding NRZI
Transmission path Bus (Conforms to RS-485.)
Transmission format Conforms to HDLC.
Communications media CC-Link cable (shielded, 3-core twisted-pair cable)
Number of connected nodes Must meet specifications of the CC-Link Master Unit.
Remote stations 1 to 61 (Four station numbers are allocated starting from the specified station number.)
Error control CRC (X¹⁶ + X¹² + X⁵ + 1)
RAS functions Automatic recovery function, slave cutoff, data link status checks, offline testing
Allocated station numbers Allocated four stations numbers as a remote device station

last update: November 25, 2013

OMRON GQ-CRM21 lineup
GQ-CRM21 CompoNet Gateway Unit for CC-Link/Lineup
last update: November 25, 2013

Name Specification Model
CC-Link Communications
Specification CompoNet Communications
Specification
Station
Type Number of
stations
occupied CC-Link Version Types of
commu-
nications Maximum I/O capacity
CompoNet
Gateway
Unit for
CC-Link Remote
device
stations 4 Version 1.10 or 2.00
(Selected using
mode switch.) Remote
I/O
Commu-
nications Word Slave Units:
2,048 I/O points total
(1,024 inputs and 1,024 outputs)
Bit Slave Units:
512 I/O points total
(256 inputs and 256 outputs) GQ-CRM21

last update: November 25, 2013

OMRON GQ-CRM21 catalog
GQ-CRM21 CompoNet Gateway Unit for CC-Link/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

GQ-CRM21 Data Sheet P067-E1-01
[120KB] Nov 25, 201320131125 GQ-CRM21 Data Sheet

NO. GQ-CRM21

TYPE:Networks CompoNet Gateway unit

DATE:2021-06-13

Associated products:
3G8F7-CRM21 CompoNet Master Board for PCI Bus/CompactPCI Bus/Features CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-tier Terminal Block/Relay Output/SSR Output)/Features

Item	Specification
Unit power supply voltage	21.6 to 26.4 VDC (24 VDC±10%) (Supplied from power supply connector.)
Current consumption	Communications power supply	3.80 A at 24 VDC
Internal current power consumption	0.13 A at 24 VDC
Noise immunity	Conforms to IEC 61000-4-4, 2.0 kV
Vibration resistance	Malfunction: 10 to 60 Hz with 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min in X, Y, and Z directions
Shock resistance	150 m/s², 3 times in 6 directions on 3 axes
Dielectric strength	500 VAC
Installation method	Mounted to DIN Track or by using M4 screws
Ambient operating temperature	0 to 55°C
Ambient operating humidity	10% to 90% (with no condensation)
Ambient storage temperature	-25 to 65°C
Weight	110 g max.
Ambient operating atmosphere	No corrosive gases

Item	Specification
Version	CC-Link version 1.10 or 2.00 (Selected using mode switch.)
Baud rate	156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, or 10 Mbps
Communications method	Broadcast polling
Synchronization method	Frame synchronization
Encoding	NRZI
Transmission path	Bus (Conforms to RS-485.)
Transmission format	Conforms to HDLC.
Communications media	CC-Link cable (shielded, 3-core twisted-pair cable)
Number of connected nodes	Must meet specifications of the CC-Link Master Unit.
Remote stations	1 to 61 (Four station numbers are allocated starting from the specified station number.)
Error control	CRC (X¹⁶ + X¹² + X⁵ + 1)
RAS functions	Automatic recovery function, slave cutoff, data link status checks, offline testing
Allocated station numbers	Allocated four stations numbers as a remote device station

Name	Specification	Model
CC-Link Communications Specification	CompoNet Communications Specification
Station Type	Number of stations occupied	CC-Link Version	Types of commu- nications	Maximum I/O capacity
CompoNet Gateway Unit for CC-Link	Remote device stations	4	Version 1.10 or 2.00 (Selected using mode switch.)	Remote I/O Commu- nications	Word Slave Units: 2,048 I/O points total (1,024 inputs and 1,024 outputs) Bit Slave Units: 512 I/O points total (256 inputs and 256 outputs)	GQ-CRM21

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
GQ-CRM21 Data Sheet	P067-E1-01 [120KB]	Nov 25, 201320131125	GQ-CRM21 Data Sheet
