OMRON E39-L / -S / -R specification

E39-L / -S / -R Mounting Brackets, Slits, Reflectors/Specifications

last update: September 24, 2012

No information is provided on the Ratings and Specifications of this product.

last update: September 24, 2012


OMRON E39-L / -S / -R lineup

E39-L / -S / -R Mounting Brackets, Slits, Reflectors/Lineup

last update: February 8, 2018

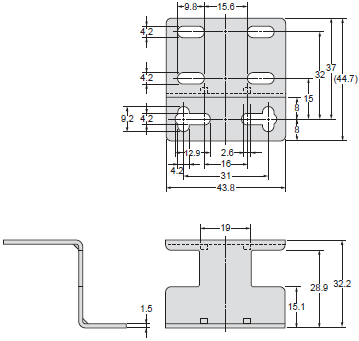

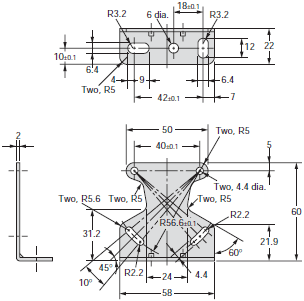

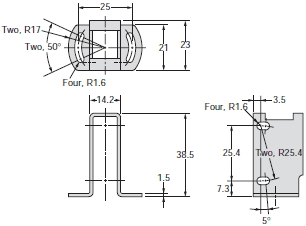

Mounting Brackets

ModelFitting
materials		CountAccessoriesApplicable sensor
(mounting pitch
on sensor side)
DescriptionMaterialCount
E39-L31Iron,
zinc plating		1Slotted/Phillips
screws, M3 × 12
(with spring washers)		Iron, zinc plating2E3C-S50 (8)
E39-L40Iron,
zinc plating		1Phillips screws M4 ×
25 (with spring and
plain washers)		Iron, zinc plating2E3JK *
Nuts M4Iron, zinc plating2
E39-L41Iron,
zinc plating		2Phillips screws M3 ×
14 (with spring
washers)		Iron, zinc plating4E3C-1 (10) *
Plain washer M3Iron, zinc plating4
E39-L42Iron,
black coating		2Phillips screws M3 ×
10 (with spring
washers)		Iron, zinc plating4E3C-2 (20)
E3C-DS10 (19)
E3C-VS1G (19)
E3C-VS3R (19)
Plain washer M3Iron, zinc plating4
E39-L43Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 8
(with spring and plain
washers)		Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)
E39-L44Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 8
(with spring and plain
washers)		Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)
E39-L51Iron,
zinc plating		1Slotted/Phillips
screws M4 × 30
(with spring and plain
washers)		Iron, zinc plating2E3JM (40)
Nuts M4Iron, nickel plating2
E39-L53Iron,
zinc plating		1---------E3JM (40) *
E39-L54VStainless
steel
(SUS304)		1---------E32-T54V
E39-L83Stainless
steel		1---------E32-T24S
E32-A03
E39-L85Stainless
steel
(SUS304)		1Hexagonal bolts M4 ×
12 (with spring and
plain washers)		Iron, zinc plating2E3S-C (25.4)
E39-L86Stainless
steel
(SUS304)		1Hexagonal bolts M4 ×
12 (with spring and
plain washers)		Iron, zinc plating2E3S-C (25.4)
E39-L87Stainless
steel
(SUS304)		1Hexagonal bolts M4 ×
12 (with spring and
plain washers)		Iron, zinc plating2E3S-C (25.4)

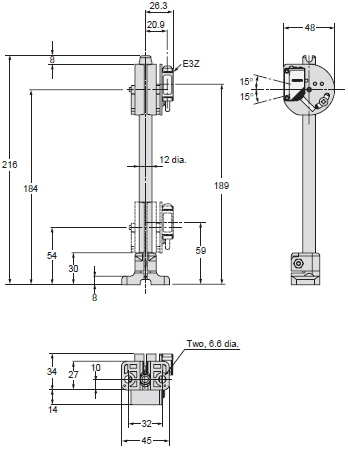

E39-L93FHStainless
steel
(SUS304)		1Holder (upper)Heat-resistant ABS
resin		1E3Z (25.4)
E39-R1/E39-R3
Holder (lower)66 nylon1
PipeStainless steel
(SUS304)		1
Bolts M4 × 12 with
Hexagonal holes		Iron, nickel plating2
Bolts M4 × 30 with
hexagonal holes		Iron, nickel plating1
Phillips screws M3 ×
12 (with spring and
plain washers)		Stainless steel
(SUS304)		2
Spring washer M4Iron, nickel plating1
Plain washer M4Iron, nickel plating1
Nuts M4Iron, nickel plating3
E39-L93FVStainless
steel
(SUS304)		1Holder (upper)Heat-resistant ABS
resin		1
Holder (lower)66 nylon1
PipeStainless steel
(SUS304)		1
Bolts M4 × 12 with
Hexagonal holes		Iron, nickel plating2
Bolts M4 × 30 with
hexagonal holes		Iron, nickel plating1
Phillips screws M3 ×
12 (with spring and
plain washers)		Stainless steel
(SUS304)		2
Spring washer M4Iron, nickel plating1
Plain washer M4Iron, nickel plating1
Nuts M4Iron, nickel plating3
E39-L93HStainless
steel
(SUS304)		1Holder (upper)Heat-resistant ABS
resin		1
Holder (lower)66 nylon1
PipeStainless steel
(SUS304)		1
Bolts M4 × 12 with
Hexagonal holes		Iron, nickel plating2
Bolts M4 × 30 with
hexagonal holes		Iron, nickel plating1
Phillips screws M3 ×
12 (with spring and
plain washers)		Stainless steel
(SUS304)		2
Spring washer M4Iron, nickel plating1
Plain washer M4Iron, nickel plating1
Nuts M4Iron, nickel plating3
E39-L93VStainless
steel
(SUS304)		1Holder (upper)Heat-resistant ABS
resin		1
Holder (lower)66 nylon1
PipeStainless steel
(SUS304)		1
Bolts M4 × 12 with
Hexagonal holes		Iron, nickel plating2
Bolts M4 × 30 with
hexagonal holes		Iron, nickel plating1
Phillips screws M3 ×
12 (with spring and
plain washers)		Stainless steel
(SUS304)		2
Spring washer M4Iron, nickel plating1
Plain washer M4Iron, nickel plating1
Nuts M4Iron, nickel plating3
E39-L93XY------Holder66 nylon1E3Z (25.4)
E39-R1/E39-R3
PipeStainless steel
(SUS304)		1
Bolts M5 × 16 with
hexagonal holes		Stainless steel
(SUS304)		2
Nuts M5Stainless steel
(SUS304)		2
E39-L94Iron,
zinc plating		2Phillips screws M3 ×
10		Iron, zinc plating4E32-T16P (19)
E32-T16PR (19)
Nuts M3Iron, zinc plating4
E39-L96
For
installation
of Sensor
Adjuster
E39-L93		Stainless
steel
(SUS304)		1Phillips screws M3 ×
6 (with spring and
plain washers)		Iron, nickel plating2E39-R1
E39-L98Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 12
(with spring and plain
washers)		Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)
E39-L102Stainless
steel
(SUS304)		1Hexagonal bolts M4 ×
12 (with spring and
plain washers)		Iron, zinc plating2E3S-C (horizontal
type) (25.4) *
E39-L103Stainless
steel
(SUS304)		1Hexagonal bolts M4 ×
12 (with spring and
plain washers)		Iron, zinc plating2E3S-C (vertical type)
(25.4) *
E39-L104Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 8
(with spring and plain
washers)		Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)
E32-R21 (for
installation of
E39-R3) (25.4) *
E39-L116Stainless
steel
(SUS304)		1Nut plateStainless steel
(SUS304)		1E3T-S (9/15)
E39-L117Stainless
steel
(SUS304)		1Nut plateStainless steel
(SUS304)		1E3T-S (9/15)
E39-L118Stainless
steel
(SUS304)		1Nut plateStainless steel
(SUS304)		1E3T-S (9/15)
E39-L119Stainless
steel
(SUS304)		1---------E3T-F (8)
E39-L120Stainless
steel
(SUS304)		1---------E3T-F (8)
E39-L127-T1Iron,
zinc plating		1Phillips screws M2.3
× 8		Iron, zinc plating4E3C-S10 (7.5)
Spring washer M2.3Iron, zinc plating4
E39-L127-T2Iron,
zinc plating		1Phillips screws M2.3
× 8		Iron, zinc plating4
Spring washer M2.3Iron, zinc plating4
E39-L127-T3Iron,
zinc plating		1Phillips screws M2.3
× 8		Iron, zinc plating4
Spring washer M2.3Iron, zinc plating4
E39-L142Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 8
(with spring and plain
washers)		Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)
E39-L143Stainless
steel
(SUS304)		1None------E3NX-CA
E3NX-FA
E3X-DA-S/MDA
E3NC-LA
E3NC-SA
E2CY-SD
E9NC-TA
E3X-NA
E3C-LDA
E2C-EDA
E4C-UDA
E39-L144Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 12
(with spring and plain
washers)		Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)
E39-L148Stainless
steel
(SUS304)		1None------E3X-NA
E39-L149Iron,
black coating		1None------E3Z-G

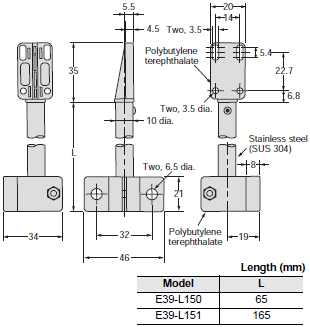

E39-L150Stainless
steel
(SUS304)		1Holder/bracketPBT (polybutylene
terephthalate)		1E3Z (25.4)
E3S-R6[]/R8[] (20)
E39-R3
Shaft (brace)Stainless steel
(SUS304)		1
Bolt with hexagonal
hole		Stainless steel
(SUSXM7)		1
NutStainless steel
(SUS304)		1
Phillips screwStainless steel
(SUSXM7)		1
Slotted/Phillips
screws		Stainless steel
(SUS304)		2
E39-L151Stainless
steel
(SUS304)		1Holder/bracketPBT (polybutylene
terephthalate)		1E3Z (25.4)
E3S-R6[]/R8[] (20)
E39-R3
Shaft (brace)Stainless steel
(SUS304)		1
Bolt with hexagonal
hole		Stainless steel
(SUSXM7)		1
NutStainless steel
(SUS304)		1
Phillips screwStainless steel
(SUSXM7)		1
Slotted/Phillips screwsStainless steel
(SUS304)		2
E39-L153Stainless
steel
(SUS304)		1Slotted/Phillips
screws M3 × 8
(with spring and plain
washers)		Stainless steel
(SUSXM7)
Stainless steel
(SUS304)		2E3Z pre-wired
model (25.4)

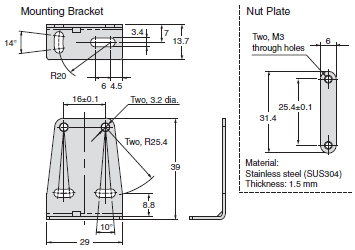

E39-L166Stainless
steel
(SUS304)		1Nut plateStainless steel
(SUS304)		1E3T-S[][]M (13/16)
E39-L167Stainless
steel
(SUS304)		1---------E3T-FD[][]M (8)
E39-L168PBT
(polybutylene
terephthalate)		1---------E3T-FD[][]M
E39-L180Stainless
steel
(SUS304)		1Phillips screwStainless steel2ZX1-LD50[]
ZX1-LD100[]
Nut plateStainless steel1
E39-L181Stainless
steel
(SUS304)		1Phillips screwStainless steel2ZX1-LD300[]
ZX1-LD600[]
Nut plateStainless steel1
E39-L185Stainless
steel
(SUS304)		1Phillips screwStainless steel2E3NC-LH02
Nut plateStainless steel1
E39-L186Stainless
steel
(SUS304)		1Phillips screwStainless steel2E3NC-LH01
Nut plateStainless steel1
E39-L187Stainless
steel
(SUS304)		1Phillips screwStainless steel2E3NC-SH250H
E3NC-SH250
E3NC-SH100
Nut plateStainless steel1
E39-L188Stainless
steel
(SUS304)		1Phillips screwStainless steel2E3NC-SH250H
E3NC-SH250
E3NC-SH100
Nut plateStainless steel1
E39-L190Stainless
steel
(SUS304)		1Phillips screwStainless steel2E3NC-LH03
Nut plateStainless steel1

Slits

ModelSlit widthInstallation procedureApplicable type
E39-S39Width 1 × 20 mmSeal typeE3JM-10[]4(T)-N
E39-S61Width 0.5, 1, 2, 4 × 11 mmPlug-in typeE3S-CT[]1
E39-S630.5-mm dia., 1 mmE3T-ST1[]
E39-S640.5-mm dia., 1 mmE3T-FT1[]
E39-S65A0.5 mm dia.E3Z-T[][]
E39-S65B1-mm dia.
E39-S65C2-mm dia.
E39-S65DWidth 0.5 × 10 mm
E39-S65EWidth 1 × 10 mm
E39-S65FWidth 2 × 10 mm
E39-S68Width 0.5, 1 × 13.4 mmSeal typeE32-T16P *
E32-T16PR *
E39-S76A0.5-mm dia.Plug-in typeE3T-ST[]M
E39-S76B1-mm dia.

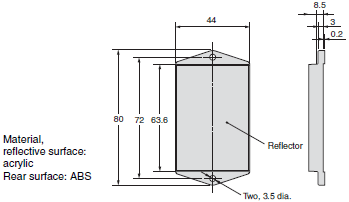

Reflectors

NameReflectorsNon-fogging
reflective
plate		ReflectorsSpecial Reflector for
E3ZM-B
ModelE39-
R1		E39-
R1S		E39-R1KE39-R2E39-
R6		E39-
R10		E39-
RP1		E39-
RSP1		E39-RP37
Directional angle30° min. *130°min. *230° min.
Ambient operating
temperature range		-25 to 55°C-40 to
60°C		-25 to 55°C
Ambient storage
temperature range		-40 to 70°C-40 to 55°C-40 to 70°C0 to 40°C
Ambient operating
humidity range		35% to 85%35% to
95%		35% to 85%
Ambient storage
humidity range		35% to 95%35% to 85%
Degree of
protection		IEC IP67---
Accessories---Phillips screws
M3 × 8, spring
washers M3,
nuts M3

NameSmall reflectorTape reflector *
ModelE39-R9E39-R3E39-R4E39-R37-CA *E39-RS1
E39-RS1-CA		E39-RS2
E39-RS2-CA		E39-RS3
E39-RS3-CA
Directional angle30° min.
Ambient operating
temperature range		-25 to 55°C
Ambient storage
temperature range		-40 to 70°C0 to 40°C
Ambient operating
humidity range		35% to
95%		35% to 85%
Ambient storage
humidity range		35% to 95%35% to 85%
Degree of protectionIEC IP67
Accessories---Mounting
Brackets
E39-L104
(with screws)		---Phillips screws
M3 × 8, spring
washers M3,
nuts M3		---
* Models ending in the suffix “-CA” are reflectors only for E3T-SR4[].

NameLaser Reflectors
StandardShort-distance transpar-
ent object detection		Sheets
ModelE39-R12E39-R13E39-R14E39-RS4E39-RS5
Ambient operating
temperature range		-10 to 55°C (No icing)
Ambient storage
temperature range		-25 to 70°C (No icing)
Ambient operating
humidity range		35 to 85% (No condensation)
Ambient storage
humidity range		35 to 85% (No condensation)

last update: February 8, 2018


OMRON E39-L / -S / -R catalog

E39-L / -S / -R Mounting Brackets, Slits, Reflectors/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
E39-L/-S/-R Data Sheet -
[2530KB] 		Mar 01, 201820180301 E39-L/-S/-R Data Sheet


OMRON E39-L / -S / -R dimension

E39-L / -S / -R Mounting Brackets, Slits, Reflectors/Dimensions

last update: March 1, 2018

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Mounting Bracket Dimensions

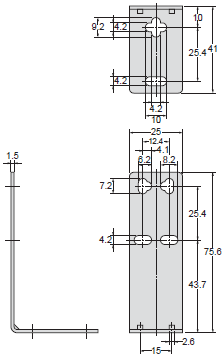

E39-L31

E39-L / -S / -R Dimensions 3

Material: Iron

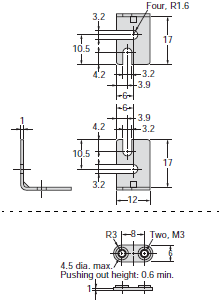

E39-L40

E39-L / -S / -R Dimensions 4

Material: Iron

E39-L41

E39-L / -S / -R Dimensions 5

Material: Iron

E39-L42

E39-L / -S / -R Dimensions 6

Material: Iron

E39-L43

E39-L / -S / -R Dimensions 7

Material: Stainless steel (SUS304)

E39-L44

E39-L / -S / -R Dimensions 8

Material: Stainless steel (SUS304)

E39-L51

E39-L / -S / -R Dimensions 9

Material: Iron

E39-L53

E39-L / -S / -R Dimensions 10

Material: Iron

E39-L54V

E39-L / -S / -R Dimensions 11

Material: Stainless steel (SUS304)

E39-L83

E39-L / -S / -R Dimensions 12

Material: Stainless steel (SUS304)

E39-L85

E39-L / -S / -R Dimensions 13

Material: Stainless steel (SUS304)

E39-L86

E39-L / -S / -R Dimensions 14

Material: Stainless steel (SUS304)

E39-L87

E39-L / -S / -R Dimensions 15

Material: Stainless steel (SUS304)

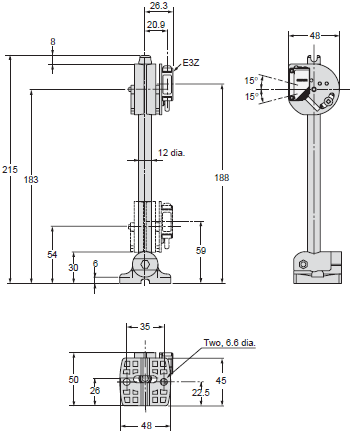

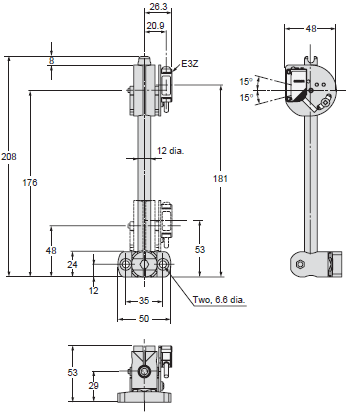

E39-L93FH

E39-L / -S / -R Dimensions 16

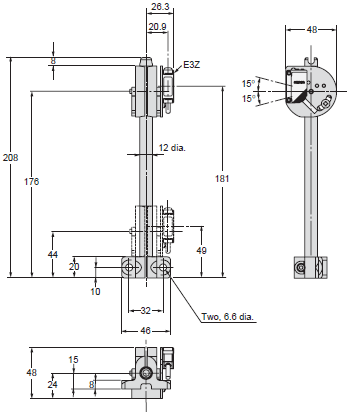

E39-L93FV

E39-L / -S / -R Dimensions 17

E39-L93H

E39-L / -S / -R Dimensions 18

E39-L93V

E39-L / -S / -R Dimensions 19

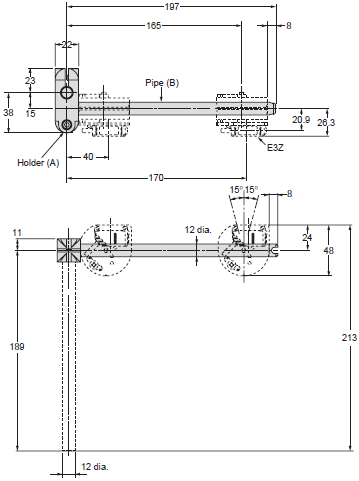

E39-L93XY

E39-L / -S / -R Dimensions 20

Note: The E39-L93XY consists of only the one joint holder (A) and pipe, and the two hexagonal bolts and nuts. It cannot
          be mounted to the Sensor alone.

E39-L94

E39-L / -S / -R Dimensions 21

Material: Iron

E39-L96

E39-L / -S / -R Dimensions 22

Material: Stainless steel (SUS304)
2-mm-thick

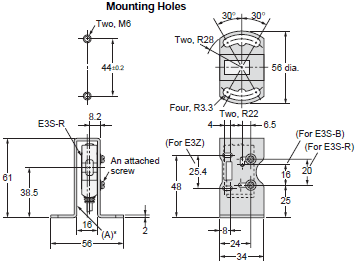

E39-L98

E39-L / -S / -R Dimensions 23

* Mounting Bracket can be attached to side (A)
Material: Stainless steel (SUS304)

E39-L102

E39-L / -S / -R Dimensions 24

Material: Stainless steel (SUS304)

E39-L103

E39-L / -S / -R Dimensions 25

Material: Stainless steel (SUS304)

E39-L104

E39-L / -S / -R Dimensions 26

Material: Stainless steel (SUS304)

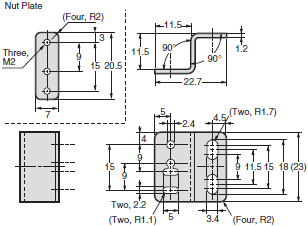

E39-L116

E39-L / -S / -R Dimensions 27

Material: Stainless steel (SUS304)
1.2-mm-thick

E39-L117

E39-L / -S / -R Dimensions 28

Material: Stainless steel (SUS304)
1.2-mm-thick

E39-L118

E39-L / -S / -R Dimensions 29

Material: Stainless steel (SUS304)
1.2-mm-thick

E39-L119

E39-L / -S / -R Dimensions 30

Material: Stainless steel (SUS304)
1.2-mm-thick

E39-L120

E39-L / -S / -R Dimensions 31

Material: Stainless steel (SUS304)
1.2-mm-thick

E39-L127-T1, E39-L127-T2, E39-L127-T3

E39-L / -S / -R Dimensions 32

Material: Iron

E39-L142

E39-L / -S / -R Dimensions 33

Material: Stainless steel (SUS304)

E39-L143

E39-L / -S / -R Dimensions 34

Material: Stainless steel (SUS304)

E39-L144

E39-L / -S / -R Dimensions 35

Material: Stainless steel (SUS304)

E39-L148

E39-L / -S / -R Dimensions 36

Material: Stainless steel (SUS304)

E39-L149

E39-L / -S / -R Dimensions 37

Material: Iron

E39-L150
E39-L151

E39-L / -S / -R Dimensions 38

E39-L153

E39-L / -S / -R Dimensions 39

Material: Stainless steel (SUS304)

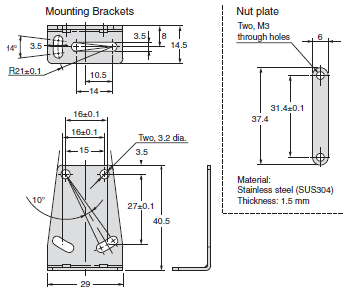

E39-L166

E39-L / -S / -R Dimensions 40

Material: Stainless steel (SUS304)
1.2-mm-thick

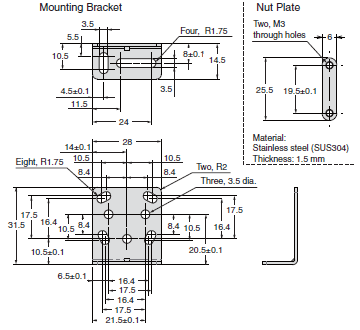

E39-L167

E39-L / -S / -R Dimensions 41

Material: Stainless steel (SUS304)
1.5-mm-thick

E39-L168

E39-L / -S / -R Dimensions 42

Note: Use this Spacer when mounting the Sensor from the back.
Material: Polybutylene terephthalate

E39-L180

E39-L / -S / -R Dimensions 43

Material: Stainless steel (SUS304)
2.0-mm-thick
Accessories: Phillips screws (2) (M3 ✕ 30, P=0.5, Stainless), Nut plate (1)

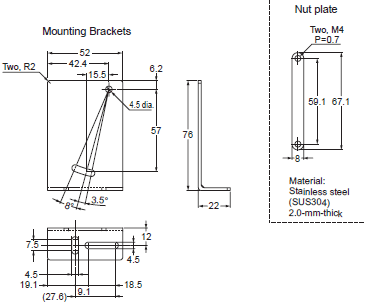

E39-L181

E39-L / -S / -R Dimensions 44

Material: Stainless steel (SUS304)
2.0-mm-thick
Accessories: Phillips screws (2) (M4 ✕ 35, P=0.7, Stainless), Nut plate (1)

E39-L185

E39-L / -S / -R Dimensions 45

Material: Stainless steel (SUS304)
Thickness: 1.2 mm
Accessories: Phillips screws (2) (M3 ✕ 18, P=0.5, Stainless) Nut plate (1)

E39-L186

E39-L / -S / -R Dimensions 46

Material: Stainless steel (SUS304)
Thickness: 1.2 mm
Accessories: Phillips screws (2) (M3 ✕ 18, P=0.5, Stainless) Nut plate (1)

E39-L187

E39-L / -S / -R Dimensions 47

Material: Stainless steel (SUS304)
Thickness: 1.2 mm
Accessories: Phillips screws (2) (M3 ✕ 18, P=0.5, Stainless) Nut plate (1)

E39-L188

E39-L / -S / -R Dimensions 48

Material: Stainless steel (SUS304)
Thickness: 1.2 mm
Accessories: Phillips screws (2) (M3 ✕ 18, P=0.5, Stainless) Nut plate (1)

E39-L190

E39-L / -S / -R Dimensions 49

Material: Stainless steel (SUS304)
Thickness: 1.2 mm
Accessories: Phillips screws (2) (M3 ✕ 18, P=0.5, Stainless) Nut plate (1)

Reflector dimensions

E39-R1, E39-R1S, E39-R1K*

E39-L / -S / -R Dimensions 51

Material,
reflective surface: acrylic
Rear surface: ABS
* E39-R1K only
    Coating on reflective surface

E39-R2

E39-L / -S / -R Dimensions 52

Material,
reflective surface: acrylic
Rear surface: ABS

E39-R3

E39-L / -S / -R Dimensions 53

Material,
reflective surface: acrylic
Rear surface: ABS

E39-R4

E39-L / -S / -R Dimensions 54

Material,
reflective surface: acrylic
Rear surface: ABS

E39-R6

E39-L / -S / -R Dimensions 55

Material,
reflective surface: acrylic
Rear surface: ABS

E39-R9

E39-L / -S / -R Dimensions 56

Material,
reflective surface: acrylic
Rear surface: ABS

E39-R10

E39-L / -S / -R Dimensions 57

Material,
reflective surface: acrylic
Rear surface: ABS

E39-R37-CA

E39-L / -S / -R Dimensions 58

Material:
Mounting plate: stainless steel (SUS301)
Reflective surface: acrylic
Note: The reflective plate and mounting plate (1) come as a set.
          Reflectors only for E3T-SR4[].

Retroreflector for E3ZM-B
E39-RP1

E39-L / -S / -R Dimensions 59

Retroreflector for E3ZM-B
E39-RP37

E39-L / -S / -R Dimensions 60

Material:
Reflective surface: acrylic
Mounting plate: stainless steel (SUS301)
Note: The reflective plate and mounting plate (1) come as a set.

Retroreflector for E3ZM-B
E39-RSP1

E39-L / -S / -R Dimensions 61

E39-RS1
E39-RS1-CA *1

E39-L / -S / -R Dimensions 62

Material: Acrylics

E39-RS2
E39-RS2-CA *1

E39-L / -S / -R Dimensions 63

Material: Acrylics

E39-RS3
E39-RS3-CA *1

E39-L / -S / -R Dimensions 64

Material: Acrylics

E39-R12/R14 *2

E39-L / -S / -R Dimensions 65

E39-R13 *2

E39-L / -S / -R Dimensions 66

E39-RS4 *2

E39-L / -S / -R Dimensions 67

E39-RS5 *2

E39-L / -S / -R Dimensions 68

*1. Models ending in the suffix “-CA” are reflectors only for E3T-SR4[].
*2. These Reflectors are for E3C-LDA-series Sensors. However, the E39-R12 can also be used with an E3Z-LR[]
       Retroreflective Laser Sensor.

E39-R21 *3

E39-L / -S / -R Dimensions 70

Material, reflective surface: methacrylic resin (PMMA)
Rear surface: Polybutylene terephthalate (PBT)

E39-R22 *3

E39-L / -S / -R Dimensions 71

Material, reflective surface: methacrylic resin (PMMA)
Rear surface: Polybutylene terephthalate (PBT)

E39-RS10 *3

E39-L / -S / -R Dimensions 72

Material, reflective surface: acrylic

E39-RS11 *3

E39-L / -S / -R Dimensions 73

Material, reflective surface: acrylic

*3. Models only for E3NC-LH03

last update: March 1, 2018


Return to OMRON
