• Easy maintenance with building-block Relay Units.

• Easy identification of operating status with LED operation indicator.

• Lineup includes models for tropical regions and for high temperatures. Achieve stable detection even in hightemperature environments.

last update: December 19, 2013

Purchase the OMRON Floatless Level Controllers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON 61F-G[] Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 61F-G[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 61F-G[]Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

OS32C Safety Laser Scanner/Features
NYB Industrial PC Platform NY-series Industrial Box PC/Features
K6CM Motor Condition Monitoring Device/Features
E2EQ Spatter-resistant Proximity Sensor/Features
CJ1 CJ1 Overview/Features

OMRON 61F-G[] lineup
61F-G[] Floatless Level Switch (Basic Type)/Lineup
last update: April 2, 2018

Type Set contents General-purpose Long-distance,
2 km Long-distance,
4 km High-sensitivity
Model Model Model Model
Application G 61F-G Base x 1
61F-11[] Units x 1 61F-G * 61F-GL 2KM * 61F-GL 4KM * 61F-GH *
Application G1 61F-G1 Base x 1
61F-11[] Units x 2 61F-G1 * 61F-G1L 2KM 61F-G1L 4KM 61F-G1H *
Application G2 61F-G2 Base x 1
61F-11[] Units x 2 61F-G2 * 61F-G2L 2KM * 61F-G2L 4KM * 61F-G2H *
Application G3 61F-G3 Base x 1
61F-11[] Units x 3 61F-G3 * 61F-G3L 2KM 61F-G3L 4KM 61F-G3H *
Application G4 61F-G4 Base x 1
61F-11[] Units x 5
MK3P Relay x 1 61F-G4 * 61F-G4L 2KM 61F-G4L 4KM * 61F-G4H *
Application I 61F-I Base x 1
61F-11[] Units x 2 61F-I * 61F-IL 2KM 61F-IL 4KM 61F-IH
Relay Unit 61F-11[] Units x 1 61F-11 61F-11L 2KM 61F-11L 4KM 61F-11H

Type Set contents Low-sensitivity 2-wire Tropical
environments High-temperature
Model Model Model Model
Application G 61F-G Base x 1
61F-11[] Units x 1 61F-GD 61F-GR 61F-G-TDL * 61F-GT *
Application G1 61F-G1 Base x 1
61F-11[] Units x 2 61F-G1D 61F-G1R 61F-G1-TDL * 61F-G1T
Application G2 61F-G2 Base x 1
61F-11[] Units x 2 61F-G2D 61F-G2R 61F-G2-TDL * 61F-G2T *
Application G3 61F-G3 Base x 1
61F-11[] Units x 3 61F-G3D 61F-G3R 61F-G3-TDL * 61F-G3T
Application G4 61F-G4 Base x 1
61F-11[] Units x 5
MK3P Relay x 1 61F-G4D 61F-G4R 61F-G4-TDL * 61F-G4T
Application I 61F-I Base x 1
61F-11[] Units x 2 61F-ID * --- 61F-I-TDL * 61F-IT
Relay Unit 61F-11[] Units x 1 61F-11D 61F-11R --- 61F-11T

Note: 1. When ordering, specify the desired operating voltage at the end of the model number.

2. If you order with a standard model number, the corresponding Relay Units are also delivered as part of a set.
If you order the 61F-G, one 61F-11 Relay Unit is included in the set.
* Orders will not be accepted after March 31, 2018. Refer to the following table for the discontinued power supply voltages.

61F-G G G1 G2 G3 G4 I
Voltage Model Model Model Model Model Model
120/240 V 61F-G *
120/240 VAC 61F-G1 *
120/240 VAC 61F-G2 *
120/240 VAC 61F-G3 *
120/240 VAC 61F-G4 *
120/240 VAC 61F-I *
120/240 VAC
115/230 V 61F-G2 *
115/230 VAC 61F-G3 *
115/230 VAC 61F-G4 *
115/230 VAC 61F-I *
115/230 VAC
200/220 V 61F-G *
200/220VAC 61F-I *
200/220 VAC
220/380 V 61F-G *
220/380 VAC 61F-G1 *
220/380 VAC 61F-G2 *
220/380 VAC 61F-G3 *
220/380 VAC 61F-G4 *
220/380 VAC 61F-I *
220/380 VAC
120/240 V 61F-GL *
120/240 VAC 2KM 61F-G2L *
120/240 VAC 2KM
120/240 V 61F-GL *
120/240 VAC 4KM 61F-G2L *
120/240 VAC 4KM 61F-G4L *
120/240 VAC 4KM
120/240 V 61F-GH *
120/240 VAC 61F-G1H *
120/240 VAC 61F-G2H *
120/240 VAC 61F-G3H *
120/240 VAC 61F-G4H *
120/240 VAC
115 V 61F-ID *
115 VAC
120/240 V 61F-GT *
120/240 VAC
120/240 V 61F-G2T *
120/240 VAC
100/200 V 61F-G-TDL *
100/200 VAC 61F-G1-TDL *
100/200 VAC 61F-G2-TDL *
100/200 VAC 61F-G3-TDL *
100/200VAC 61F-G4-TDL *
100/200 VAC 61F-I-TDL *
100/200 VAC
110/220 V 61F-G-TDL *
110/220 VAC 61F-G1-TDL *
110/220 VAC 61F-G2-TDL *
110/220 VAC 61F-G3-TDL *
110/220 VAC 61F-G4-TDL *
110/220 VAC

* Discontinued at the end of March 2018

last update: April 2, 2018

OMRON 61F-G[] catalog
61F-G[] Floatless Level Switch (Basic Type)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

61F-G[] Data Sheet -
[2059KB] Apr 02, 201820180402 61F-G[] Data Sheet

Device Selection Guide for Water Level Control Applications N217-E1-01
[2428KB] Jun 12, 201720170612 Device Selection Guide for Water Level Control Applications

OMRON 61F-G[] dimension
61F-G[] Floatless Level Switch (Basic Type)/Dimensions
last update: September 24, 2012

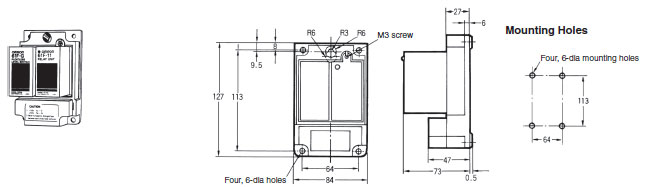

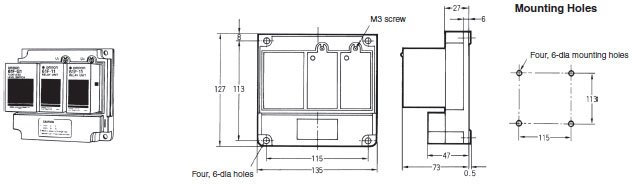

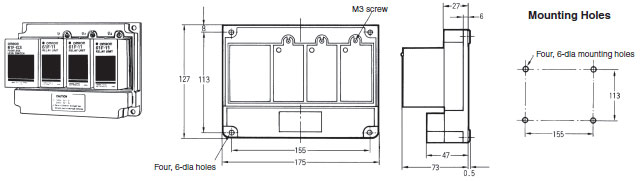

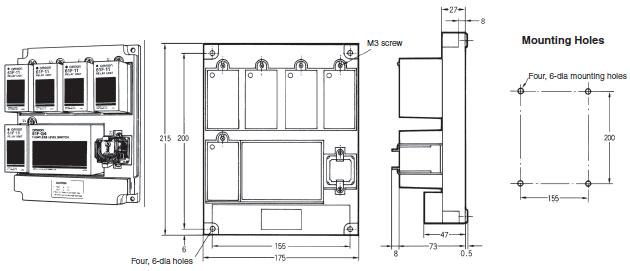

Standard Models
