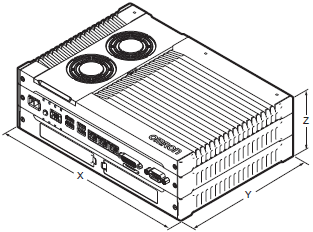

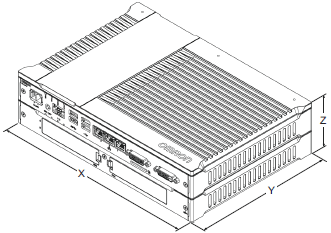

OMRON NYB Dimensions

/Images/l_3631-25-266149-198x198.jpg

last update: June 1, 2018

Industrial PC

Powerful. Tough. Future proof.

Powerful, reliable, scalable - and tough as they come

Our NY Industrial PC has been designed from first principles to be powerful, reliable and scalable, making it ideally suited to visualization, data handling, measuring and controlling. We’ve simplified the design and build to eliminate faults caused by complexity and, with other unique design features, to maximize uptime and reduce costs. The future will be IT driven: Omron’s IPC platform will make you part of it.

Performance

• Based on Intel® Celeron® to Intel® Xeon® processors
• Up to 32 GB ECC(DDR4 SDRAM) supported
• Intel® Iris™ Pro Graphics or Intel® HD Graphics
• Unique heatsink effectiveness
• RoHS Directive (2002/95/EC), EU Directives, KC Registration, RCM, cULus, EAC

Simplicity improves reliability

Unnecessary complexity causes problems, so we’ve eliminated it totally, to improve reliability, maximize performance.
• No internal cables
• No complex heatpipes
• Structurally uniform mechanics to enable future expansion
• Reduced assembly, maintenance and labor costs
• Rock-solid architecture. Die-cast aluminum case

Industrial Panel PC: very stylish…

Our industrial-quality touchscreen panel PC’s and monitors enable operator and maintenance engineer to interact more effectively with the machine. The touchscreen controller can detect non-standard actions such as false touches, palm rejection, water and cleaning - even if the user is wearing gloves.*1

A few details…

• 12.1 & 15.4 Inch industrial display
• Multi-touch, using the latest projected capacitive technology
• False touch detection
• Glove operation*1
• Easy built-in supportive mounting

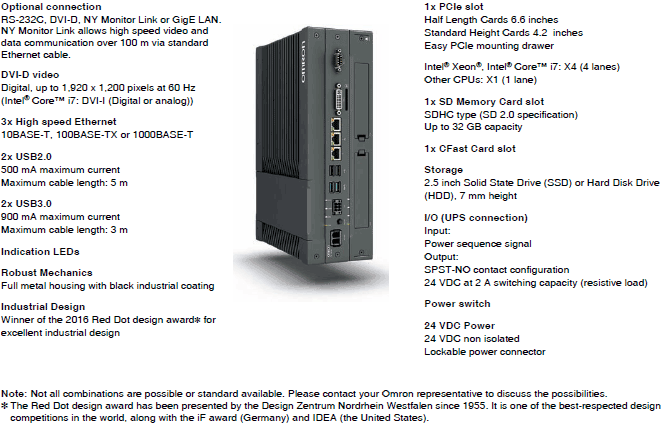

Industrial Box PC

*1. When using gloves, ensure to use gloves that are functional with this touchscreen.
*2. Industrial Monitor won the iF Design Award 2016. The iF Product design Award, presented by Hannover-based
International Forum Design GmbH, is one of the world’s most prestigious design awards.
*3. An optional CFast Card slot is located at the rear side of the base layer.

Sysmac is a trademark or registered trademark of OMRON Corporation in Japan and other countries for OMRON factory automation products.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/ or other countries.
EtherCAT® is a registered trademark of Beckhoff Automation GmbH for their patented technology.
EtherNet/IPTM, DeviceNetTM are trademarks of the ODVA.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
The SD and SDHC logos are trademarks of SD-3C, LLC.
CFAST is a registered trademark of CompactFlash Association.
Intel, Celeron and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
The product photographs and figures that are used in this document may vary somewhat from the actual products.

last update: June 1, 2018

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON NYB Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NYB We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NYBAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NS Series Programmable Terminals/Features
NX701-1[]20 NX-Series NX701 Database Connection CPU Units/Features
61F-GP-N2 Conductive Level Controller/Features
XWT-[]D08(-1) / []D16(-1) Expansion Units/Features
DRT2-[]D08(-1) / []D16(-1) Transistor Remote I/O Terminals/Features

OMRON NYB catalog
NYB Industrial PC Platform NY-series Industrial Box PC/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

NYB Data Sheet -
[1647KB] Nov 01, 201820181101 NYB Data Sheet

Industrial PC Platform Catalog P118-E1-06
[24126KB] Jun 01, 201820180601 Industrial PC Platform Catalog

Industrial PC Platform NY Monitor Link Catalog P126-E1-01
[1281KB] Dec 11, 201720171211 Industrial PC Platform NY Monitor Link Catalog

Industrial PC Platform NY Series Flyer P133-E1-01
[901KB] May 07, 201820180507 Industrial PC Platform NY Series Flyer

FA Controller Catalog P090-E1-07
[18214KB] Aug 20, 201820180820 FA Controller Catalog

OMRON NYB specification
NYB Industrial PC Platform NY-series Industrial Box PC/Specifications
last update: November 1, 2018
Performance Specifications

Item NYB1E-
[][][][][] NYB17-
[][][][][] NYB25-
[][][][][] NYB1C-
[][][][][]
Main
system CPU CPU type Intel® Xeon®
E3-1515M v5 Intel® Core™
i7-4700EQ Intel® Core™
i5-4300U Intel® Celeron®
Processor 2980U
Cores/Threads 4 / 8 4 / 8 2 / 4 2 / 2
CPU base
frequency 2.8 GHz 2.4 GHz 1.9 GHz 1.6 GHz
Maximum turbo
frequency 3.7 GHz 3.4 GHz 2.9 GHz -
Cache 8 MB 6 MB 3 MB 2 MB
Cooling details Requires active
cooling (fan) Requires active
cooling (fan) Passive cooling (fanless)
Memory Memory size *1 8, 16 or 32 GB 4, 8 or 16 GB 2, 4 or 8 GB 2, 4 or 8 GB
Memory type DDR4 (ECC
is available) DDR3L (non ECC)
Trusted platform module
(TPM) Available
Graphics controller Intel® Iris™ Pro
Graphics. Up to
two independent
screens. Intel® HD Graphics. Up to two
independent screens.
Intel® Iris™ Pro
Graphics P580 Intel® HD
Graphics 4600 Intel® HD
Graphics 4400 Intel® HD
Graphics
Watchdog Yes
Operating
system Windows OS Windows 10 IoT
Enterprise
- 64 bit Windows Embedded Standard 7 - 32 bit
Windows Embedded Standard 7 - 64 bit
Windows 10 IoT Enterprise - 64 bit
Storage
devices Drives *1 Hard disk drive • 320 GB, 500 GB, 1 TB
Serial ATA 3.0 • 320 GB
Serial ATA 3.0
Solid
state
drive SLC type • 64 GB
Serial ATA 3.1 • 32 GB and 64 GB
Serial ATA 3.1
MLC type • 128 GB,
500 GB
Serial ATA 3.1 • 128 GB
Serial ATA 3.1
Drive bays (HDD/SSD) *2 2 2 2 1
Connectors Power connector 24 VDC
I/O connector 2 inputs (UPS signal and power OFF control) and 1 output (Industrial
Box PC power state)
USB2.0
Type-A Number of ports 2
Maximum
current 500 mA
Maximum cable
length 5 m
USB3.0
Type-A Number of ports 2
Maximum
current 900 mA
Maximum cable
length 3 m
Ethernet
connectors Number of ports 3
Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I
connector Video interface Digital or analog Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI
cable length Dependent upon connected monitor type and resolution
Optional
connector
(select one
per system) RS-232C Standard DSUB9 connector (Non-Isolated)
DVI-D Video interface Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI
cable length Dependent upon connected monitor type and resolution
NY Monitor
Link Video interface Digital only
Resolution 1,280 x 800 pixels at 60 Hz
Connector type RJ45
Cable shielding,
type and max.
length S/FTP, Cat.6A, 100 m
USB data
throughput 280 Mbps max.
GigE LAN Physical layer 10BASE-T, 100BASE-TX or
1000BASE-T -
PCIe Card
Slot Configuration X4 (4 lanes) up to Gen 3 X1 (1 lane) up to Gen 2
Card height Standard height cards, 4.20 inches (106.7 mm) *3
Card length Half length cards, 6.6 inches (167.65 mm)
Battery Model CJ1W-BAT01
Service life 5 years at 25°C
Fan unit Model NY000-AF00 No fan unit
Service life 70,000 hours of continuous
operation at 40°C with 15% to
65% relative humidity -
LED PWR, ERR, HDD, RUN

Item NYB35-
[]1[][][] NYB2C-
[]1[][][] NYB35-
[]0[][][] NYB2C-
[]0[][][]
Main
system CPU CPU type Intel® Core™
i5-7300U Intel® Celeron®
Processor 3965U Intel® Core™
i5-7300U Intel® Celeron®
Processor 3965U
Cores/Threads 2 / 4 2 / 2 2 / 4 2 / 2
CPU base
frequency 2.6 GHz 2.2 GHz 2.6 GHz 2.2 GHz
Maximum turbo
frequency 3.5 GHz - 3.5 GHz -
Cache 3 MB 2 MB 3 MB 2 MB
Cooling details Passive cooling (fanless) Passive cooling (fanless)
Memory Memory size *1 4 or 8 GB 4 or 8 GB 8 or 16 GB 4 or 8 GB
Memory type DDR4 (non ECC) DDR4 (non ECC)
Trusted platform module
(TPM) Available
Graphics controller Intel® HD Graphics. Up to two
independent screens. Intel® HD Graphics. Up to
two independent screens.
Intel® HD
Graphics 620 Intel® HD
Graphics 610 Intel® HD
Graphics 620 Intel® HD
Graphics 610
Watchdog Yes
Operating
system Windows OS Windows 10 IoT Enterprise - 64 bit Windows 10 IoT Enterprise - 64 bit
Storage
devices Drives *1 Hard disk drive • 320 GB
Serial ATA 3.0 N/A
Solid
state
drive SLC type • 64 GB
Serial ATA 3.1 N/A
MLC type • 128 GB
Serial ATA 3.1 • 64 GB, 128 GB, 256 GB
Serial ATA 3.1
Drive bays (HDD/SSD) *2 2 2 CFast slot CFast slot
Connectors Power connector 24 VDC
I/O connector 2 inputs (UPS signal and power OFF control) and 1 output (Industrial
Box PC power state)
USB2.0
Type-A Number of ports 2
Maximum
current 500 mA
Maximum cable
length 5 m
USB3.0
Type-A Number of ports 2
Maximum
current 900 mA
Maximum cable
length 3 m
Ethernet
connectors Number of ports 3
Physical layer 10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I
connector Video interface Digital only
Resolution Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI
cable length Dependent upon connected monitor type and resolution
Optional
connector
(select one
per system) RS-232C Standard DSUB9 connector (Non-
Isolated) N/A
DVI-D Video interface Digital only N/A
Resolution Up to 1,920 x 1,200 pixels at 60 Hz N/A
Maximum DVI
cable length Dependent upon connected
monitor type and resolution N/A
NY Monitor
Link Video interface Digital only
Resolution 1,280 x 800 pixels at 60 Hz
Connector type RJ45
Cable shielding,
type and max.
length S/FTP, Cat.6A, 100 m
USB data
throughput 280 Mbps max.
GigE LAN Physical layer -
PCIe Card
Slot Configuration X2 (2 lanes) up to Gen 3 N/A
Card height Standard height cards, 4.20 inches
(106.7 mm) *3 N/A
Card length Half length cards, 6.6 inches
(167.65 mm) N/A
Battery Model Non replaceable battery
Service life 10 years at 40°C
Fan unit Model No fan unit
Service life -
LED PWR, ERR, HDD, RUN

*1. Not all combinations are possible or standard available. Please contact your Omron representative to discuss the
possibilities.
*2. Depending on the model one or two drives are supported.
*3. Low profile cards, 2.536 inches (64.4 mm) are not supported.

Electrical Specifications

Item NYB1E-[][][][][] NYB17-[][][][][] NYB25-[][][][][] NYB1C-[][][][][]
CPU type Intel® Xeon®
E3-1515M v5 Intel® Core™
i7-4700EQ CPU Intel® Core™
i7-4700EQ CPU Intel® Celeron®
2980U CPU
Rated power supply voltage 24 VDC, non-isolated
Allowable power supply
voltage range 20.4 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category JIS B3502 and IEC 61131-2: Category II
EMC immunity level IEC 61131-2: Zone B
RTC accuracy At ambient temperature of 55°C: -3.5 to +0.5 min error per month
At ambient temperature of 25°C: -1.5 to +1.5 min error per month
At ambient temperature of 0°C: -3 to +1 min error per month
Power button life 100,000 operations
Battery life 5 years at 25°C (for battery CJ1W-BAT01)
Fan life 8 years of continuous operation at
40°C - -
Power consumption * -
Maximum power consumption
including drives and expansions 121 W 114 W 75 W 66 W
Maximum power consumption
excluding drives and expansions 86 W 81 W 52 W 45 W
Drives -
HDD 320 GB 2 W
HDD 500 GB 2 W
HDD 1 TB 2 W
SSD SLC 32 GB 2 W
SSD SLC 64 GB 2 W
SSD MLC 128 GB 2 W
SSD MLC 500 GB 3 W
CFast MLC 64 GB -
CFast MLC 128 GB -
CFast MLC 256 GB -
Expansions -
USB 14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe 15 W max. 15 W max. 5 W max. 5 W max.

Item NYB35-[]1[][][] NYB2C-[]1[][][] NYB35-[]0[][][] NYB2C-[]0[][][]
CPU type Intel® Core™
i5-7300U Intel® Celeron®
Processor 3965U Intel® Core™
i5-7300U Intel® Celeron®
Processor 3965U
Rated power supply voltage 24 VDC, non-isolated
Allowable power supply voltage
range 20.4 to 28.8 VDC
Grounding method Ground to less than 100 Ω
Inrush current At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category JIS B3502 and IEC 61131-2: Category II
EMC immunity level IEC 61131-2: Zone B
RTC accuracy At ambient temperature of 55°C: -3.5 to +0.5 min error per month
At ambient temperature of 25°C: -1.5 to +1.5 min error per month
At ambient temperature of 0°C: -3 to +1 min error per month
Power button life 100,000 operations
Battery life 10 years at 40°C
Fan life - - - -
Power consumption * -
Maximum power consumption
including drives and expansions 69 W 50 W 61 W 42 W
Maximum power consumption
excluding drives and expansions 46 W 27 W 46 W 27 W
Drives -
HDD 320 GB 2 W - -
HDD 500 GB 2 W - -
HDD 1 TB 2 W - -
SSD SLC 32 GB 2 W - -
SSD SLC 64 GB 2 W - -
SSD MLC 128 GB 2 W - -
SSD MLC 500 GB 3 W - -
CFast MLC 64 GB - 1 W
CFast MLC 128 GB - 1 W
CFast MLC 256 GB - 1 W
Expansions -
USB 14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe 5 W max. 5 W max. - -

Note: Refer to the Industrial Box PC User’s Manual (W553) for detail.
* The total power consumption is the sum of the power consumption of all items that are installed in your Industrial Box
PC.
To guarantee S8BA UPS operation in combination with our IPC, the specified combination of UPS and power-supply must
be used.

Item Minimum power requirements
Power supply 240 W 120 W
UPS 120 W 120 W

Components and functions

The intent behind our IPC platform is to empower engineers to become unstoppable in developing machines and factories that are better, faster and safer by giving them the freedom and flexibility to explore the opportunities provided by modern IT. In line with Omron’s traditional quality standards, the Industrial Box PC is designed to meet the demands of industrial users for maximum robustness and reliability.
All maintenance sensitive products (HDD/SDD, fan, battery, and PCIe Card) can be easily reached from the outside of the system. No need to open the electronics compartment, less risk on failure.

Environmental Specifications

Item Specifications
operation
environment Ambient operating temperature
*1 0 to 55°C
Ambient storage temperature
*1 -20 to 70°C
Ambient operating humidity *1 10% to 90% with no condensation
Ambient storage humidity *1 10% to 90% with no condensation
Operating atmosphere No corrosive gases
Altitude 2,000 m max.
Noise resistance (during
operation) Conforms to IEC61000-4-4, 2kV (power lines)
Vibration resistance (during
operation) Conforms to IEC 60068-2-6.
For a product with an SSD: 5 to 8.4 Hz with 3.5 mm single amplitude
and 8.4 to 150 Hz with 9.8 m/s² for 10 times each in X, Y and Z
directions.
For a product with a HDD the vibration resistance depends on the
mounting orientation *2.
Shock resistance (during
operation) Conforms to IEC 60068-2-27.
147 m/s², 3 times in each X, Y and Z directions
Installation method Book mount, Wall mount
Pollution degree 2 or less: Conforms to JIS B3502 and IEC 61131-2.
Applicable standards *3 EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS
Directive
KC Registration, RCM, cULus, EAC

*1. The allowed ambient operating temperature and ambient humidity depend on product type, CPU type, mounting
orientation, and storage device type.
*2. Vibration resistance depends on the Industrial Box PC's mounting orientation and storage device type:

Mounting orientation SSD or CFast Card HDD
Book 9.8 m/s² 2.5 m/s²
Wall 4.9 m/s²

*3. Contact your OMRON representative for the most recent applicable standards for each model.

Storage Device Specifications

Item Specifications
Model NY000-AS00 NY000-AS01 NY000-AS02 *1 NY000-AS03 NY000-AS04 NY000-AS05
Capacity 32 GB 64 GB 128 GB 64 GB 128 GB 500 GB
Type SSD (SLC) SSD (MLC) SSD (SLC) SSD (MLC) SSD (MLC)
S.M.A.R.T. support Yes
Rotation speed - - - - - -
Interface Serial ATA 3.1
Sustained standard
read speed Up to
160 MB/s Up to
160 MB/s Up to
430 MB/s Up to
500 MB/s Up to
530 MB/s Up to
415 MB/s
Sustained standard
write speed Up to
145 MB/s Up to
150 MB/s Up to
190 MB/s Up to
370 MB/s Up to
190 MB/s Up to
200 MB/s
Operating
temperature 0 to 70°C
Operating humidity 10% to 95% (with no condensation) 10% to 85% (with
no condensation) 10% to 95%
(with no condensation)
Storage
temperature -40 to 100°C -40 to 85°C -40 to 90°C -40 to 95°C -55 to 95°C
Storage humidity 10% to 95% (with no condensation)
Life 1,500 TB
written 3,000 TB
written 114 TB
written 1900 TB
written 208 TB
written 154 TB
written

Item Specifications
Model NY000-AH00 NY000-AH01 NY000-AH02 NY000-AT00 NY000-AT01 NY000-AT02
Capacity 320 GB 500 GB 1 TB 64 GB 128 GB 256 GB
Type HDD HDD HDD CFast (MLC) CFast (MLC) CFast (MLC)
S.M.A.R.T. support Yes
Rotation speed 5,400 r/min - - -
Interface Serial ATA 3.0 Serial ATA 3.1
Sustained standard
read speed - - - Up to
530 MB/s Up to
530 MB/s Up to
530 MB/s
Sustained standard
write speed - - - Up to
100 MB/s Up to
190 MB/s Up to
210 MB/s
Operating
temperature 5 to 55°C 5 to 55°C 0 to 60°C -40 to 85°C
Operating humidity • 10% to 95% (with no condensation)
• 29°C wet-bulb temperature max. 10% to 95% (with no condensation)
Storage temperature -40 to 65°C -55 to 95°C
Storage humidity • 8% to 90% (with no condensation)
• 40°C wet-bulb temperature max. 10% to 95% (with no condensation)
Life Approximately 5 years or
20,000 powered-ON hours
(whichever comes first) under
the following conditions:
• 25°C at 101.3 kPa
• Less than 333 powered-ON
hours/month *2
• Less than 20% operation
while powered-ON *3
• Less than
1.30 x 10⁶seeks/month Average
Annualized Failure
Rate (AFR): 0.50%
Under the
following
conditions:
• Case
Temperature
40°C
• Power on Hours
(POH) ≤ 3120 125 TB
written 208 TB
written 417 TB
written

*1. Orders for NY000-AS02 will be accepted until the end of November 2018.
*2. Powered-ON hours include sleep and standby modes.
*3. Operation includes seeking, writing, and reading functions.

last update: November 1, 2018

OMRON NYB dimension
NYB Industrial PC Platform NY-series Industrial Box PC/Dimensions
last update: June 1, 2018

(Unit: mm)

NYB1E-[][][][][]
NYB17-[][][][][]
NYB25-[][][][][]
NYB1C-[][][][][]

NYB35-[][][][][]
NYB2C-[][][][][]

Bracket Specifications

The metal mounting brackets mount your Industrial Box PC and they are the connection for the functional ground.
Use metal screws with a diameter of 4 mm or 5 mm to mount the brackets.

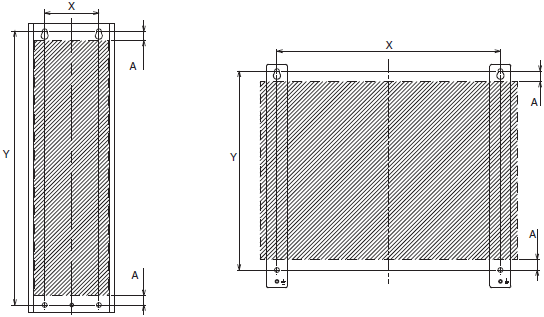

Mounting screw locations for book mount and wall mount orientation:

last update: June 1, 2018

OMRON NYB lineup
NYB Industrial PC Platform NY-series Industrial Box PC/Lineup
last update: November 1, 2018
Model Number Structure

The purpose of this model number legend is to provide understanding of the meaning of specifications from the model number.
Models are not available for all combinations of code numbers.

NY-series Industrial PC Platform
Recommended models

The industrial Box PC has extended configuration possibilities to meet your requirements, below an overview of the most used and recommended models. Selecting one of the models below will bring the benefit of faster delivery times.
In case your preferred model is not listed below, please contact your Omron representative to discuss the possibilities.

Product
name Specifications Model
Operating system CPU type RAM memory Storage size Interface
option
Industrial
Box PC Windows 10 IoT
Enterprise LTSB -
64 bit Intel® Xeon®
E3-1515M v5 8GB
(non-ECC type) 128 GB
SSD type (MLC) RS-232C NYB1E-313K1
8GB
(ECC type) NYB1E-C13K1
Intel® Core™
i7-4700EQ 8 GB
(non-ECC type) 128 GB
SSD type (MLC) RS-232C NYB17-313K1
320 GB
HDD type RS-232C NYB17-313C1
64 GB
SSD type (SLC) RS-232C NYB17-31391
Intel® Core™
i5-4300U 8 GB
(non-ECC type) 128 GB
SSD type (MLC) RS-232C NYB25-313K1
320 GB
HDD type RS-232C NYB25-313C1
Intel® Celeron™
2980U 8 GB
(non-ECC type) 128 GB
SSD type (MLC) RS-232C NYB1C-313K1
320 GB
HDD type RS-232C NYB1C-313C1
Windows Embedded
Standard 7 - 64bit Intel® Core™
i7-4700EQ 8 GB
(non-ECC type) 128 GB
SSD type (MLC) RS-232C NYB17-312K1
Intel® Core™
i5-4300U 8 GB
(non-ECC type) 128 GB
SSD type (MLC) RS-232C NYB25-312K1
Intel® Celeron™
2980U 8 GB
(non-ECC type) 320 GB
HDD type RS-232C NYB1C-312C1

Accessories
Optional Hardware

Product name Specifications Model
Mounting Brackets *1 Book mount NY000-AB00
NY000-AB02
NY000-AB04
Wall mount NY000-AB01
SD Memory Cards Card type: SD Card
Capacity: 2 GB
Format: FAT16 HMC-SD291
Card type: SDHC Card
Capacity: 4 GB
Format: FAT32 HMC-SD491
USB Flash Drives Capacity: 2 GB FZ-MEM2G
Capacity: 8 GB FZ-MEM8G
Storage Devices *2 Storage type: HDD, Capacity: 320 GB NY000-AH00
Storage type: HDD, Capacity: 500 GB NY000-AH01
Storage type: HDD, Capacity: 1 TB NY000-AH02
Storage type: SSD SLC, Capacity: 32 GB NY000-AS00
Storage type: SSD SLC (Apacer), Capacity: 64 GB NY000-AS01
Storage type: SSD MLC (Apacer), Capacity: 128 GB NY000-AS02 *4
Storage type: SSD SLC (Hagiwara), Capacity: 64 GB NY000-AS03
Storage type: SSD MLC (Innodisk), Capacity: 128 GB NY000-AS04
Storage type: SSD MLC, Capacity: 500 GB NY000-AS05
Storage type: CFast MLC, Capacity: 64 GB NY000-AT00
Storage type: CFast MLC, Capacity: 128 GB NY000-AT01
Storage type: CFast MLC, Capacity: 256 GB NY000-AT02
USB Type-A to
USB Type-B Cables Cable length: 2 m
USB 2.0
Minimum bend radius: 25 mm FH-VUAB 2M
Cable length: 5 m
USB 2.0
Minimum bend radius: 25 mm FH-VUAB 5M
DVI Cables Cable length: 2 m
Supports DVI-D
Minimum bend radius: 36 mm NY000-AC00 2M
Cable length: 5 m
Supports DVI-D
Minimum bend radius: 36 mm NY000-AC00 5M
Industrial Monitor • LCD touchscreen
• Multi-touch functionality
• Supply voltage: 24 VDC
• Up to 1,280 x 800 pixels at 60 Hz
• 2 USB Type-A Connectors
• Programmable brightness control
• Standard and 100 m cable models are available. NYM1[]W-C10[][]
Power Supply • Output voltage: 24 VDC
• Push-In Plus terminal blocks S8VK-S[][][]24
UPS *3 Output voltage during backup operation: 24 VDC ± 5% S8BA
UPS Communication Cable Cable length: 2 m
Signals for
• Signal output (BL, TR, BU, WB)
• Remote ON/OFF input
• UPS Stop Signal input (BS) S8BW-C02

*1. Select the required type:
NY000-AB00: for NYB1E, NYB17, NYB25, NYB1C, NY51[][]
NY000-AB02: for NYB35-[]1, NYB2C-[]1
NY000-AB04: for NYB35-[]0, NYB2C-[]0
*2. CFast Storage can be used only with the NYB35-[]0, NYB2C-[]0. Please contact your Omron representative to discuss
the possibilities.
*3. Revision number 04 or higher.
*4. Orders for NY000-AS02 will be accepted until the end of November 2018.

The revision number of the UPS can be retrieved from the serial number label on the product and the product packaging.

Item Description
1 Product code
2 Product period and sequential number
3 Revision number
4 RoHS status

Spare Parts

The following spare parts for the Industrial Box PC are available.

Product name Specifications Model
Battery One battery is supplied with the Industrial Box PC. The battery supplies power to
the real-time clock.
The battery is located inside the Industrial Box PC.
Service life: 5 years at 25°C CJ1W-BAT01 *
Fan Unit The Fan Unit is available for the Industrial Box PC that has active cooling.
Service life: 70,000 hours of continuous operation at 40°C with 15% to 65%
relative humidity.
Shelf life: 6 months
This is the storage limitation with no power supplied. NY000-AF00
Accessory Kit Accessory Kit containing all accessories supplied with the Industrial Box PC.
• Power connector
• I/O connector
• Drive bracket for drive installation
• 4 mounting screws for drive installation
• PCIe Card support for PCIe Card installation
• PCIe Card clip for PCIe Card installation NY000-AK00

* Only for models with replaceable battery.

Installed Support Software

Item Specifications
Industrial PC Support Utility The Industrial PC Support Utility is a software utility to assist in diagnosing and resolving
problems of the Industrial Box PC.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Tray Utility The Industrial PC Tray Utility is a software utility that provides information about the current
state of the Industrial PC, its related devices, and associated software.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC System API The Industrial PC System API allows programmers to create programs that can retrieve
information or set an indicator status of the Industrial Box PC.
The API makes use of the included IPC System Service to manage the hardware.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor Utility For the optional OMRON Industrial Monitor. The Industrial Monitor Utility provides a user
interface to control settings and display details of connected Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor
Brightness Utility For the optional OMRON Industrial Monitor. The Industrial Monitor Brightness Utility is a
small software utility that allows you to control the brightness of the screen backlight of all
connected Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor API For the optional OMRON Industrial Monitor. The Industrial Monitor API allows programmers
to create applications that can control the hardware features and retrieve information from
connected Industrial Monitors.
It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Rescue Disk
Creator The Industrial PC Rescue Disk Creator creates a USB Rescue Disk which can be used to
back-up and restore the Omron IPC Operating System. It is pre-installed on the Industrial
Box PC and the Industrial Panel PC.

last update: November 1, 2018

NO. NYB

TYPE:Industrial PC Platform Copyright Statement Copyright Statement

DATE:2021-06-13

Associated products:
NY53[]-5[]00 NY-series NC lntegrated Controller/Features NYP Industrial PC Platform NY-series Industrial Panel PC/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
NYB Data Sheet	- [1647KB]	Nov 01, 201820181101	NYB Data Sheet
Industrial PC Platform Catalog	P118-E1-06 [24126KB]	Jun 01, 201820180601	Industrial PC Platform Catalog
Industrial PC Platform NY Monitor Link Catalog	P126-E1-01 [1281KB]	Dec 11, 201720171211	Industrial PC Platform NY Monitor Link Catalog
Industrial PC Platform NY Series Flyer	P133-E1-01 [901KB]	May 07, 201820180507	Industrial PC Platform NY Series Flyer
FA Controller Catalog	P090-E1-07 [18214KB]	Aug 20, 201820180820	FA Controller Catalog

Item	NYB1E- [][][][][]	NYB17- [][][][][]	NYB25- [][][][][]	NYB1C- [][][][][]
Main system	CPU	CPU type	Intel® Xeon® E3-1515M v5	Intel® Core™ i7-4700EQ	Intel® Core™ i5-4300U	Intel® Celeron® Processor 2980U
Cores/Threads	4 / 8	4 / 8	2 / 4	2 / 2
CPU base frequency	2.8 GHz	2.4 GHz	1.9 GHz	1.6 GHz
Maximum turbo frequency	3.7 GHz	3.4 GHz	2.9 GHz	-
Cache	8 MB	6 MB	3 MB	2 MB
Cooling details	Requires active cooling (fan)	Requires active cooling (fan)	Passive cooling (fanless)
Memory	*Memory size 1**	8, 16 or 32 GB	4, 8 or 16 GB	2, 4 or 8 GB	2, 4 or 8 GB
Memory type	DDR4 (ECC is available)	DDR3L (non ECC)
Trusted platform module (TPM)	Available
Graphics controller	Intel® Iris™ Pro Graphics. Up to two independent screens.	Intel® HD Graphics. Up to two independent screens.
Intel® Iris™ Pro Graphics P580	Intel® HD Graphics 4600	Intel® HD Graphics 4400	Intel® HD Graphics
Watchdog	Yes
Operating system	Windows OS	Windows 10 IoT Enterprise - 64 bit	Windows Embedded Standard 7 - 32 bit Windows Embedded Standard 7 - 64 bit Windows 10 IoT Enterprise - 64 bit
Storage devices	*Drives 1**	Hard disk drive	• 320 GB, 500 GB, 1 TB Serial ATA 3.0	• 320 GB Serial ATA 3.0
Solid state drive	SLC type	• 64 GB Serial ATA 3.1	• 32 GB and 64 GB Serial ATA 3.1
MLC type	• 128 GB, 500 GB Serial ATA 3.1	• 128 GB Serial ATA 3.1
*Drive bays (HDD/SSD) 2**	2	2	2	1
Connectors	Power connector	24 VDC
I/O connector	2 inputs (UPS signal and power OFF control) and 1 output (Industrial Box PC power state)
USB2.0 Type-A	Number of ports	2
Maximum current	500 mA
Maximum cable length	5 m
USB3.0 Type-A	Number of ports	2
Maximum current	900 mA
Maximum cable length	3 m
Ethernet connectors	Number of ports	3
Physical layer	10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I connector	Video interface	Digital or analog	Digital only
Resolution	Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI cable length	Dependent upon connected monitor type and resolution
Optional connector (select one per system)	RS-232C	Standard DSUB9 connector (Non-Isolated)
DVI-D	Video interface	Digital only
Resolution	Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI cable length	Dependent upon connected monitor type and resolution
NY Monitor Link	Video interface	Digital only
Resolution	1,280 x 800 pixels at 60 Hz
Connector type	RJ45
Cable shielding, type and max. length	S/FTP, Cat.6A, 100 m
USB data throughput	280 Mbps max.
GigE LAN	Physical layer	10BASE-T, 100BASE-TX or 1000BASE-T	-
PCIe Card Slot	Configuration	X4 (4 lanes) up to Gen 3	X1 (1 lane) up to Gen 2
Card height	Standard height cards, 4.20 inches (106.7 mm) *3
Card length	Half length cards, 6.6 inches (167.65 mm)
Battery	Model	CJ1W-BAT01
Service life	5 years at 25°C
Fan unit	Model	NY000-AF00	No fan unit
Service life	70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity	-
LED	PWR, ERR, HDD, RUN

Item	NYB35- []1[][][]	NYB2C- []1[][][]	NYB35- []0[][][]	NYB2C- []0[][][]
Main system	CPU	CPU type	Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U	Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U
Cores/Threads	2 / 4	2 / 2	2 / 4	2 / 2
CPU base frequency	2.6 GHz	2.2 GHz	2.6 GHz	2.2 GHz
Maximum turbo frequency	3.5 GHz	-	3.5 GHz	-
Cache	3 MB	2 MB	3 MB	2 MB
Cooling details	Passive cooling (fanless)	Passive cooling (fanless)
Memory	*Memory size 1**	4 or 8 GB	4 or 8 GB	8 or 16 GB	4 or 8 GB
Memory type	DDR4 (non ECC)	DDR4 (non ECC)
Trusted platform module (TPM)	Available
Graphics controller	Intel® HD Graphics. Up to two independent screens.	Intel® HD Graphics. Up to two independent screens.
Intel® HD Graphics 620	Intel® HD Graphics 610	Intel® HD Graphics 620	Intel® HD Graphics 610
Watchdog	Yes
Operating system	Windows OS	Windows 10 IoT Enterprise - 64 bit	Windows 10 IoT Enterprise - 64 bit
Storage devices	*Drives 1**	Hard disk drive	• 320 GB Serial ATA 3.0	N/A
Solid state drive	SLC type	• 64 GB Serial ATA 3.1	N/A
MLC type	• 128 GB Serial ATA 3.1	• 64 GB, 128 GB, 256 GB Serial ATA 3.1
*Drive bays (HDD/SSD) 2**	2	2	CFast slot	CFast slot
Connectors	Power connector	24 VDC
I/O connector	2 inputs (UPS signal and power OFF control) and 1 output (Industrial Box PC power state)
USB2.0 Type-A	Number of ports	2
Maximum current	500 mA
Maximum cable length	5 m
USB3.0 Type-A	Number of ports	2
Maximum current	900 mA
Maximum cable length	3 m
Ethernet connectors	Number of ports	3
Physical layer	10BASE-T, 100BASE-TX or 1000BASE-T
DVI-I connector	Video interface	Digital only
Resolution	Up to 1,920 x 1,200 pixels at 60 Hz
Maximum DVI cable length	Dependent upon connected monitor type and resolution
Optional connector (select one per system)	RS-232C	Standard DSUB9 connector (Non- Isolated)	N/A
DVI-D	Video interface	Digital only	N/A
Resolution	Up to 1,920 x 1,200 pixels at 60 Hz	N/A
Maximum DVI cable length	Dependent upon connected monitor type and resolution	N/A
NY Monitor Link	Video interface	Digital only
Resolution	1,280 x 800 pixels at 60 Hz
Connector type	RJ45
Cable shielding, type and max. length	S/FTP, Cat.6A, 100 m
USB data throughput	280 Mbps max.
GigE LAN	Physical layer	-
PCIe Card Slot	Configuration	X2 (2 lanes) up to Gen 3	N/A
Card height	Standard height cards, 4.20 inches (106.7 mm) *3	N/A
Card length	Half length cards, 6.6 inches (167.65 mm)	N/A
Battery	Model	Non replaceable battery
Service life	10 years at 40°C
Fan unit	Model	No fan unit
Service life	-
LED	PWR, ERR, HDD, RUN

Item	NYB1E-[][][][][]	NYB17-[][][][][]	NYB25-[][][][][]	NYB1C-[][][][][]
CPU type	Intel® Xeon® E3-1515M v5	Intel® Core™ i7-4700EQ CPU	Intel® Core™ i7-4700EQ CPU	Intel® Celeron® 2980U CPU
Rated power supply voltage	24 VDC, non-isolated
Allowable power supply voltage range	20.4 to 28.8 VDC
Grounding method	Ground to less than 100 Ω
Inrush current	At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category	JIS B3502 and IEC 61131-2: Category II
EMC immunity level	IEC 61131-2: Zone B
RTC accuracy	At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life	100,000 operations
Battery life	5 years at 25°C (for battery CJ1W-BAT01)
Fan life	8 years of continuous operation at 40°C	-	-
Power consumption *	-
	Maximum power consumption including drives and expansions	121 W	114 W	75 W	66 W
Maximum power consumption excluding drives and expansions	86 W	81 W	52 W	45 W
Drives	-
	HDD 320 GB	2 W
HDD 500 GB	2 W
HDD 1 TB	2 W
SSD SLC 32 GB	2 W
SSD SLC 64 GB	2 W
SSD MLC 128 GB	2 W
SSD MLC 500 GB	3 W
CFast MLC 64 GB	-
CFast MLC 128 GB	-
CFast MLC 256 GB	-
Expansions	-
	USB	14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe	15 W max.	15 W max.	5 W max.	5 W max.

Item	NYB35-[]1[][][]	NYB2C-[]1[][][]	NYB35-[]0[][][]	NYB2C-[]0[][][]
CPU type	Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U	Intel® Core™ i5-7300U	Intel® Celeron® Processor 3965U
Rated power supply voltage	24 VDC, non-isolated
Allowable power supply voltage range	20.4 to 28.8 VDC
Grounding method	Ground to less than 100 Ω
Inrush current	At 24 VDC: 12 A / 6 ms max. for cold start at room temperature
Overvoltage category	JIS B3502 and IEC 61131-2: Category II
EMC immunity level	IEC 61131-2: Zone B
RTC accuracy	At ambient temperature of 55°C: -3.5 to +0.5 min error per month At ambient temperature of 25°C: -1.5 to +1.5 min error per month At ambient temperature of 0°C: -3 to +1 min error per month
Power button life	100,000 operations
Battery life	10 years at 40°C
Fan life	-	-	-	-
Power consumption *	-
	Maximum power consumption including drives and expansions	69 W	50 W	61 W	42 W
Maximum power consumption excluding drives and expansions	46 W	27 W	46 W	27 W
Drives	-
	HDD 320 GB	2 W	-	-
HDD 500 GB	2 W	-	-
HDD 1 TB	2 W	-	-
SSD SLC 32 GB	2 W	-	-
SSD SLC 64 GB	2 W	-	-
SSD MLC 128 GB	2 W	-	-
SSD MLC 500 GB	3 W	-	-
CFast MLC 64 GB	-	1 W
CFast MLC 128 GB	-	1 W
CFast MLC 256 GB	-	1 W
Expansions	-
	USB	14 W max. ((2 x 500 mA at 5 V) + (2 x 900 mA at 5 V))
PCIe	5 W max.	5 W max.	-	-

Item	Minimum power requirements
Power supply	240 W	120 W
UPS	120 W	120 W

Item	Specifications
operation environment	Ambient operating temperature *1	0 to 55°C
Ambient storage temperature *1	-20 to 70°C
*Ambient operating humidity 1**	10% to 90% with no condensation
*Ambient storage humidity 1**	10% to 90% with no condensation
Operating atmosphere	No corrosive gases
Altitude	2,000 m max.
Noise resistance (during operation)	Conforms to IEC61000-4-4, 2kV (power lines)
Vibration resistance (during operation)	Conforms to IEC 60068-2-6. For a product with an SSD: 5 to 8.4 Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s² for 10 times each in X, Y and Z directions. For a product with a HDD the vibration resistance depends on the mounting orientation *2.
Shock resistance (during operation)	Conforms to IEC 60068-2-27. 147 m/s², 3 times in each X, Y and Z directions
Installation method	Book mount, Wall mount
Pollution degree	2 or less: Conforms to JIS B3502 and IEC 61131-2.
*Applicable standards 3**	EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS Directive KC Registration, RCM, cULus, EAC

Mounting orientation	SSD or CFast Card	HDD
Book	9.8 m/s²	2.5 m/s²
Wall	4.9 m/s²

Item	Specifications
Model	NY000-AS00	NY000-AS01	NY000-AS02 *1	NY000-AS03	NY000-AS04	NY000-AS05
Capacity	32 GB	64 GB	128 GB	64 GB	128 GB	500 GB
Type	SSD (SLC)	SSD (MLC)	SSD (SLC)	SSD (MLC)	SSD (MLC)
S.M.A.R.T. support	Yes
Rotation speed	-	-	-	-	-	-
Interface	Serial ATA 3.1
Sustained standard read speed	Up to 160 MB/s	Up to 160 MB/s	Up to 430 MB/s	Up to 500 MB/s	Up to 530 MB/s	Up to 415 MB/s
Sustained standard write speed	Up to 145 MB/s	Up to 150 MB/s	Up to 190 MB/s	Up to 370 MB/s	Up to 190 MB/s	Up to 200 MB/s
Operating temperature	0 to 70°C
Operating humidity	10% to 95% (with no condensation)	10% to 85% (with no condensation)	10% to 95% (with no condensation)
Storage temperature	-40 to 100°C	-40 to 85°C	-40 to 90°C	-40 to 95°C	-55 to 95°C
Storage humidity	10% to 95% (with no condensation)
Life	1,500 TB written	3,000 TB written	114 TB written	1900 TB written	208 TB written	154 TB written

Item	Specifications
Model	NY000-AH00	NY000-AH01	NY000-AH02	NY000-AT00	NY000-AT01	NY000-AT02
Capacity	320 GB	500 GB	1 TB	64 GB	128 GB	256 GB
Type	HDD	HDD	HDD	CFast (MLC)	CFast (MLC)	CFast (MLC)
S.M.A.R.T. support	Yes
Rotation speed	5,400 r/min	-	-	-
Interface	Serial ATA 3.0	Serial ATA 3.1
Sustained standard read speed	-	-	-	Up to 530 MB/s	Up to 530 MB/s	Up to 530 MB/s
Sustained standard write speed	-	-	-	Up to 100 MB/s	Up to 190 MB/s	Up to 210 MB/s
Operating temperature	5 to 55°C	5 to 55°C	0 to 60°C	-40 to 85°C
Operating humidity	• 10% to 95% (with no condensation) • 29°C wet-bulb temperature max.	10% to 95% (with no condensation)
Storage temperature	-40 to 65°C	-55 to 95°C
Storage humidity	• 8% to 90% (with no condensation) • 40°C wet-bulb temperature max.	10% to 95% (with no condensation)
Life	Approximately 5 years or 20,000 powered-ON hours (whichever comes first) under the following conditions: • 25°C at 101.3 kPa • Less than 333 powered-ON hours/month 2 • Less than 20% operation while powered-ON 3 • Less than 1.30 x 10⁶seeks/month	Average Annualized Failure Rate (AFR): 0.50% Under the following conditions: • Case Temperature 40°C • Power on Hours (POH) ≤ 3120	125 TB written	208 TB written	417 TB written

Product name	Specifications	Model
Operating system	CPU type	RAM memory	Storage size	Interface option
Industrial Box PC	Windows 10 IoT Enterprise LTSB - 64 bit	Intel® Xeon® E3-1515M v5	8GB (non-ECC type)	128 GB SSD type (MLC)	RS-232C	NYB1E-313K1
8GB (ECC type)	NYB1E-C13K1
Intel® Core™ i7-4700EQ	8 GB (non-ECC type)	128 GB SSD type (MLC)	RS-232C	NYB17-313K1
320 GB HDD type	RS-232C	NYB17-313C1
64 GB SSD type (SLC)	RS-232C	NYB17-31391
Intel® Core™ i5-4300U	8 GB (non-ECC type)	128 GB SSD type (MLC)	RS-232C	NYB25-313K1
320 GB HDD type	RS-232C	NYB25-313C1
Intel® Celeron™ 2980U	8 GB (non-ECC type)	128 GB SSD type (MLC)	RS-232C	NYB1C-313K1
320 GB HDD type	RS-232C	NYB1C-313C1
Windows Embedded Standard 7 - 64bit	Intel® Core™ i7-4700EQ	8 GB (non-ECC type)	128 GB SSD type (MLC)	RS-232C	NYB17-312K1
Intel® Core™ i5-4300U	8 GB (non-ECC type)	128 GB SSD type (MLC)	RS-232C	NYB25-312K1
Intel® Celeron™ 2980U	8 GB (non-ECC type)	320 GB HDD type	RS-232C	NYB1C-312C1

Product name	Specifications	Model
*Mounting Brackets 1**	Book mount	NY000-AB00
NY000-AB02
NY000-AB04
Wall mount	NY000-AB01
SD Memory Cards	Card type: SD Card Capacity: 2 GB Format: FAT16	HMC-SD291
Card type: SDHC Card Capacity: 4 GB Format: FAT32	HMC-SD491
USB Flash Drives	Capacity: 2 GB	FZ-MEM2G
Capacity: 8 GB	FZ-MEM8G
*Storage Devices 2**	Storage type: HDD, Capacity: 320 GB	NY000-AH00
Storage type: HDD, Capacity: 500 GB	NY000-AH01
Storage type: HDD, Capacity: 1 TB	NY000-AH02
Storage type: SSD SLC, Capacity: 32 GB	NY000-AS00
Storage type: SSD SLC (Apacer), Capacity: 64 GB	NY000-AS01
Storage type: SSD MLC (Apacer), Capacity: 128 GB	*NY000-AS02 4**
Storage type: SSD SLC (Hagiwara), Capacity: 64 GB	NY000-AS03
Storage type: SSD MLC (Innodisk), Capacity: 128 GB	NY000-AS04
Storage type: SSD MLC, Capacity: 500 GB	NY000-AS05
Storage type: CFast MLC, Capacity: 64 GB	NY000-AT00
Storage type: CFast MLC, Capacity: 128 GB	NY000-AT01
Storage type: CFast MLC, Capacity: 256 GB	NY000-AT02
USB Type-A to USB Type-B Cables	Cable length: 2 m USB 2.0 Minimum bend radius: 25 mm	FH-VUAB 2M
Cable length: 5 m USB 2.0 Minimum bend radius: 25 mm	FH-VUAB 5M
DVI Cables	Cable length: 2 m Supports DVI-D Minimum bend radius: 36 mm	NY000-AC00 2M
Cable length: 5 m Supports DVI-D Minimum bend radius: 36 mm	NY000-AC00 5M
Industrial Monitor	• LCD touchscreen • Multi-touch functionality • Supply voltage: 24 VDC • Up to 1,280 x 800 pixels at 60 Hz • 2 USB Type-A Connectors • Programmable brightness control • Standard and 100 m cable models are available.	NYM1[]W-C10[][]
Power Supply	• Output voltage: 24 VDC • Push-In Plus terminal blocks	S8VK-S[][][]24
*UPS 3**	Output voltage during backup operation: 24 VDC ± 5%	S8BA
UPS Communication Cable	Cable length: 2 m Signals for • Signal output (BL, TR, BU, WB) • Remote ON/OFF input • UPS Stop Signal input (BS)	S8BW-C02

Item	Description
1	Product code
2	Product period and sequential number
3	Revision number
4	RoHS status

Product name	Specifications	Model
Battery	One battery is supplied with the Industrial Box PC. The battery supplies power to the real-time clock. The battery is located inside the Industrial Box PC. Service life: 5 years at 25°C	CJ1W-BAT01 *
Fan Unit	The Fan Unit is available for the Industrial Box PC that has active cooling. Service life: 70,000 hours of continuous operation at 40°C with 15% to 65% relative humidity. Shelf life: 6 months This is the storage limitation with no power supplied.	NY000-AF00
Accessory Kit	Accessory Kit containing all accessories supplied with the Industrial Box PC. • Power connector • I/O connector • Drive bracket for drive installation • 4 mounting screws for drive installation • PCIe Card support for PCIe Card installation • PCIe Card clip for PCIe Card installation	NY000-AK00

Item	Specifications
Industrial PC Support Utility	The Industrial PC Support Utility is a software utility to assist in diagnosing and resolving problems of the Industrial Box PC. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Tray Utility	The Industrial PC Tray Utility is a software utility that provides information about the current state of the Industrial PC, its related devices, and associated software. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC System API	The Industrial PC System API allows programmers to create programs that can retrieve information or set an indicator status of the Industrial Box PC. The API makes use of the included IPC System Service to manage the hardware. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor Utility	For the optional OMRON Industrial Monitor. The Industrial Monitor Utility provides a user interface to control settings and display details of connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor Brightness Utility	For the optional OMRON Industrial Monitor. The Industrial Monitor Brightness Utility is a small software utility that allows you to control the brightness of the screen backlight of all connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial Monitor API	For the optional OMRON Industrial Monitor. The Industrial Monitor API allows programmers to create applications that can control the hardware features and retrieve information from connected Industrial Monitors. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.
Industrial PC Rescue Disk Creator	The Industrial PC Rescue Disk Creator creates a USB Rescue Disk which can be used to back-up and restore the Omron IPC Operating System. It is pre-installed on the Industrial Box PC and the Industrial Panel PC.

Return to OMRON
