• Supports connection to three different PT (Programmable Terminal) models from the medium-sized NT31 to the large NT631 for a wider selection of display devices.
• The compact Interface Unit mounts directly to the back of the PT without taking up any unnecessary space.
• Enables both remote I/O communications and message communications.
last update: December 19, 2013
Purchase the OMRON DeviceNet Please fill in the following
If you have just landed here, this product OMRON NT-DRT21 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NT-DRT21 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NT-DRT21Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3S-C Oil-resistive, Long-range Photoelectric Sensor with Metal Housing/Features
E39-VA Hand-held Checker/Features
E5AR Digital Controller/Features
3G8F7-CRM21 CompoNet Master Board for PCI Bus/CompactPCI Bus/Features
SRT2-[]D16T(-1) Transistor Remote I/O Terminals with 3-tier Terminal Block/Features
OMRON NT-DRT21 specification
NT-DRT21 Programmable Terminal DeviceNet Interface Unit/Specificationslast update: August 07, 2013
General Specifications
| Rated power supply voltage | 24 VDC (Supplied from Programmable Terminal) |
|---|---|
| Allowable power supply voltage range | 20.4 to 26.4 VDC (24 VDC +10%/-15%) |
| I/F power consumption *1 | NT31/31C PT with Expansion Interface: 15 W max. NT631C PT with Expansion Interface: 18 W max. |
| Communications power supply *2 | 30 mA max. |
| Ambient operating temperature | 0°C to 50°C |
| Ambient storage temperature | -20°C to 60°C |
| Ambient operating humidity | 35% to 85 % max. (with no condensation) |
| Ambient operating atmosphere | No corrosive gases |
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line) |
| Vibration resistance (operating) | 10 to 57 Hz with 0.075-mm single amplitude, 57 to 150 Hz with acceleration 9.8 m/s2 for 30 minutes each in X, Y, and Z directions |
| Shock resistance (operating) | 147 m/s2 , 3 times each in X, Y, and Z directions |
| Dimensions | 96 x 91 x 20 mm (W x H x D) (Total thickness when Interface Unit is mounted to PT: 74 mm) |
| Weight | 350 g max. |
*1. Power is supplied from the NT31/31C/631C-series PT. The figures for power consumption given above are for both
the Interface Unit and the PT combined. The power consumption for the NT-DRT21 is 1 W max.
*2. The power consumption for DeviceNet communications is 0.75 W max. (supplied separately).
Function Specifications
| Remote I/O communications | I/O area data: 64 words (This includes 5 input words and 3 output words used as the PT status communications area.) |
|---|---|
| Message communications | Reading/writing (transfer of character string memory table entries, numeral memory table entries, or bit memory table entries) |
| Software specifications | The following software can be used: NT-series Support Tool Version 4 Interface Unit's System Program Version 2.1 or higher |
DeviceNet Communications Specifications
| Communications power supply voltage | 11 to 25 VDC |
|---|---|
| Maximum I/O points | 64CH |
last update: August 07, 2013
OMRON NT-DRT21 catalog
NT-DRT21 Programmable Terminal DeviceNet Interface Unit/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 DeviceNet Catalog | Q102-E1-14 [30569KB] | Aug 03, 201820180803 | DeviceNet Catalog |
OMRON NT-DRT21 dimension
NT-DRT21 Programmable Terminal DeviceNet Interface Unit/Dimensionslast update: August 07, 2013

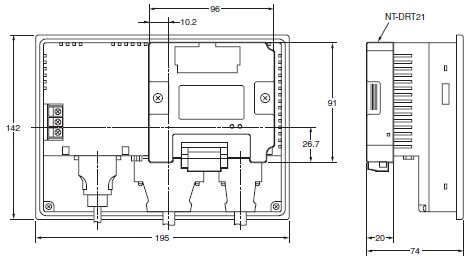

NT-DRT21 (Mounted to NT31/31C)
last update: August 07, 2013
OMRON NT-DRT21 lineup
NT-DRT21 Programmable Terminal DeviceNet Interface Unit/Lineuplast update: August 07, 2013
| Applicable PT | Number of I/O points | Power supply voltage | Model |
|---|---|---|---|
| NT31/NT31C Series NT631 Series | 64 words (8 words are used for the PT status control area and PT status notify area.) | 24 VDC | NT-DRT21 |
last update: August 07, 2013
- NO. NT-DRT21
- TYPE:Networks DeviceNet Slaves
- DATE:2021-06-11
- Associated products:
CPM2C-S1[]0C-DRT Programmable Slaves/Features DRT1-COM Communications Unit/Features
