OMRON G3S / G3SD Dimensions

/Images/l_2816-25-136241-198x198.jpg

last update: November 5, 2014

• Ultra-small, dual in-line package (DIP) SSR.

• Terminals are compatible with G6B Electromagnetic Relay's. Be capable mix with G6Bs as the application requires.

• Close mounting possible. In addition, heat sink dedicated to this mounting style also available.

• Both AC- and DC-load versions available.

• High isolation of 2,500 VAC between input and output.

• Built-in varistor effectively absorbs external surges (for AC switching).

• Lineup includes models with UL and CSA certification (model numbers ending in “-US”).

last update: November 5, 2014

Purchase the OMRON Other Solid State Relays Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G3S / G3SD Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3S / G3SD We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3S / G3SDRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZEN-PA03024 Switching Mode Power Supply/Features
ZJ-FA20 Ionizer (Basic Fan Type)/Features
E32-LT11N / LD11N / LR11NP Hex-shaped Fiber Unit/Features
E5CSV Temperature Controllers/Features
E58-CIFQ1 USB-Serial Conversion Cable/Features

OMRON G3S / G3SD dimension
G3S / G3SD Solid State Relays/Dimensions
last update: December 10, 2013

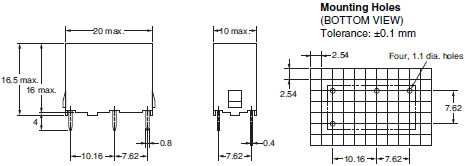

G3S
G3SD

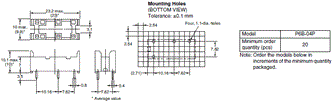

Connecting Socket

G6B-04P

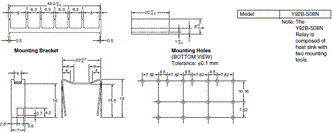

Heat Sink
Y92B-S08N

last update: December 10, 2013

OMRON G3S / G3SD catalog
G3S / G3SD Solid State Relays/Catalog

Catalog

Manual

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G3S, G3SD Data Sheet K060-E1-07
[541KB] Oct 30, 201420141030 G3S, G3SD Data Sheet

OMRON G3S / G3SD specification
G3S / G3SD Solid State Relays/Specifications
last update: December 10, 2013
Ratings
Input (Each models has 5-VDC, 12-VDC, and 24-VDC input versions.)

Rated voltage Operating voltage Must operate
voltage level Must release
voltage level Impedance
G3S-201PL
G3S-201PL-PD G3SD-Z01P
G3SD-Z01P-PD
5 VDC 4 to 6 VDC 4 VDC max. 1 VDC min. 450 Ω ±20% 630 Ω ±20%
12 VDC 9.6 to 14.4 VDC 9.6 VDC max. 1.1 kΩ ±20% 1.5 kΩ ±20%
24 VDC 19.2 to 28.8 VDC 19.2 VDC max. 2.2 kΩ ±20% 2.8 kΩ ±20%

Output

Model Item Rated load voltage Rated load voltage range Load current Inrush current
G3S-201PL 100 to 240 VAC 75 to 264 VAC 0.1 to 1 A * 15 A
(60 Hz, 1 cycle)
G3S-201PL-PD 0.1 to 1.2 A *
G3SD-Z01P 4 to 24 VDC 3 to 26 VDC 0.01 to 1 A * 3 A (10 ms)
G3SD-Z01P-PD 0.01 to 1.1 A *

* The applicable output load current varies depending on the ambient temperature.
Refer to reference data the "Load Current vs. Ambient Temperature" rating characteristic for details.

Characteristics

Model G3S-201PL, G3S-201PL-PD G3SD-Z01P, G3SD-Z01P-PD
Operate time 1 ms max. 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max. 1 ms max.
Output ON voltage drop 1.6 V (RMS) max. 1.5 V max.
Leakage current 2 mA (at 200 VAC) 0.1 mA max. (at 26 VDC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance 1,000 m/s²
Storage temperature - 30°C to 100°C (with no icing or condensation)
Ambient operating temperature - 30°C to 80°C (with no icing or condensation)
Ambient operating humidity 45% to 85% RH
Weight Approx. 13 g

last update: December 10, 2013

OMRON G3S / G3SD lineup
G3S / G3SD Solid State Relays/Lineup
last update: November 05, 2014

Isolation Zero cross
function Indicator Rated output
load Rated input
voltage Model Minimum
packing unit
Phototriac No No 1 A
100 to 240 VAC *1 5 VDC G3S-201PL 100 pcs
12 VDC
24 VDC
1.2 A
100 to 240 VAC *1 5 VDC G3S-201PL-PD
12 VDC
24 VDC
Photocoupler 1 A
4 to 24 VDC *2 5 VDC G3SD-Z01P
12 VDC
24 VDC
1.1 A
4 to 24 VDC *2 5 VDC G3SD-Z01P-PD
12 VDC
24 VDC

*1. Product is labelled "250 VAC".
*2. Product is labelled “24 VDC”.

last update: November 05, 2014
