OMRON ZJ-FA20 Power Supplies / In Addition
OMRON ZJ-FA20 Dimensions
/Images/l_1975-25-119090-198x198.jpglast update: May 23, 2013
A Unique Structure Provides a Uniform Airflow
The newly developed airflow control system (AFCS) structure optimally controls the airflow of the fan to efficiently carry the discharged ions to the target workpiece. This gives the ZJ-FA20 the highest ionization performance in its class.
Even with the airflow at a low setting, ionization is completed in approximately 2 seconds. Small, light workpieces are not blown away by the airflow, and static electricity is effectively neutralized.
Airflow Control System (AFCS)
Engineering Data
Long-term Ionization Performance
A built-in ion balance sensor constantly senses the ion condition, and a variable DC system maintains the optimal ion balance at all times. This provides a long-term, stable balance for reliable ionization.
Clean and Easy Maintenance
The ZJ-FA20 features a fully opening front cover. Removing it allows neat and thorough cleaning, without spreading dust and other particles around. The discharger electrodes can also be replaced for long-term operation. LED lamps show the ion-generating condition and indicate when cleaning is required.
A Variety of Installation Possibilities
In addition to table-top or bench-top installation, the ZJ-FA20 can be easily mounted to an aluminum pipe. The angle can also be freely adjusted using the angle-adjustment knob and oblong stand.
last update: May 23, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON ZJ-FA20 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZJ-FA20 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZJ-FA20Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
VB Multiple Limit Switch/Features
NX-TC NX-series Temperature Control Unit/Features
E52 (Low-cost Models) Temperature Sensor (Low-cost Models)/Features
NX-AD / DA NX-series Analog I/O Unit/Features
ZN-PD Air Particle Sensor/Features
OMRON ZJ-FA20 specification
ZJ-FA20 Ionizer (Basic Fan Type)/Specificationslast update: May 9, 2018
Ionizer
| Model | ZJ-FA20 |
|---|---|
| Power supply voltage | 24 VDC |
| Current consumption | 900 mA max. (input from included AC adapter) |
| Discharge voltage | ±7 kV |
| Discharge method | Variable DC |
| Airflow (m3/min.) | 1.4 to 2.3 m3/min (typical) |
| Ionization time *2 | 1.2 s (0.8 s with no Filter) |
| Ion balance *2 | ±10 V max. |
| Amount of generated ozone | 0.01 ppm max. (measured at a distance of 50 mm from air outlet) |
| Indicators | High-voltage output lamp: ION (yellow), Cleaning lamp: CLEANING (orange), Power lamp: POWER (green) |
| Main functions | Automatic ion balance adjustment, airflow adjustment, manual ion balance adjustment |
| Ambient temperature range | Operating and storage: 0 to 50°C (with no icing or condensation) |
| Ambient humidity range | Operating: 35% to 65%, storage: 35% to 85% (with no condensation) |
| Weight (packed state) | Approx. 2.0 kg |
| Materials | Unit: ABS, Discharger: Tungsten, stand: SPCC |
| Accessories | Instruction sheet, AC adapter *1, warning labels (2 types), FG connection cable (2 m) |
*1. Before using, confirm that AC adapter and AC cord which attaches fit in with the standard of the country.
*2. Typical default settings.
Measurement location and conditions: Center of air outlet at a distance of 300 mm, with maximum fan speed
Ionization time: The time required to lower the charge from ±1,000 V to ±100 V
Ion balance measurement time: 10 s
Plate monitor: 150 × 150 mm, 20 pF
last update: May 9, 2018
OMRON ZJ-FA20 lineup
ZJ-FA20 Ionizer (Basic Fan Type)/Lineuplast update: May 23, 2013
Ionizer
| Model |
|---|
| ZJ-FA20 |
Accessories (sold separafely)
| Model | |
|---|---|
| Replacement Filter | ZJ9-FL120N1 (set of 10) |
| Replacement Discharger Electrode | ZJ9-NDT06FN1 (set of 6) |
last update: May 23, 2013

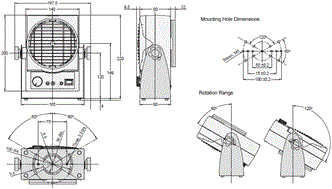

OMRON ZJ-FA20 dimension
ZJ-FA20 Ionizer (Basic Fan Type)/Dimensionslast update: May 23, 2013
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
ZJ-FA20
last update: May 23, 2013
OMRON ZJ-FA20 catalog
ZJ-FA20 Ionizer (Basic Fan Type)/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZJ-FA20 Data Sheet | - [654KB] | May 09, 201820180509 | ZJ-FA20 Data Sheet |
| ZJ-FA20 Catalog | E391-E1-01 [2179KB] | Apr 13, 200920090413 | ZJ-FA20 Catalog |
