OMRON ZEN-PA03024 Dimensions

/Images/l_1756-25-119083-198x198.jpg

last update: December 19, 2013

• Slim size with a depth of 56 mm (W × H × D: 70 × 90 × 56 mm).

• EMI: Conforms to EN61000-6-3 (Class B).

• Allows parallel operation.

• Safety standards: UL508/UL60950-1/UL1604, CSA C22.2 No. 14/No.60950-1/ No.213 (Evaluated by UL), EN60950-1 (VDE 0805 Teil 1), EN50178 (VDE0160)

• Output voltage: 24 VDC; Output current: 1.3 A; Capacity: 30 W

• Uses lead-free soldering.

last update: December 19, 2013

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON ZEN-PA03024 Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZEN-PA03024 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZEN-PA03024Control Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E32-LT11N / LD11N / LR11NP Hex-shaped Fiber Unit/Features
E3Z-LS Distance-settable Photoelectric Sensor/Features
EE-SPY801 / 802 Wafer-carrier Mounting Photomicrosensors/Features
MK-S(X) Power Relays/Features
XW2D Slim Connector-Terminal Block Conversion Units/Features

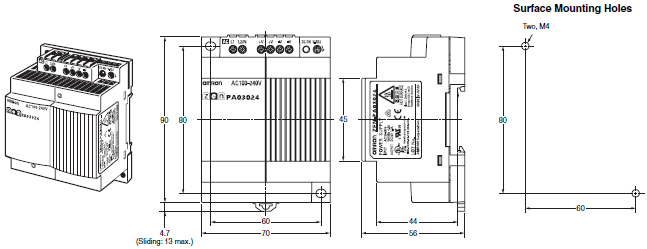

OMRON ZEN-PA03024 dimension
ZEN-PA03024 Switching Mode Power Supply/Dimensions
last update: November 12, 2012
ZEN-PA03024

Accessories (Order Separately)
Mounting Track
PFP-100N, PFP-50N

* The value shown in parentheses is for the PFP-50N.

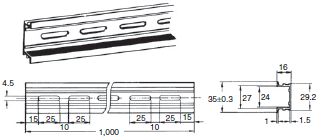

PFP-100N2

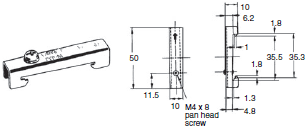

End Plate
PFP-M

Spacer
PFP-S

last update: November 12, 2012

OMRON ZEN-PA03024 catalog
ZEN-PA03024 Switching Mode Power Supply/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

ZEN-PA03024 Data Sheet -
[623KB] Oct 06, 201020101006 ZEN-PA03024 Data Sheet

OMRON ZEN-PA03024 specification
ZEN-PA03024 Switching Mode Power Supply/Specifications
last update: September 24, 2012
Ratings/Characteristics

Efficiency (typical) 80% min.

Input Voltage 100 to 240 VAC (85 to 264 VAC), 95 to 350 VDC *1

Frequency 50/60 Hz (47 to 450 Hz)

Current 100 VAC input 0.8 A max.

200 VAC input 0.45 A max.

Leakage
current 100 VAC input 0.4 mA max.

200 VAC input 0.75 mA max.

Inrush
current *2 100 VAC input 25 A max.

200 VAC input 50 A max.

Output Voltage adjustment range *3 -10 to 15% (with V.ADJ) of rated output voltage

Ripple 2% (p-p) max. (-25 to -10°C: 4% max.)

Input variation influence 0.5% max.

Load variation influence (rated
input voltage) 1.5% max.

Temperature variation influence 0.05%/°C max.

Start up time *2 1,000 ms max. (100 VAC or 200 VAC, at rated output voltage)

Hold time *2 15 ms min., 20 ms (typical) (100 VAC or 200 VAC, at rated output voltage)

Additional
functions Overload protection *2 105% to 135% of rated load current, inverted L drop, intermittent, automatic reset

Parallel operation Yes (2 units max. For details, refer to the derating curve in Engineering Data on Data
Sheet. For DC input, parallel operation is possible only for 110 to 350 VDC.)

Series operation No

Others Ambient temperature Operating: Refer to the derating curve in Engineering Data on Data Sheet. (with no icing
or condensation)
Storage: -25 to 75°C (with no icing or condensation)

Ambient humidity Operating: 10 to 90%
Storage: 10 to 90%

Mounting method DIN track mounting, surface mounting

Dielectric strength 2.0 kVAC for 1 min. (between all inputs and exposed non-current-carrying metal parts;
detection current: 10 mA max.)
3.0 kVAC for 1 min. (between all inputs and all outputs; detection current: 20 mA max.)
1.0 kVAC for 1 min. (between all outputs and non-current-carrying metal parts;
detection current: 10 mA max.)

Insulation resistance 100 MΩ min. (between all outputs and all inputs/exposed non-current-carrying metal
parts) at 500 VDC

Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z direction

Shock resistance 300 m/s², 3 times each in ±X, ±Y, ±Z directions

Output indicator Yes (color: green)

EMI Conducted emissions Conforms to EN61000-6-3 (Class B)

Radiated emissions Conforms to EN61000-6-3 (Class B)

Approved standards UL: UL508 (listing, Class 2: Per UL1310), UL60950-1, UL1604 (Class I/Division 2)
cUL: CSA C22.2 No. 14 (listing, Class2: Per CSA C22.2 No. 223), CSA C22.2 No. 213
(Class I/Division 2)
cUR: CSA C22.2 No.60950-1
EN/VDE: EN60950-1 (=VDE 0805 Teil 1), EN50178 (=VDE 0160)

Weight 240 g max.

*1. This product has been approved for safety standards only when an AC input is used. It has not been approved when
a DC input is used.
*2. Refer to the Engineering Data section on Data Sheet for details.
*3. If the V. ADJ adjuster is turned, the voltage will increase by more than 15% of the voltage adjustment range.
Check the output voltage of the power supply when converting the output voltage, and make sure that the load will
not be damaged.

last update: September 24, 2012

OMRON ZEN-PA03024 lineup
ZEN-PA03024 Switching Mode Power Supply/Lineup
last update: September 24, 2012

Power ratings Input voltage Output voltage Output current Model number

30 W 100 to 240 VAC 24 VDC 1.3 A ZEN-PA03024

Accessories (Order Separately)

Name Models

Mounting Track 50 cm (l) × 7.3 mm (t) PFP-50N

1 m (l) × 7.3 mm (t) PFP-100N

1 m (l) × 16 mm (t) PFP-100N2

End Plate PFP-M

Spacer PFP-S

last update: September 24, 2012

NO. ZEN-PA03024

TYPE:Programmable Relays Copyright Statement Copyright Statement

DATE:2021-06-14

Associated products:
ZEN V2 Programmable Relay/Features NY5[][]-1 Industrial PC Platform NY-series IPC Machine Controller/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
ZEN-PA03024 Data Sheet	- [623KB]	Oct 06, 201020101006	ZEN-PA03024 Data Sheet

Efficiency (typical)	80% min.
Input	Voltage	100 to 240 VAC (85 to 264 VAC), 95 to 350 VDC *1
Frequency	50/60 Hz (47 to 450 Hz)
Current	100 VAC input	0.8 A max.
200 VAC input	0.45 A max.
Leakage current	100 VAC input	0.4 mA max.
200 VAC input	0.75 mA max.
Inrush current *2	100 VAC input	25 A max.
200 VAC input	50 A max.
Output	*Voltage adjustment range 3**	-10 to 15% (with V.ADJ) of rated output voltage
Ripple	2% (p-p) max. (-25 to -10°C: 4% max.)
Input variation influence	0.5% max.
Load variation influence (rated input voltage)	1.5% max.
Temperature variation influence	0.05%/°C max.
*Start up time 2**	1,000 ms max. (100 VAC or 200 VAC, at rated output voltage)
*Hold time 2**	15 ms min., 20 ms (typical) (100 VAC or 200 VAC, at rated output voltage)
Additional functions	*Overload protection 2**	105% to 135% of rated load current, inverted L drop, intermittent, automatic reset
Parallel operation	Yes (2 units max. For details, refer to the derating curve in Engineering Data on Data Sheet. For DC input, parallel operation is possible only for 110 to 350 VDC.)
Series operation	No
Others	Ambient temperature	Operating: Refer to the derating curve in Engineering Data on Data Sheet. (with no icing or condensation) Storage: -25 to 75°C (with no icing or condensation)
Ambient humidity	Operating: 10 to 90% Storage: 10 to 90%
Mounting method	DIN track mounting, surface mounting
Dielectric strength	2.0 kVAC for 1 min. (between all inputs and exposed non-current-carrying metal parts; detection current: 10 mA max.) 3.0 kVAC for 1 min. (between all inputs and all outputs; detection current: 20 mA max.) 1.0 kVAC for 1 min. (between all outputs and non-current-carrying metal parts; detection current: 10 mA max.)
Insulation resistance	100 MΩ min. (between all outputs and all inputs/exposed non-current-carrying metal parts) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z direction
Shock resistance	300 m/s², 3 times each in ±X, ±Y, ±Z directions
Output indicator	Yes (color: green)
EMI	Conducted emissions	Conforms to EN61000-6-3 (Class B)
Radiated emissions	Conforms to EN61000-6-3 (Class B)
Approved standards	UL: UL508 (listing, Class 2: Per UL1310), UL60950-1, UL1604 (Class I/Division 2) cUL: CSA C22.2 No. 14 (listing, Class2: Per CSA C22.2 No. 223), CSA C22.2 No. 213 (Class I/Division 2) cUR: CSA C22.2 No.60950-1 EN/VDE: EN60950-1 (=VDE 0805 Teil 1), EN50178 (=VDE 0160)
Weight	240 g max.

Power ratings	Input voltage	Output voltage	Output current	Model number
30 W	100 to 240 VAC	24 VDC	1.3 A	ZEN-PA03024

Name	Models
Mounting Track	50 cm (l) × 7.3 mm (t)	PFP-50N
1 m (l) × 7.3 mm (t)	PFP-100N
1 m (l) × 16 mm (t)	PFP-100N2
End Plate	PFP-M
Spacer	PFP-S
