OMRON FJ Series (Camera and Software Vision Package) Dimensions
/Images/l_3069-25-118834-198x198.jpglast update: September 04, 2014
Quick Installation on Your PC-based Systems
Omron now provides our machine vision solution developed for the manufacturing floor as a package that can be installed on PC-based systems.
Cameras
Connect quickly and Expand easily
GigE Cameras
Six different GigE cameras which has compatibility with FJ software are available. They can realize quick connectivity and stable working. It can be expanded up to 16 cameras.
Measurement Controls
Simple programming and quick testing
Menu driven Software
Approx. 60 proven processing items from OMRON, have a GUI developed for the manufacturing floor in a long factory automation experiences.
This greatly reduces program development work in comparison with library based programming.
GUI Design
Quick development original GUIs
(This example was created with FJ’s Application Producer and Visual Studio®.)
Layout Editor
You can easily customize the positions, sizes, and functions of windows and buttons based on OMRON's GUIs, which are highly appraised for being easy to use and easy to understand.
Wide Range of GUI Modules
You can use a lot of custom controls and sample codes implemented in Application Producer to create your own GUIs easily.
Algorithms
Highly robust measurement algorithms.
HDR Sensing
The dynamic range has been increased by up to 5,000 times to enable clear imaging of inspection objects that was previous not possible due to lighting inconsistencies or halation.
Real Color Sensing
Inspecting real color data enables detecting minute differences in colors that are difficult to detect with color gray conversion or filtering.
Programming
Implement own program
You can implement your own program as original processing item with using Visual Studio® and Application Producer easily.
Macro Processing Items
You can implement even advanced calculations on the processing flow as a Macro processing items easily.
It allow you to edit the program on the controller and the compiling is not necessary. So you can develop and adjust the system quickly.
Microsoft® Visual Studio® is a registered trademark of Microsoft Corporation.
last update: September 04, 2014
Purchase the OMRON PC Vision System Please fill in the following
If you have just landed here, this product OMRON FJ Series (Camera and Software Vision Package) Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the FJ Series (Camera and Software Vision Package) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON FJ Series (Camera and Software Vision Package)Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
FH Series Vision System/Features
E2EC-M / -Q Stainless Steel Sensing Surface Amplifier Proximity Sensor/Features
MK-S(X) Power Relays/Features
DRT2-TS04[] Temperature Input Terminals/Features
SRM1-C01 / C02-V2 Master Control Units (S-Controllers)/Features
OMRON FJ Series (Camera and Software Vision Package) dimension
FJ Series (Camera and Software Vision Package) PC Vision System/Dimensionslast update: December 06, 2012

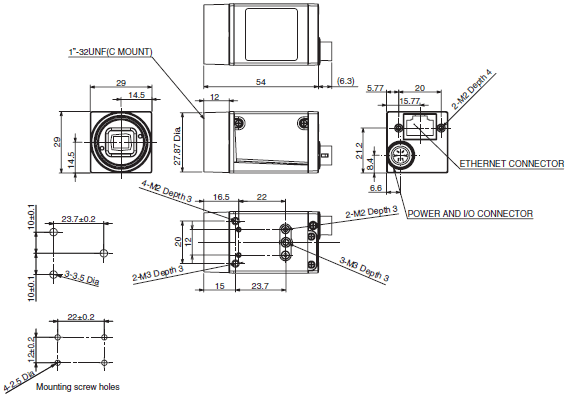

FJ-SCG/SG/SC2MG/S2MG

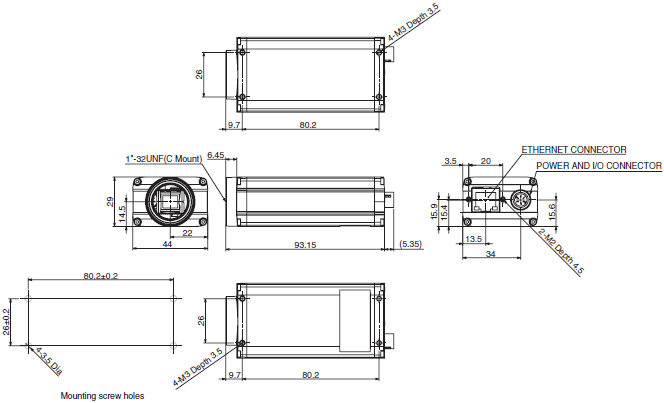

FJ-SC5MG/S5MG
last update: December 06, 2012
OMRON FJ Series (Camera and Software Vision Package) lineup
FJ Series (Camera and Software Vision Package) PC Vision System/Lineuplast update: December 25, 2018
| Type | Model | Operating environment | |||
|---|---|---|---|---|---|
| Camera & Software Vision Package Application software × 1 license Camera × 1 unit |  | 300,000 pixels | Monochrome | FJ-SG-S | • CPU: Intel Pentium Processor (SSE2 or higher) • OS: Windows 7 Professional (32/64bit) or Enterprise (32/64bit) or Ultimate (32/64bit), Windows 8 Pro (32/64bit) or Enterprise (32/ 64bit), Windows 8.1 Pro (32/64bit) or Enterprise (32/ 64bit) • .NET Framework: .NET Framework 3.5 or higher • Memory: At least 2 GB RAM Available disk space: At least 2 GB • Camera interface: Ethernet 1000BASE-T • Display: XGA (1024 × 768), True Color (32- bit) or higher • Optical drive: CD/DVD drive |
| 300,000 pixels | Color | FJ-SCG-S | |||
| 2 million pixels | Monochrome | FJ-S2MG-S | |||
| 2 million pixels | Color | FJ-SC2MG-S | |||
| 5 million pixels | Monochrome | FJ-S5MG-S | |||
| 5 million pixels | Color | FJ-SC5MG-S | |||
| Camera (Single unit) |  | 300,000 pixels | Monochrome | FJ-SG | - |
| 300,000 pixels | Color | FJ-SCG | |||
 | 2 million pixels | Monochrome | FJ-S2MG | ||
| 2 million pixels | Color | FJ-SC2MG | |||
 | 5 million pixels | Monochrome | FJ-S5MG | ||
| 5 million pixels | Color | FJ-SC5MG | |||
| Camera cable (LAN) |  | Cable length: 3 m, 5 m, 10 m, 20 m, 40 m | FJ-VSG []M *2 | ||
| Camera cable (Power, I/O) |  | Cable length: 3 m, 5 m, 10 m *1 | FJ-VSP []M *2 | ||
| Development environment | Media only | CD-ROM | FH-AP1 | • CPU: Intel Pentium Processor (SSE2 or higher) • OS: Windows 7 Professional (32/64bit) or Enterprise (32/64bit) or Ultimate (32/64bit), Windows 8 Pro (32/64bit) or Enterprise (32/ 64bit), Windows 8.1 Pro (32/64bit) or Enterprise (32/ 64bit), Windows 10 Pro (32/64bit) or Enterprise (32/ 64bit) • .NET Framework: .NET Framework 3.5 or higher • Memory: At least 2 GB RAM Available disk space: At least 2 GB • Browser: Microsoft® Internet Explorer 6.0 or later • Display: XGA (1024 × 768), True Color (32- bit) or higher • Optical drive: CD/DVD drive • The following operating environment is required to use the camera FJ-S[][][]G. Camera interface: Ethernet 1000BASE-T • The following software is required to customize the software: Microsoft® Visual Studio® 2010 Professional, or Microsoft® Visual Studio® 2008 Professional, or Microsoft® Visual Studio® 2012 Professional | |
| 1 license | --- | FH-AP1L | |||
*1. 10-m cable can be used with 300,000-pixel cameras FJ-SCG/SG and 2-million pixel cameras FJ-SC2MG/S2MG.
*2. The boxes in the model numbers are replaced by the cable length: 3 m = 3, 5 m = 5, 10 m = 10, 20 m = 20 and 40 m = 40
Lenses
High-resolution, Low-distortion Lenses
| Model | 3Z4S-LE SV-0614H | 3Z4S-LE SV-0814H | 3Z4S-LE SV-1214H | 3Z4S-LE SV-1614H | 3Z4S-LE SV-2514H |
|---|---|---|---|---|---|
| Appearance/ Dimensions (mm) |  |  |  |  |  |
| Focal length | 6 mm | 8 mm | 12 mm | 16 mm | 25 mm |
| Brightness | F1.4 | F1.4 | F1.4 | F1.4 | F1.4 |
| Filter size | M40.5 P0.5 | M35.5 P0.5 | M27 P0.5 | M27 P0.5 | M27 P0.5 |
| Model | 3Z4S-LE SV-3514H | 3Z4S-LE SV-5014H | 3Z4S-LE SV-7525H | 3Z4S-LE SV-10028H |
|---|---|---|---|---|
| Appearance/ Dimensions (mm) |  |  |  |  |
| Focal length | 35 mm | 50 mm | 75 mm | 100 mm |
| Brightness | F1.4 | F1.4 | F2.5 | F2.8 |
| Filter size | M35.5 P0.5 | M40.5 P0.5 | M34.0 P0.5 | M37.5 P0.5 |
CCTV Lenses
| Model | 3Z4S-LE SV-03514V | 3Z4S-LE SV-04514V | 3Z4S-LE SV-0614V | 3Z4S-LE SV-0813V | 3Z4S-LE SV-1214V | 3Z4S-LE SV-1614V |
|---|---|---|---|---|---|---|
| Appearance/ Dimensions (mm) |  |  |  |  |  |  |
| Focal length | 3.5mm | 4.5mm | 6 mm | 8 mm | 12 mm | 16 mm |
| Brightness | F1.4 | F1.4 | F1.4 | F1.3 | F1.4 | F1.4 |
| Filter size | --- | --- | M27 P0.5 | M25.5 P0.5 | M27 P0.5 | M27 P0.5 |
| Model | 3Z4S-LE SV-2514V | 3Z4S-LE SV-3518V | 3Z4S-LE SV-5018V | 3Z4S-LE SV-7527V | 3Z4S-LE SV-10035V |
|---|---|---|---|---|---|
| Appearance/ Dimensions (mm) |  |  |  |  |  |
| Focal length | 25 mm | 35 mm | 50 mm | 75 mm | 100 mm |
| Brightness | F1.4 | F1.8 | F1.8 | F2.7 | F3.5 |
| Filter size | M27 P0.5 | M27 P0.5 | M30.5 P0.5 | M30.5 P0.5 | M30.5 P0.5 |
Extension Tubes
| Model | 3Z4S-LE SV-EXR |
|---|---|
| Contents | Set of 7 tubes (40 mm, 20 mm, 10 mm, 5 mm, 2.0 mm, 1.0 mm, and 0.5 mm) Maximum outer diameter: 30 mm dia. |
- Do not use the 0.5-mm, 1.0-mm, and 2.0-mm Extension Tubes attached to each other. Since these Extension Tubes are placed over the threaded section of the Lens or other Extension Tube, the connection may loosen when more than one 0.5-mm, 1.0-mm or 2.0-mm Extension Tube are used together.
- Reinforcement is required to protect against vibration when Extension Tubes exceeding 30 mm are used.
last update: December 25, 2018
OMRON FJ Series (Camera and Software Vision Package) catalog
FJ Series (Camera and Software Vision Package) PC Vision System/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 FJ Series (Camera & Software Vision Package) Data Sheet | Q188-E1-01 [2927KB] | Dec 25, 201820181225 | FJ Series (Camera & Software Vision Package) Data Sheet |
| FJ Series Catalog | Q185-E1-01 [2652KB] | Dec 25, 201820181225 | FJ Series Catalog |
OMRON FJ Series (Camera and Software Vision Package) specification
FJ Series (Camera and Software Vision Package) PC Vision System/Specificationslast update: April 16, 2014
| FJ-SCG/SG | FJ-SC2MG/S2MG | FJ-SC5MG/S5MG | ||
|---|---|---|---|---|
| Imaging element | Progressive scan 1/3-inch CCD | Progressive scan 1/1.8-inch CCD | Progressive scan 2/3-inch CCD | |
| Effective pixels | 656 (H) × 492 (V): Color | 1616 (H) × 1234 (V): Color | 2448 (H) × 2056 (V): Color | |
| 656 (H) × 494 (V): Monochrome | 1616 (H) × 1236 (V): Monochrome | 2448 (H) × 2058 (V): Monochrome | ||
| Pixel size | 7.4 (μm) × 7.4 (μm) | 4.4 (μm) × 4.4 (μm) | 3.45 (μm) × 3.45 (μm) | |
| Synchronous system | Internal synchronous | |||
| Frame rate | 90fps | 20fps | 17fps | |
| Number of uptake lines | Min 2 line to Effective pixels (V) (2 lines interval) | |||
| Gain | 0dB to +25dB | 0dB to +18dB | 0dB to +14dB | |
| Shutter speed | 17 μs to 1 s | 25 μs to 1 s | 29 μs to 10 s | |
| Video output | Digital 8 bit | |||
| Trigger input | External trigger/Software trigger (Ethernet) | |||
| External output | Strobe trigger/Trigger READY | |||
| I/F | Gigabit Ethernet (1 Gbit/s) | |||
| Lens mount | C mount | |||
| Power voltage | PoE/12 VDC±10% | 11.3 to 13.2 VDC | ||
| Pick-up voltage when camera cable FJ-VSP is used | 3 m | 11.3 to 13.2 VDC | 11.8 to 13.8 VDC | |
| 5 m | ||||
| 10 m | Cannot be used. | |||
| Power consumption | PoE supply: 3.6 W | PoE supply: 3.8 W | Power and I/O connector supply: 6.4 W | |
| Power and I/O connector supply: 3.1 W | Power and I/O connector supply: 3.2 W | |||
| Vibration resistance | 10 to 150 Hz, Half amplitude 0.35 mm (Acceleration: Max. 50 m/s2), 3 directions (X/Y/Z) 8 minutes each, 10 times | |||
| Impact resistance | 150 m/s2, 6 directions (Up and Down, Right and Left, Back and Forth) 3 times each | |||
| Ambient temperature | In operation: 0 to 40°C (Chassis surface temperature should be 55°C or lower.) | |||
| In storage: -25 to +65°C (no freezing or condensation) | ||||
| Ambient humidity | In operation and storage: 35 to 85% RH each (no condensation) | |||
| Ambient environment | No corrosive gas | |||
| Protective structure | IEC60529 standard IP30 | |||
| Weight | Approx. 90 g | Approx. 220 g | ||
last update: April 16, 2014
