• Switch a DC load of 220 VDC, 10 A (resistive load).

• Models for AC Loads can switch 250 VAC, 15 A (resistive load).

• Lineup includes models with SPST-NO and SPST-NO/SPSTNC contact forms.

• Using a SPST-NO/SPST-NC contact form enables detecting contact welding. (When the NO contacts become welded, the NC contacts will maintain a minimum distance of 0.5 mm.)

• Models available with operation indicators and built-in test buttons.

• RoHS compliant.

• Standards: UL, IEC (TÜV certification)

last update: April 25, 2017

Purchase the OMRON For Control Panel Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON MK-S(X) Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the MK-S(X) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON MK-S(X)Relays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZJ-BAS Ionizer (Digital Bar Type)/Features
E3NC-S Ultra-compact CMOS Smart Laser Sensor/Features
E6F-A Absolute 60-mm-dia. Rotary Encoder/Features
E5ER-T Programmable Digital Controller/Features
H3DT-N / -L Multi-range, Multi-mode Timer/Features

OMRON MK-S(X) lineup
MK-S(X) Power Relays/Lineup
last update: October 13, 2015

When your order, specify the rated voltage.

General-purpose Relays
Models for DC Loads

Contact form SPST-NO SPST-NO/SPST-NC
Type Model Rated coil voltage (V) Model Rated coil voltage (V)
Standard Models MKS1XT-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2XT-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220
Models with Built-in
Operation Indicators MKS1XTN-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2XTN-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220
Models with Test
Button MKS1XTI-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2XTI-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220
Models with Test
Button and Built-in
Operation Indicators MKS1XTIN-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2XTIN-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220

Models for AC Loads

Contact form SPST-NO SPST-NO/SPST-NC
Type Model Rated coil voltage (V) Model Rated coil voltage (V)
Standard Models MKS1T-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2T-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220
Models with Built-in
Operation Indicators MKS1TN-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2TN-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220
Models with Test
Button MKS1TI-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2TI-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220
Models with Test
Button and Built-in
Operation Indicators MKS1TIN-10 AC: 24, 100, 110, 120, 200,
220, 230, 240 MKS2TIN-11 AC: 24, 100, 110, 120, 200,
220, 230, 240
DC: 12, 24, 48, 110, 220 DC: 12, 24, 48, 110, 220

Accessory (Order Separately)
Connecting Socket

Classifications Built-in diode Model
Back-connecting Socket PCB Terminals No P7M-06P
Front-connecting Socket Mounts to DIN Track or via screws No P7MF-06
Yes P7MF-06-D

last update: October 13, 2015

OMRON MK-S(X) specification
MK-S(X) Power Relays/Specifications
last update: November 20, 2013
Ratings
Operating Coil

Item Rated current
(mA) Coil
resistance
(Ω) Must
operate
voltage (V) Must
release
voltage (V) Maximum
voltage
allowable (V) Power
consumption
(VA, W)
Rated voltage (V) 50 Hz 60 Hz Percentage of rated voltage
AC 24 110 96.3 48.4 80% max. 30% min. at 60 Hz
25% min. at 50 Hz 110% Approx. 2.3 VA
at 60 Hz
Approx. 2.7 VA
at 50 Hz
100 26.6 23.1 760
110 24.2 21.0 932
120 22.2 19.3 1,130
200 13.3 11.6 3,160
220 12.1 10.5 3,550
230 11.5 10.0 4,250
240 11.0 9.6 4,480
DC 12 126 95 15% min. Approx. 1.5 W
24 63.2 380
48 32.0 1,500
110 13.6 8,060
220 6.8 32,200

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of +15%/−20%
for AC rated current and ±15% for DC coil resistance.
2. Performance characteristic data are measured at a coil temperature of 23°C.
3. The maximum allowable voltage is the maximum value of the allowable voltage range for the operating power
supply for the relay coil.
There is no continuous allowance.
4. The rated current is approximately 5 mA higher for Models with Built-in Operation Indicators (DC operating coils).

Contact Ratings for Models for DC Loads

Load Resistive
load Inductive load Resistive
load Inductive load
L/R = 7 ms DC13 class L/R = 7 ms DC13 class
Contact configuration NO Double-break Double-break
NC --- Single-break
Contact material AgSnIn AgSnIn
Rated load NO 10 A,
220 VDC 5 A,
220 VDC 0.4 A,
220 VDC 5 A,
220 VDC 3 A,
220 VDC 0.2 A,
220 VDC
NC --- 2 A,
220 VDC 0.3 A,
220 VDC 0.1 A,
220 VDC
Rated carry current NO 10 A 5 A
NC --- 2 A
Max. switching voltage NO 220 VDC 220 VDC
NC ---
Max. switching current NO 10 A 5 A 0.4 A 5 A 3 A 0.2 A
NC --- 2 A 0.3 A 0.1 A
Max. switching capacity
(reference value) NO 2,200 W --- --- 1,100 W --- ---
NC --- 440 W --- ---

Note: If the L/R of an inductive load exceeds 7 ms with a Model for a DC Load, the arc interruption time must be less than
approximately 50 ms to use the Relay. Design the circuit so that the arc interruption time is 50 ms or less.
* These values apply to a switching frequency of 30 times per minute.

Contact Ratings for Models for AC Loads

Contact form SPST-NO SPST-NO/SPST-NC
Model MKS1T(I)(N)-10 MKS2T(I)(N)-11
Load Resistive load Resistive load
Contact configuration NO Double-break Double-break
NC --- Single-break
Contact material AgSnIn AgSnIn
Rated load NO 15 A, 250 VAC 15 A, 250 VAC
NC --- 5 A, 250 VAC
Rated carry current NO 15 A 15 A
NC --- 5 A
Max. switching voltage NO 250 VAC 250 VAC
NC ---
Max. switching current NO 15 A 15 A
NC --- 5 A
Max. switching capacity (reference value) NO 3,750 VA 3,750 VA
NC --- 1,250 VA

* These values apply to a switching frequency of 20 times per minute.

Characteristics

Contact resistance *1 100 mΩ max.
Operate time *2 AC: 20 ms max.
DC: 30 ms max.
Release time *2 20 ms max.
Max.
operating
frequency Mechanical 18,000 operations/h
Rated load Models for DC loads: 1,800 times/hour
Models for AC loads: 1,200 times/hour
Insulation resistance *3 100 MΩ min.
Dielectric
strength Between coil and contacts 2,500 VAC 50/60 Hz for 1 min between
Between contacts of
different polarity 2,500 VAC 50/60 Hz for 1 min between
Between contacts of same
polarity 1,000 VAC 50/60 Hz for 1 min
Vibration
resistance Destruction 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction 10 to 55 to 10 Hz, 0.50-mm single amplitude (1.0-mm double amplitude)
Shock
resistance Destruction Back-connecting Socket (P7M-06P) mounting: 1,000 m/s²
Front-connecting Socket (P7MF-06(-D)) mounting:500m/s²
Malfunction 100 m/s²
Endurance Mechanical 1,000,000 operations min. (at 18,000 operations/hr)
Electrical *4 100,000 operations min. (at rated load and maximum switching frequency)
Failure rate P level (reference value) 10 mA at 24 VDC
Ambient operating temperature -40 °C to 60 °C (with no icing or condensation)
Note: The range is -25 °C to 60 °C for models with built-in operation
indicators.
Ambient operating humidity 5% to 85%
Weight SPST-NO: Approx. 73 g, SPST-NO/SPST-NC: Approx. 82 g

Note: The values given above are initial values.
*1. The contact resistance was measured for 1 A at 5 VDC using the voltage drop method.
*2. The operate time was measured with the rated voltage imposed and any contact bounce ignored at an ambient
temperature of 23°C.
*3. The insulation resistance was measured with a 500-VDC insulation resistance tester at the same places as those
used for checking the dielectric strength.
*4. The electrical endurance was measured at an ambient temperature of 23°C.

Approved Standards

UL508 (File No. E41515)

Model Coil ratings Contact ratings Operations
MKS1XT[]-[] 12 to 220 VDC
24 to 240 VAC NO contacts 10 A, 220 VDC (Resistive)
5 A, 220 VDC L/R (T_{_0.632}) = 7 ms
0.4 A, 220 VDC L/R (T_0.95) = 300 ms 6,000
MKS2XT[]-[] NO contacts 5 A, 220 VDC (Resistive)
3 A, 220 VDC L/R (T_0.632) = 7 ms
0.2 A, 220 VDC L/R (T_0.95) = 300 ms
NC contacts 2 A, 220 VDC (Resistive)
0.3 A, 220 VDC L/R (T_0.632) = 7 ms
0.1 A, 220 VDC L/R (T_0.95) = 300 ms
MKS1T[]-[] NO contacts 15 A, 250 VAC (Resistive)
MKS2T[]-[] NO contacts 15 A, 250 VAC (Resistive)
NC contacts 5 A, 250 VAC (Resistive)

CSA Standard: CSA Certification by : CSA C22.2 No.14
IEC Standard/TÜV Certification: IEC61810-1 (Certification No. R50104853)

Model Coil ratings Contact ratings Operations
MKS1XT[]-[] 12, 24, 48, 110, 220 VDC
24, 100, 110, 120, 200, 220,
230, 240 VAC NO contacts DC-1: 10 A, 220 VDC
5 A, 220 VDC L/R (T_0.632) = 7 ms
DC-13: 0.4 A, 220 VDC 100,000
MKS2XT[]-[] NO contacts DC-1: 5 A, 220 VDC
3 A, 220 VDC L/R (T_0.632) = 7 ms
DC-13: 0.2 A, 220 VDC
NC contacts DC-1: 2 A, 220 VDC
0.3 A, 220 VDC L/R (T_0.632) = 7 ms
DC-13: 0.1 A, 220 VDC
MKS1T[]-[] NO contacts AC-1: 15 A, 250 VAC 50/60 Hz
MKS2T[]-[] NO contacts AC-1: 15 A, 250 VAC 50/60 Hz
NC contacts AC-1: 5 A, 250 VAC 50/60 Hz

last update: November 20, 2013

OMRON MK-S(X) dimension
MK-S(X) Power Relays/Dimensions
last update: November 06, 2012
General-purpose Relays

Models for DC Loads

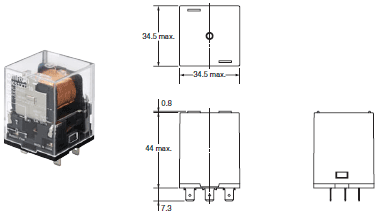

Standard Models
MKS1XT-10, MKS2XT-11

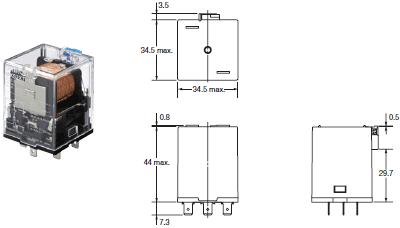

Models with Built-in Operation Indicators
MKS1XTN-10, MKS2XTN-11

Models for AC Loads
Standard Models
MKS1T-10, MKS2T-11
Models with Built-in Operation Indicators
MKS1TN-10, MKS2TN-11

Models for DC Loads
Models with Test Button
MKS1XTI-10, MKS2XTI-11
Models with Test Button and Built-in Operation Indicators
MKS1XTIN-10, MKS2XTIN-11

Models for AC Loads
Models with Test Button
MKS1TI-10, MKS2TI-11
Models with Test Button and Built-in Operation Indicators
MKS1TIN-10, MKS2TIN-11

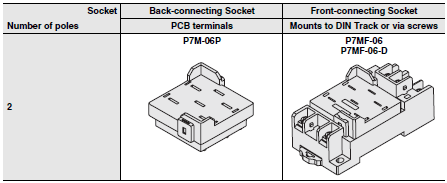

Connecting Socket

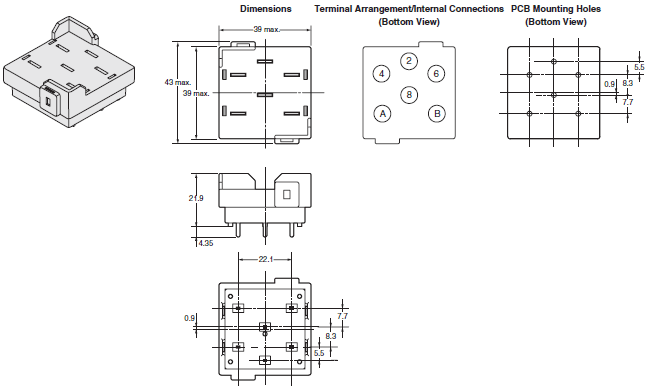

Back-connecting Socket
P7M-06P

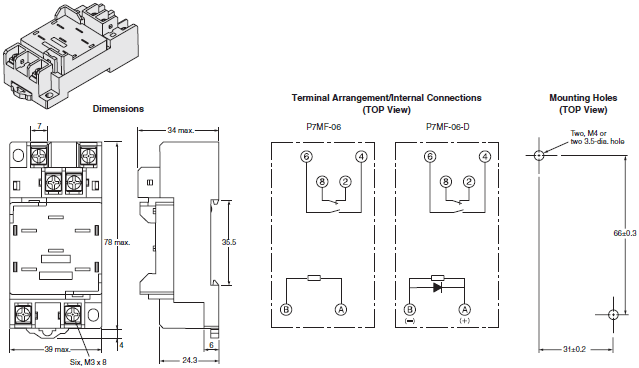

Front-connecting Socket
P7MF-06
P7MF-06-D

Note: 1. The internal connections diagram is for the MKS2(X)T[][]-11.
2. The P7MF-06-D has polarity. Be careful to wire with the correct polarity.

Accessory (Order Separately)
Connecting Socket

Note: 1. The P7M-06P, P7MF-06, and P7MF-06-D can be used with models for DC loads with an SPST-NO or SPST-NO/
SPST-NC contact form or with models for AC loads with an SPST-NO or SPST-NO/SPST-NC contact form.
2. The P7MF-06-D has a built-in diode and can thus be used only with Relays with DC operating coils. Do not use
it with a Relay with an AC operating coil.
3. Refer to Gang Mounting on Catalog for the conditions required for gang mounting.

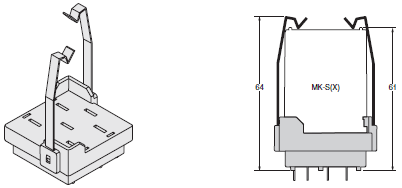

Relay Hold-down Clips

Use the Clips to securely mount the Relay and prevent it from falling due to vibration or shock.

PYC-A2
One Set (Two Clips)

Note: The minimum order for the PYC-A2 is ten clips.

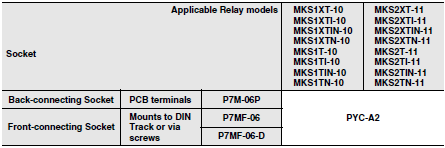

Socket Mounting Height
P7M-06P

P7MF-06
P7MF-06-D

last update: November 06, 2012

OMRON MK-S(X) catalog
MK-S(X) Power Relays/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

MK-S(X) Data Sheet J175-E1-02
[1311KB] Oct 13, 201520151013 MK-S(X) Data Sheet

NO. MK-S(X)

TYPE:General Purpose Relays For Control Panel Copyright Statement

DATE:2021-06-11

Associated products:
MK-S General-purpose Relays/Features MM Power Relay/Features

Contact form	SPST-NO	SPST-NO/SPST-NC
Type	Model	Rated coil voltage (V)	Model	Rated coil voltage (V)
Standard Models	MKS1XT-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2XT-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220
Models with Built-in Operation Indicators	MKS1XTN-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2XTN-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220
Models with Test Button	MKS1XTI-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2XTI-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220
Models with Test Button and Built-in Operation Indicators	MKS1XTIN-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2XTIN-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220

Contact form	SPST-NO	SPST-NO/SPST-NC
Type	Model	Rated coil voltage (V)	Model	Rated coil voltage (V)
Standard Models	MKS1T-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2T-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220
Models with Built-in Operation Indicators	MKS1TN-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2TN-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220
Models with Test Button	MKS1TI-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2TI-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220
Models with Test Button and Built-in Operation Indicators	MKS1TIN-10	AC: 24, 100, 110, 120, 200, 220, 230, 240	MKS2TIN-11	AC: 24, 100, 110, 120, 200, 220, 230, 240
DC: 12, 24, 48, 110, 220	DC: 12, 24, 48, 110, 220

Classifications	Built-in diode	Model
Back-connecting Socket	PCB Terminals	No	P7M-06P
Front-connecting Socket	Mounts to DIN Track or via screws	No	P7MF-06
Yes	P7MF-06-D

Item	Rated current (mA)	Coil resistance (Ω)	Must operate voltage (V)	Must release voltage (V)	Maximum voltage allowable (V)	Power consumption (VA, W)
Rated voltage (V)	50 Hz	60 Hz	Percentage of rated voltage
AC	24	110	96.3	48.4	80% max.	30% min. at 60 Hz 25% min. at 50 Hz	110%	Approx. 2.3 VA at 60 Hz Approx. 2.7 VA at 50 Hz
100	26.6	23.1	760
110	24.2	21.0	932
120	22.2	19.3	1,130
200	13.3	11.6	3,160
220	12.1	10.5	3,550
230	11.5	10.0	4,250
240	11.0	9.6	4,480
DC	12	126	95	15% min.	Approx. 1.5 W
24	63.2	380
48	32.0	1,500
110	13.6	8,060
220	6.8	32,200

Load	Resistive load	Inductive load	Resistive load	Inductive load
L/R = 7 ms	DC13 class	L/R = 7 ms	DC13 class
Contact configuration	NO	Double-break	Double-break
NC	---	Single-break
Contact material	AgSnIn	AgSnIn
Rated load	NO	10 A, 220 VDC	5 A, 220 VDC	0.4 A, 220 VDC	5 A, 220 VDC	3 A, 220 VDC	0.2 A, 220 VDC
NC	---	2 A, 220 VDC	0.3 A, 220 VDC	0.1 A, 220 VDC
Rated carry current	NO	10 A	5 A
NC	---	2 A
Max. switching voltage	NO	220 VDC	220 VDC
NC	---
Max. switching current	NO	10 A	5 A	0.4 A	5 A	3 A	0.2 A
NC	---	2 A	0.3 A	0.1 A
Max. switching capacity (reference value)	NO	2,200 W	---	---	1,100 W	---	---
NC	---	440 W	---	---

Contact form	SPST-NO	SPST-NO/SPST-NC
Model	MKS1T(I)(N)-10	MKS2T(I)(N)-11
Load	Resistive load	Resistive load
Contact configuration	NO	Double-break	Double-break
NC	---	Single-break
Contact material	AgSnIn	AgSnIn
Rated load	NO	15 A, 250 VAC	15 A, 250 VAC
NC	---	5 A, 250 VAC
Rated carry current	NO	15 A	15 A
NC	---	5 A
Max. switching voltage	NO	250 VAC	250 VAC
NC	---
Max. switching current	NO	15 A	15 A
NC	---	5 A
Max. switching capacity (reference value)	NO	3,750 VA	3,750 VA
NC	---	1,250 VA

*Contact resistance 1**	100 mΩ max.
*Operate time 2**	AC: 20 ms max. DC: 30 ms max.
*Release time 2**	20 ms max.
Max. operating frequency	Mechanical	18,000 operations/h
Rated load	Models for DC loads: 1,800 times/hour Models for AC loads: 1,200 times/hour
*Insulation resistance 3**	100 MΩ min.
Dielectric strength	Between coil and contacts	2,500 VAC 50/60 Hz for 1 min between
Between contacts of different polarity	2,500 VAC 50/60 Hz for 1 min between
Between contacts of same polarity	1,000 VAC 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction	10 to 55 to 10 Hz, 0.50-mm single amplitude (1.0-mm double amplitude)
Shock resistance	Destruction	Back-connecting Socket (P7M-06P) mounting: 1,000 m/s² Front-connecting Socket (P7MF-06(-D)) mounting:500m/s²
Malfunction	100 m/s²
Endurance	Mechanical	1,000,000 operations min. (at 18,000 operations/hr)
*Electrical 4**	100,000 operations min. (at rated load and maximum switching frequency)
Failure rate P level (reference value)	10 mA at 24 VDC
Ambient operating temperature	-40 °C to 60 °C (with no icing or condensation) Note: The range is -25 °C to 60 °C for models with built-in operation indicators.
Ambient operating humidity	5% to 85%
Weight	SPST-NO: Approx. 73 g, SPST-NO/SPST-NC: Approx. 82 g

Model	Coil ratings	Contact ratings	Operations
MKS1XT[]-[]	12 to 220 VDC 24 to 240 VAC	NO contacts	10 A, 220 VDC (Resistive) 5 A, 220 VDC L/R (T_{_0.632}) = 7 ms 0.4 A, 220 VDC L/R (T_0.95) = 300 ms	6,000
MKS2XT[]-[]	NO contacts	5 A, 220 VDC (Resistive) 3 A, 220 VDC L/R (T_0.632) = 7 ms 0.2 A, 220 VDC L/R (T_0.95) = 300 ms
NC contacts	2 A, 220 VDC (Resistive) 0.3 A, 220 VDC L/R (T_0.632) = 7 ms 0.1 A, 220 VDC L/R (T_0.95) = 300 ms
MKS1T[]-[]	NO contacts	15 A, 250 VAC (Resistive)
MKS2T[]-[]	NO contacts	15 A, 250 VAC (Resistive)
NC contacts	5 A, 250 VAC (Resistive)

Model	Coil ratings	Contact ratings	Operations
MKS1XT[]-[]	12, 24, 48, 110, 220 VDC 24, 100, 110, 120, 200, 220, 230, 240 VAC	NO contacts	DC-1: 10 A, 220 VDC 5 A, 220 VDC L/R (T_0.632) = 7 ms DC-13: 0.4 A, 220 VDC	100,000
MKS2XT[]-[]	NO contacts	DC-1: 5 A, 220 VDC 3 A, 220 VDC L/R (T_0.632) = 7 ms DC-13: 0.2 A, 220 VDC
NC contacts	DC-1: 2 A, 220 VDC 0.3 A, 220 VDC L/R (T_0.632) = 7 ms DC-13: 0.1 A, 220 VDC
MKS1T[]-[]	NO contacts	AC-1: 15 A, 250 VAC 50/60 Hz
MKS2T[]-[]	NO contacts	AC-1: 15 A, 250 VAC 50/60 Hz
NC contacts	AC-1: 5 A, 250 VAC 50/60 Hz
