OMRON E2EC-M / -Q specification

last update: September 23, 2012

Type			DC 3-Wire PNP Models	DC 2-Wire Models	DC 2-Wire Models (no polarity) (spatter-resistant type)
Size			8 dia. (Sensing Head)
Shielding			Shielded
Model			E2EC-MC2B1	E2EC-MC2D1	E2EC-QC2D1-M1GJ-T
Sensing distance			2 mm ± 15%	2 mm ± 10%
Set distance			0 to 1.2 mm	0 to 1.4 mm
Differential travel			15% max. of sensing distance
Detectable object			Ferrous metals (The sensing distance will decreases with non-ferrous metal. Refer to Engineering Data (Reference Value) on Data Sheet.)
Standard sensing object			Iron, 8 × 8 × 1 mm
Response frequency			100 Hz
Power supply voltage (operating voltage range)			12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC)
Current consumption			10 mA max.	---
Leakage current			---	0.8 mA max.
Control output	Load current		100 mA max.	3 to 50 mA
	Residual voltage		2 V max. (Load current: 100 mA, Cable length: 2 m)	3 V max. (Load current: 50 mA, Cable length: 2 m)	5 V max. (Load current: 50 mA, Cable length: 2 m)
Indicators			Operation indicator (yellow)	Operation indicator (red), Setting indicator (green)
Operation mode (with sensing object approaching)			NO (normally open) Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits			Power supply reverse polarity protection, Surge suppressor, Load short-circuit protection, Reversed output polarity protection	Surge suppressor, Load short-circuit protection
Ambient temperature range			Operating and storage: - 25 to 70 ° C (with no icing or condensation)
Ambient humidity range			Operating and storage: 35% to 95% (with no condensation)
Temperature influence			± 20% max. of sensing distance at 23 ° C in the temperature range of - 25 to 70 ° C
Voltage influence			± 5% max. of sensing distance at rated voltage in the rated voltage ± 15% range	± 1% max. of sensing distance at the rated voltage range in the voltage range of ± 15%
Insulation resistance			50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength			1,000 VAC for 1 min between current carrying-parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance			Destruction: 1,000 m/s2 10 times each in X, Y, Z directions
Degree of protection			IEC IP67, In-house standards: oil-resistant (For Sensor Head only)
Connection method			Pre-wired Connector Models (Standard cable length: 2 m)		Connector Models (Standard cable length: 0.3 m)
Weight (packed state)			Approx. 65 g		Approx. 95 g
Materials	Sensor Head	Case	Stainless steel (SUS303)		Stainless steel (SUS303) Fluororesin coated
		Sensing surface (thickness)	Stainless steel (SUS303) (0.2 mm)		Stainless steel (SUS303) Fluororesin coated (0.2 mm)
		Cable	Polyester elastomer (TPEE) (Shielded)		Fluoro-rubber (Shielded)
	Cable Amplifier	Case	ABS resin		Stainless steel (SUS303)
		Cable	Polyvinyl chloride (PVC)		Fluorocarbon cable (flame-resistant)
Accessories			Amplifier Mounting Bracket, instruction manual

Note: Time is required for the sensing distance to stabilize after the power supply is turned ON. Confirm operation
          sufficiently in the actual operating environment and use the Sensor within the set distance to obtain a sufficient
          sensing distance.

last update: September 23, 2012

OMRON E2EC-M / -Q lineup

last update: September 24, 2012

Sensors

Appearance		Sensing distance	Output configuration	Model
				Operation mode: NO
Shielded When mounting to an iron surface	8 dia.	2 mm	DC 3-wire PNP	E2EC-MC2B1 2M
			DC 2-wire (polarity)	E2EC-MC2D1 2M
			DC 2-wire (no polarity) (3)-(4) pin arrangement	E2EC-QC2D1-M1GJ-T 0.3M

Accessories (Order Separately)

Sensor I/O Connector

Models with Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.

Appearance		Cable length	Sensor I/O Connector model	Applicable Proximity Sensors
Straight		2 m	XS2F-D421-DD0	E2EC-QC2D1-M1GJ-T
		5 m	XS2F-D421-GD0
L-shape		2 m	XS2F-D422-DD0
		5 m	XS2F-D422-GD0

Note: The Sensor I/O Connector models in the previous table are for standard cables. Be sure to use a heat-resistant
           cable (XS2F-D42[]-[]80F) when using the Sensor in environments susceptible to spatter.

last update: September 24, 2012

OMRON E2EC-M / -Q dimension

last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

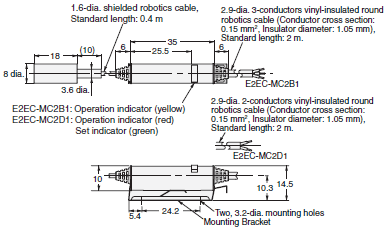

E2EC-MC2B1, E2EC-MC2D1

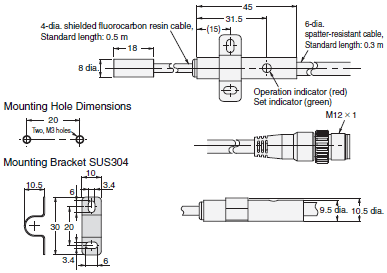

E2EC-QC2D1-M1GJ-T

Sensing Head Mounting Hole Dimensions

last update: November 12, 2012
