Realizing flexible wiring by daisy chain and branch
Compact size as the industry's smallest *
Compact size as width 25 mm (3-port type) realizing space saving on the board
Power supply voltage operable for long distance wiring
Operable with 24 VDC. The range of power-supply voltage is from maximum 28.8 VDC to minimum 20.4 VDC in consideration of a power voltage drop by long distance wiring.
* As of August 2011 According to our own research.
Advantages of EtherCAT junction slaves
Support for efficient equipment and system building
In a system that consists of plural processes, debugging work can be started with a process for which designing work has been completed.
EtherCAT daisy chaining connection
The system can not start operation before installing and assembling all devices of all processes. (Neither Process B nor Process B can start operation before Process A has been built.)
EtherCAT branching connection
The slaves connected via EtherCAT junction slaves on Process B and Process C can operate, even though slaves for Process A do not operate. Debugging work of the processes can be made separately, thus improving debugging work efficiency.
Improves system's operating rate
It is possible to design the system operation, considering errors such as EtherCAT slave failure and disconnection of communications cables. A part of the system can be separately operated, and the system can be promptly restored.
EtherCAT daisy chaining connection
If an error occurs on a slave, or the network cable is disconnected, slaves following on the same network can not communicate with the master unit. The operating rate of the system can be lowered, or maintenance work will be less efficient.
EtherCAT branching connection
With EtherCAT junction slaves, each process can be designed and wired as separated blocks. If an error occurs on one slave device, operation of the process that uses the slave stops, but that will not influence the entire system operation. The EtherCAT junction slave will contribute to prevention of loss of workpieces in process and prompt system restoration.
last update: December 19, 2013
Purchase the OMRON EtherCAT Please fill in the following
If you have just landed here, this product OMRON GX-JC03 / JC06 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GX-JC03 / JC06 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GX-JC03 / JC06Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A165E Emergency Stop Switch (16-dia.)/Features
61F-UHS / HSL Floatless Level Switch (Ultra High-sensitivity Type)/Features
K3HB-C Up/Down Counting Pulse Indicator/Features
CS1W-CT021 / 041 SYSMAC CS-series High-speed Counter Units/Features
CPM2C-S1[]0C-DRT Programmable Slaves/Features
OMRON GX-JC03 / JC06 catalog
GX-JC03 / JC06 EtherCAT Junction Slave/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 GX-JC03/JC06 Data Sheet | - [494KB] | Feb 01, 201920190201 | GX-JC03/JC06 Data Sheet |
OMRON GX-JC03 / JC06 dimension
GX-JC03 / JC06 EtherCAT Junction Slave/Dimensionslast update: July 31, 2013

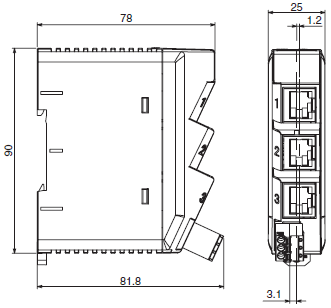

GX-JC03

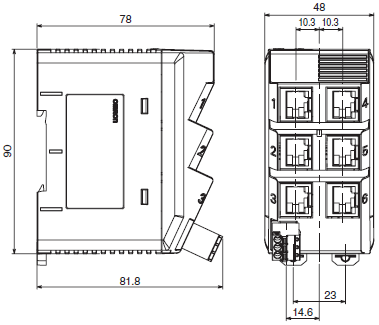

GX-JC06
last update: July 31, 2013
OMRON GX-JC03 / JC06 specification
GX-JC03 / JC06 EtherCAT Junction Slave/Specificationslast update: July 31, 2013
General Specifications
| Item | Specifications | ||
|---|---|---|---|
| GX-JC03 | GX-JC06 | ||
| Common Specifications | Power supply voltage | 20.4 to 28.8 VDC | |
| Current consumption | 80 mA | 170 mA | |
| Ambient operating temperature | -10 to 55°C | ||
| Ambient operating humidity | 25% to 85% (with no condensation) | ||
| Ambient storage temperature | -25 to 65°C | ||
| Ambient storage humidity | 25% to 85% (with no condensation) | ||
| Dimensions | 25 mm × 78 mm × 90 mm | 48 mm × 78 mm × 90 mm | |
| Weight | 165 g | 220 g | |
last update: July 31, 2013
OMRON GX-JC03 / JC06 lineup
GX-JC03 / JC06 EtherCAT Junction Slave/Lineuplast update: February 1, 2019
International Standards
- The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
- Contact your OMRON representative for further details and applicable conditions for these standards.
| Product name | No. of ports | Power supply voltage | Current consumption (A) | Model | Standards | |
|---|---|---|---|---|---|---|
| EtherCAT Junction Slave |  | 3 | 20.4 to 28.8 VDC (24 VDC -15 to +20%) | 0.08 | GX-JC03 | CE, UC1 |
 | 6 | 0.17 | GX-JC06 | |||
Note: Please do not connect EtherCAT junction slave with OMRON position control unit, Model CJ1W-NC[]81/[]82.
last update: February 1, 2019
