OMRON CS1W-V680C11 / V680C12Automation Systems/ Programmable Controllers/CS1

OMRON CS1W-V680C11 / V680C12 Automation Systems

CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Specifications
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Catalog
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Dimensions
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Lineup
Purchase the OMRON CS1W-V680C11 / V680C12 CS1

OMRON CS1W-V680C11 / V680C12 Dimensions

/Images/l_3087-25-118642-198x198.jpg

last update: April 28, 2017

• Easy reading and writing of data by simply setting parameters in PLC memory area.

• Simpler device configuration compared to serial communication allows faster data processing.

• Function Block (FB) library in Ladder Program facilitates generation of communication programs.

Note: For system configuration, refer to V680-series catalog (Q151). For specification of controllers, refer to the manual of
each controller.

last update: April 28, 2017

Purchase the OMRON CS1 Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CS1W-V680C11 / V680C12 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CS1W-V680C11 / V680C12 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CS1W-V680C11 / V680C12Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

V400-H Handheld 2D Code Reader/Features
NX102-[][][][] NX-Series NX1 CPU Units/Features
ES2-HB-N / THB-N Humidity Sensor, Temperature/Humidity Sensor/Features
NX-PG0[][][] NX-series Pulse Output Unit/Features
ZS-CRT Sensor Communications Unit/Features

OMRON CS1W-V680C11 / V680C12 specification
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Specifications
last update: December 19, 2013
General Specification

Model CS1W-V680C11 CS1W-V680C12
Current
consumption Internal: 5 V 0.26 A 0.32 A
Internal: 24 V/26 V 0.13 A * -
External: 24 V - 0.36 A
Ambient operating temperature 0 to 55°C
Ambient storage temperature -20°C to 75°C
Ambient operating humidity 10% to 90% (with no condensation)
Insulation resistance 20 mΩ min. at 500 VDC
Dielectric strength 1,000 VAC for 1 minute
Degree of protection Mounted in panel (IP30)
Vibration resistance 10 to 57 Hz variable vibration, 0.075-mm double amplitude and 57 to 150 Hz
variable vibration at 9.8 m/s² acceleration, with 10 sweeps in X, Y, and Z
directions for 8 minutes each
Shock resistance 147 m/s² in X, Y, and Z directions 3 times each
Appearance 35 × 130 × 10¹mm (excluding protrusions)
Weight 180 g max. 300 g max.

* When connected to the V680-H01-V2: 0.28 A.

Performance Specifications

Model CS1W-V680C11 CS1W-V680C12
Unit classification Special I/O Unit
Influence on CPU
Unit's cycle time 0.15 ms 0.3 ms
Mounting location CS1-series CPU Rack or CS1-series Expansion Rack
(Cannot be mounted to C200H Expansion I/O Racks or SYSMAC BUS Slave Racks.)
Connectable
Antennas V680-series Amplifiers and Antennas *1
Applicable RF Tags V680-series RF Tags
No. of allocated
units 1 2
No. of allocated
words 10 words 20 words
Control protocol Special protocol
Data exchange
methods with CPU
Unit Special I/O Unit
Area in CIO
Area: CIO 2000
to CIO 2959 Constant data
exchange of 10
words/Unit CPU Unit to
ID Sensor
Unit Unit controls, communications
processing specification, data storage
area specification
ID Sensor
Unit to CPU
Unit Unit information, results information,
processing results monitor
Special I/O Unit
words in DM
Area: D20000
to D29599 100 words/Unit
transferred when
power is turned
ON or when
restarting the Unit CPU Unit to
ID Sensor
Unit System Settings, Auto Wait Time
Setting, Write Protection Disable
Setting, Antenna Connection Setting,
Results Monitor Output, Test Setting,
Run/Test Switching Method Setting
Data transfer
quantity 2,048 bytes max. (160 bytes/scan) *2 2,048 bytes max./channel (160 bytes/scan) *2
Operating modes Run Mode
Test Mode Communications tests
Distance level measurements
Read speed level measurements
Write speed level measurements
Noise level measurements
Communications success rate measurements
Diagnostic
functions (1) CPU watchdog timer
(2) Communications error detection with RF Tag
(3) Antenna power supply error

*1. V680-H01 and V680-H01-V2 can be connected to 1CH-type ID Sensor Units only. They are not supported by 2CH-
type ID Sensor Units.
*2. If using Intelligent I/O Instructions is specified as the data transfer method, up to 2,048 bytes can be transferred in
one scan.

Communications Function Specifications

Model CS1W-V680C11 CS1W-V680C12
Communications control (1) RF Tag Communications Speed (Normal Mode or High-speed Mode)
(2) Write Verification Processing
(3) Auto Wait Time Setting
(4) UID Addition Setting
(5) Write Protection Setting
(6) Antenna Connection Setting (One-channel ID Sensor Unit (CS1W-V680C11))
(7) Results Monitor Setting
Commands Read
Write
Bit Set/Bit Clear
Mask Bit Write
Calculation Write
Data Fill
Data Check
Number of Writes Control
Read with Error Correction
Write with Error Correction
UID Read
Noise Measurement Read
Write
Bit Set/Bit Clear
Mask Bit Write
Calculation Write
Data Fill
Data Check
Number of Writes Control
Copy
Read with Error Correction
Write with Error Correction
UID Read
Noise Measurement
Communications specification Single trigger
Single auto
Repeat auto
FIFO trigger *
FIFO repeat *
Multi-access trigger *
Multi-access repeat *

* FIFO trigger, FIFO repeat, Multi-access trigger, and Multi-access repeat specification cannot be used for communicating
with V680-D1KP[][] RF Tags.

Connectable Units
When using V680-HS51/-HS52/-HS63/-HS65 Antenna

Model NJ System CJ System CS System
CPU unit Expansion unit CPU unit Expansion unit CPU unit Expansion unit
CS1W-V680C11 N/A N/A N/A N/A 9 units 9 units
CS1W-V680C12 N/A N/A N/A N/A 10 units 10 units

When using V680-H01-V2 Antenna

Model NJ System CJ System CS System
CPU unit Expansion unit CPU unit Expansion unit CPU unit Expansion unit
CS1W-V680C11 N/A N/A N/A N/A 4 units 4 units

last update: December 19, 2013

OMRON CS1W-V680C11 / V680C12 catalog
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CJ1W-V680C11/V680C12, CS1W-V680C11/V680C12 Data Sheet -
[975KB] Jul 12, 201820180712 CJ1W-V680C11/V680C12, CS1W-V680C11/V680C12 Data Sheet

OMRON CS1W-V680C11 / V680C12 dimension
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Dimensions
last update: July 31, 2013

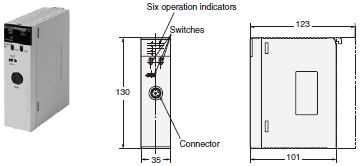

CS1W-V680C11

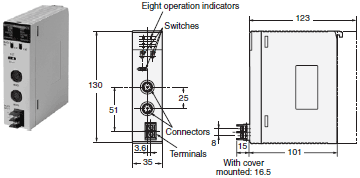

CS1W-V680C12
