OMRON ZS-CRT specification
ZS-CRT Sensor Communications Unit/Specifications
last update: September 24, 2012
Performance Specifications

Item Specification

Communications power supply voltage 14 to 26.4 VDC

Communications power supply
current consumption 200 mA max.

Connected Controller models ZS-LDC[][] (Ver. 2.300 or later), ZS-MDC[][] (Ver. 2.200 or later), ZS-HLDC[][] (Ver. 1.030 or
later), ZFV-CA[][] (Ver. 1.300 or later)

Functions Constant monitoring function for measurement results, trigger measurement monitoring
function, message communications function

Indicators MS (green/red), NS (green/red), and USB (green/red)

Vibration resistance 10 to 150 Hz with double-amplitude of 0.7 mm or 50 m/s²

Shock resistance 150 m/s²

Dielectric strength 1,000 VAC 50/60 Hz for 1 min

Insulation resistance 30 MΩ min.

Ambient operating temperature 00 to 50°C

Ambient operating humidity 25% to 85% (with no condensation)

Storage temperature -15 to 65°C (No icing or condensation)

Storage humidity 25% to 85% (with no condensation)

Installation Mounted on 35-mm DIN Track

Degree of protection IP20

Material Case: ABS

Accessories Instruction Manual, ferrite core

Weight Approx. 130 g

last update: September 24, 2012

OMRON ZS-CRT dimension

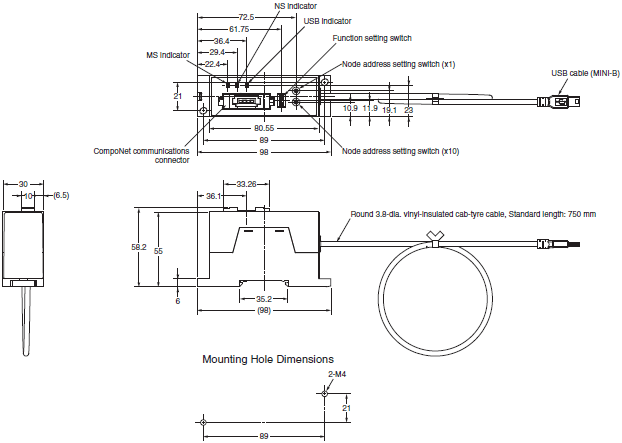

ZS-CRT Sensor Communications Unit/Dimensions
last update: September 24, 2012
ZS-CRT

last update: September 24, 2012

OMRON ZS-CRT lineup
ZS-CRT Sensor Communications Unit/Lineup
last update: September 24, 2012

Name I/O classification Allocated bits Internal circuit
power supply I/O power
supply voltage Connected
Controller model Model

Sensor
Communications
Unit Input and output 160 bits max. Supplied along with
communications power 24 VDC ZS-LDC[][]
ZS-MDC[][]
ZS-HLDC[][]
ZFV-CA[][] ZS-CRT

last update: September 24, 2012

OMRON ZS-CRT catalog
ZS-CRT Sensor Communications Unit/Catalog

Catalog

Manual

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CompoNet Catalog P056-E1-08
[4302KB] May 07, 201820180507 CompoNet Catalog

NO. ZS-CRT

TYPE:Networks CompoNet Sensor Communications Units

DATE:2021-06-13

Associated products:
CRS1-RPT01 Repeater Unit/Features CompoNet Peripheral Devices CompoNet Peripheral Devices/Features

Item	Specification
Communications power supply voltage	14 to 26.4 VDC
Communications power supply current consumption	200 mA max.
Connected Controller models	ZS-LDC[][] (Ver. 2.300 or later), ZS-MDC[][] (Ver. 2.200 or later), ZS-HLDC[][] (Ver. 1.030 or later), ZFV-CA[][] (Ver. 1.300 or later)
Functions	Constant monitoring function for measurement results, trigger measurement monitoring function, message communications function
Indicators	MS (green/red), NS (green/red), and USB (green/red)
Vibration resistance	10 to 150 Hz with double-amplitude of 0.7 mm or 50 m/s²
Shock resistance	150 m/s²
Dielectric strength	1,000 VAC 50/60 Hz for 1 min
Insulation resistance	30 MΩ min.
Ambient operating temperature	00 to 50°C
Ambient operating humidity	25% to 85% (with no condensation)
Storage temperature	-15 to 65°C (No icing or condensation)
Storage humidity	25% to 85% (with no condensation)
Installation	Mounted on 35-mm DIN Track
Degree of protection	IP20
Material	Case: ABS
Accessories	Instruction Manual, ferrite core
Weight	Approx. 130 g

Name	I/O classification	Allocated bits	Internal circuit power supply	I/O power supply voltage	Connected Controller model	Model
Sensor Communications Unit	Input and output	160 bits max.	Supplied along with communications power	24 VDC	ZS-LDC[][] ZS-MDC[][] ZS-HLDC[][] ZFV-CA[][]	ZS-CRT
