OMRON V400-HSensors/ Code Readers / OCR/Code Readers

OMRON V400-H Sensors

V400-H Handheld 2D Code Reader/Lineup
V400-H Handheld 2D Code Reader/Catalog
V400-H Handheld 2D Code Reader/Dimensions
V400-H Handheld 2D Code Reader/Specifications
Purchase the OMRON V400-H Code Readers

OMRON V400-H Dimensions

/Images/l_1623-25-119036-198x198.jpg

last update: December 19, 2013

• Designed for Easy Use on Production Lines

• Stable Reading from a Wide Variety of Objects

• Bringing Greater Visibility to 2D Code Reading

• Variable Field of Vision

• Display Customizing Function

• Versatile LCD Display Patterns

last update: December 19, 2013

Purchase the OMRON Code Readers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON V400-H Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the V400-H We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON V400-HSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E32-T11NF[] Oil-resistant Fiber Units/Features
A3S (Super Luminosity Type) Lighted Pushbutton Switch (Square) Ultra Bright LED Type/Features
G2RV-SR Slim I/O Relay/Features
NX-CIF NX-series Communications Interface Units/Features
GX-JC03 / JC06 EtherCAT Junction Slave/Features

OMRON V400-H lineup
V400-H Handheld 2D Code Reader/Lineup
last update: September 24, 2012
2D Code Readers

Name Model Specifications Remarks

Communications interface Field of vision

2D Code Reader V400-H111 RS-232C 5 × 5 to 10 × 10 mm

V400-H211 RS-232C 15 × 15 to 30 × 30 mm

Accessories (Optional)

Name Model Cable length Remarks

Contactor V400-AC2 --- Contactor for positioning
(detachable)

Communications Cable V400-W20-2M 2 m For SYSMAC Series connection
(with power cord)

V400-W20-5M 5 m

V400-W21-2M 2 m For PC-compatible connection
(with power cord)

V400-W21-5M 5 m

V400-W22-2M 2 m For PC-compatible connection
(when using AC Adaptor)

V400-W22-5M 5 m

AC Adaptor V600-A22 ---

last update: September 24, 2012

OMRON V400-H catalog
V400-H Handheld 2D Code Reader/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

V400-H Catalog Q146-E1
[1454KB] Dec 21, 200920091221 V400-H Catalog

OMRON V400-H dimension
V400-H Handheld 2D Code Reader/Dimensions
last update: September 24, 2012

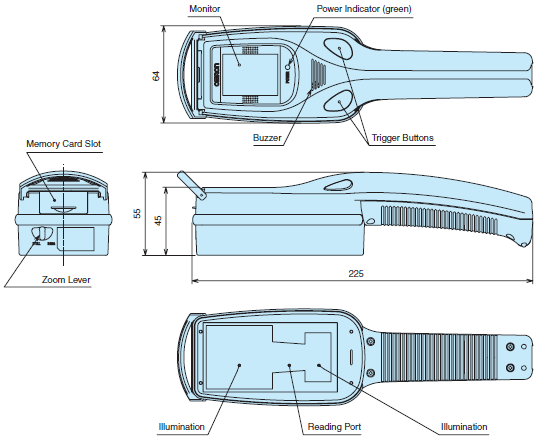

Main Unit
V400-H111
V400-H211

Communications Cable

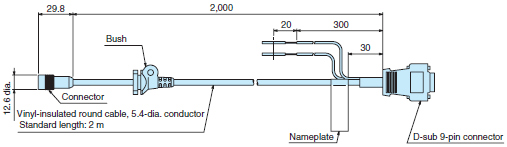

V400-W20-2M/W21-2M

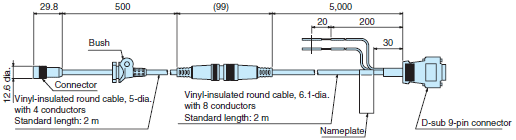

V400-W20-5M/W21-5M

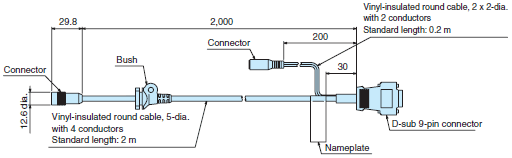

V400-W22-2M

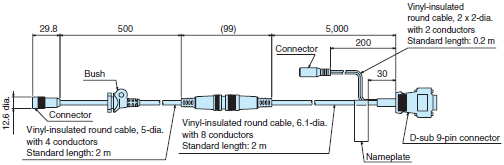

V400-W22-5M

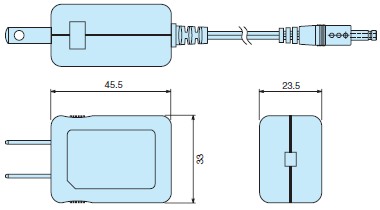

AC Adaptor
V600-A22

Contactor
V400-AC2

last update: September 24, 2012

OMRON V400-H specification
V400-H Handheld 2D Code Reader/Specifications
last update: September 24, 2012
Ratings and Specifications

Item V400-H111 V400-H211

Field of vision 5 × 5 to 10 × 10 mm 15 × 15 to 30 × 30 mm

Cell size 0.08 to 0.2 mm 0.2 to 0.65 mm

Code size 0.8 × 0.8 to 5 × 5 mm 2.0 × 2.0 to 15 × 15 mm

Working distance 40 mm (flush when Contactor is mounted)

Power supply 5 VDC ±10%

Current consumption 1.0 A max.

Serial interface RS-232C

Applicable codes Data Matrix, ECC200, 10 × 10 to 64 × 64, 8 × 18 to 16 × 48, QR Code (Models 1, 2),
21 × 21 to 57 × 57 (Versions 1 to 10)

Operation method Pressing the trigger button

Settings Make settings by using the manual setting window, uploading from an SD Memory Card, or by using
Support Software.

Memory card SD Memory Card

Monitor 1.8-inch TFT LCD, displaying images and read data

Display illumination Operation display, memory card access

Ambient temperature Operation: 0 to 40°C; storage: -25 to 60°C

Ambient humidity 35 to 85% (with no condensation)

Ambient conditions No corrosive gases

Vibration resistance 10 to 150 Hz, single amplitude 0.35 mm (50 m²/s max. acceleration)

Shock resistance 150 m²/s in ±X, Y, and Z directions, 3 times

Weight Approx. 230 g

Degree of protection IEC 60529 IP64

Materials Case: ABS; optical surface: PC; display surface: PMMA

last update: September 24, 2012

NO. V400-H

TYPE:Code Readers / OCR Code Readers Copyright Statement

DATE:2021-06-08

Associated products:
FQ-CR Series Code Reader/Features V400-F 2D Code Reader/Features

Name	Model	Specifications	Remarks
Communications interface	Field of vision
2D Code Reader	V400-H111	RS-232C	5 × 5 to 10 × 10 mm
V400-H211	RS-232C	15 × 15 to 30 × 30 mm

Name	Model	Cable length	Remarks
Contactor	V400-AC2	---	Contactor for positioning (detachable)
Communications Cable	V400-W20-2M	2 m	For SYSMAC Series connection (with power cord)
V400-W20-5M	5 m
V400-W21-2M	2 m	For PC-compatible connection (with power cord)
V400-W21-5M	5 m
V400-W22-2M	2 m	For PC-compatible connection (when using AC Adaptor)
V400-W22-5M	5 m
AC Adaptor	V600-A22	---

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
V400-H Catalog	Q146-E1 [1454KB]	Dec 21, 200920091221	V400-H Catalog

Item	V400-H111	V400-H211
Field of vision	5 × 5 to 10 × 10 mm	15 × 15 to 30 × 30 mm
Cell size	0.08 to 0.2 mm	0.2 to 0.65 mm
Code size	0.8 × 0.8 to 5 × 5 mm	2.0 × 2.0 to 15 × 15 mm
Working distance	40 mm (flush when Contactor is mounted)
Power supply	5 VDC ±10%
Current consumption	1.0 A max.
Serial interface	RS-232C
Applicable codes	Data Matrix, ECC200, 10 × 10 to 64 × 64, 8 × 18 to 16 × 48, QR Code (Models 1, 2), 21 × 21 to 57 × 57 (Versions 1 to 10)
Operation method	Pressing the trigger button
Settings	Make settings by using the manual setting window, uploading from an SD Memory Card, or by using Support Software.
Memory card	SD Memory Card
Monitor	1.8-inch TFT LCD, displaying images and read data
Display illumination	Operation display, memory card access
Ambient temperature	Operation: 0 to 40°C; storage: -25 to 60°C
Ambient humidity	35 to 85% (with no condensation)
Ambient conditions	No corrosive gases
Vibration resistance	10 to 150 Hz, single amplitude 0.35 mm (50 m²/s max. acceleration)
Shock resistance	150 m²/s in ±X, Y, and Z directions, 3 times
Weight	Approx. 230 g
Degree of protection	IEC 60529 IP64
Materials	Case: ABS; optical surface: PC; display surface: PMMA
