E2EF Proximity Sensor with All-stainless Housing/Specifications
E2EF Proximity Sensor with All-stainless Housing/Dimensions
E2EF Proximity Sensor with All-stainless Housing/Lineup
E2EF Proximity Sensor with All-stainless Housing/Catalog
Purchase the OMRON E2EF Cylindrical

OMRON E2EF Dimensions

/Images/l_3144-25-137315-198x198.jpg

last update: March 1, 2017

Long-distance Detection*1 Equivalent to or Greater Than Proximity Sensors with Resin Heads

Installation is possible at the same distance as Proximity Sensors with Resin Heads
The metal heads of the E2EF achieve the same distances for the same sizes as the E2E Proximity Sensors with Resin Heads.
This allows you to use Proximity Sensors that withstand friction with the workpiece without major changes to mounting brackets.

*1. The actual sensing distance will vary with the size or material of the object.
For details, refer to Engineering Data.

More than 20 times*2 the durability of Proximity Sensors with Resin Heads.

[Head thickness 0.4 mm *3]

Thick Metal Head That Resists Friction with the Workpiece

The 0.4-mm*3 metal head exhibits almost no wear due to friction with the workpiece or cleaning with metal brushes.
This helps prevent equipment down time due to sensor failure and reduces the frequency of replacement.

*2. Stainless-steel brush test with M12 model.
*3. For M12 model.

Stable Detection in Harsh Environments with Splatter Resistance and Durability

Spatter-resistant models with fluororesin-coated head are also available. Reduces adhesion of spatter to achieve stable detection. The tough all-stainless steel housing with a flame-retardant cable enables reliable application where spatter is present near welding machines.

Reduced Cleaning Frequency with Spatter Countermeasures

The spatter countermeasures reduce the risk of malfunction due to the buildup of metal debris or spatter.
Frequent cleaning with metal brushes is not required.

last update: March 1, 2017

Purchase the OMRON Cylindrical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E2EF Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E2EF We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E2EFSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E9NC-AA / VA IoT Status Monitoring Amplifier/Features
D4N-[]R Pull-reset Safety Limit Switch/Features
E2EC-M / -Q Stainless Steel Sensing Surface Amplifier Proximity Sensor/Features
H7CX-A Multifunction Preset Counter/Features
CK3W-PD048 CK3W Power Supply Unit/Features

OMRON E2EF specification
E2EF Proximity Sensor with All-stainless Housing/Specifications
last update: October 04, 2012

Size M8 M12
Shielded Shielded
Exterior Completely
stainless-
steel housing Fluororesin
coating Completely
stainless-
steel housing Fluororesin
coating
Model E2EF-X2D1
(-M1TGJ) E2EF-QX2D1
(-M1TGJ) E2EF-X3D1
(-M1TGJ) E2EF-QX3D1
(-M1TGJ)
Sensing distance 2mm ± 10% 3mm ± 10%
Set distance 0 to 1.4 mm 0 to 2.1mm
Differential travel 15% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron, 12 × 12 × 1 mm Iron, 12 × 12 × 1 mm
Response frequency *1 200Hz 80Hz
Power supply voltage 10 to 30 VDC, ripple (p-p): 10% max.
Leakage current 0.8 mA max.
Output configuration With polarity
Control
output Switching capacity 3 to 100 mA
Residual voltage 3 V max.(Load current: 100 mA max., Cable length: 2 m)
Indicators Operation indicator (red LED), Setting indicator (green LED)
Operation mode
(with sensing object
approaching) NO (normally open)
Protection circuits Surge suppressor, Load short-circuit protection
Ambient temperature range Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ± 20% max. of sensing distance at 23 °C in the temperature range of − 10 to 70 °C.
Voltage influence ± 1% max. of sensing distance at rated voltage in the rated voltage ± 15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 500 m/s²
10 times each in X, Y, and Z directions Destruction: 1,000 m/s² 10 times each
in X, Y, and Z directions
Degree of protection IEC 60529 IP67
Connection method Unmarked: Pre-wired Models (Standard cable length: 2 m)
Models ending with -M1TGJ: Pre-wired Connector Models (Standard cable length:
300 mm)
Weight
(packed
state) Pre-wired
Models (2 m) Approx. 105 g Approx. 190 g
Pre-wired
Connector Models Approx. 65 g Approx. 85 g
Materials Case Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Sensing surface Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
(thickness) 0.2mm 0.4mm
Clamping nuts Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Toothed washer Zinc-plated iron
Cable PVC (flame retardant)
Accessories Instruction manual

Size M18 M30
Shielded Shielded
Exterior Completely
stainless-
steel housing Fluororesin
coating Completely
stainless-
steel housing Fluororesin
coating
Model E2EF-X7D1
(-M1TGJ) E2EF-QX7D1
(-M1TGJ) E2EF-X12D1
(-M1TGJ) E2EF-QX12D1
(-M1TGJ)
Sensing distance 7mm ± 10% 12mm ± 10%
Set distance 0 to 4.9mm 0 to 8.4mm
Differential travel 15% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to
Engineering Data on Data Sheet.)
Standard sensing object Iron, 30 × 30 × 1 mm Iron, 54 × 54 × 1 mm
Response frequency *1 100Hz 50Hz
Power supply voltage 10 to 30 VDC, ripple (p-p): 10% max.
Leakage current 0.8 mA max.
Output configuration With polarity
Control
output Switching capacity 3 to 100 mA
Residual voltage 3 V max.(Load current: 100 mA max., Cable length: 2 m)
Indicators Operation indicator (red LED), Setting indicator (green LED)
Operation mode
(with sensing object
approaching) NO (normally open)
Protection circuits Surge suppressor, Load short-circuit protection
Ambient temperature range Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence ± 20% max. of sensing distance at 23 °C in the temperature range of − 10 to 70 °C.
Voltage influence ± 1% max. of sensing distance at rated voltage in the rated voltage ± 15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67
Connection method Unmarked: Pre-wired Models (Standard cable length: 2 m)
Models ending with -M1TGJ: Pre-wired Connector Models (Standard cable length:
300 mm)
Weight
(packed
state) Pre-wired
Models (2 m) Approx. 215 g Approx. 295 g
Pre-wired
Connector Models Approx. 110 g Approx. 190 g
Materials Case Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Sensing surface Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
(thickness) 0.4mm 0.5mm
Clamping nuts Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Toothed washer Zinc-plated iron
Cable PVC (flame retardant)
Accessories Instruction manual
*1. The response frequency of the DC switching section is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice thestandard sensing object, and a set distance of half the sensing distance.

last update: October 04, 2012

OMRON E2EF dimension
E2EF Proximity Sensor with All-stainless Housing/Dimensions
last update: March 1, 2017

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensors

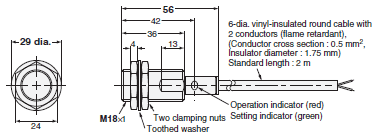

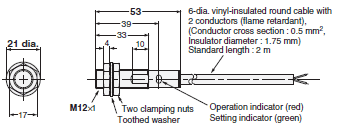

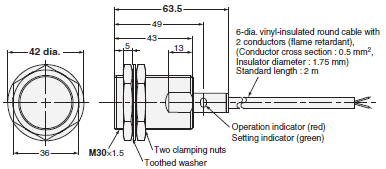

Pre-wired Models
E2EF-X2D1
E2EF-QX2D1

E2EF-X3D1
E2EF-QX3D1

E2EF-X7D1
E2EF-QX7D1

E2EF-X12D1
E2EF-QX12D1

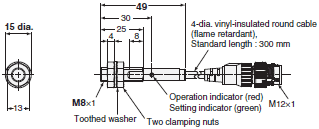

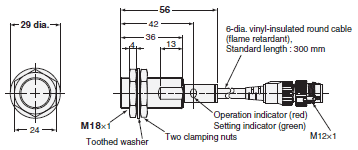

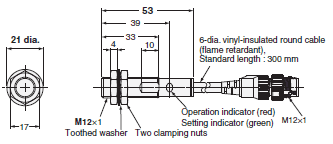

Smartclick Connector Models
E2EF-X2D1-M1TGJ
E2EF-QX2D1-M1TGJ

E2EF-X3D1-M1TGJ
E2EF-QX3D1-M1TGJ

E2EF-X7D1-M1TGJ
E2EF-QX7D1-M1TGJ

E2EF-X12D1-M1TGJ
E2EF-QX12D1-M1TGJ

last update: March 1, 2017

OMRON E2EF lineup
E2EF Proximity Sensor with All-stainless Housing/Lineup
last update: February 1, 2018
Sensors
Standard Models (Completely stainless-steel housing)

Connection method Appearance Sensing
distance Output Operation
mode Model
Pre-wired Models (2m) Shielded M8 2 mm DC 2-Wire
(polarity) NO E2EF-X2D1 2M
M12 3 mm E2EF-X3D1 2M
M18 7 mm E2EF-X7D1 2M
M30 12 mm E2EF-X12D1 2M
Pre-wired Smartclick
Connector Models (M12) Shielded M8 2 mm E2EF-X2D1-M1TGJ 0.3M
M12 3 mm E2EF-X3D1-M1TGJ 0.3M
M18 7 mm E2EF-X7D1-M1TGJ 0.3M
M30 12 mm E2EF-X12D1-M1TGJ 0.3M

Spatter-resistant Models (Completely stainless-steel housing with fluororesin coating)

Connection method Appearance Sensing
distance Output Operation
mode Model
Pre-wired Models (2m) Shielded M8 2 mm DC 2-Wire
(polarity) NO E2EF-QX2D1 2M
M12 3 mm E2EF-QX3D1 2M
M18 7 mm E2EF-QX7D1 2M
M30 12 mm E2EF-QX12D1 2M
Pre-wired Smartclick
Connector Models (M12) Shielded M8 2 mm E2EF-QX2D1-M1TGJ 0.3M
M12 3 mm E2EF-QX3D1-M1TGJ 0.3M
M18 7 mm E2EF-QX7D1-M1TGJ 0.3M
M30 12 mm E2EF-QX12D1-M1TGJ 0.3M
Note: Vinyl chloride is used for the cable material, and separate protection is required.

Accessories (Order Separately)

Sensor I/O Connectors
Smart Click Connectors

Cable connection
direction Cable
specifications Cable
length No. of cable
conductors Model Applicable Proximity Sensor
model number
Straight Flame-retardant,
flexible cable 2 m 4 XS5F-D421-D80-F E2EF-X[]D1-M1TGJ
E2EF-QX[]D1-M1TGJ
5 m 4 XS5F-D421-G80-F

Note: Refer to Sensor I/O Connector/Sensor Controller on your OMRON website for details.

last update: February 1, 2018

OMRON E2EF catalog
E2EF Proximity Sensor with All-stainless Housing/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E2EF Data Sheet D114-E1-01
[2218KB] Feb 01, 201820180201 E2EF Data Sheet

E2EF Catalog D113-E1-01
[3885KB] Feb 01, 201820180201 E2EF Catalog

NO. E2EF

TYPE:Proximity Sensors Cylindrical Copyright Statement

DATE:2021-06-10

Associated products:
E2E (Small-diameter) Small-diameter Proximity Sensor/Features E2E Standard Proximity Sensor/Features

Size	M8	M12
Shielded	Shielded
Exterior	Completely stainless- steel housing	Fluororesin coating	Completely stainless- steel housing	Fluororesin coating
Model	E2EF-X2D1 (-M1TGJ)	E2EF-QX2D1 (-M1TGJ)	E2EF-X3D1 (-M1TGJ)	E2EF-QX3D1 (-M1TGJ)
Sensing distance	2mm ± 10%	3mm ± 10%
Set distance	0 to 1.4 mm	0 to 2.1mm
Differential travel	15% max. of sensing distance
Sensing object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 12 × 12 × 1 mm	Iron, 12 × 12 × 1 mm
*Response frequency 1**	200Hz	80Hz
Power supply voltage	10 to 30 VDC, ripple (p-p): 10% max.
Leakage current	0.8 mA max.
Output configuration	With polarity
Control output	Switching capacity	3 to 100 mA
Residual voltage	3 V max.(Load current: 100 mA max., Cable length: 2 m)
Indicators	Operation indicator (red LED), Setting indicator (green LED)
Operation mode (with sensing object approaching)	NO (normally open)
Protection circuits	Surge suppressor, Load short-circuit protection
Ambient temperature range	Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	± 20% max. of sensing distance at 23 °C in the temperature range of − 10 to 70 °C.
Voltage influence	± 1% max. of sensing distance at rated voltage in the rated voltage ± 15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 500 m/s² 10 times each in X, Y, and Z directions	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67
Connection method	Unmarked: Pre-wired Models (Standard cable length: 2 m) Models ending with -M1TGJ: Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models (2 m)	Approx. 105 g	Approx. 190 g
Pre-wired Connector Models	Approx. 65 g	Approx. 85 g
Materials	Case	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Sensing surface	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
(thickness)	0.2mm	0.4mm
Clamping nuts	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Toothed washer	Zinc-plated iron
Cable	PVC (flame retardant)
Accessories	Instruction manual

Size	M18	M30
Shielded	Shielded
Exterior	Completely stainless- steel housing	Fluororesin coating	Completely stainless- steel housing	Fluororesin coating
Model	E2EF-X7D1 (-M1TGJ)	E2EF-QX7D1 (-M1TGJ)	E2EF-X12D1 (-M1TGJ)	E2EF-QX12D1 (-M1TGJ)
Sensing distance	7mm ± 10%	12mm ± 10%
Set distance	0 to 4.9mm	0 to 8.4mm
Differential travel	15% max. of sensing distance
Sensing object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
*Response frequency 1**	100Hz	50Hz
Power supply voltage	10 to 30 VDC, ripple (p-p): 10% max.
Leakage current	0.8 mA max.
Output configuration	With polarity
Control output	Switching capacity	3 to 100 mA
Residual voltage	3 V max.(Load current: 100 mA max., Cable length: 2 m)
Indicators	Operation indicator (red LED), Setting indicator (green LED)
Operation mode (with sensing object approaching)	NO (normally open)
Protection circuits	Surge suppressor, Load short-circuit protection
Ambient temperature range	Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)
Ambient humidity range	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	± 20% max. of sensing distance at 23 °C in the temperature range of − 10 to 70 °C.
Voltage influence	± 1% max. of sensing distance at rated voltage in the rated voltage ± 15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance	Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction: 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP67
Connection method	Unmarked: Pre-wired Models (Standard cable length: 2 m) Models ending with -M1TGJ: Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models (2 m)	Approx. 215 g	Approx. 295 g
Pre-wired Connector Models	Approx. 110 g	Approx. 190 g
Materials	Case	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Sensing surface	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
(thickness)	0.4mm	0.5mm
Clamping nuts	Stainless steel (SUS303) (E2EF-QX[]: Fluororesin coating)
Toothed washer	Zinc-plated iron
Cable	PVC (flame retardant)
Accessories	Instruction manual

Connection method	Appearance	Sensing distance	Output	Operation mode	Model
Pre-wired Models (2m)	Shielded	M8	2 mm	DC 2-Wire (polarity)	NO	E2EF-X2D1 2M
M12	3 mm	E2EF-X3D1 2M
M18	7 mm	E2EF-X7D1 2M
M30	12 mm	E2EF-X12D1 2M
Pre-wired Smartclick Connector Models (M12)	Shielded	M8	2 mm	E2EF-X2D1-M1TGJ 0.3M
M12	3 mm	E2EF-X3D1-M1TGJ 0.3M
M18	7 mm	E2EF-X7D1-M1TGJ 0.3M
M30	12 mm	E2EF-X12D1-M1TGJ 0.3M

Connection method	Appearance	Sensing distance	Output	Operation mode	Model
Pre-wired Models (2m)	Shielded	M8	2 mm	DC 2-Wire (polarity)	NO	E2EF-QX2D1 2M
M12	3 mm	E2EF-QX3D1 2M
M18	7 mm	E2EF-QX7D1 2M
M30	12 mm	E2EF-QX12D1 2M
Pre-wired Smartclick Connector Models (M12)	Shielded	M8	2 mm	E2EF-QX2D1-M1TGJ 0.3M
M12	3 mm	E2EF-QX3D1-M1TGJ 0.3M
M18	7 mm	E2EF-QX7D1-M1TGJ 0.3M
M30	12 mm	E2EF-QX12D1-M1TGJ 0.3M

Cable connection direction	Cable specifications	Cable length	No. of cable conductors	Model	Applicable Proximity Sensor model number
Straight	Flame-retardant, flexible cable	2 m	4	XS5F-D421-D80-F	E2EF-X[]D1-M1TGJ E2EF-QX[]D1-M1TGJ
5 m	4	XS5F-D421-G80-F

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E2EF Data Sheet	D114-E1-01 [2218KB]	Feb 01, 201820180201	E2EF Data Sheet
E2EF Catalog	D113-E1-01 [3885KB]	Feb 01, 201820180201	E2EF Catalog

Return to OMRON

OMRON E2EFSensors/ Proximity Sensors/Cylindrical

OMRON E2EF Dimensions

Long-distance Detection*1 Equivalent to or Greater Than Proximity Sensors with Resin Heads

More than 20 times*2 the durability of Proximity Sensors with Resin Heads.

Stable Detection in Harsh Environments with Splatter Resistance and Durability

Reduced Cleaning Frequency with Spatter Countermeasures

Purchase the OMRON Cylindrical Please fill in the following

OMRON E2EF specification

OMRON E2EF dimension

Sensors

Pre-wired Models

E2EF-X2D1E2EF-QX2D1

E2EF-X3D1E2EF-QX3D1

E2EF-X7D1E2EF-QX7D1

E2EF-X12D1E2EF-QX12D1

Smartclick Connector Models

E2EF-X2D1-M1TGJE2EF-QX2D1-M1TGJ

E2EF-X3D1-M1TGJE2EF-QX3D1-M1TGJ

E2EF-X7D1-M1TGJE2EF-QX7D1-M1TGJ

E2EF-X12D1-M1TGJE2EF-QX12D1-M1TGJ

OMRON E2EF lineup

Sensors

Standard Models (Completely stainless-steel housing)

Spatter-resistant Models (Completely stainless-steel housing with fluororesin coating)

Accessories (Order Separately)

OMRON E2EF catalog

English

Global Edition

E2EF-X2D1
E2EF-QX2D1

E2EF-X3D1
E2EF-QX3D1

E2EF-X7D1
E2EF-QX7D1

E2EF-X12D1
E2EF-QX12D1

E2EF-X2D1-M1TGJ
E2EF-QX2D1-M1TGJ

E2EF-X3D1-M1TGJ
E2EF-QX3D1-M1TGJ

E2EF-X7D1-M1TGJ
E2EF-QX7D1-M1TGJ

E2EF-X12D1-M1TGJ
E2EF-QX12D1-M1TGJ
