OMRON CK3W-PD048 specification
CK3W-PD048 CK3W Power Supply Unit/Specificationslast update: August 1, 2018
General Specifications
This section describes the Motion Controller specifications.
| Item | Specification | |
|---|---|---|
| Enclosure | Mounted in a panel | |
| Grounding Method | Ground to less than 100 Ω. | |
| Operating Environment | Ambient Operating Temperature | 0 to 55°C |
| Ambient Operating Humidity | 10% to 95% (with no condensation or icing) | |
| Atmosphere | Must be free of corrosive gases. | |
| Ambient Storage Temperature | -25 to 70°C (with no condensation or icing) | |
| Vibration Resistance | Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) | |
| Shock Resistance | Conforms to IEC 60068-2-27. 147 m/s2, 3 times each in X, Y, and Z directions | |
| Insulation Resistance | 20 MΩ min. between isolated circuits (at 100 VDC) | |
| Dielectric Strength | 510 VAC between isolated circuits for 1 minute with a leakage current of 5 mA max. | |
| Applicable Standards | cULus, EU: EN 61326, RCM, KC, EAC | |
Specifications
The specifications are shown below.
| Item | Specification |
|---|---|
| Power supply voltage | 24 VDC |
| Allowable power supply voltage range | 20.4 to 26.4 VDC |
| Power consumption | 101.7 W max. |
| Rated output voltage | 5 VDC/24 VDC |
| Maximum output power *1 | 5 VDC 23 W 24 VDC 66 W |
| Isolation method | Not isolated |
| Circuit configuration |  |
| Weight | 130 g max. |
| Dimensions (height × depth × width) | 90(H)/80(D)/45(W) |
*1. Internal components in the Power Supply Unit may deteriorate or be damaged if the Power Supply Unit is used for an extended period of time exceeding the power supply output capacity or used when the outputs are shorted.
last update: August 1, 2018
OMRON CK3W-PD048 dimension

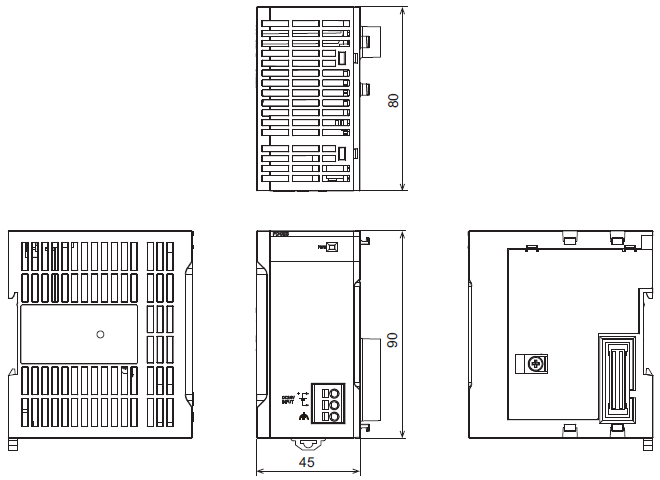

CK3W-PD048 CK3W Power Supply Unit/Dimensionslast update: August 1, 2018
(Unit: mm)
Power Supply Unit
last update: August 1, 2018
OMRON CK3W-PD048 catalog
CK3W-PD048 CK3W Power Supply Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 CK3W-PD048 Data Sheet | - [720KB] | Dec 20, 201820181220 | CK3W-PD048 Data Sheet |
| CK3M Catalog | R196-E1-02 [2452KB] | Jan 21, 201920190121 | CK3M Catalog |
OMRON CK3W-PD048 lineup
CK3W-PD048 CK3W Power Supply Unit/Lineuplast update: December 20, 2018
Applicable standards
Ask your OMRON representative for the most recent applicable standards for each model.
Power Supply Unit
The models and outline of specifications are given below.
| Product name | Specifications | Model |
|---|---|---|
| Power Supply Unit | Rated output voltage: 5 VDC/24 VDC Maximum output power: 5 VDC 23 W, 24 VDC 66 W | CK3W-PD048 |
Applicable Wires
Using Ferrules
If you use ferrules, attach the twisted wires to them.
Observe the application instructions for your ferrules for the wire stripping length when attaching ferrules.
Always use plated one-pin ferrules. Do not use unplated ferrules or two-pin ferrules.
The applicable ferrules, wires, and crimping tools are listed in the following table.
| Manufacturer | Ferrule model | Applicable wire (mm2 (AWG)) | Crimping Tool (applicable wire size given in parentheses) |
|---|---|---|---|
| Phoenix Contact | AI0,25-8 | 0.25 (#24) | Phoenix Contact CRIMPFOX 6 (0.25 to 6 mm2, AWG24 to 10) |
| AI0,5-8 | 0.5 (#20) | ||
| AI0,75-8 | 0.75 (#18) | ||
| AI1,0-8 | 1.0 (#18) | ||
| AI1,5-8 | 1.5 (#16) | ||
| Weidmüller | H0.25/12 | 0.25 (#24) | Weidmüller PZ6 Roto (0.14 to 6 mm2, AWG26 to 10) |
| H0.34/12 | 0.34 (#22) | ||
| H0.5/14 | 0.5 (#20) | ||
| H0.75/14 | 0.75 (#18) | ||
| H1.0/14 | 1.0 (#18) | ||
| H1.5/14 | 1.5 (#16) |
Using Twisted or Solid Wires
| Wire type | Conductor cross-sectional area | Conductor length (stripping length) |
|---|---|---|
| Solid wire | 0.2 to 4 mm2 | 8 mm |
| Twisted wire | 0.2 to 2.5 mm2 | 8 mm |
Required Tools
Use a flat-blade screwdriver to remove wires.
The recommended screwdriver is as follows.
| Model | Manufacturer |
|---|---|
| SZF 0-0,4X2,5 | Phoenix Contact |
last update: December 20, 2018
