OMRON VT-S500-02 Dimensions

last update: January 26, 2015

New concept in AOI for "optimization of customer’s quality cost".

The system uses innovative technologies to greatly reduce "inspection costs," which has been a major issue in conventional AOI technologies.
Moreover, while harnessing quality improvement systems, it facilitates efficient "defect prevention" to contribute to the reduction of "the end customer failure costs."

VT-S500 for realizing vertical startup and stable inspection

[Vertical startup of inspection] [High-speed/stable inspection]

Equipped with Color Highlight™ 3D (Core Technology)

Automatic extraction of "fillet features"

"The VT-S500 uses new image processing technology to automatically extract fillet features, which are quantified in numerical values and used for inspection."

Direct input of quality standards.
High-speed startup with automatic programming. (Patent Pending)

Automatic inspection programming is possible simply by setting inspection criteria for fillet features (length, height and width).

[High-speed/stable inspection]

Inspection time improves of 60%* compared with conventional models

Higher-speed inspection has become possible to respond to a significant increase in productivity.
* Compared with the evaluation result of VT-RNS2 series. (Omron's PCB)

Available in dual lane

Dual lanes for reduced cycle time. Position of lanes can be selected according to the customer's production facility.

Minimize the effect of secondary reflection and shadow

Parameters have been optimally set to pick up gradations unperceived by Human Eye and automatically separate good from bad components.

Auto parameter calculation to counteract the variation of components

In order to cope with component inconsistencies, parameters can be automatically calculated - simply by registering required components.

PCB position adjustment algorithm
Automatically detects to offset position of land position according to PCB variation and warpage.

Inspection accuracy has been improved and it has become possible to inspect at the correct position using the new position adjustment method based on the entire screen instead of the conventional land-based adjustment.

System solution

[Quality improvement support]

Different security levels can be assigned to the inspection system and its peripheral devices. The peripheral devices are connectable via an open network for location-free networking.

WEB application
v-CA

Visual check application
Inline Check
Inspection result can be obtained using production conditions such as PCB-ID and lot number as key words, facilitating visual check of defective locations.
Inspection result can be obtained using　such as PCB-ID and lot number, facilitating　visual check of defective locations.

WEB application
Q-up Navi

Monitoring of production status and quantification of defect causes/tendencies enable the acceleration of process improvement and process control cost reduction, while enhancing quality improvement support.

last update: January 26, 2015

Purchase the OMRON PCB Inspection System Please fill in the following

---

OMRON VT-S500-02 lineup

VT-S500-02 Inline PCB inspection system/Lineup

last update: January 26, 2015

Model	VT-S500-02

last update: January 26, 2015

OMRON VT-S500-02 catalog

VT-S500-02 Inline PCB inspection system/Catalog

• Catalog

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
VT-S500-02 Catalog	Q322-E1-05 [2633KB]	May 09, 201620160509	VT-S500-02 Catalog

OMRON VT-S500-02 specification

VT-S500-02 Inline PCB inspection system/Specifications

last update: March 09, 2015

Specifications

Image signal input unit	Imaging System	5 M pixel camera/Telecentric Lens
	Imaging Method	Color Highlight, 3D solder shape reconstruction
	Resolution	10 μm, 15 μm
Main unit	Feed method	Edge Belt Conveyor, Automatic Raid width Adjust
	Line height	900 ±20 mm Adjustment from adjustable feet
	PCB carrier width adjustment	Automatic
Power supply		200 to 240 VAC (single phase)
Ambient operating temperature		+10 to +35 ℃
Ambient operating humidity		35 to 80% RH (with no condensation)
Weight		Approx. 500kg
Dimensions		910 (W) × 1470 (D) × 1500 (H) mm

Functional Specifications

Inspectable PCBs	Type	Post-reflow/Flow/Post-placement
	Dimensions	Single lane: 50(W) × 50(D) to 510(W) × 610(D) mm Dual lane: 50 (W) × 50(D) to 510 (W) × 300(D) mm
	Thickness	0.4 to 4.0 mm
Clearance		Above PCB: 50 mm, Below PCB: 50 mm
Inspection items		Missing components, Wrong components, Component shifting (X/Y/skewing), Fillets (wettability length, height, width of the tip, wettability angle, length of the side), Land exposure, Polarity shifting, Polarity lifting Solder balls, Bridging, Objects, Through hole, Polarity, Inversion
Number of inspection points		10,000 components/PCB max.

last update: March 09, 2015

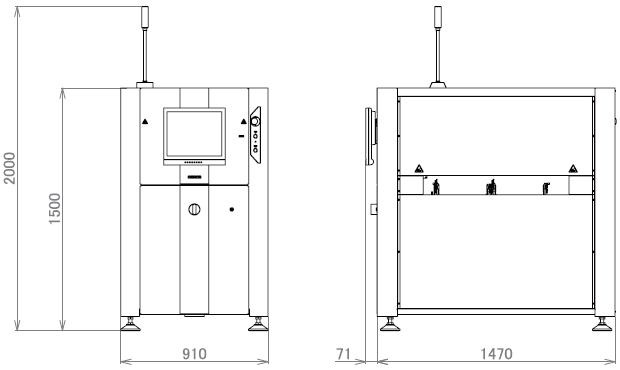

OMRON VT-S500-02 dimension

VT-S500-02 Inline PCB inspection system/Dimensions

last update: January 26, 2015

Tolerance: IT16

last update: January 26, 2015
