OMRON M7E (25 mm) lineup

last update: November 06, 2012

Display contents	Display color	Type	Model
Decimal	Red	Negative	M7E-02DRN2
	Green *1		M7E-02DGN2
	Red/green (two colors) *1		M7E-02DRGN2
Unit	Red	---	M7E-02UR2-[] *2
	Green	---	M7E-02UG2-[] *2

*1. The M7E-02DGN2 (single-color (green) model) is different from the M7E-02DRGN2 (two-color (red and green)
        model) in displayed tone.
*2. The symbol in the box ([]) expresses the code for the display contents. Refer to Data Sheet.

Connectable PLCs

M7E model		PLC's output method
Display contents	Type	Static output		Dynamic output
		PNP output	NPN output
Decimal	Negative	Not connectable	Connectable	Not connectable
Unit	---	Connectable (only voltage imposed)

Accessories (Order Separately)

End Plate

Case color	Model
Light gray	M7E-022M
Black	M7E-022M-1

Note: The Right and Left Plates form a pair.

Connector

Terminal	Model
Solder terminals	NRT-C
Solder terminals	NRT-CN
PCB terminals	NRT-CP

Cable with Connectors (1 to 1)

L Dimension	Model
1,000 mm	G79-100C
1,500 mm	G79-150C
2,000 mm	G79-200C
3,000 mm	G79-300C
5,000 mm	G79-500C

Cable with Crimp-style Terminals

L Dimension	Model
1,000 mm	G79-Y100C
1,500 mm	G79-Y150C
2,000 mm	G79-Y200C
3,000 mm	G79-Y300C
5,000 mm	G79-Y500C

Cable with Connectors (1 to 2)

L Dimension		Model (for output)
A	B	Model
1,000	750	G79-O100C-75
1,500	1,250	G79-O150C-125
2,000	1,750	G79-O200C-175
3,000	2,750	G79-O300C-275
5,000	4,750	G79-O500C-475

last update: November 06, 2012

OMRON M7E (25 mm) catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
M7E (25 mm) Data Sheet	- [1323KB]	Apr 03, 201720170403	M7E (25 mm) Data Sheet

OMRON M7E (25 mm) specification

last update: November 06, 2012

Ratings

Rated power supply		Wide range from 12 to 24 VDC
Allowable voltage fluctuation range		90% to 110% of rated voltage
Current consumption (per display)		Red LED: 60 mA max. (at 24 VDC), 100 mA max. (at 12 VDC) Green LED: 80 mA max. (at 24 VDC), 140 mA max. (at 12 VDC)
Input level	Negative logic	High: 4 V to power supply voltage Low: 0 to 1.5 V
Ambient temperature		Operating: -10 to 55°C (with no icing) Storage: -25 to 70°C (with no icing)
Ambient humidity		Operating: 35% to 85% (with no condensation)

Characteristics

Insulation resistance	100 MΩ min. (at 500 VDC) between each terminal and mounting panel
Dielectric strength	500 VAC, 50/60 Hz for 1 min between each terminal and mounting panel
Noise immunity (See note 2.)	Power terminal: ±500 V Input terminals: ±500 V (normal mode), ±1,500 V (common mode)
Vibration resistance	Destruction: 10 to 55 Hz, 0.75-mm double amplitude
Shock resistance	Destruction: 300 m/s2
Degree of protection	IEC IP40 (portion on panel surface)
Compatible connector	OMRON NRT-C/NRT-CN/NRT-CP

Note: 1. Initial values
           2. Impulse conditions:
               Rise time: 1 ns +10% max.
               Pulse width: 100 ns, 1 μs
               Polarity: Positive, negative, asynchronous to power frequency, 100-Hz repeat frequency.

last update: November 06, 2012

OMRON M7E (25 mm) dimension

last update: September 16, 2015

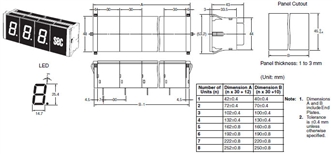

M7E-02[]N2

Accessories (Order Separately)

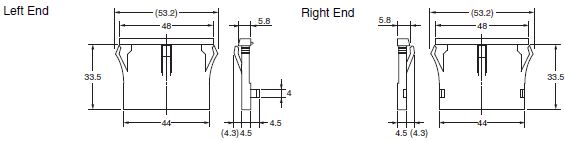

End Plate

M7E-022M(-1)

Face Plate

• A face plate is used with the Unit Display Unit, which incorporates a surface-lighting LED.• The following face plates are available.• Custom face plates can be made. Refer to the following for the procedure.

Character Dimensions

(Unit: mm)

Example of Dimensions

last update: September 16, 2015
