OMRON G7TC dimension

last update: April 9, 2018

(Unit: mm)

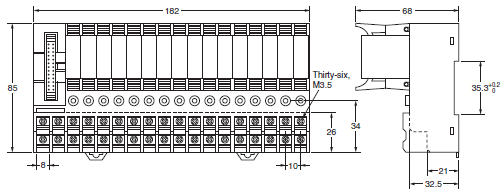

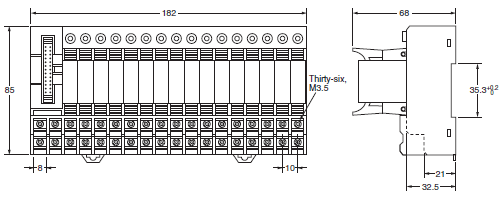

I/O Relay Terminal

G7TC-ID16
G7TC-IA16

G7TC-OC16
G7TC-OC16-1

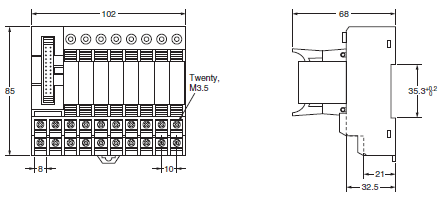

G7TC-OC08

Accessories (Order Separately)

Short Bar

G78-04
Use this piece for short-circuiting across terminals.
Max. current flow: 20 A

Output Short-Circuit Module

G77-S
The output of the I/O Relay Terminal can be obtained without relays through the G77-S Output Short-Circuit Module.
Note that the G77-S Output Short-Circuit Module is not available for inputs.

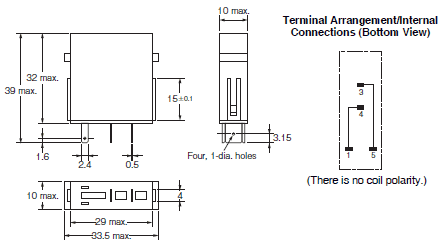

Socket

P7TF-05
The G7T (SPST-NO, SPST-NC, and SPDT types) and the G3TA I/O Relays can be mounted on the P7TF-05 Socket.
The P7TF-05 can be used for applications involving sequences that require slim relays, or to enable use of SPDT relays with the I/O Relay Terminal. To use part of the I/O Relay Terminal with SPDT specifications, insert an Output Short-Circuit Module into the I/O Relay Terminal, and use the P7TF-05 Socket in combination with an SPDT Relay for the Module’s output.

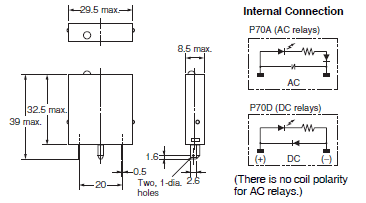

Indicator Module (With Surge Suppressing Function)

P70[]
Remove the transparent style strip of the P7TF-05 socket and mount this module and it will function as an operation indicator with the surge suppression.

Parts for Rail Mounting

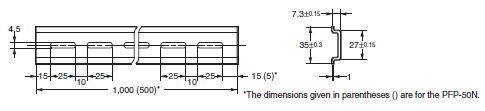

DIN Track
PFP-100N
PFP-50N

End Plate
PFP-M

Spacer
PFP-S

last update: April 9, 2018

OMRON G7TC specification

last update: April 9, 2018

Coil Ratings (Common to Input/Output per Relay)

Rated voltage (V)		Rated current (mA)		Coil resistance (Ω)	Must operate	Must release	Maximum voltage	Power consumption
		50 Hz	60 Hz		of rated voltage			per Relay	per 16 Relays
AC	100/(110)	8.2/-	7/7.7	8,700	80% max.	30% min.	105%	0.7 VA	11 VA
	200/(220)	4.1/-	3.5/3.85	33,300
DC	12	42		290	80% max.	10% min.	105%	0.5 W	8 W
	24	21		1,150
	100/110	5		20,000

Note: 1. The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of 15%/
              -20% for AC rated current and ±15% for coil resistance.
           2. The operating characteristics are measured at a coil temperature of 23°C.
           3. The value for maximum voltage is the maximum value within the allowable voltage fluctuation range for the
                 relay coil’s operating power supply. Continuous operation at this voltage is not within product specifications.
           4. Approx. 4 mA flows into each LED indicator. To calculate the power supply capacity, add the current value of
                 each LED indicator.
           5. When the G7TC is used with an AC rated voltage, three rated currents can be used. If a coil voltage of 110 or
                 220 VAC is used, 50 Hz cannot be used.

Contact Ratings (G7T I/O Relay)

Classification	For input		For output
	Resistive load (cosφ=1)	Inductive load (cosφ=0.4 L/R=7 ms)	Resistive load (cosφ=1)	Inductive load (cosφ=0.4 L/R=7 ms)
Rated load	1 A at 24 VDC	0.5 A at 24 VDC	2 A at 220 VAC 5 A at 24 VDC	1 A at 220 VAC 2 A at 24 VDC
Rated carry current	1A		5A
Max. switching voltage	250 VAC, 125 VDC
Max. switching current	1A	0.5A	5A	2A
Error rate (reference value) *	100 μA at 1 V		10 mA at 5 V
Electrical endurance	10,000,000 operations (at 10 mA) 50,000 operations (at 1 A)	2,500,000 operations (at 10 mA) 20,000 operations (at 1 A)	1,000,000 operations (under rated load)
Mechanical endurance	50,000,000 operations

* The above values are for a switching frequency of 120 operations/min.

Characteristics

Model		G7TC-IA16 (Input, AC coil)	G7TC-ID16 (Input, DC coil)	G7TC-OC16(-1) (output, DC coil)	G7TC-OC08 (output, DC coil)
Contact form		SPST-NO × 16			SPST-NO × 8
Contact mechanism		Bifurcated crossbar contact		Single contact
Contact material		Au cladding + Ag		AgInSn
Contact resistance *1		50 mΩ max.
Must Operate time *2		15 ms max.
Release time *2		15 ms max.
Max. switching frequency	Mechanical limit	18,000 operations/h
	At rated load	1,800 operations/h
Insulation resistance		100 MΩ (at 500 VDC)
Dielectric strength	Between coil and contact	2,000 VAC, 50/60 Hz for 1 minute
	Between same polarity contacts	1,000 VAC, 50/60 Hz for 1 minute
	Between paired connectors *3	250 VAC, 50/60 Hz for 1 minute
Vibration resistance		10 to 55 to 10 Hz with 0.5-mm single amplitude (1.0-mm double amplitude)
Shock resistance		200 m/s2
Noise immunity		Noise level: 1.5 kV; pulse width: 100 ns to 1μs
Rated voltage between positive and negative terminal blocks		Rated voltage of controller's (PLC or other) input circuit		12 VDC ±5% 24 VDC ±5%
Rated current between positive and negative terminal blocks		Input circuit current of controller (PLC or other) × number of ON points		12 VDC: 46 mA × number of ON points 24 VDC: 25 mA × number of ON points
Cable length *4	To controller	5 m max. (reference value)
	To I/O devices	50 m max. (reference value, for 2-mm2 CVV cable)		Dependent on load
Ambient operating temperature		0 to 55°C
Ambient operating humidity		35% to 85% (with no icing or condensation)
Tightening torque for external connections		0.78 to 1.18 Nm
Tensile strength		No damage when a tensile force of 49 N is applied in each direction. In the direction of the track, the tensile strength is 9.8 N min.
I/O terminal tightening torque		Tightening strength: 0.98 Nm; Tensile strength 49 N per minute
LED color		Red	Green
Case color		Transparent red	Transparent green	Transparent green
Coil surge absorber		Varistor	Diode (1 A, 1,000 V)
Weight		Approx. 640 g	Approx. 630 g	Approx. 670 g	Approx. 350 g

Note: The above values are initial values.
*1. Measurement: 1 A at 5 VDC.
*2. Ambient temperature: 23°C.
*3. This is between connector pin No. 10 and 20, and between connector pin No. 9 and 19.
*4. Connecting cables up to 5 m are available as standard products. For longer cables, enquire separately.

Approved Standards

• The rated values for safety standard certification are not the same as individually defined performance values. Always check the specifications before use.
• Standard G7TC I/O Relay Terminal, except for the G7TC-OC16-1 and the G7TC-OC08, have met UL and CSA standards (UL file no. E95399; CSA file no. LR35535).

UL standard certification (File No. E95399)

Model	Standard number	Category	Listed/Recognized	Contact ratings
G7TC-ID16 G7TC-IA16	UL508	NRAQ2	Recognized	Terminal block side: 250 VAC max./point Connector side: 10 mA/point, 24 VDC
G7TC-OC16	UL508	NRAQ2	Recognized	Terminal block side: Inductive load: 10 A, 250 VAC Resistive load: 10 A, 30 VDC Rated horsepower: 1/2 HP, 240 VAC

CSA Standard (File No. LR35535)

Model	Standard number	Class number	Contact ratings
G7TC-ID16	CSA C22.2 No.14	3211 04	6 to 240 VAC 6 to 125 VDC
G7TC-IA16
G7TC-OC16

Accessories (Order Separately)

Socket

P7TF-05

Contact resistance	10 mΩ max. (measured at 5 V DC, 1 A)
Dielectric strength	2,000 VAC for 1 minute
Insulation resistance	1,000 MΩ min. (at 500 V)
Vibration resistance	10 to 55 to 10 Hz, 0.5 mm single amplitude (1.0 mm double amplitude)
Shock resistance	1,000 m/s2
Ambient temperature	Operating: -40 to 70°C (with no icing or condensation)
Ambient humidity	5% to 85%
Weight	Approx. 28 g

last update: April 9, 2018

OMRON G7TC lineup

last update: April 9, 2018

I/O Relay Terminal

When your order, specify the rated voltage.

I/O classification	I/O points	Internal I/O common	Rated voltage	Model
Input	16	NPN (- common)	12 VDC	G7TC-ID16
			24 VDC
			100 (110) VDC
			100/(110) VAC	G7TC-IA16
			200/(220) VAC
Output	16	NPN (+ common)	12 VDC	G7TC-OC16
			24 VDC
		PNP (- common)	12 VDC	G7TC-OC16-1 *
			24 VDC
	8	NPN (+ common)	12 VDC	G7TC-OC08
			24 VDC

Note:1. When ordering, add the rated coil voltage to the model number.


         2. When the G7TC is used with an AC rated voltage, three rated currents can be used. If a coil voltage of 110 or 220
              VAC is used, 50 Hz cannot be used.

* Not approved by UL, CSA.

Accessories (Order Separately)

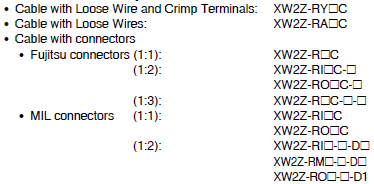

Cable for I/O Relay Terminals XW2Z-R

Refer to Connecting Cables on catalog for details.

Short Bar

Model
G78-04

Output Short-Circuit Module

Model
G77-S

Socket

Model
P7TF-05

Mounted Relays and I/O Terminal Sockets

Mounted Relays (G7T I/O Relays and G3TA I/O SSRs)
I/O Terminal Sockets (P7TF-IS16/OS16/OS08)
Refer to Safety Precautions on catalog for details.

Indicator Module (With Surge Suppressing Function)

	Model	Applicable relay coil voltage	Remarks
For AC relay	P70A	100 (110) V AC	Varistor surge suppression
		200 (220) V AC
For DC relay	P70D	12/24 V DC	Diode surge suppression

Note: 1. Order the indicator module suitable for the relay coil voltage.
          2. The indicator module for DC relays can be used with a 12V or 24 V DC power supply.

Accessories for DIN Track Mounting

Appearance	Name		Model	Minimum order (quantity)
	DIN Tracks	1 m	PFP-100N	1
		0.5 m	PFP-50N
	End Plate		PFP-M *	10
	Spacer		PFP-S *

* Please order in sets of 10 units.

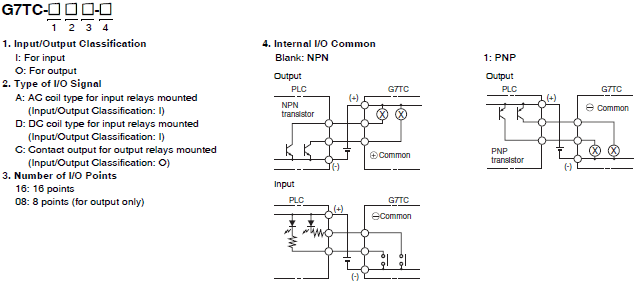

Model Number Legend

A G7TC I/O Relay Terminal is a combination of (8 or 16) G7T I/O Relays with SPST-NO specifications and a P7TF I/O Terminal Socket.

last update: April 9, 2018
