• Zero cross function enables less noise operation.
• Built-in varistor effectively absorbs external surges.
• Operation indicator enables monitoring operation.
• Protective cover for greater safety.
• Certified by UL, CSA and TÜV.
last update: December 25, 2013
Purchase the OMRON For Heater Control Please fill in the following
If you have just landed here, this product OMRON G3NB Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3NB We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3NBRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
NY51[]-A Industrial PC Platform NY-series IPC Programmable Multi-Axis Controller/Features
H3DT-F Twin Timer/Features
CJ1W-B7A CJ-series B7A Interface Unit/Features
NX-ECC NX-series EtherCAT Coupler Unit/Features
GT1-ROS16 / ROP08 / FOP08 Relay Output Units/Features
OMRON G3NB specification
G3NB Solid State Relays/Specificationslast update: September 09, 2014
Ratings
Input (at an Ambient Temperature of 25°C)
| Rated voltage | Operating voltage | Rated input current | Voltage level | |
|---|---|---|---|---|
| Operation voltage | Release voltage | |||
| 5 to 24 VDC | 4 to 32 VDC | 7 mA max. | 4 VDC max. | 1 VDC min. |
Output
| Model | Applicable load | ||||
|---|---|---|---|---|---|
| Rated load voltage | Load voltage range | Load current *1 | Inrush current | ||
| With heat sink *2 | Without heat sink | ||||
| G3NB-205B-1 | 24 to 220 VAC | 19 to 286 VAC | 0.1 to 6 A (at 25°C) 5 A (at 40°C) | 0.1 to 3 A (at 40°C) | 60 A (60 Hz, 1 cycle) |
| G3NB-210B-1 | 0.1 to 15 A (at 25°C) 10 A (at 40°C) | 0.1 to 4 A (at 40°C) | 150 A (60 Hz, 1 cycle) | ||
| G3NB-220B-1 | 0.1 to 25 A (at 25°C) 20 A (at 40°C) | 220 A (60 Hz, 1 cycle) | |||
| G3NB-225B-1 | 0.1 to 25 A (at 25°C) 25 A (at 40°C) | 220 A (60 Hz, 1 cycle) | |||
| G3NB-240B-1 | 0.1 to 40 A (at 25°C) 40 A (at 40°C) | 0.1 to 6 A (at 40°C) | 410 A (60 Hz, 1 cycle) | ||
| G3NB-275B-1 | 1 to 90 A (at 25°C) 75 A (at 40°C) | 1 to 7 A (at 40°C) | 800 A (60 Hz, 1 cycle) | ||
| G3NB-290B-1 | 1 to 110 A (at 25°C) 90 A (at 40°C) | 900 A (60 Hz, 1 cycle) | |||
*1. The load current varies depending on the ambient temperature. Refer to Load Current vs. Ambient Temperature under
Engineering Data.
*2. When an OMRON Heat Sink (refer to Options) or a heat sink of the specified size is used.
The values at 25°C are the maximum load currents.
Characteristics
| Item | G3NB- | ||||||
|---|---|---|---|---|---|---|---|
| 205B-1 | 210B-1 | 220B-1 | 225B-1 | 240B-1 | 275B-1 | 290B-1 | |
| Operate time | 1/2 of load power source cycle + 1 ms max. | ||||||
| Release time | 1/2 of load power source cycle + 1 ms max. | ||||||
| Output ON voltage drop | 1.6 V (RMS) max. | ||||||
| Leakage | 5 mA max. (at 100 VAC), 10 mA max. (at 200 VAC) | ||||||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | ||||||
| Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | ||||||
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.35-mm single amplitude (0.7-mm double amplitude) | ||||||
| Shock resistance | Destruction: 1,000 m/s2 | ||||||
| Ambient temperature | Operating: -30 to 80°C (with no icing or condensation) Storage: -30 to 100°C (with no icing or condensation) | ||||||
| Ambient humidity | Operating: 45% to 85% | ||||||
| Weight | Approx. 60 g | Approx. 80 g | Approx. 110 g | ||||
last update: September 09, 2014
OMRON G3NB catalog
G3NB Solid State Relays/Catalog- Catalog
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G3NB Data Sheet | J164-E1-03 [2068KB] | Sep 15, 201620160915 | G3NB Data Sheet |
OMRON G3NB lineup
G3NB Solid State Relays/Lineuplast update: September 09, 2014
| Isolation | Zero cross function | Indicator | Applicable output load *2 | Rated input voltage | Model |
|---|---|---|---|---|---|
| Photocoupler | Yes | Yes | 5 A at 24 to 220 VAC (at 40°C) | 5 to 24 VDC | G3NB-205B-1 5 to 24 VDC |
| 10 A at 24 to 220 VAC (at 40°C) | G3NB-210B-1 5 to 24 VDC | ||||
| 20 A at 24 to 220 VAC (at 40°C) | G3NB-220B-1 5 to 24 VDC | ||||
| 25 A at 24 to 220 VAC (at 40°C) | G3NB-225B-1 5 to 24 VDC | ||||
| 40 A at 24 to 220 VAC (at 40°C) | G3NB-240B-1 5 to 24 VDC | ||||
| 75 A at 24 to 220 VAC (at 40°C) | G3NB-275B-1 5 to 24 VDC | ||||
| 90 A at 24 to 220 VAC (at 40°C) | G3NB-290B-1 5 to 24 VDC |
*1. All models are certified by UL, CSA and TÜV.
*2. The applicable output load depends on the ambient temperature. Refer to "Load Current vs. Ambient Temperature"
in Engineering Data.
Accessories (Order Separately)
One-touch Mounting Plates
| Model |
|---|
| R99-12 FOR G3NA |
Mounting Bracket
| Model |
|---|
| R99-11 |
Heat Sinks
Slim Models Enabling DIN-track Mounting
| Model | Applicable SSR |
|---|---|
| Y92B-N50 | G3NB-205B-1 |
| G3NB-210B-1 | |
| Y92B-N100 | G3NB-220B-1 |
| Y92B-N150 | G3NB-225B-1 |
| G3NB-240B-1 | |
| Y92B-P250NF | G3NB-275B-1 |
| G3NB-290B-1 |
last update: September 09, 2014
OMRON G3NB dimension
G3NB Solid State Relays/Dimensionslast update: September 15, 2016
Relays

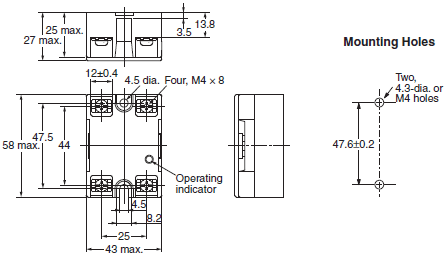

G3NB-205B-1
G3NB-210B-1

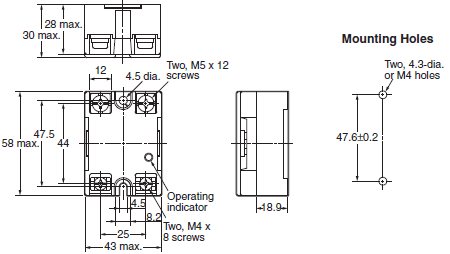

G3NB-220B-1
G3NB-225B-1

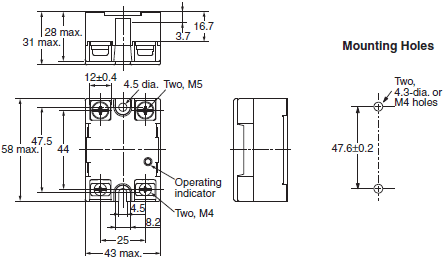

G3NB-240B-1
G3NB-275B-1
G3NB-290B-1
Options (Order Separately)
One-touch Mounting Plate
The One-touch Mounting Plate is used to mount the G3NB to a DIN Track.
R99-12 FOR G3NA
Heat Sinks

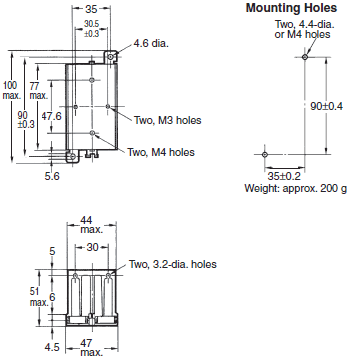

Y92B-N50 Heat Sink (for the G3NB-205B-1, G3NB-210B-1)
For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

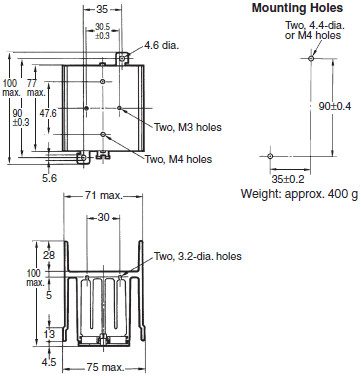

Y92B-N100 Heat Sink (for the G3NB-220B-1)
For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

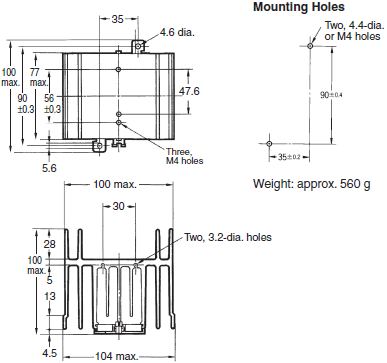

Y92B-N150 Heat Sink (for the G3NB-225B-1, G3NB-240B-1)
For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

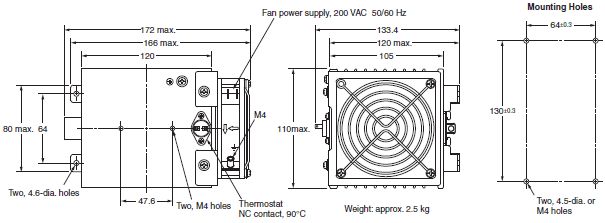

Y92B-P250NF Heat Sink (for the G3NB-275B-1, G3NB-290B-1)
For mounting method, refer to "Precautions for Correct Use".
