OMRON NX-ECCAutomation Systems/ Machine Automation Controllers/NX-series I/O System
OMRON NX-ECC Automation Systems
OMRON NX-ECC Dimensions
/Images/l_3184-25-171169-198x198.jpglast update: October 11, 2016
• Up to 63 NX-IO Units can be connected to one EtherCAT Coupler Unit. Standard and high-performance units can be mixed.*1
• High-speed remote I/O control is possible at the fastest communication cycle of 125 us.*2
• Each Coupler plus its I/O form just a single EtherCAT node on the network.
• I/O control and safety control can be integrated by connecting Units for safety.
• The Coupler supports the EtherCAT Distributed Clock (DC) and propagates this to synchronous I/O units.
• The node address can be fixed by rotary switches, or set by software. Choose the method that best suits your way of engineering.
• Slave configuration by Sysmac Studio can be done centrally via the controller, or on-the-spot using the Coupler's built-in USB port.
*1 Input per Coupler Unit: Maximum 1024 bytes, Output per Coupler Unit: Maximum 1024 bytes
*2 NX7-[][][][] and NX-ECC203 combined
Sysmac is a trademark or registered trademark of OMRON Corporation in Japan and other countries for OMRON factory automation products.
EtherCAT® is a registered trademark of Beckhoff Automation GmbH for their patented technology. EtherNet/IP™ is the trademarks of ODVA.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
last update: October 11, 2016
Purchase the OMRON NX-series I/O System Please fill in the following
If you have just landed here, this product OMRON NX-ECC Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NX-ECC We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NX-ECCAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3Z-LT / LR / LL Compact Laser Photoelectric Sensor with Built-in Amplifier/Features
B7AP Power Couplers/Features
VB Multiple Limit Switch/Features
A22NN / A22NL Pushbutton Switches/Features
H3YN Solid-state Timer/Features
OMRON NX-ECC dimension
NX-ECC NX-series EtherCAT Coupler Unit/Dimensionslast update: April 01, 2015
EtherCAT Coupler Unit

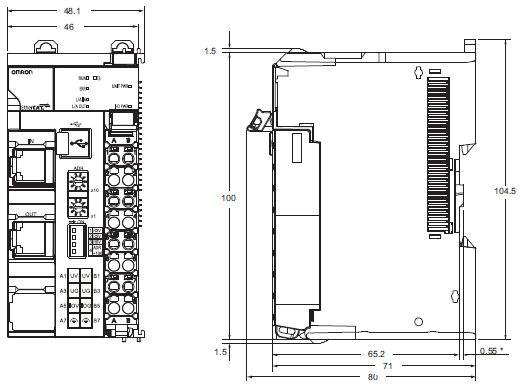

EtherCAT Coupler Unit Only
* The dimension is 1.35 mm for Units with lot numbers through December 2014.

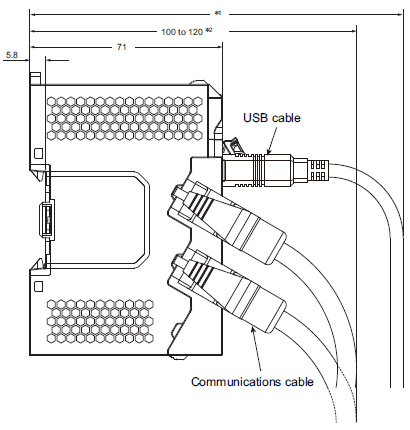

With Cables Connected
*1. This dimension depends on the specifications of the commercially available USB cable. Check the specifications of the USB cable that is used.
*2. This is the dimension from the back of the Unit to the communications cables.
• 100 mm: When an MPS588-C Connector is used.
• 120 mm: When an XS6G-T421-1 Connector is used.

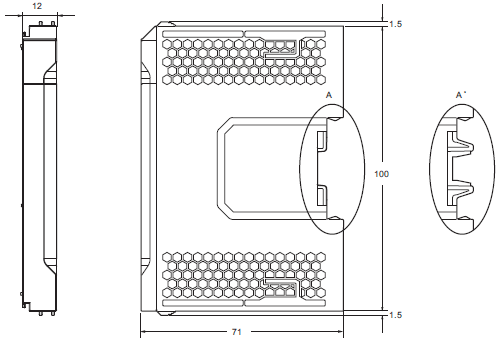

End Cover
* This is the shape for Units with lot numbers through December 2014.
last update: April 01, 2015
OMRON NX-ECC lineup
NX-ECC NX-series EtherCAT Coupler Unit/Lineuplast update: August 1, 2018
Applicable standards
Ask your OMRON representative for the most recent applicable standards for each model.
| Product name | Communications cycle in DC Mode *1 *2 | Current consumption | Maximum I/O power supply current | Model |
|---|---|---|---|---|
EtherCAT Coupler Unit | 250 to 4,000 μs | 1.45 W or lower | 4 A | NX-ECC201 |
| 10 A | NX-ECC202 | |||
| 125 to 10,000 μs | 1.25 W or lower | NX-ECC203 |
*1. This depends on the specifications of the EtherCAT master. For example, the values are as follows when the EtherCAT
Coupler Unit is connected to the built-in EtherCAT port on an NJ5-series CPU Unit: 500 μs, 1,000 μs, 2,000 μs, and
4,000 μs. Refer to the NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (Cat. No. W505) for the
specifications of the built-in EtherCAT ports on NJ/NX-series CPU Units.
*2. This depends on the Unit configuration.
Recommended EtherCAT Communications Cable
Use a straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.
Cable with Connectors
| Item | Appearance | Recommended manufacturer | Cable length [m] *1 | Model |
|---|---|---|---|---|
| Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plugs type *1 Wire gauge and number of pairs: AWG26, 4-pair cable Cable sheath material: LSZH *2 Cable color: Yellow *3 |  | OMRON | 0.3 | XS6W-6LSZH8SS30CM-Y |
| 0.5 | XS6W-6LSZH8SS50CM-Y | |||
| 1 | XS6W-6LSZH8SS100CM-Y | |||
| 2 | XS6W-6LSZH8SS200CM-Y | |||
| 3 | XS6W-6LSZH8SS300CM-Y | |||
| 5 | XS6W-6LSZH8SS500CM-Y | |||
| Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plugs type *1 Wire gauge and number of pairs: AWG22, 2-pair cable Cable color: Light blue |  | OMRON | 0.3 | XS5W-T421-AMD-K |
| 0.5 | XS5W-T421-BMD-K | |||
| 1 | XS5W-T421-CMD-K | |||
| 2 | XS5W-T421-DMD-K | |||
| 5 | XS5W-T421-GMD-K | |||
| 10 | XS5W-T421-JMD-K | |||
| Cable with Connectors on Both Ends (M12 Straight/M12 Straight) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black |  | OMRON | 0.5 | XS5W-T421-BM2-SS |
| 1 | XS5W-T421-CM2-SS | |||
| 2 | XS5W-T421-DM2-SS | |||
| 3 | XS5W-T421-EM2-SS | |||
| 5 | XS5W-T421-GM2-SS | |||
| 10 | XS5W-T421-JM2-SS | |||
| Cable with Connectors on Both Ends (M12 Straight/RJ45) Shield Strengthening Connector cable *4 M12/Smartclick Connectors Rugged RJ45 plugs type Wire Gauge and Number of Pairs: AWG22, 2-pair Cable Cable color: Black |  | OMRON | 0.5 | XS5W-T421-BMC-SS |
| 1 | XS5W-T421-CMC-SS | |||
| 2 | XS5W-T421-DMC-SS | |||
| 3 | XS5W-T421-EMC-SS | |||
| 5 | XS5W-T421-GMC-SS | |||
| 10 | XS5W-T421-JMC-SS |
*1. Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available.
Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available.
For details, refer to Cat.No.G019.
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3. Cables colors are available in blue, yellow, or Green.
*4. For details, contact your OMRON representative.
Cables/Connectors
Wire Gauge and Number of Pairs: AWG24, 4-pair Cable
| Item | Appearance | Recommended manufacturer | Model |
|---|---|---|---|
| Cables | - | Hitachi Metals, Ltd. | NETSTAR-C5E SAB 0.5 × 4P * |
| - | Kuramo Electric Co. | KETH-SB * | |
| - | SWCC Showa Cable Systems Co. | FAE-5004 * | |
| RJ45 Connectors | - | Panduit Corporation | MPS588-C * |
* We recommend you to use above cable and connector together.
Wire Gauge and Number of Pairs: AWG22, 2-pair Cable
| Item | Appearance | Recommended manufacturer | Model |
|---|---|---|---|
| Cables | - | Kuramo Electric Co. | KETH-PSB-OMR * |
| - | JMACS Japan Co., Ltd. | PNET/B * | |
| RJ45 Assembly Connector |  | OMRON | XS6G-T421-1 * |
* We recommend you to use above cable and connector together.
Note: Connect both ends of cable shielded wires to the connector hoods.
Optional Products
| Product name | Specification | Model |
|---|---|---|
| Unit/Terminal Block Coding Pins | Pins for 10 Units (30 terminal block pins and 30 Unit pins) | NX-AUX02 |
| Product name | Specification | Model | ||
|---|---|---|---|---|
| No. of terminals | Ground terminal mark | Terminal current capacity | ||
| Terminal Block | 8 | Present | 10 A | NX-TBC082 |
last update: August 1, 2018
OMRON NX-ECC specification
NX-ECC NX-series EtherCAT Coupler Unit/Specificationslast update: August 1, 2018
General Specification
| Item | Specification | |
|---|---|---|
| Enclosure | Mounted in a panel | |
| Grounding method | Ground to 100 Ω or less | |
| Operating environment | Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 95% (with no condensation or icing) | |
| Atmosphere | Must be free from corrosive gases. | |
| Ambient storage temperature | -25 to 70°C (with no condensation or icing) | |
| Altitude | 2,000 m max. | |
| Pollution degree | Pollution degree 2 or less: Conforms to JIS B3502 and IEC 61131-2. | |
| Noise immunity | Conforms to IEC61000-4-4. 2 kV (power supply line) | |
| Overvoltage category | Category II: Conforms to JIS B3502 and IEC 61131-2. | |
| EMC immunity level | Zone B | |
| Vibration resistance | Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2, 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) | |
| Shock resistance | Conforms to IEC 60068-2-27. 147 m/s2, 3 times each in X, Y, and Z directions | |
| Applicable standards * | cULus: Listed (UL 508 or UL61010-2-201), ANSI/ISA 12.12.01, EU: EN 61131-2, C-Tick or RCM, KC Registration, NK, and LR | |
* Consult your OMRON representative for the most recent applicable standards for each model.
Specifications
EtherCAT Coupler Unit NX-ECC201/NX-ECC202/NX-ECC203
| Item | Specification | |||
|---|---|---|---|---|
| NX-ECC201 | NX-ECC202 | NX-ECC203 | ||
| Number of connectable NX Units | 63 Units max. *1 | |||
| Send/receive PDO data sizes | Input: 1,024 bytes max. (including input data, status, and unused areas) Output: 1,024 bytes max. (including output data and unused areas) | |||
| Mailbox data size | Input: 256 bytes Output: 256 bytes | |||
| Mailbox | Emergency messages and SDO requests | |||
| Refreshing methods *2 | • Free-Run refreshing • Synchronous I/O refreshing • Time stamp refreshing | • Free-Run refreshing • Synchronous I/O refreshing • Time stamp refreshing • Task period prioritized refreshing | ||
| Node address setting range | When the settable node address range for the built-in EtherCAT port is 1 to 512 *3 • Set on switches: 1 to 199 • Set with the Sysmac Studio: 1 to 512 | |||
| When the settable node address range for the built-in EtherCAT port is 1 to 192 *3 • Set on switches: 1 to 192 • Set with the Sysmac Studio: 1 to 192 | ||||
| I/O jitter performance | Inputs: 1 μs max. Outputs: 1 μs max. | |||
| Communications cycle in DC Mode | 250 to 4,000 μs*4 *5 | 125 to 10,000 μs*4 *5 *6 | ||
| Unit power supply *7 | Power supply voltage | 24 VDC (20.4 to 28.8 VDC) | ||
| NX Unit power supply capacity | 10 W max. Refer to Installation orientation and restrictions for details. | |||
| NX Unit power supply efficiency | 70% | |||
| Isolation method | No isolation between NX Unit power supply and Unit power supply terminals | |||
| Current capacity of power supply terminals | 4 A max. | |||
| I/O power supply *7 | Power supply voltage | 5 to 24 VDC (4.5 to 28.8 VDC) *8 | ||
| Maximum I/O power supply current | 4 A | 10 A | ||
| Current capacity of power supply terminals | 4 A max. | 10 A max. | ||
| NX Unit power consumption | 1.45 W max. | 1.25 W max. | ||
| Current consumption from I/O power supply | 10 mA max. (for 24 VDC) | |||
| Dielectric strength | 510 VAC for 1 min, leakage current: 5 mA max. (between isolated circuits) | |||
| Insulation resistance | 100 VDC, 20 MΩ min. (between isolated circuits) | |||
| External connection terminals | Communications Connector For EtherCAT communications. • RJ45 × 2 (shielded) • IN: EtherCAT input data, OUT: EtherCAT output data | |||
| Screwless Clamping Terminal Block For Unit power supply, I/O power supply, and grounding. Removable. | ||||
| Peripheral USB Port For Sysmac Studio connection. • Physical layer: USB 2.0-compliant, B-type connector • Transmission distance: 5 m max. | ||||
| Dimensions | 46 × 100 × 71 mm (W×H×D) | |||
| Weight | 170 g max. | |||

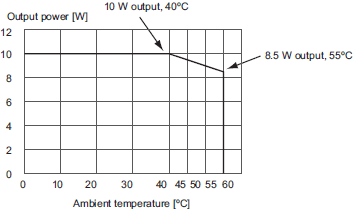

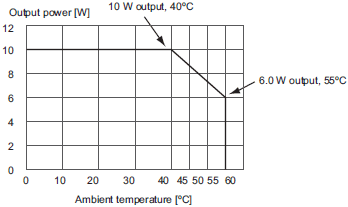

| Installation orientation and restrictions | Installation orientation: 6 possible orientations Restrictions: Used in the upright installation orientation.  Used in another orientation other than the upright installation orientation.  | |||

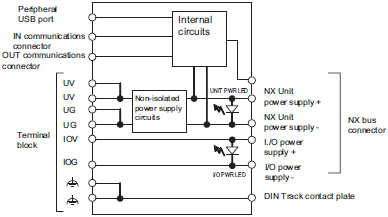

| Circuit layout |  | |||

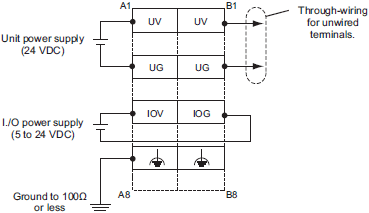

| Terminal arrangement |  | |||
| Accessory | End Cover (NX-END01): 1 | |||
*1. Refer to the NX-series Safety Control Units User’s Manual (Cat. No. Z930) for the number of Safety Control Units that
can be connected.
*2. This function was added or improved for a version upgrade. Refer to the NX-series EtherCAT Coupler Unit User’s
Manual (Cat. No. W519) for information on version upgrades.
*3. The range of node addresses that can be set depends on the model of the built-in EtherCAT port. For the node address
ranges that can be set for a built-in EtherCAT port, refer to the user's manual for the built-in EtherCAT port on the
connected CPU Unit or Industrial PC.
*4. This depends on the specifications of the EtherCAT master. For example, the values are as follows when the EtherCAT
Coupler Unit is connected to the built-in EtherCAT port on an NJ5-series CPU Unit: 500 μs, 1,000 μs, 2,000 μs, and
4,000 μs. For the specifications of the built-in EtherCAT port, refer to the user's manual for the built-in EtherCAT port
on the connected CPU Unit or the Industrial PC.
*5. This depends on the Unit configuration.
*6. There are restrictions in the communications cycles that you can set for some of the NX Units. If you use any of those
NX Units, set a communications cycle that will satisfy the specifications for the refresh cycles that can be executed by
the NX Unit. Refer to the appendix of the NX-series Data Reference Manual (Cat. No. W525-E1-07 or later) to see if
there are restrictions on any specific NX Units. For information on the communications cycles that you can set, refer to
the user’s manuals for the NX Units.
*7. Refer to the NX-series EtherCAT Coupler Unit User’s Manual (Cat. No. W519) for procedures for designing the Unit
power supply system and I/O power supply system.
*8. Use a voltage that is appropriate for the I/O circuits of the NX Units and the connected external devices.
EtherCAT Communications Specifications
| Item | Specification |
|---|---|
| Communications standard | IEC 61158 Type 12 |
| Physical layer | 100BASE-TX (IEEE 802.3) |
| Modulation | Baseband |
| Baud rate | 100 Mbps |
| Topology | Depends on the specifications of the EtherCAT master. |
| Transmission media | Category 5 or higher twisted-pair cable (Recommended cable: double-shielded cable with aluminum tape and braiding) |
| Transmission distance | Distance between nodes: 100 m or less |
Version Information
| Model number of EtherCAT Coupler Unit | Unit version | Corresponding versions | |||||
|---|---|---|---|---|---|---|---|
| Using an NX-series CPU Unit | Using an NJ-series CPU Unit | Using an NY-series Industrial PC | |||||
| Unit version of CPU Unit | Sysmac Studio version | Unit version of CPU Unit | Sysmac Studio version | Unit version of Industrial PC | Sysmac Studio version | ||
| NX-ECC201 | Ver. 1.2 | Ver. 1.10 | Ver. 1.13 | Ver. 1.07 | Ver. 1.08 | Ver. 1.12 | Ver. 1.17 |
| Ver. 1.1 | Ver. 1.06 | Ver. 1.07 | |||||
| Ver. 1.0 | Ver. 1.05 | Ver. 1.06 | |||||
| NX-ECC202 | Ver. 1.2 *1 | Ver. 1.07 | Ver. 1.08 | ||||
| NX-ECC203 | Ver. 1.5 | Ver. 1.19 | Ver. 1.19 | Ver. 1.19 | |||
| Ver. 1.4 | Ver. 1.16 | Ver. 1.16 | Ver. 1.17 | ||||
| Ver. 1.3 *2 | Ver. 1.13 | Ver. 1.13 | |||||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version,
support is provided by the oldest available version after the specified version. Refer to the user's manuals for the
specific Units for the relation between models and versions.
*1 For the NX-ECC202, there is no unit version of 1.1 or earlier.
*2 For the NX-ECC203, there is no unit version of 1.2 or earlier.
last update: August 1, 2018
OMRON NX-ECC catalog
NX-ECC NX-series EtherCAT Coupler Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 NX-ECC Data Sheet | - [2370KB] | Aug 01, 201820180801 | NX-ECC Data Sheet |
| NX-series I/O System Catalog | R183-E1-09 [6683KB] | Nov 01, 201820181101 | NX-series I/O System Catalog |
- NO. NX-ECC
- TYPE:Machine Automation Controllers NX-series I/O System Communications Coupler
- DATE:2021-06-16
- Associated products:
CJ1W-IC / II CJ-series I/O Control Unit / I/O Interface Unit/Features GX-ILM08C GX-series IO-Link Master Unit/Features
