OMRON GT1-ROS16 / ROP08 / FOP08Automation Systems/ Networks/DeviceNet
OMRON GT1-ROS16 / ROP08 / FOP08 Automation Systems
OMRON GT1-ROS16 / ROP08 / FOP08 Dimensions
/Images/l_1085-25-118897-198x198.jpglast update: December 19, 2013
• 8- and 16-point relay output models are available.
• Equipped with 8-point SSRs.
• DIN track mounting.
last update: December 19, 2013
Purchase the OMRON DeviceNet Please fill in the following
If you have just landed here, this product OMRON GT1-ROS16 / ROP08 / FOP08 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GT1-ROS16 / ROP08 / FOP08 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GT1-ROS16 / ROP08 / FOP08Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CP1H CP series CP1H CPU Unit/Features
FQ-M Series Vision Sensor/Features
B7AP Power Couplers/Features
E5AC-T Programmable Temperature Controller (Digital Controller) (96 × 96 mm)/Features
H3CR-A Solid-state Multi-functional Timers/Features
OMRON GT1-ROS16 / ROP08 / FOP08 lineup
GT1-ROS16 / ROP08 / FOP08 Relay Output Units/Lineuplast update: September 24, 2012
| I/O classification | I/O points | I/O connections | Power supply voltage | I/O specification | Model |
|---|---|---|---|---|---|
| Relay output | 16 | M3 terminal block | 24 VDC | 2 A, SPST-NO | GT1-ROS16 |
| 8 | 5 A, SPST-NO | GT1-ROP08 | |||
| SSR | 8 | --- | GT1-FOP08 |
last update: September 24, 2012
OMRON GT1-ROS16 / ROP08 / FOP08 catalog
GT1-ROS16 / ROP08 / FOP08 Relay Output Units/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 DeviceNet Catalog | Q102-E1-14 [30569KB] | Aug 03, 201820180803 | DeviceNet Catalog |
OMRON GT1-ROS16 / ROP08 / FOP08 specification
GT1-ROS16 / ROP08 / FOP08 Relay Output Units/Specificationslast update: February 03, 2014
General Specifications
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |||
|---|---|---|---|---|
| Current consumption * | I/O Unit interface | I/O power supply | ||
| GT1-ROP08 | 40 mA max. | GT1-ROP08 | 350 mA max. | |
| GT1-FOP08 | GT1-FOP08 | |||
| GT1-ROS16 | 50 mA max. | GT1-ROS16 | 250 mA max. | |
| Connectable Units | 8 | |||
| Dielectric strength | 500 VAC (between isolated circuits) | |||
| Noise immunity | Conforms to IEC 61000-4-4, 2 kV (power line) | |||
| Vibration resistance | 10 to 55 Hz, 1.0-mm double amplitude or 70 m/s2 | |||
| Shock resistance | 200 m/s2 | |||
| Mounting method | DIN 35 mm-track mounting | |||
| Mounting strength | No damage when 100 N pull load was applied in all directions | |||
| Terminal strength | No damage when 100 N pull load was applied | |||
| Screw tightening torque | 0.3 to 0.5 Nm | |||
| Ambient operating temperature | -10°C to 55°C | |||
| Ambient operating humidity | 25% to 85% (with no icing or condensation) | |||
| Ambient storage temperature | -25°C to 65°C | |||
| Accessories | I/O Unit Connecting Cable (40 mm) | |||
* The above current consumption is a value with all the points turned ON including the current consumption of the relay
coils.
Relay Output Specifications
| Model | GT1-ROS16 | GT1-ROP08 | GT1-FOP08 |
|---|---|---|---|
| Relay model | G6D-1A-ASI (24 VDC) | G2R-1-SN (24 VDC) | G3R-ODX02SH-UTU (5 to 24 VDC) |
| Maximum contact current | 2 A | 5 A | 0.01 to 1.5 A |
| Minimum applicable load (reference values) | 5 VDC, 10 mA | 5 VDC, 100 mA | 4 to 48 VDC |
| Electrical life expectancy | 100,000 operations min. with switching frequency of 1,800 operations per hour (at ambient temperature of 23°C with rated load) | --- | |
| Mechanical life expectancy | 20,000,000 operations min. with switching frequency of 18,000 operations per hour (at ambient temperature of 23°C with rated load) | --- | |
last update: February 03, 2014
OMRON GT1-ROS16 / ROP08 / FOP08 dimension
GT1-ROS16 / ROP08 / FOP08 Relay Output Units/Dimensionslast update: November 12, 2012

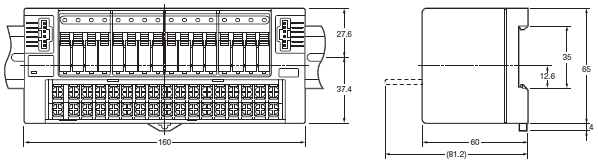

GT1-ROS16
Note: Accessory cable included.

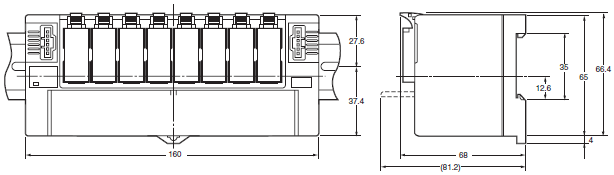

GT1-ROP08
GT1-FOP08
Note: Accessory cable included.
last update: November 12, 2012
- NO. GT1-ROS16 / ROP08 / FOP08
- TYPE:Networks DeviceNet MULTIPLE I/O
- DATE:2021-06-14
